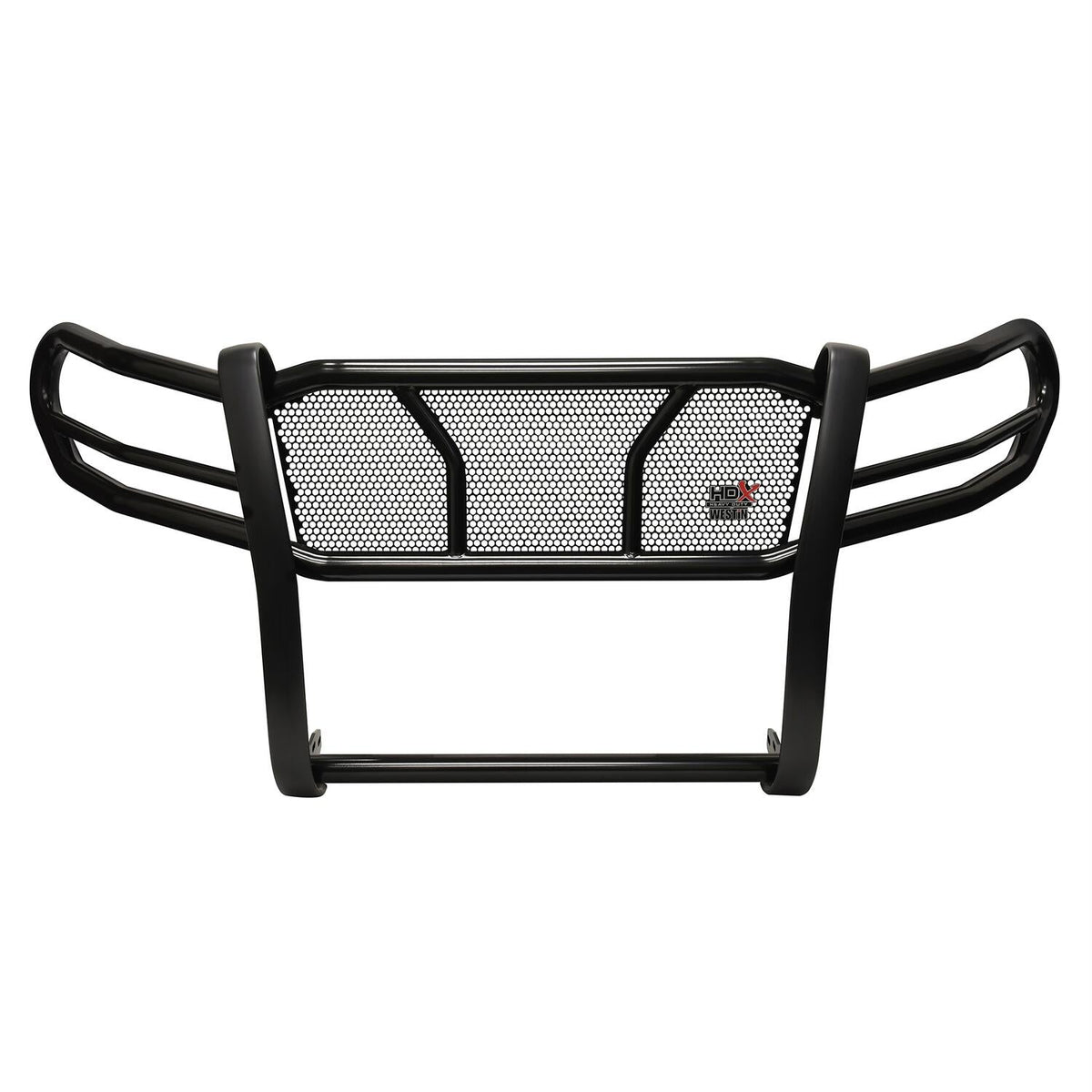

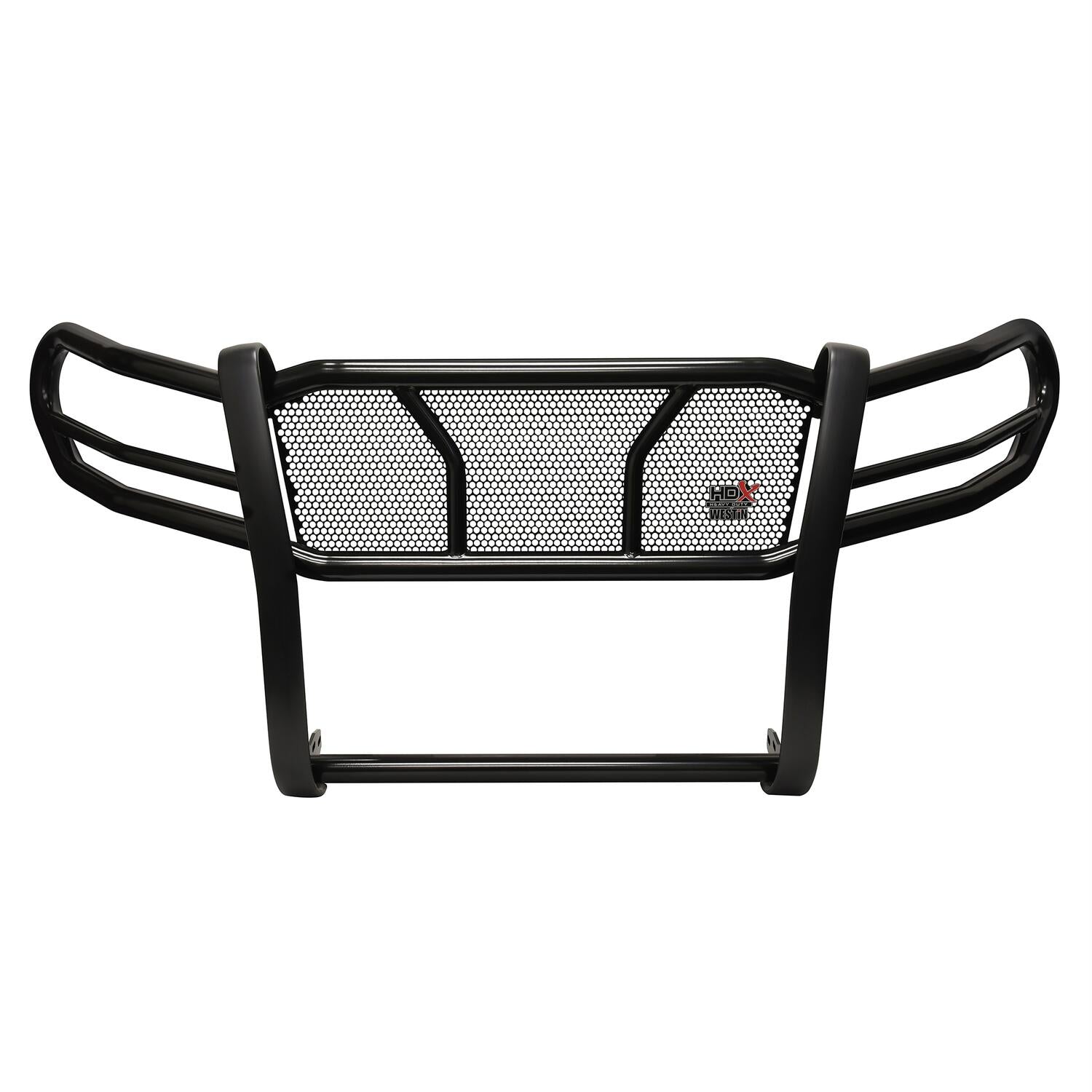

Toyota Tacoma 3rd Gen 2016-2023, Westin HDX Modular Grille Guard, 3-Piece, Black

Trail brush, rocks and gravel kick up at a Tacoma's grille and headlights all season. The Westin HDX Modular Grille Guard fits the 3rd Gen Tacoma without sensors, and puts a three-piece steel guard across the front with bolt-on headlight guards, a full punch plate grille and 2in tube wraparound wings. Rubber push pad strips cover the uprights. The mount kit and hardware ship with it for the install. Trim the air dam as noted, bolt the guard to the frame, and the Tacoma heads out with its front end covered.

Key Features

• Three-piece design with bolt-on headlight guards
• Full punch plate grille
• 2in tube full wraparound wings
• 1 1/4in tube support wings on some applications
• 2 3/4in wide rubber push pad strips on the uprights
• Electrostatic base coat under the black powder coat
• Set of 2 optional light clamps sold separately

Specifications

• Material: Steel
• Color: Semi gloss black
• Finish: Powder coated
• Tube outside diameter: 2in
• Construction: 3-piece, modular

Fitment

• Toyota Tacoma 2016-2023 (without sensors)

In the Box

• Grille guard, 3-piece
• Mount kit and hardware

Notes

• Not compatible with the optional 10in HDX Flush Mount B-Force LED Mount Kit, part 57-0035.
• Requires a slight bend to the aluminum A/C line to clear the upper bracket.
• Requires trimming or removing the air dam/bumper valance (trimming on 2016+ vehicles).
• The special TRD skid plate and TRD tow hooks cannot be reused.
• Vehicles 2018+ will interfere with the function of the Toyota Safety Sense (TSS) system if equipped.

MPN 57-23885 · UPC 00707742112922
