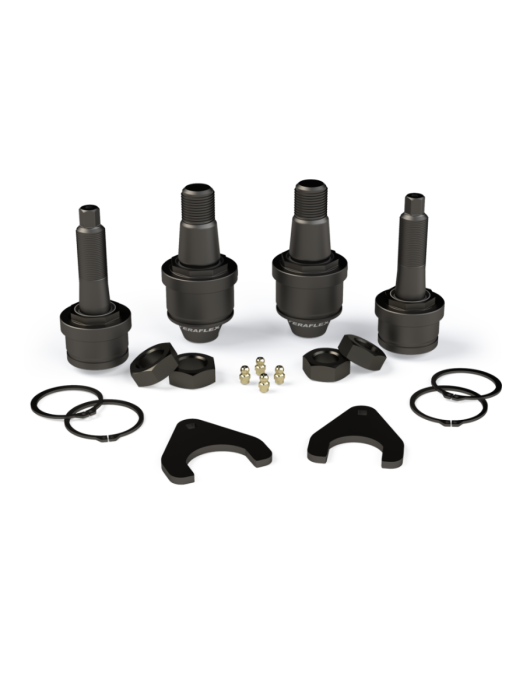

TeraFlex Tera60 HD Ball Joint Kit, Upper and Lower, Set of 4

Worn ball joints on a 60 axle mean a rebuild, and oversized tires, heavy loads and offset wheels shorten their life. Conventional crimp-style retaining designs are known for separation failures.

TeraFlex Tera60 HD wear-adjustable ball joints replace the crimp-style design with a threaded ball stud retaining ring. The ring allows precise preload adjustment during assembly and on-vehicle adjustment later with basic hand tools, so a worn joint is adjusted instead of rebuilt. Each joint has a 32mm heat-treated chromoly ball stud and a hardened tool steel wear plate, with dual helical grease grooves that let spent grease exit through a low-profile seal.

Install the set of four, adjust the preload, and keep the grease zerks reachable even with the axle shafts in.

Key Features

• Threaded ball stud retaining ring replaces the crimp-style design
• 32mm heat-treated 4140 chromoly ball stud and hardened tool steel wear plate
• Heat-treated 1045 carbon steel housings and threaded retaining rings
• Wear and preload adjustment on the vehicle with simple tools
• Corrosion-resistant coating and low-profile single-lip dust seal
• Grease zerks accessible with axle shafts installed
• Ball stud retaining ring adjustment tool and factory-style nuts included

Specifications

• Quantity: Set of 4, upper and lower
• Ball stud: 32mm heat-treated chromoly

Fitment

• Current TeraFlex 60 axles (slight knuckle clearance required for wear adjustment set screw access)
• Updated Tera60 knuckle
• Currie 60 axles
• Dynatrac 60 axles
• Ford F-250 4WD Dana 60 1999
• Ford F-350 4WD Dana 60 1992-1997
• Ford F-250 Super Duty 4WD Dana 60 1999-2022
• Ford F-350 Super Duty 4WD Dana 60 1999-2022
• Ford F-450 Super Duty 2WD and 4WD Dana 60 1999-2018
• Ford F-550 Super Duty 2WD and 4WD Dana 60 1999-2004
• Ford Excursion 4WD Dana 60 2000-2005

MPN 3452030 · UPC 843885074922
