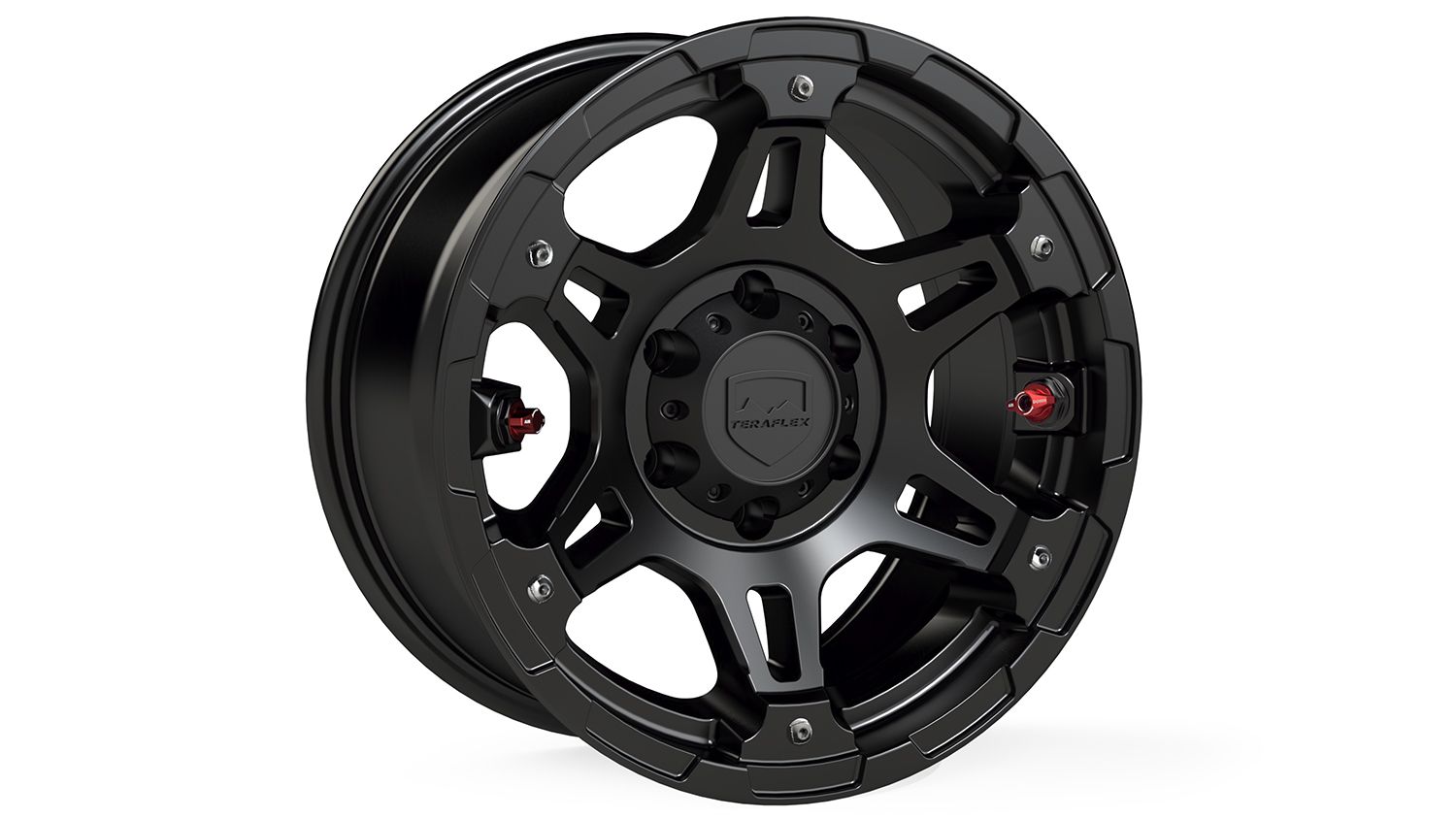

TeraFlex Nomad Split Spoke Off-Road Wheel, 17x8.5, 6x139mm

Off-road wheels have to look right and take abuse, and airing down on the trail should not mean kneeling at every valve. The TeraFlex Nomad Split Spoke Off-Road Wheel is a cast alloy wheel with a modern take on the classic split spoke, six-hole design. The Modular Plug System makes it compatible with TeraFlex's proprietary Air Deflator Valve, which airs the tire down to a preset pressure, adjustable as low as 10 psi with an adjustment screw. The 17x8.5 wheel has a 6x139mm bolt pattern. Mount the tires, set the valve, and air down in one step.

Key Features

• Cast alloy construction with a reinterpretation of the classic split spoke, six-hole design
• Modular Plug System is compatible with TeraFlex's proprietary Air Deflator Valve
• Adjustment screw sets the preset pressure at any psi down to 10 psi
• Hub centric: Toyota

Specifications

• Diameter x width: 17 x 8.5in
• Bolt pattern: 6x139mm
• Offset: -12mm (1058049, 1058249) or 0mm (1058029)
• Back spacing: 4.25in (-12mm offset) or 4.75in (0mm offset)
• Finish: Metallic Black or Bronze by part number

Fitment

• 6x139mm lug pattern

In the Box

• Nomad split spoke off-road wheel
• Air deflator valve (1056000)
• Schrader valve stem housing and cap (1056001)
• Center cap, 6x139mm (1056005)

MPN 1058049 (Metallic Black, -12mm) · UPC 843885056843

MPN 1058029 (Metallic Black, 0mm) · UPC 843885056836

MPN 1058249 (Bronze, -12mm) · UPC 843885056874
