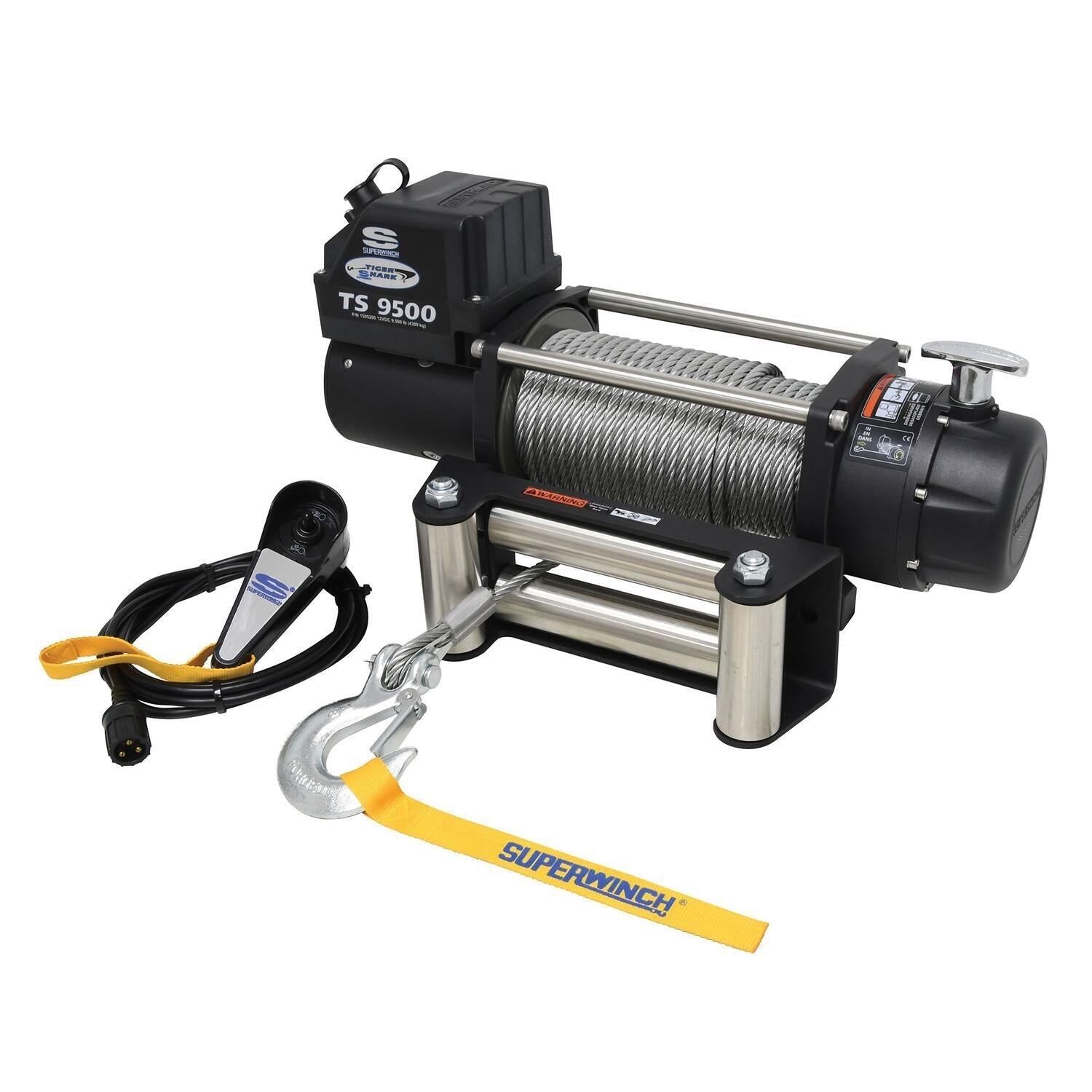

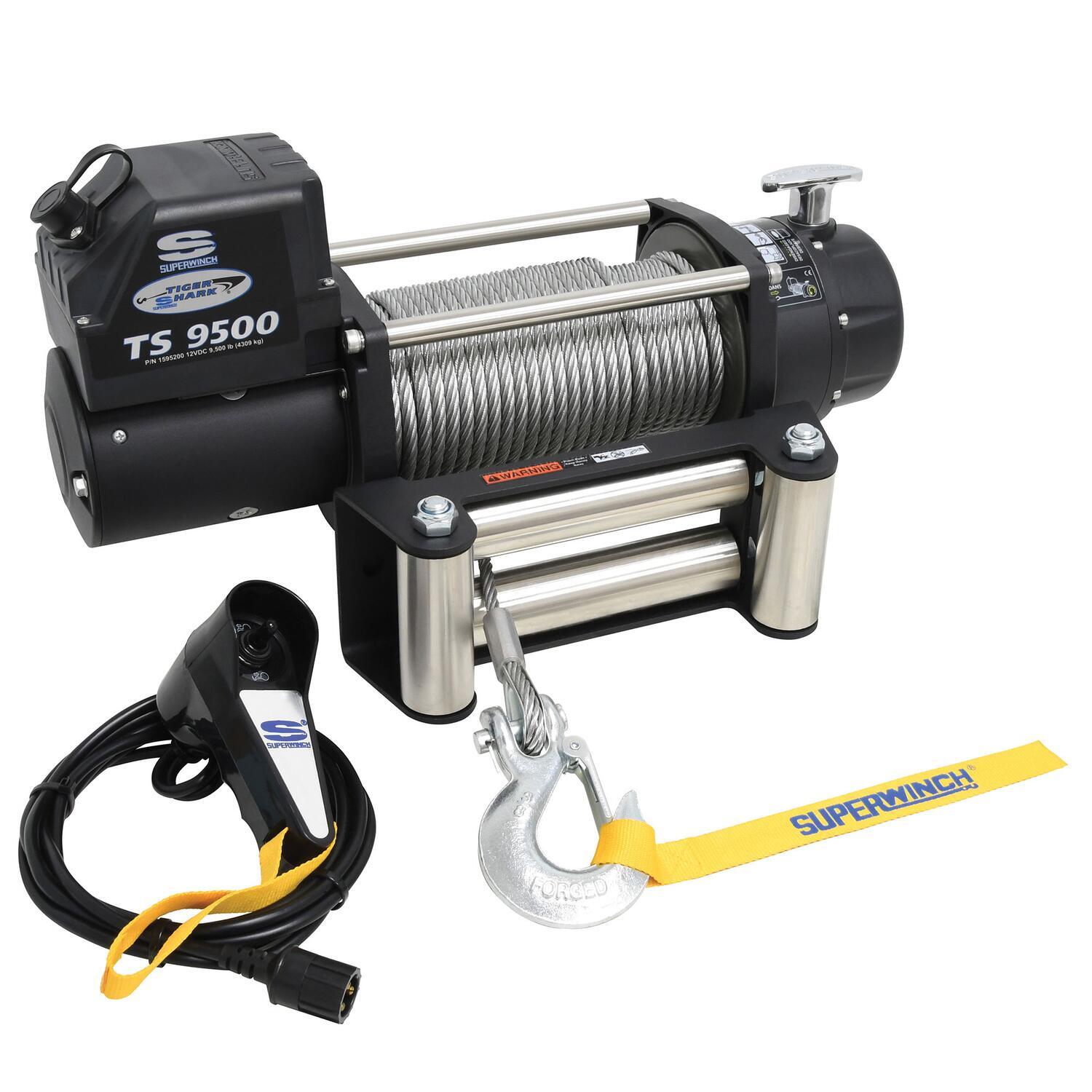

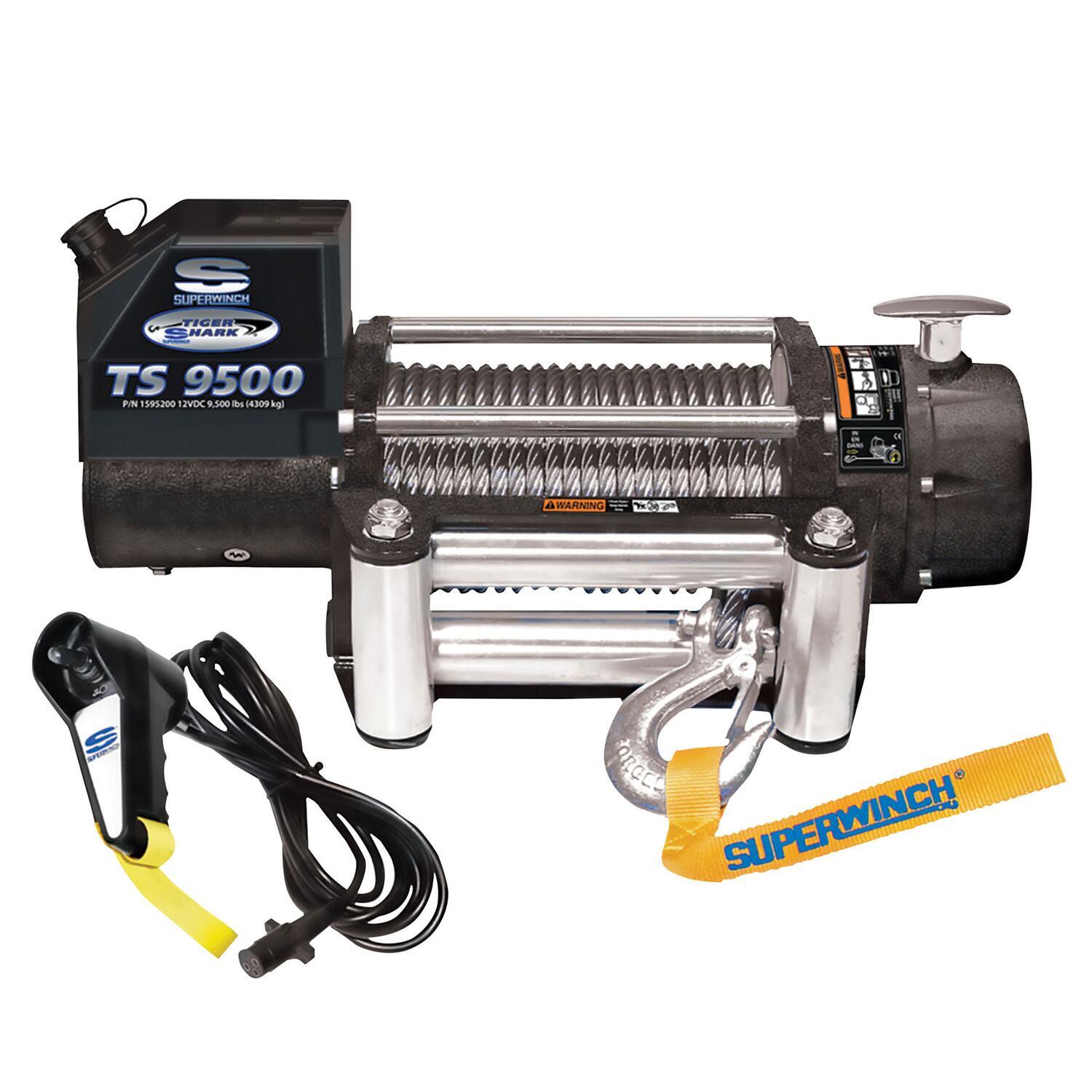

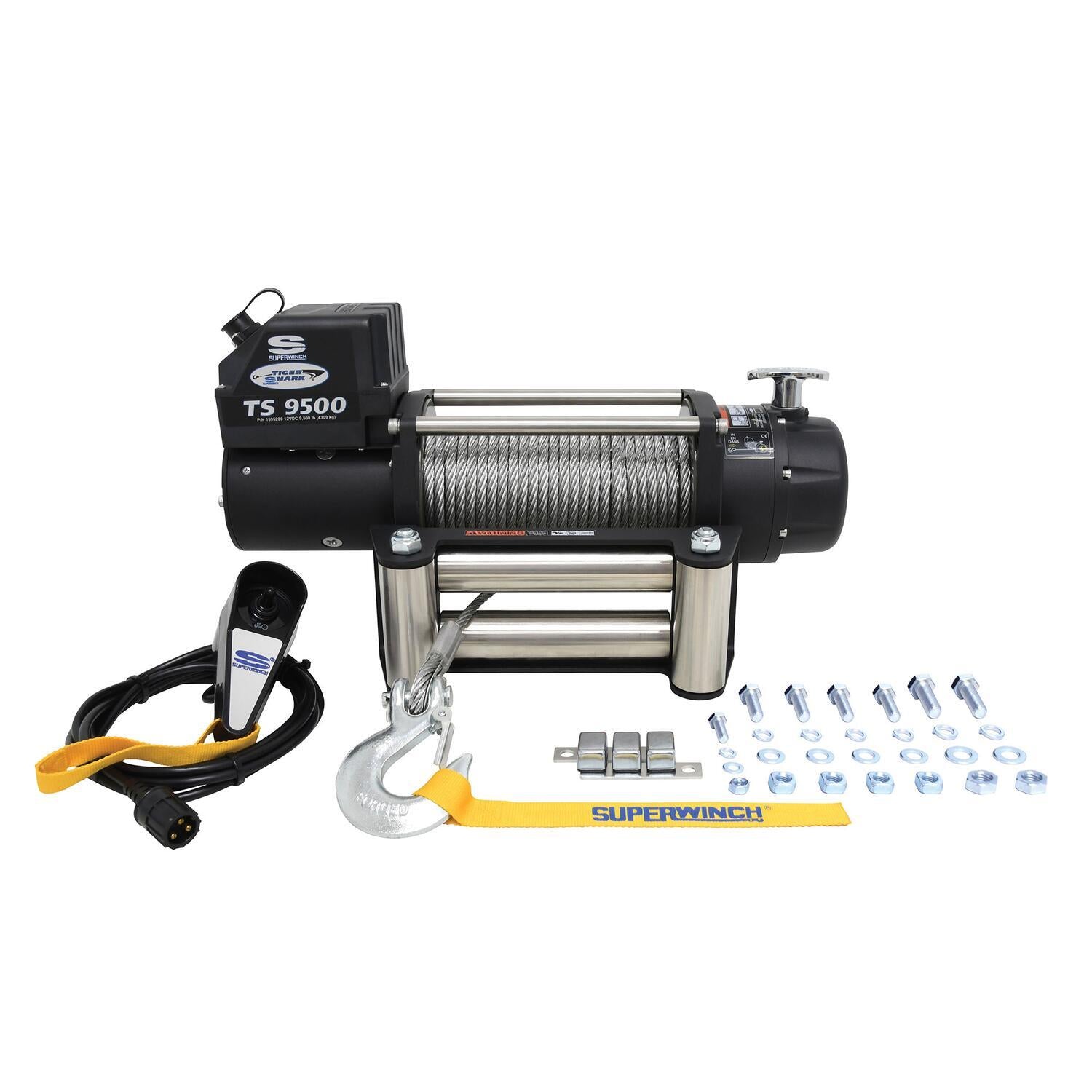

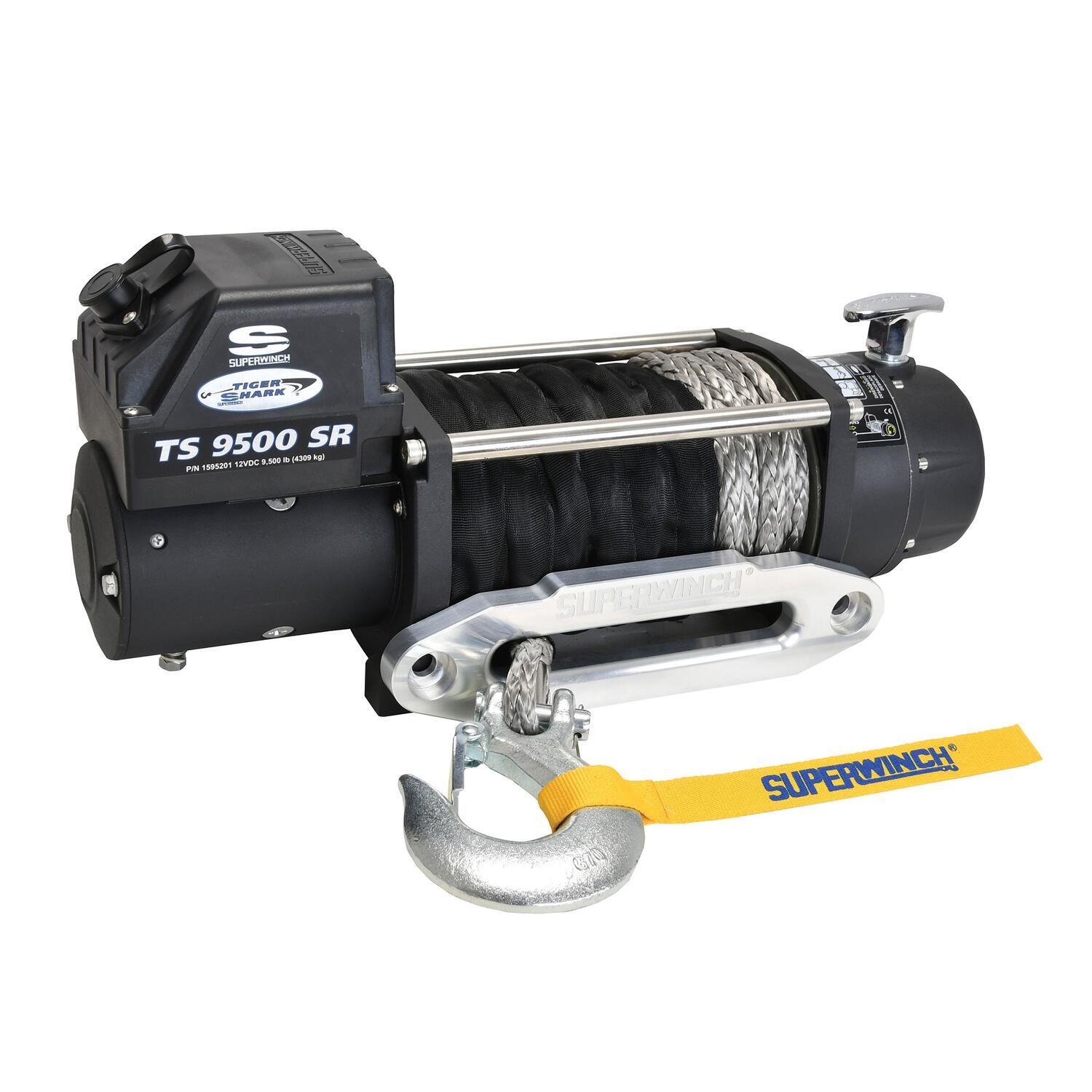

Superwinch Tiger Shark 9500 Winch, 9,500 lb, 12V DC

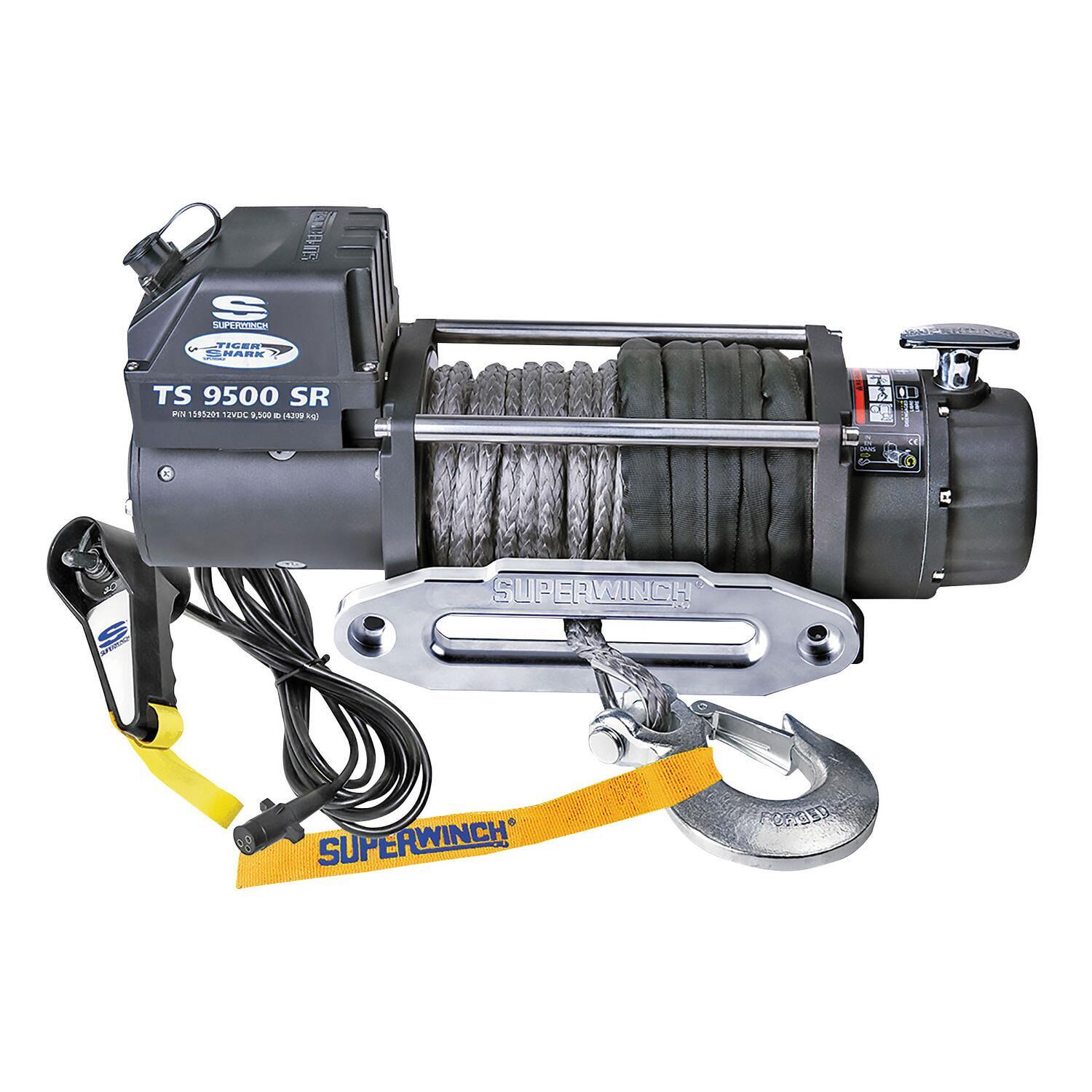

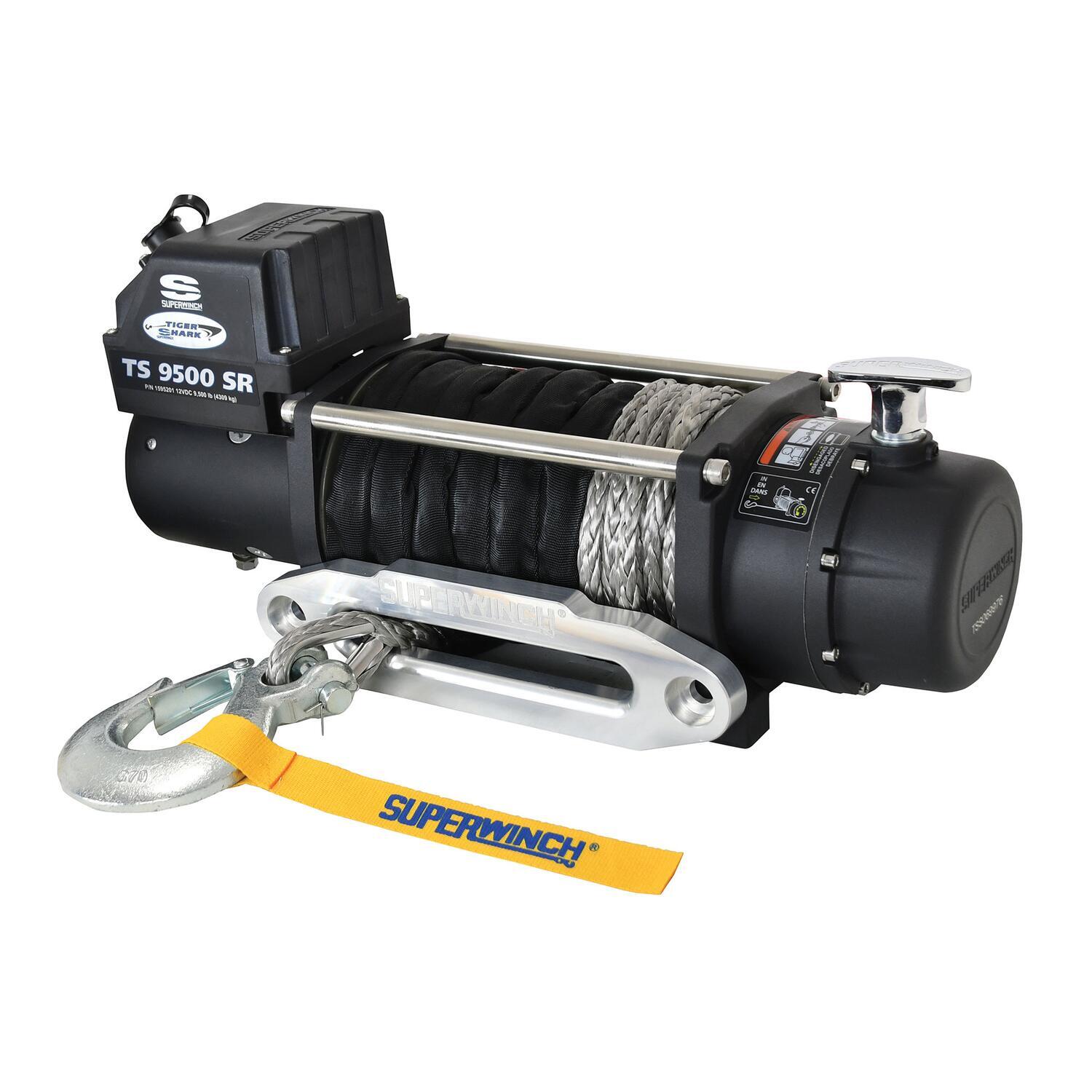

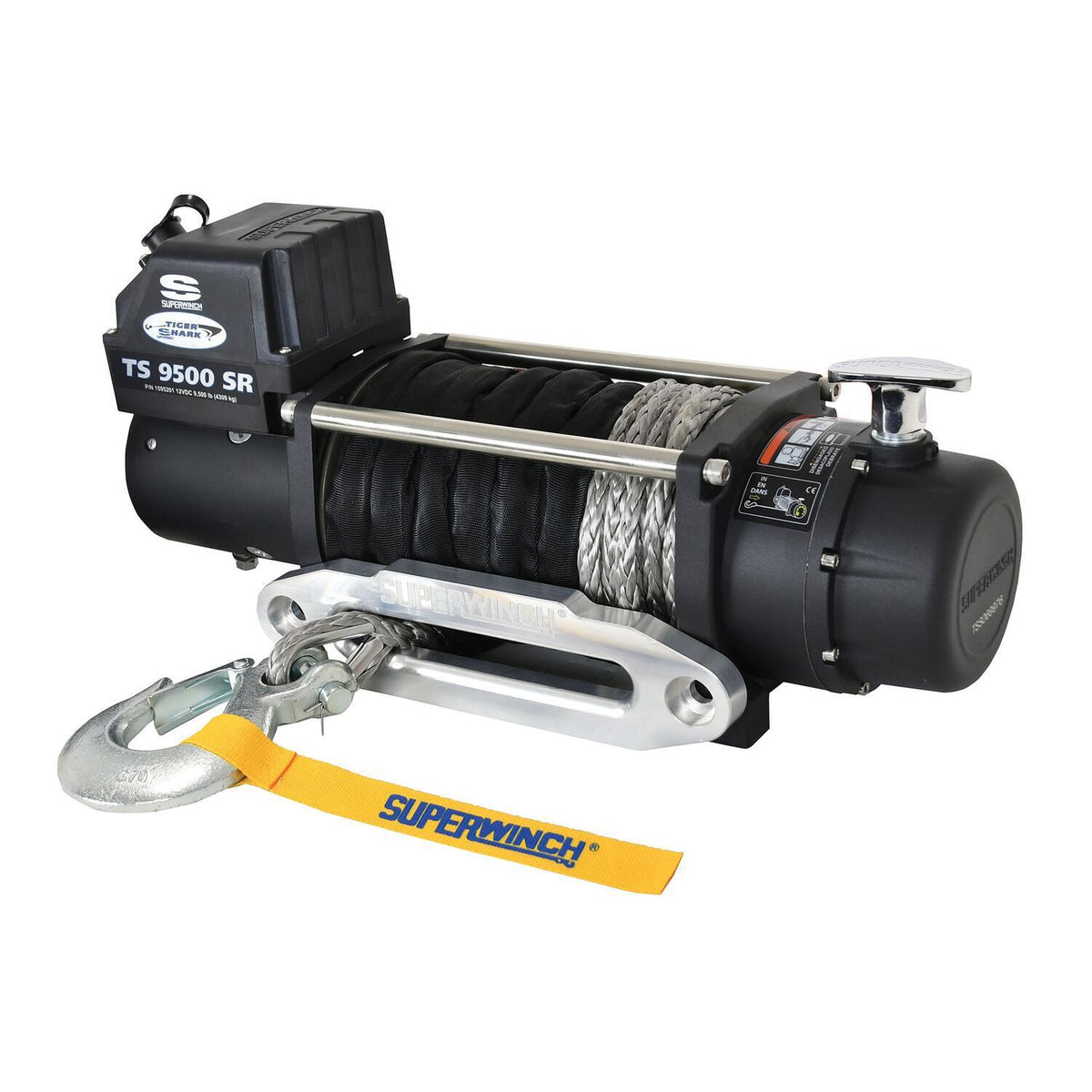

Getting a loaded rig out of a rut takes real line pull. The Superwinch Tiger Shark 9500 is a 12V DC electric winch with a 9,500 lb rated line pull. A 5.2 HP series wound motor drives 3-stage planetary gearing at 218:1, with an automatic load holding brake and stainless steel tiebars. A pull and turn freespool lets you pay out line fast, and a handheld remote gives control from a distance. Mount it and recover. Choose steel wire rope or synthetic rope to match the job. A stainless steel roller fairlead guides wire rope, and the rugged remote keeps control in your hand.

Key Features

• Rated line pull of 9,500 lb
• 5.2 HP series wound motor
• 3-stage planetary gearing with 218:1 ratio

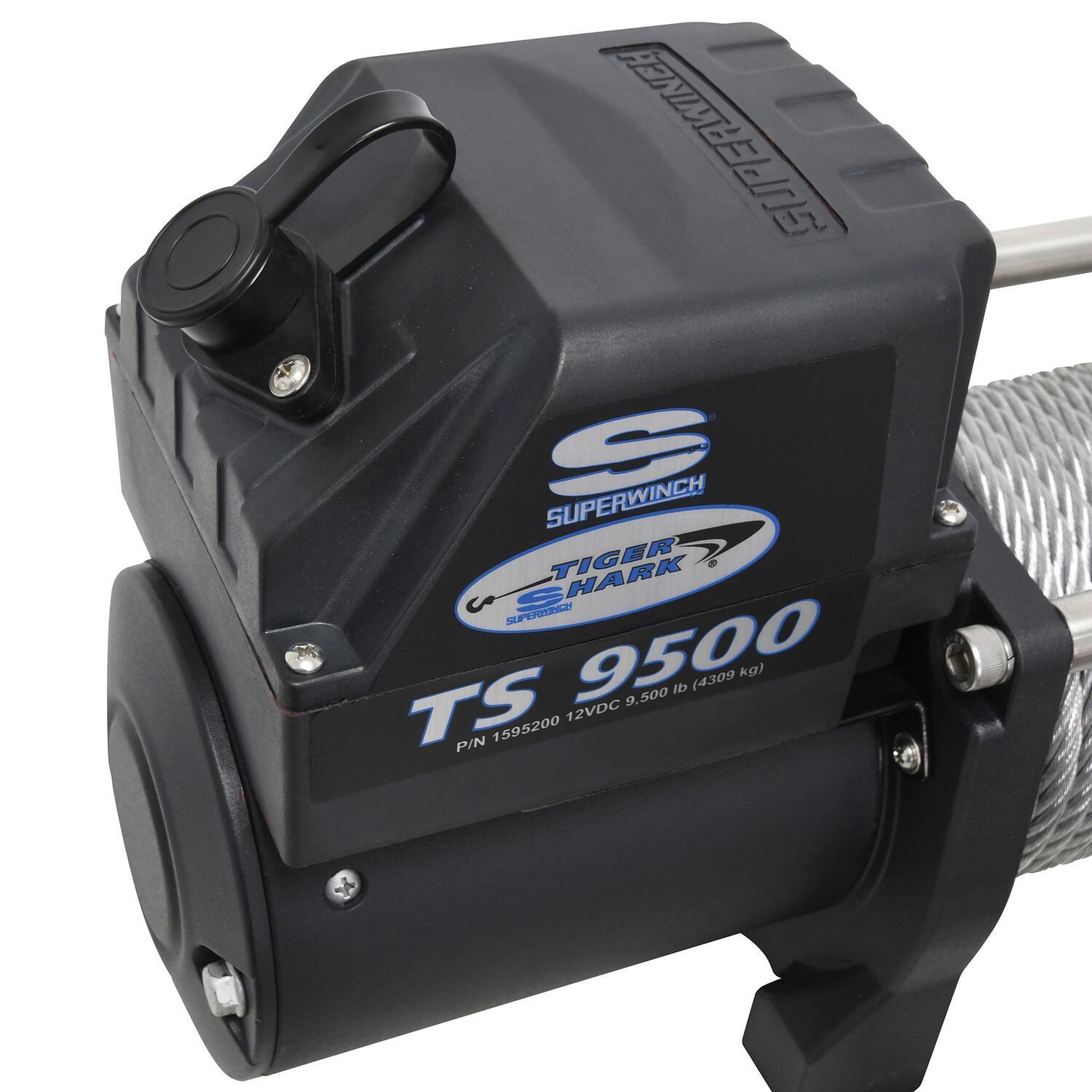

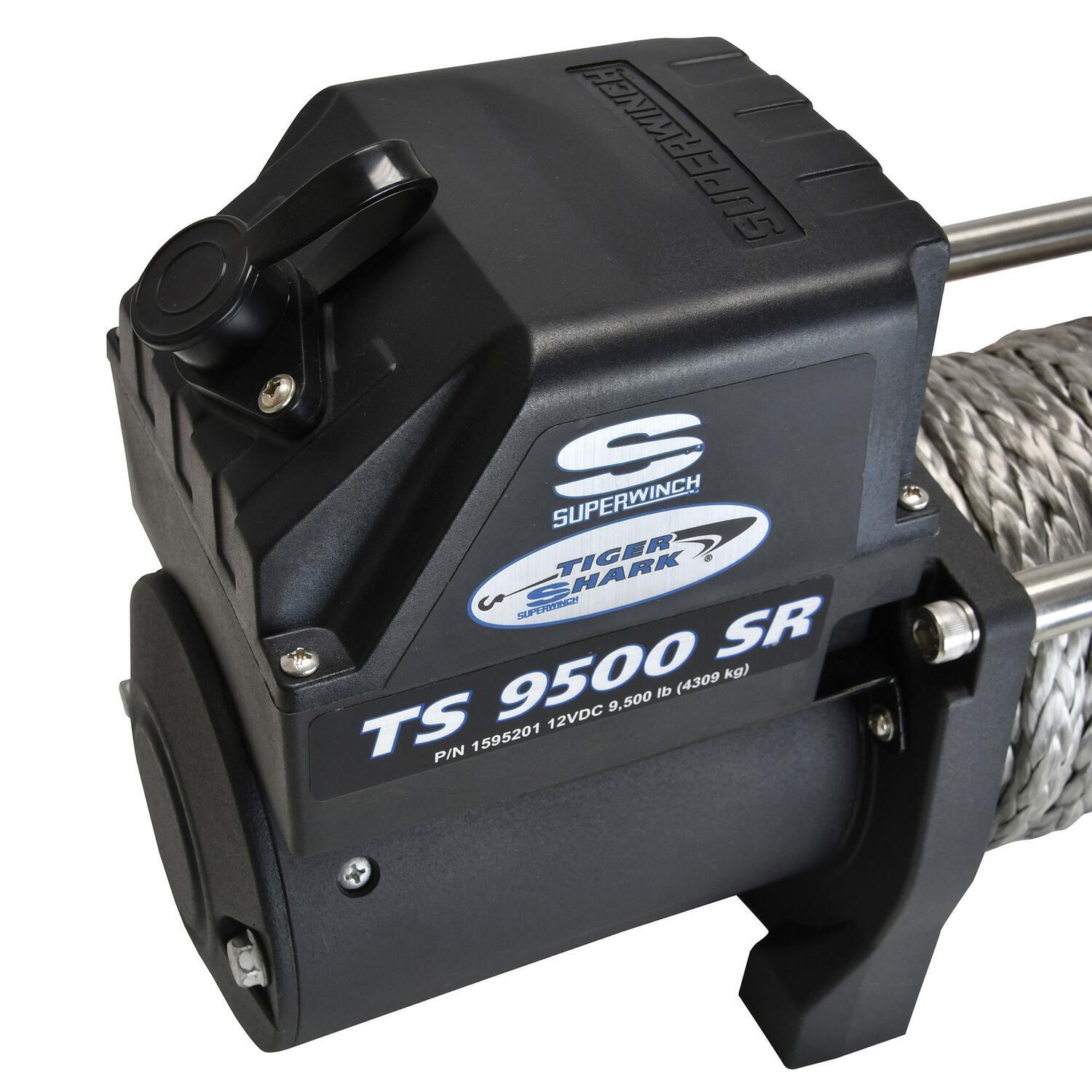

• Weather sealed solenoid
• Heat insulated first layer

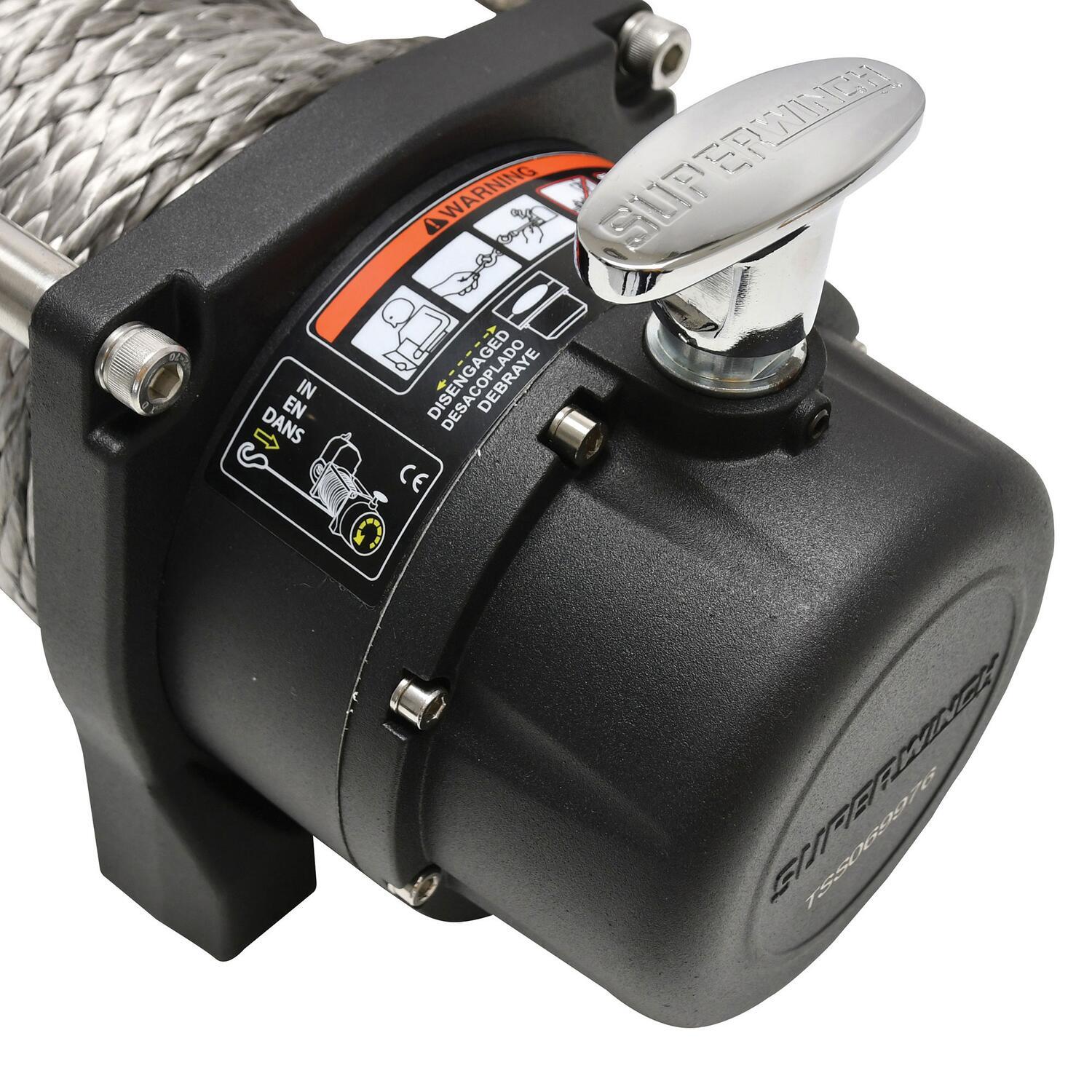

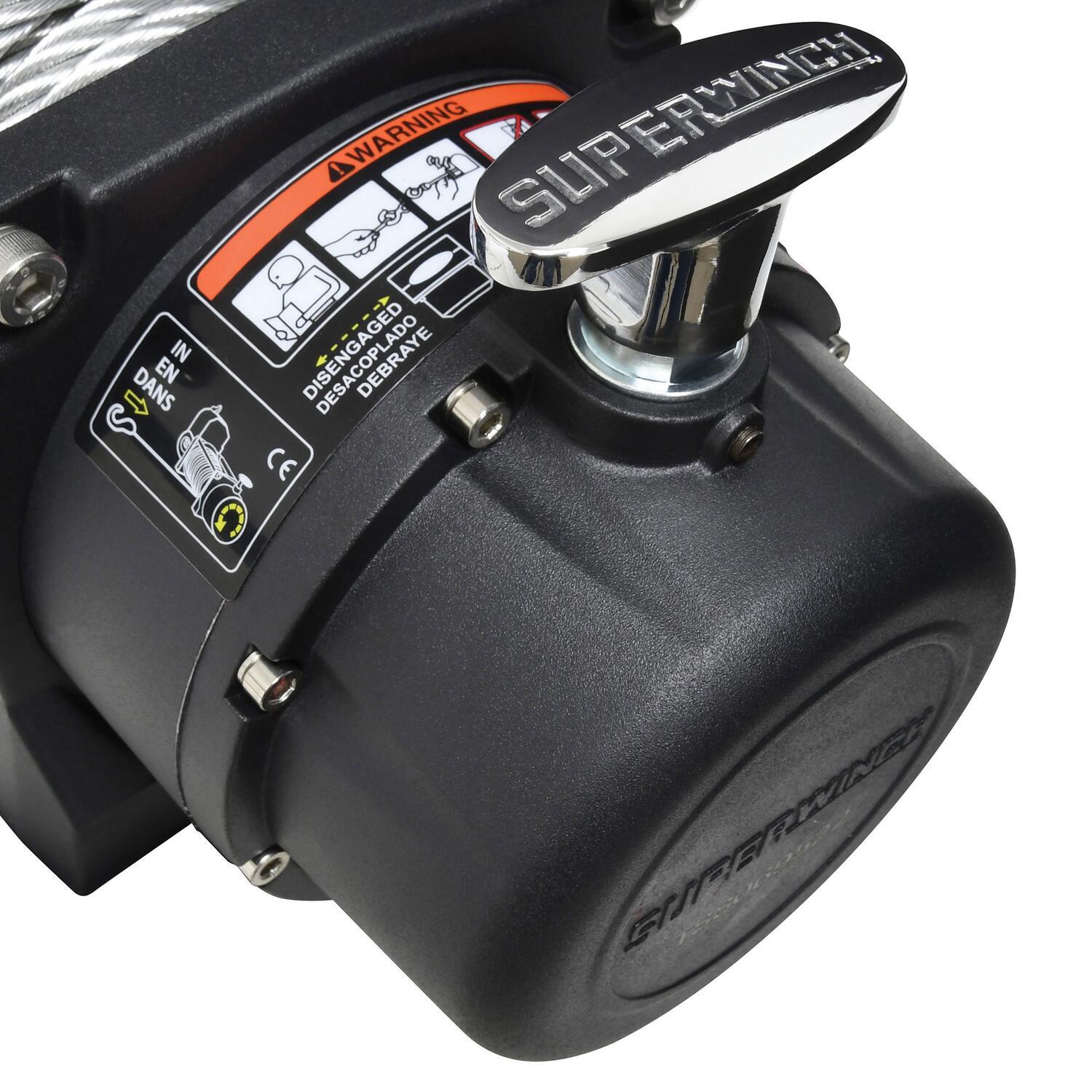

• Ergonomic pull and turn freespool

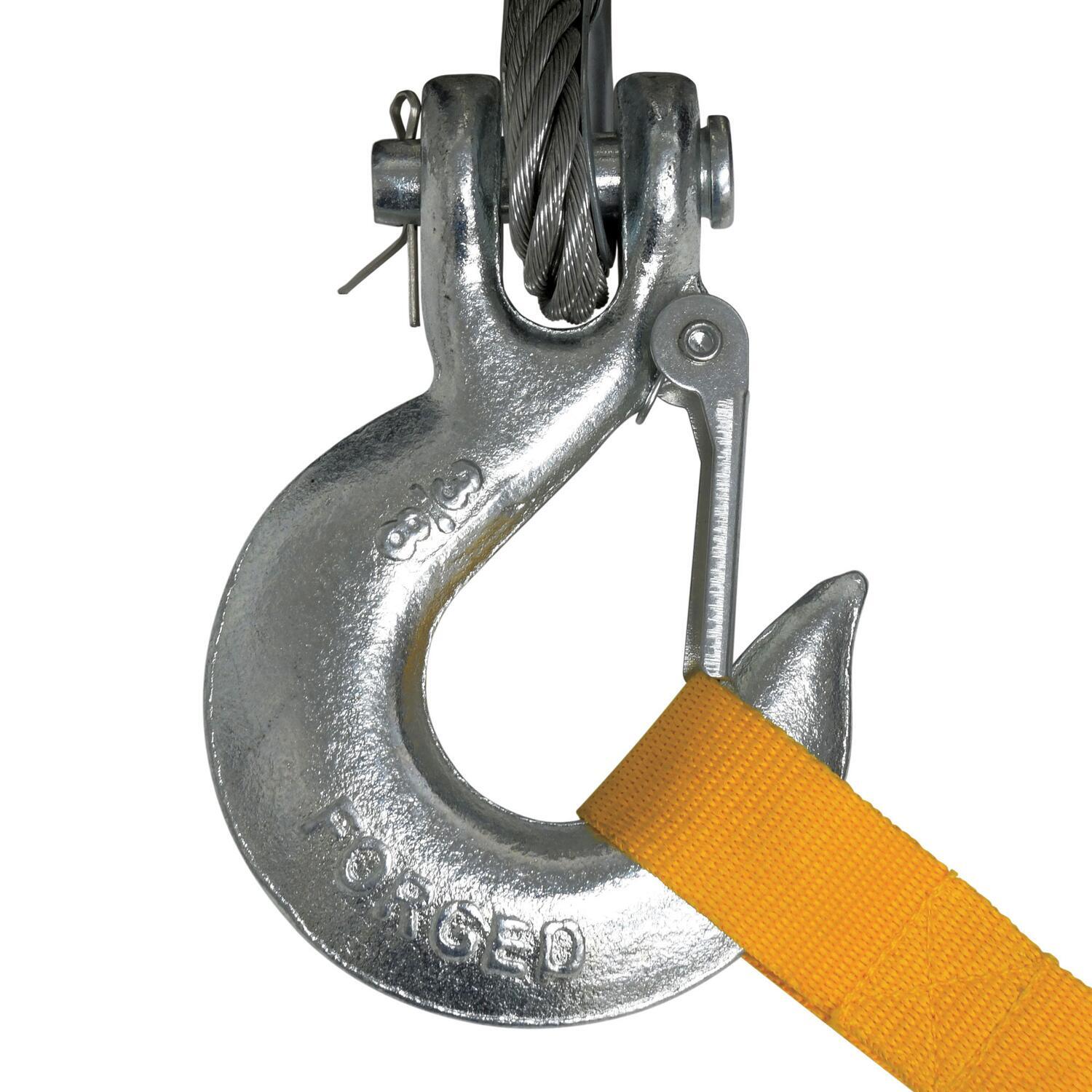

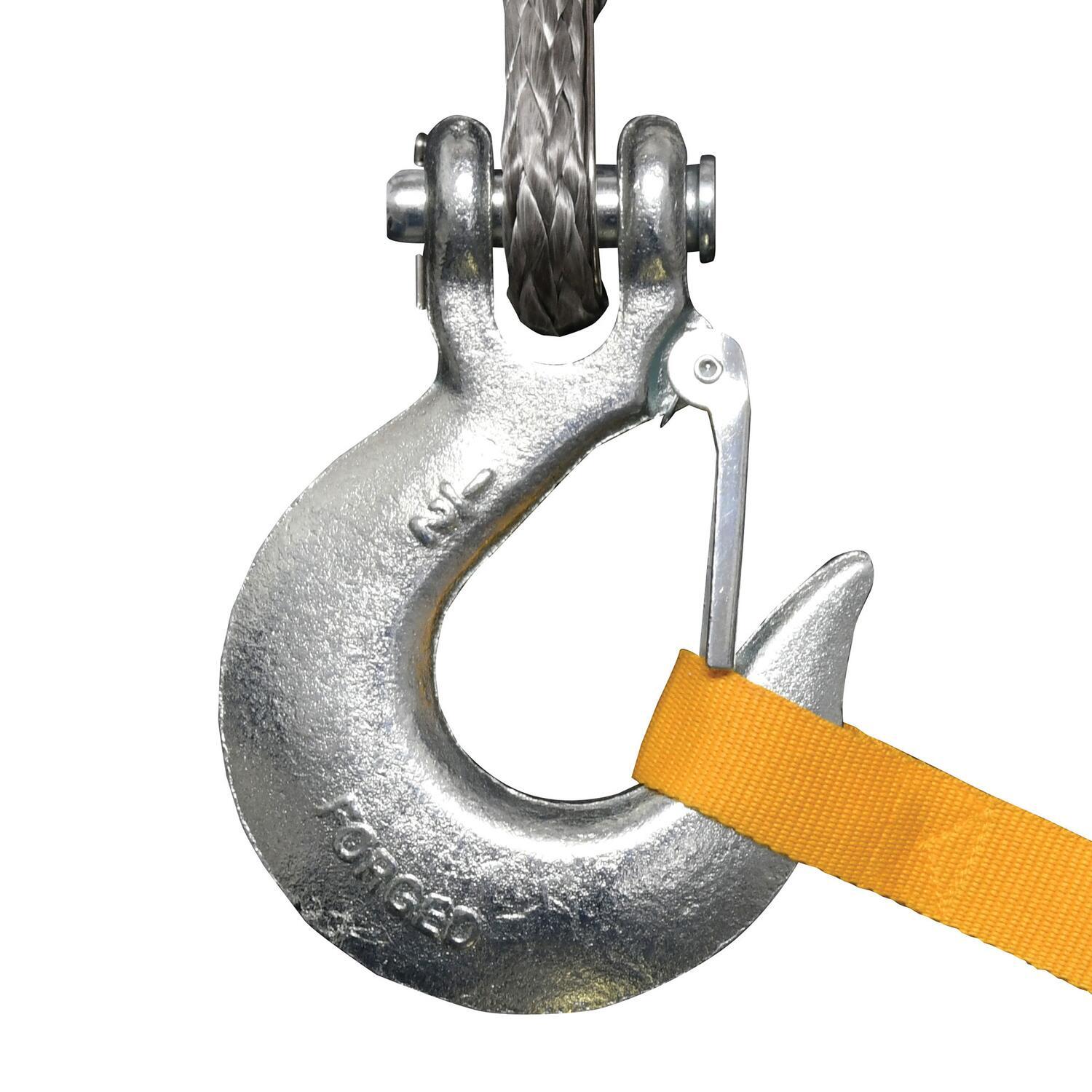

• Heavy duty clevis pinned, latched hook

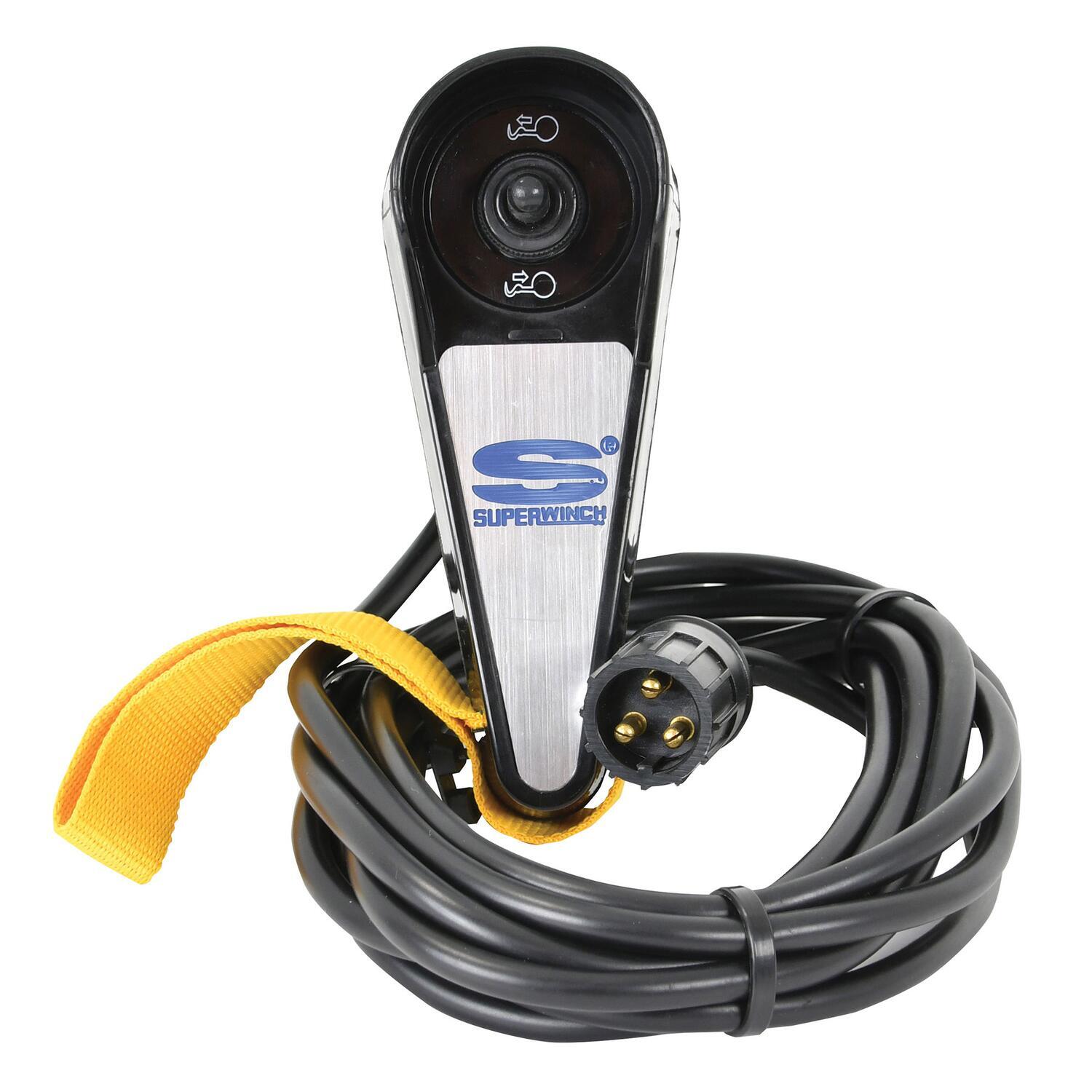

• Handheld remote control
• Stainless steel tiebars

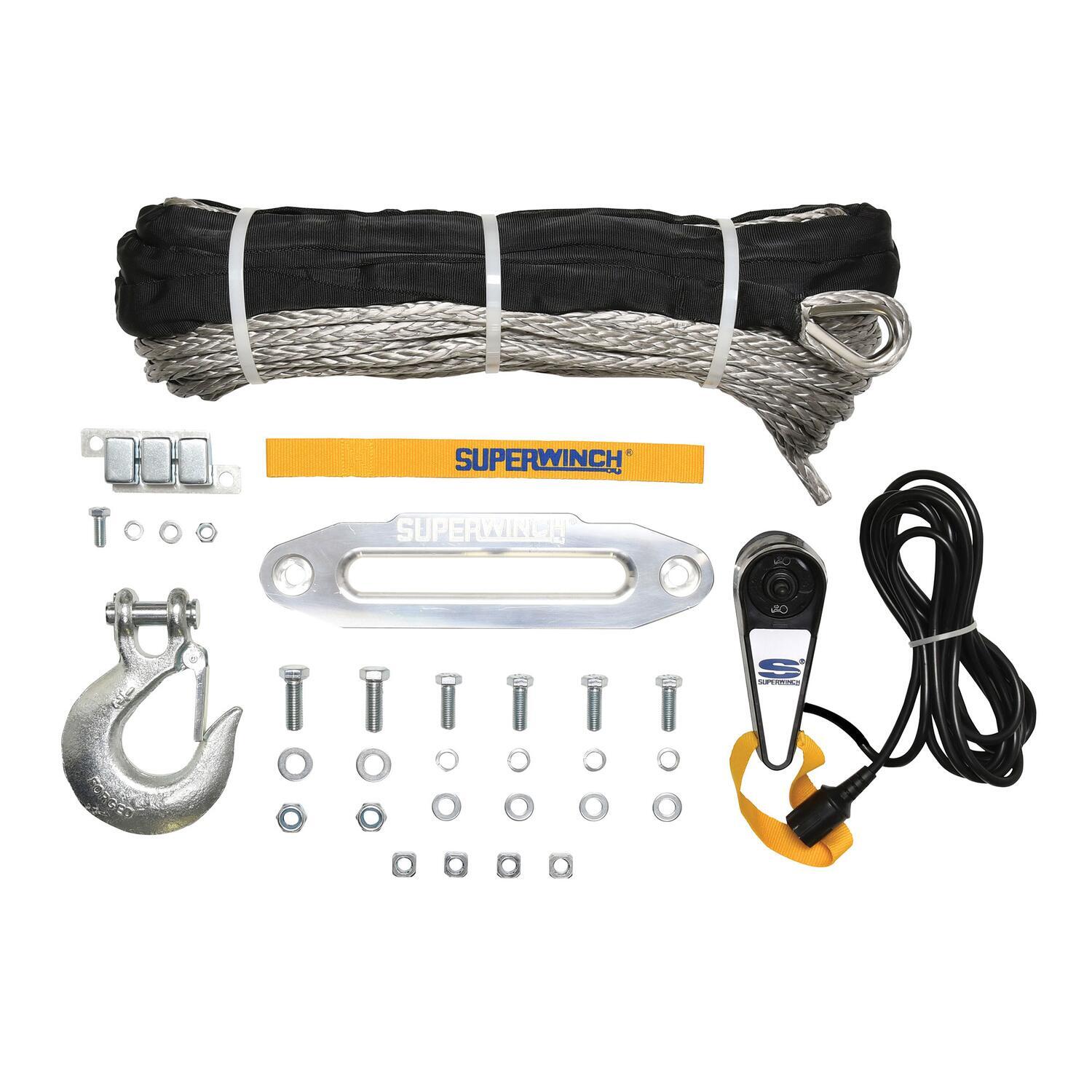

• Steel wire rope version has a stainless steel 4-way roller fairlead; synthetic rope version has an aluminum hawse

Specifications

• Winch Type: Electric
• Voltage: 12V DC
• Motor: Series wound 5.2 HP / 3.8 kW, 12V DC
• Gear System: 3-stage planetary
• Gear Ratio: 218:1

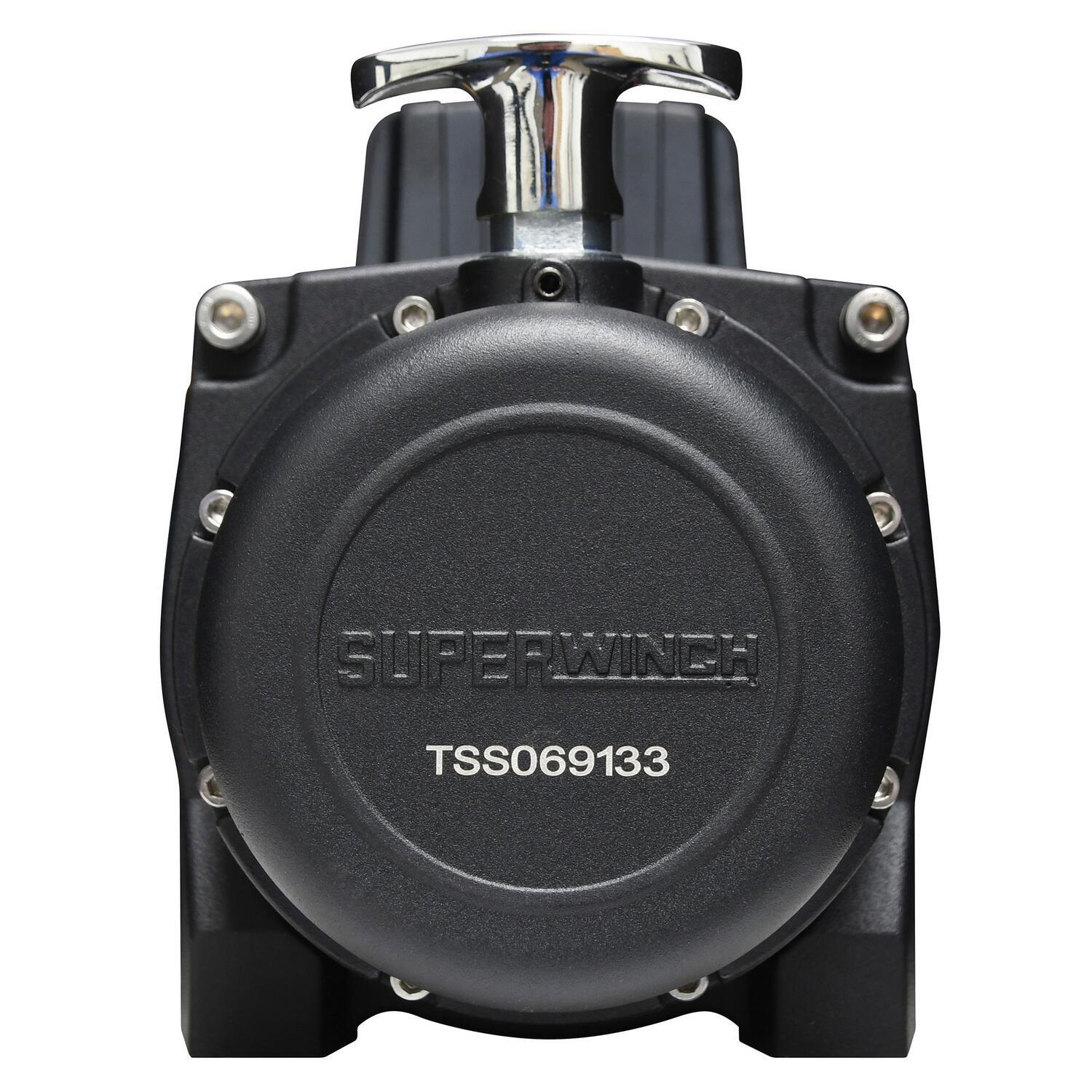

• Clutch: Ergonomic pull and turn
• Brake System: Mechanical, automatic load holding

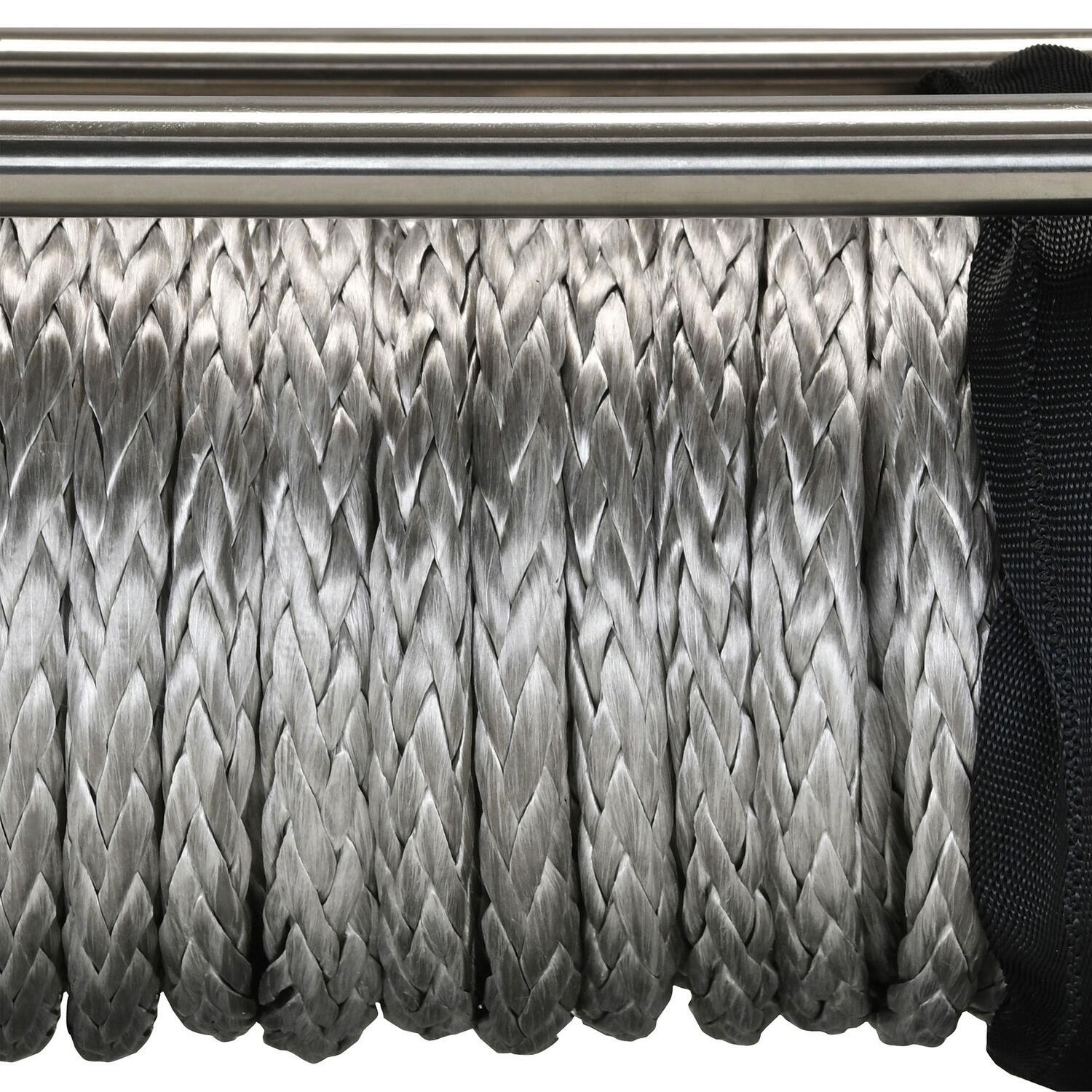

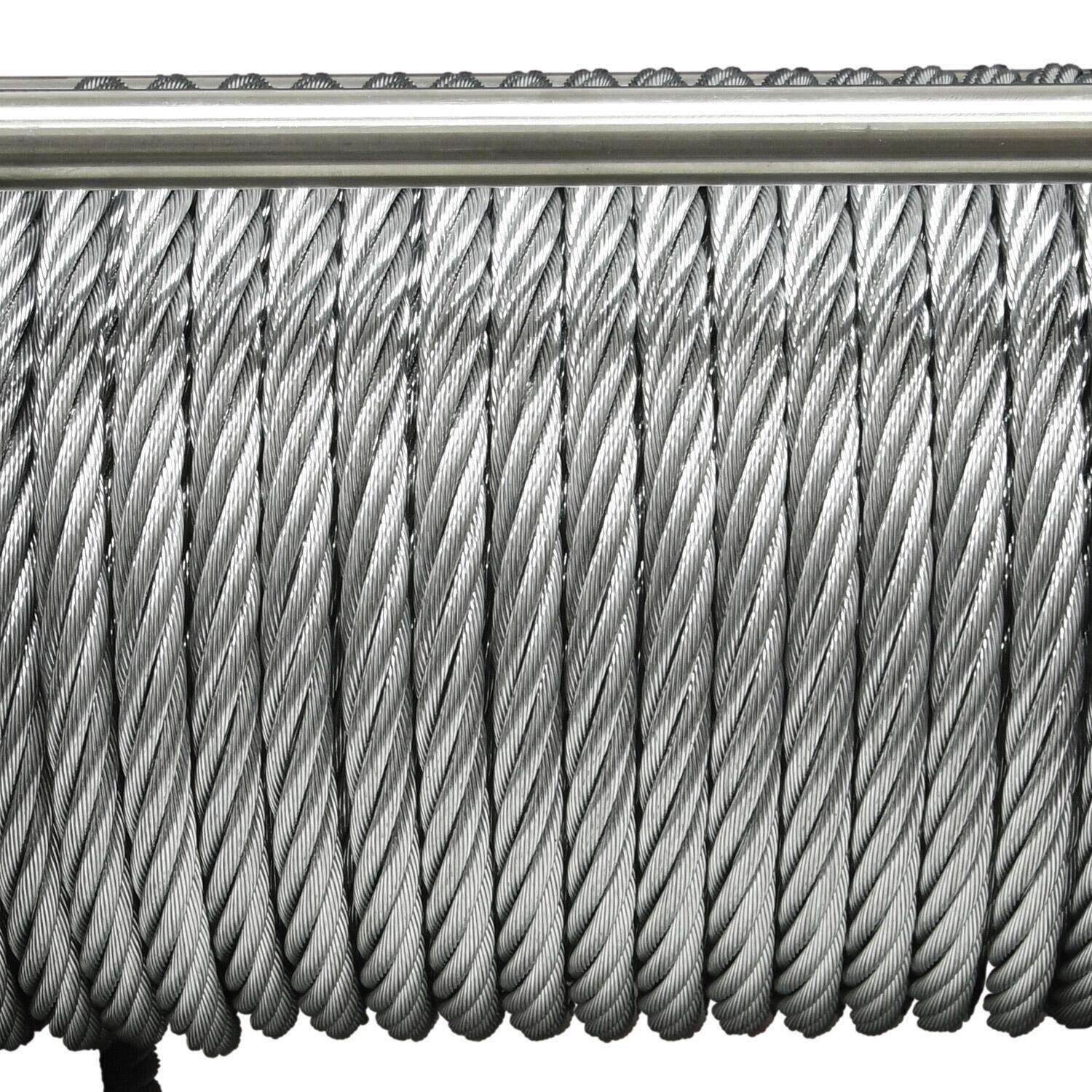

• Rope Material: Steel wire or synthetic, by variant
• Rope Length: 21/64 in x 95 ft (steel wire rope), 3/8 in x 80 ft (synthetic rope)
• Fairlead: Stainless steel 4-way roller (steel wire rope), aluminum hawse (synthetic rope)
• Remote Type: Wired

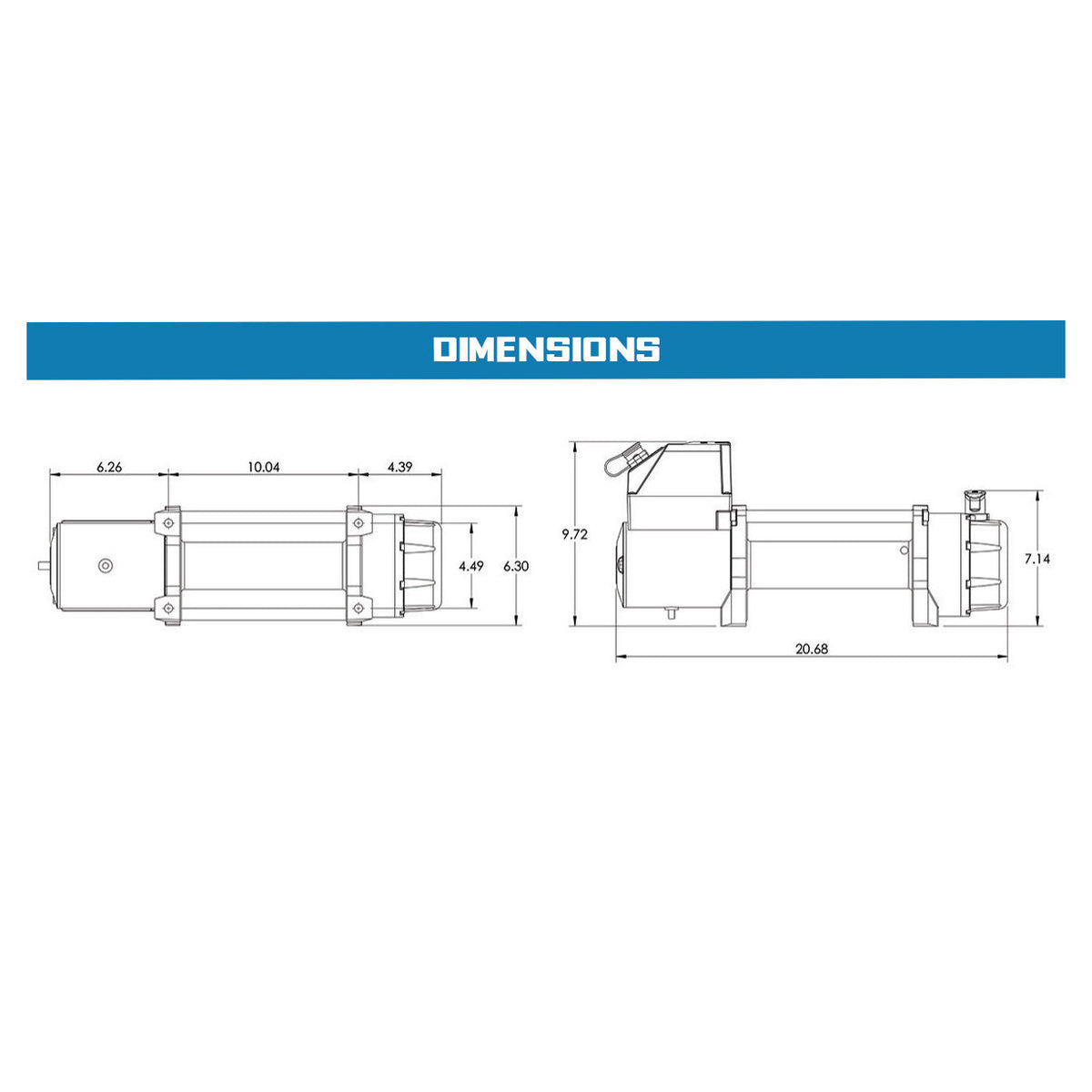

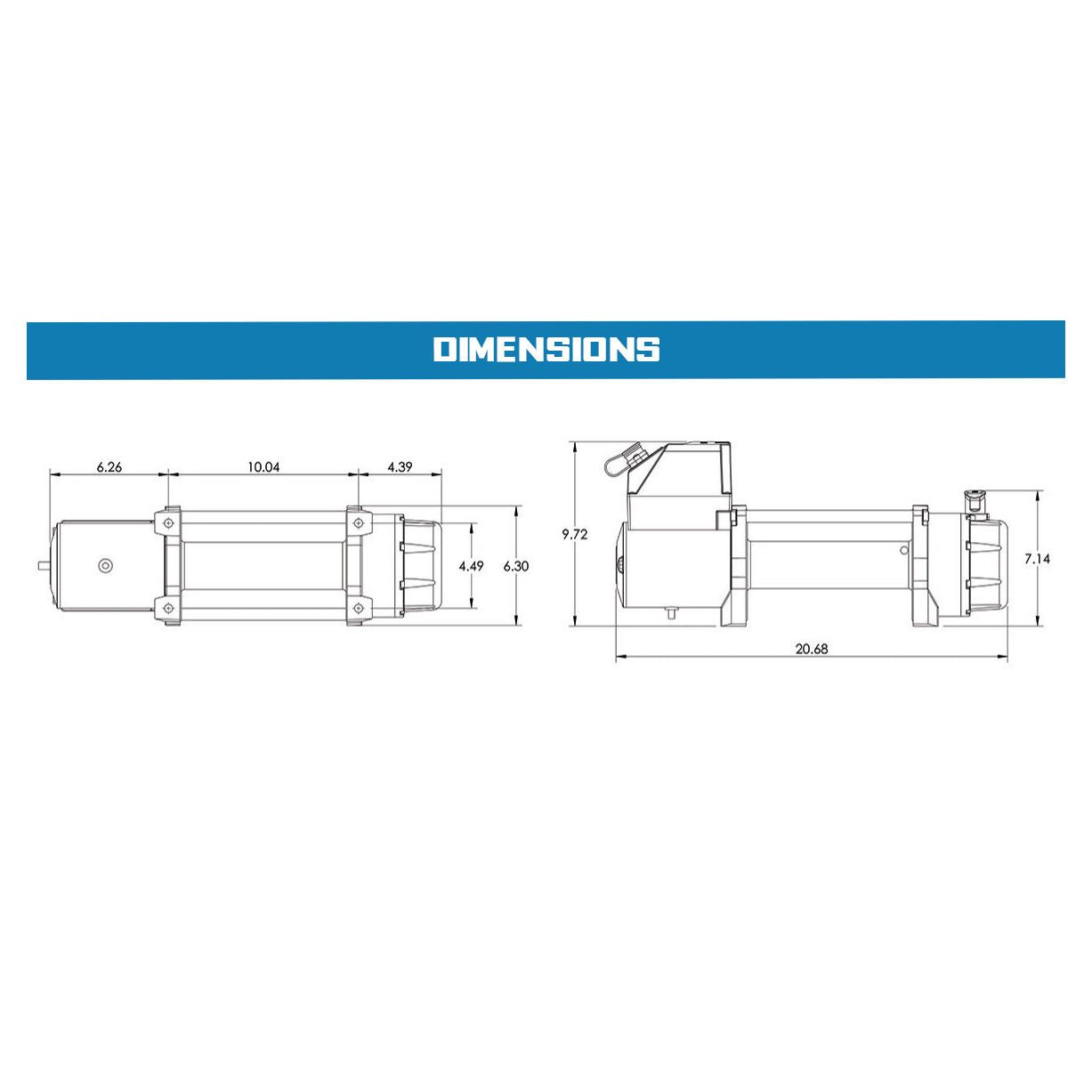

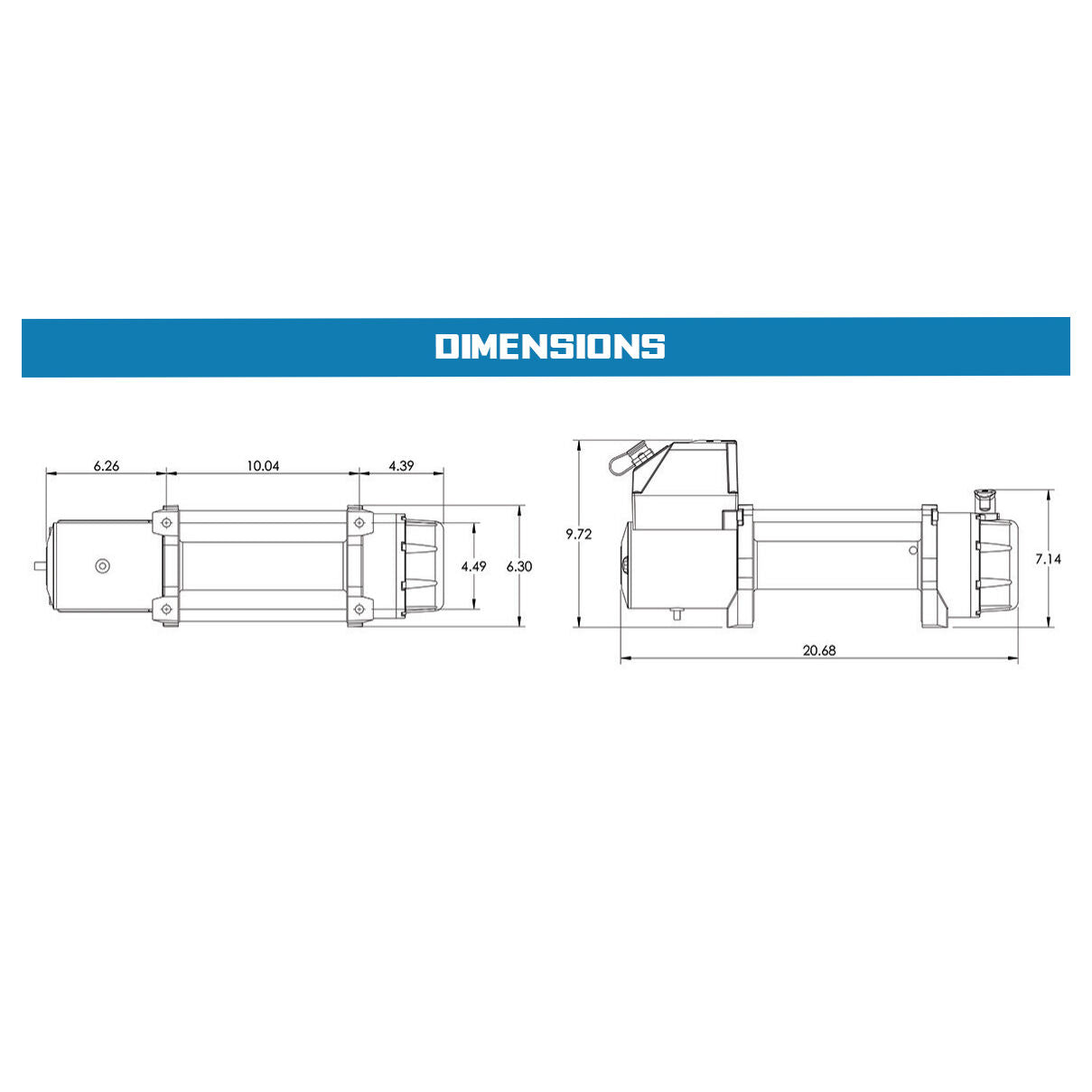

• Mounting Bolt Pattern: 10 in x 4.5 in (254 mm x 114.3 mm)
• Drum: Fully welded steel
• Winch Hook: Heavy duty clevis, pinned and latched

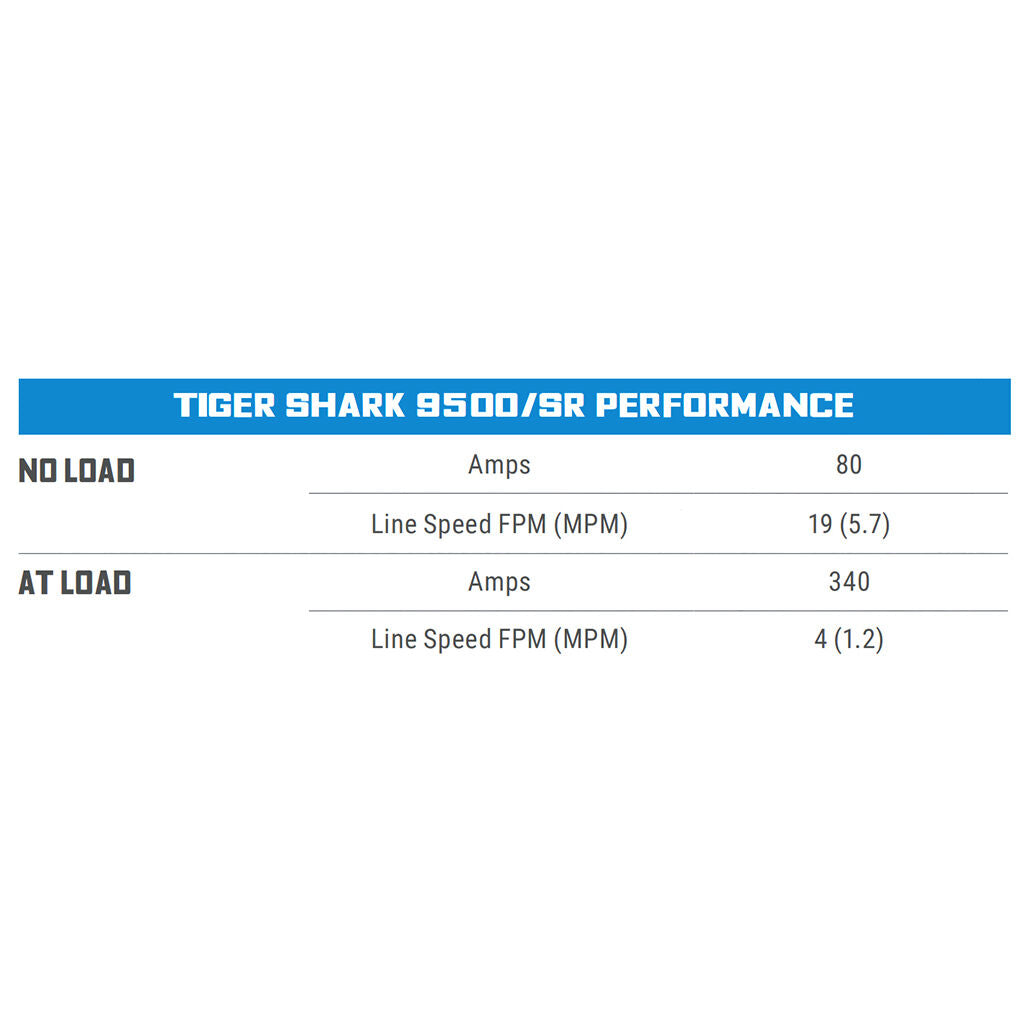

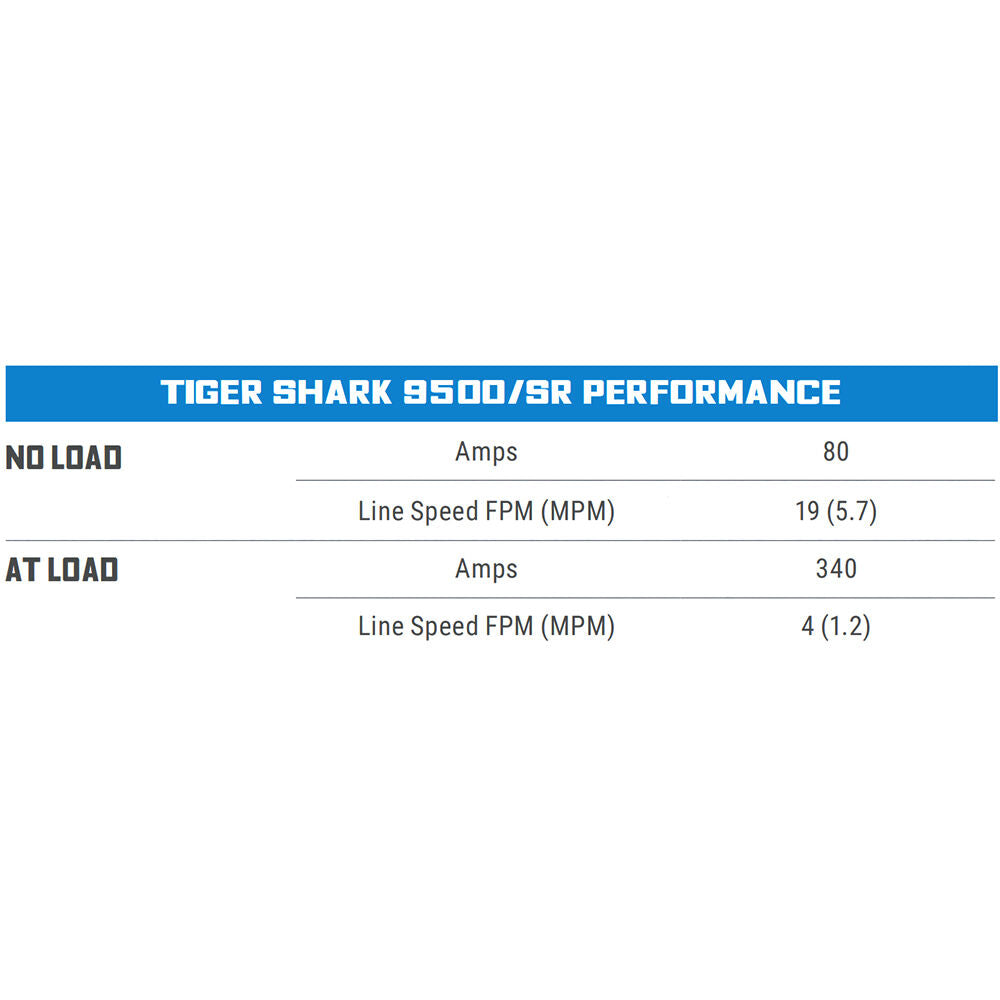

• Line Speed: 19 FPM at 80 amps motor draw
• Color: Black
• Weight: 82 lb (steel wire rope), 63 lb (synthetic rope)
• Width: 12 in
• Height: 12 in

MPN 1595200 (Steel Wire Rope Black)

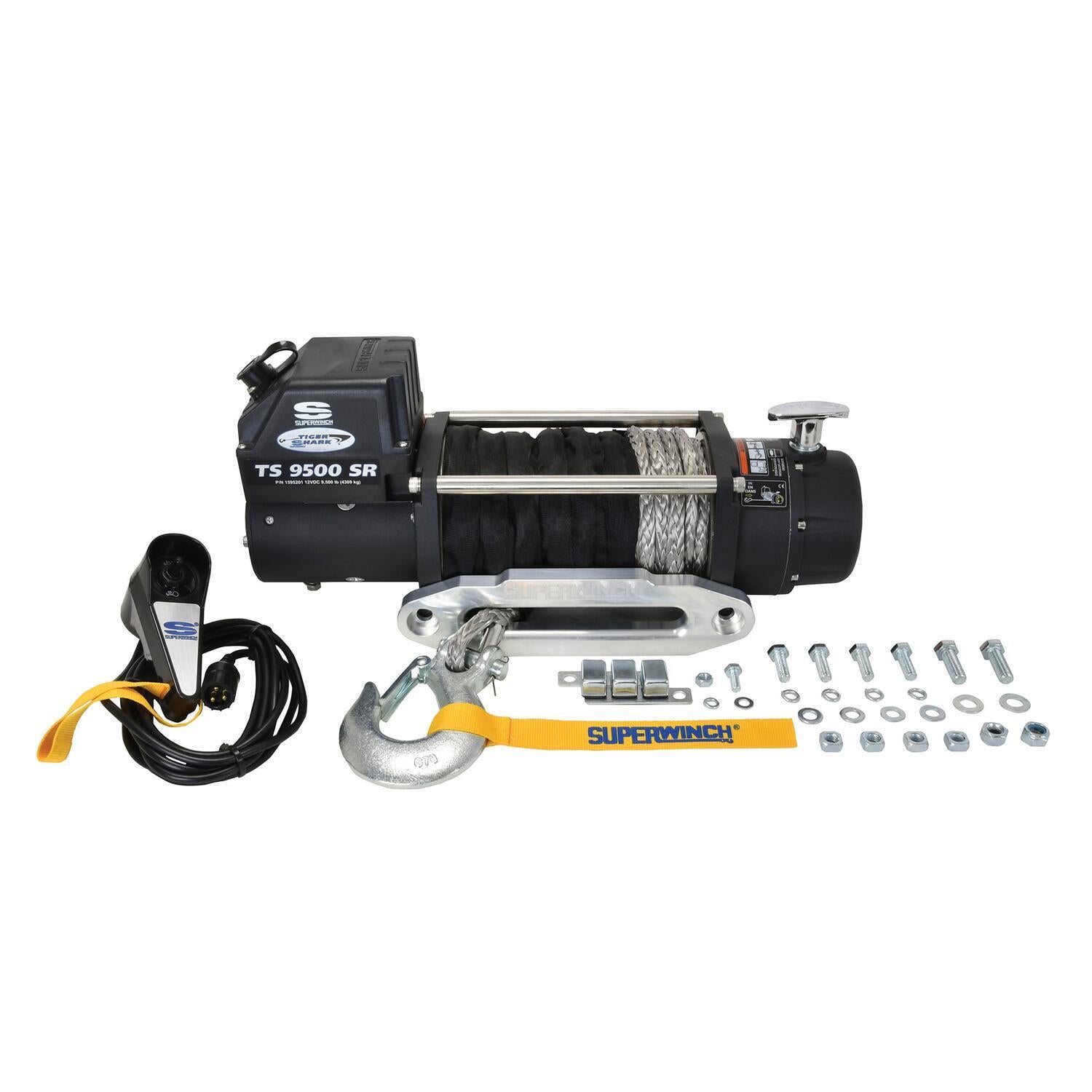

MPN 1595201 (Synthetic Rope Black)
