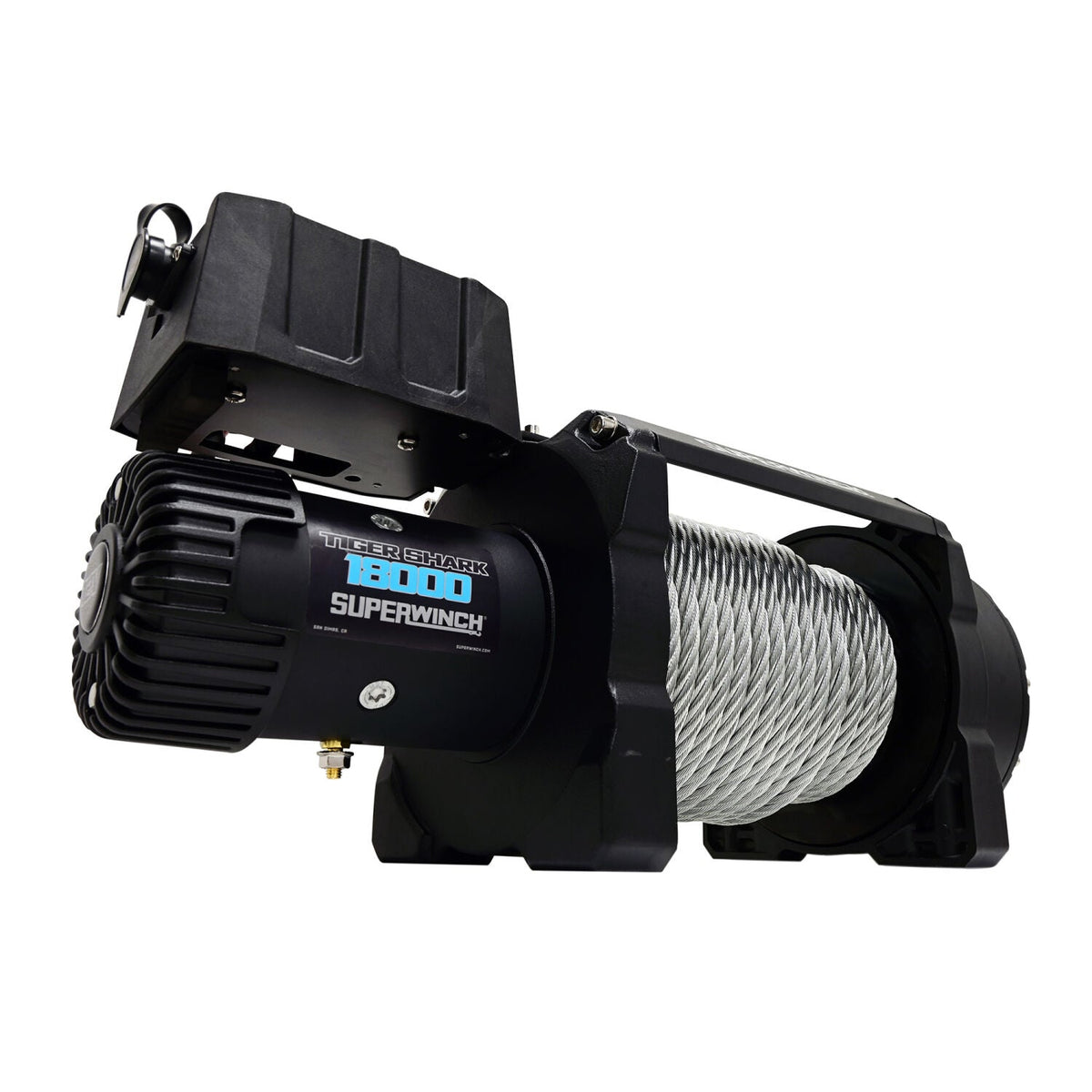

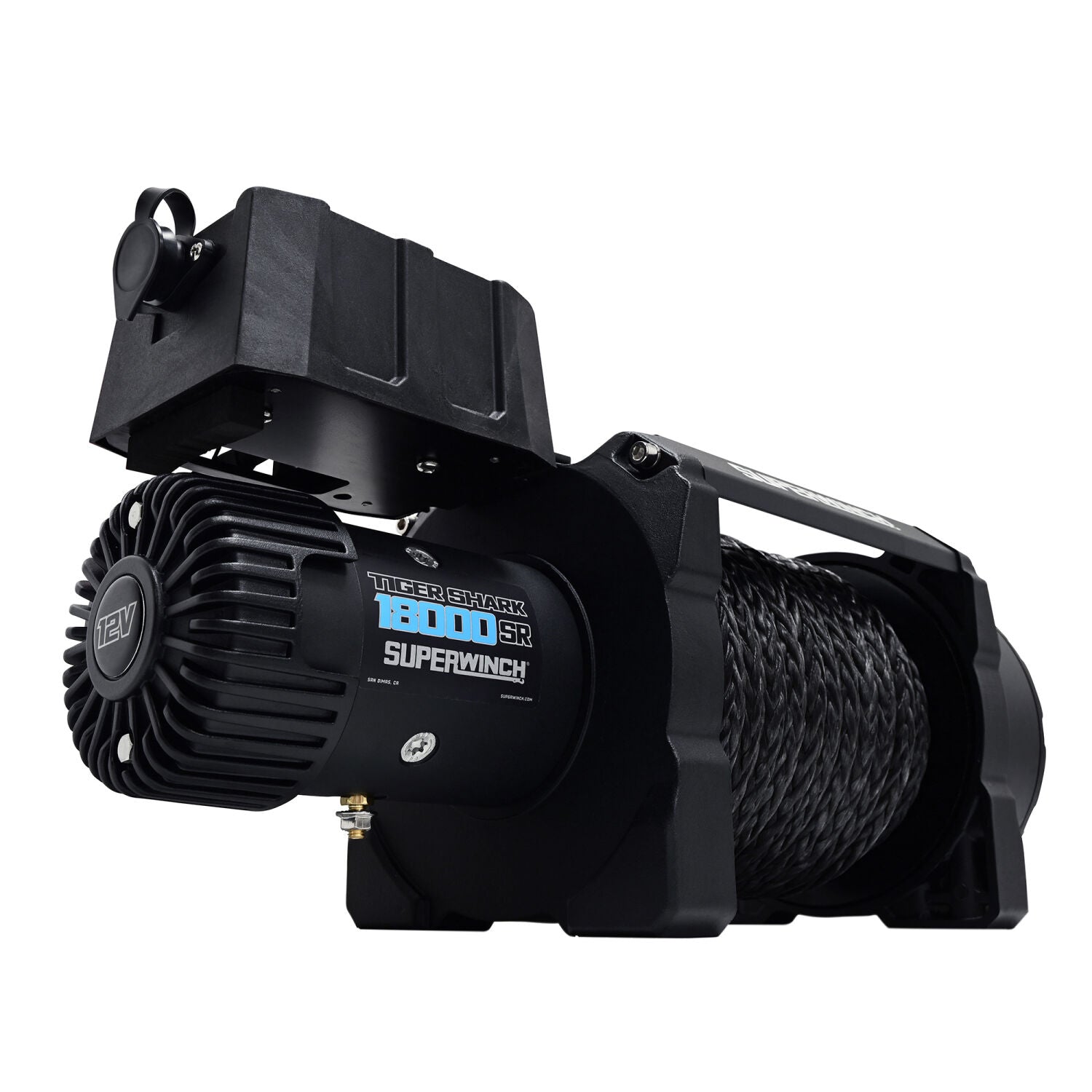

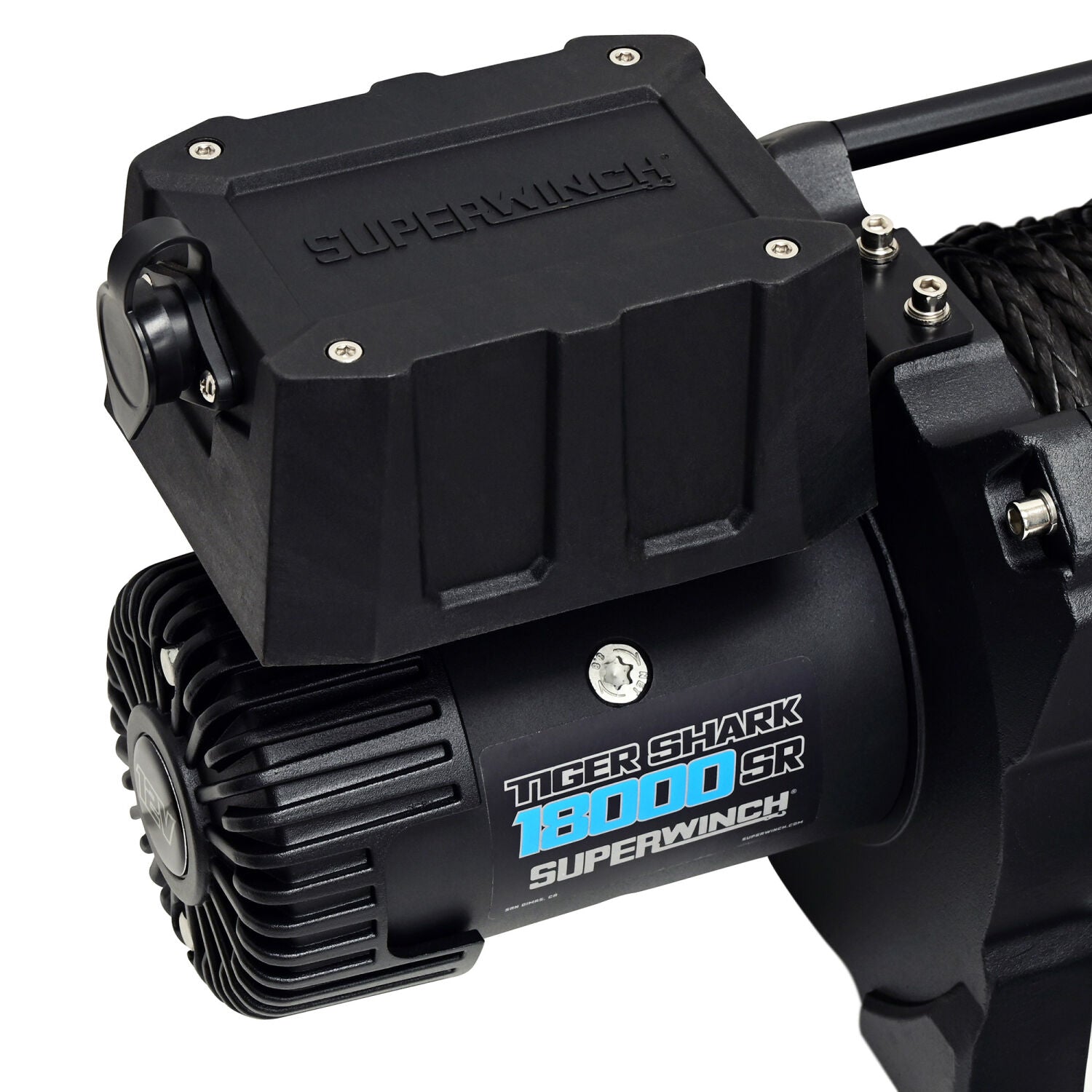

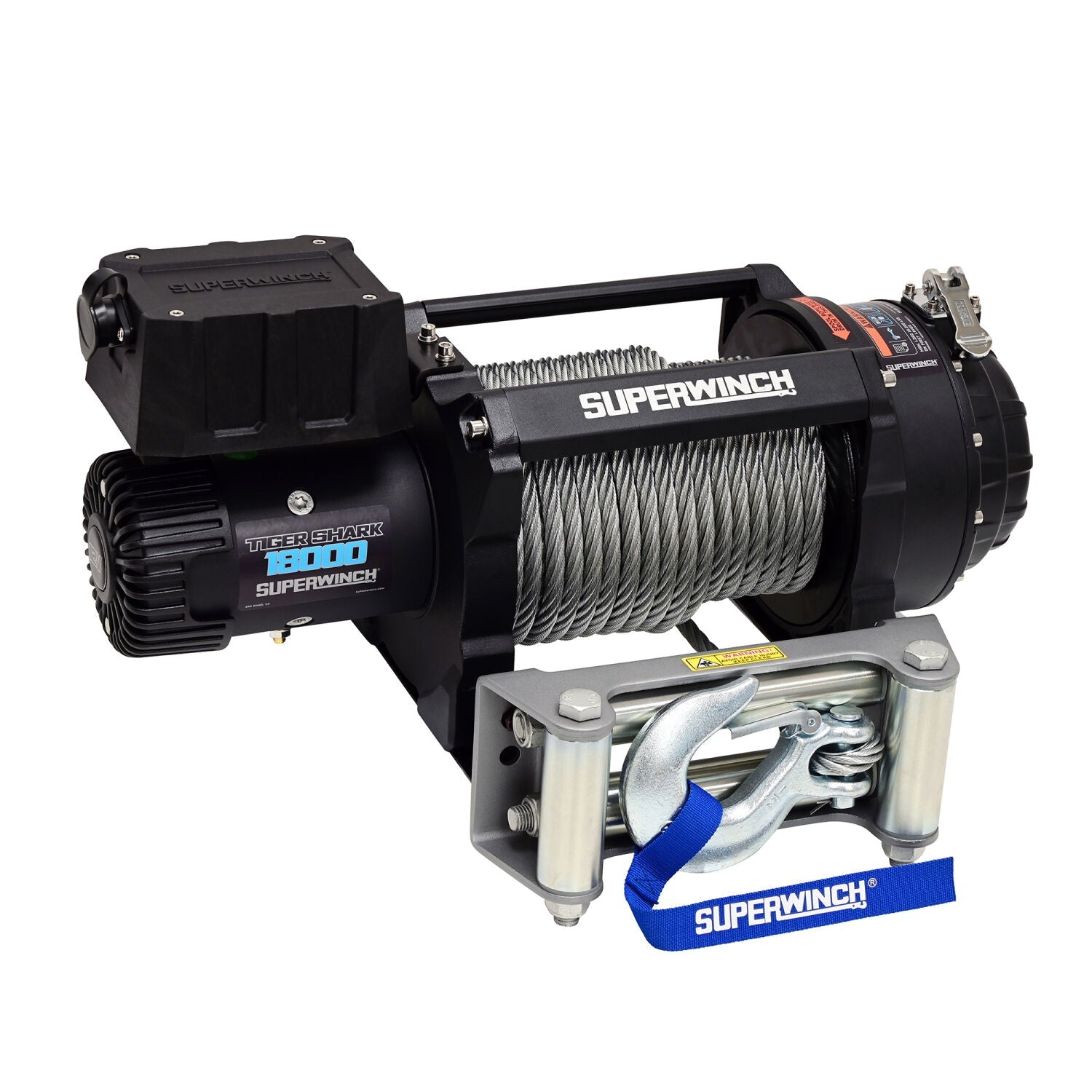

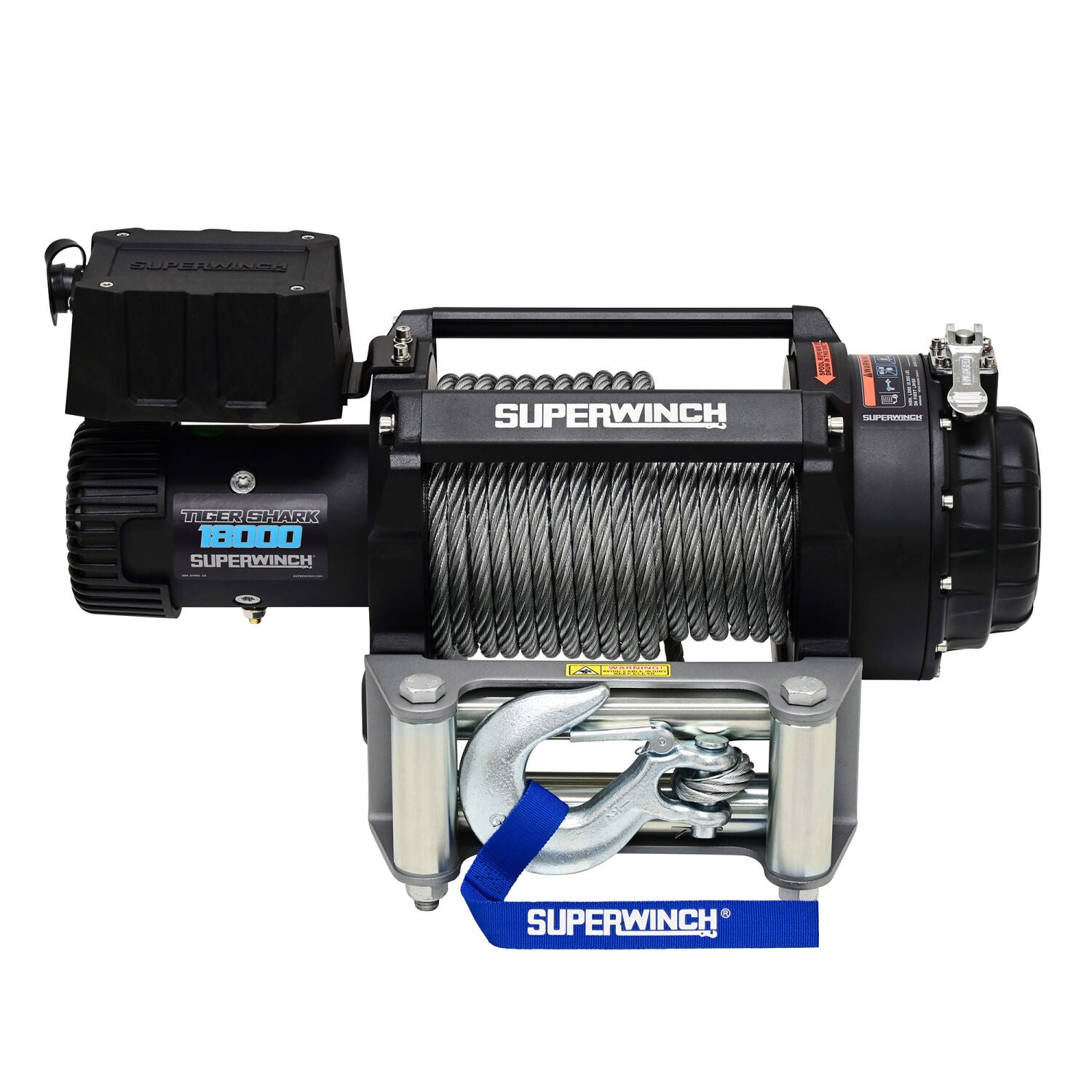

Superwinch Tiger Shark 18000 Winch, 18,000 lb, 12V DC

Heavy duty commercial winching leaves no room for a weak link. The Superwinch Tiger Shark 18000 is a 12V DC electric winch rated at 18,000 lb. A 6.8 HP series wound motor drives 3-stage planetary gearing at 345:1, and an automatic cone brake holds the load. A Kick-N-Flip freespool allows hand or foot operation, a 30 ft handheld wired remote gives you distance, and mounting hardware is included. Mount it and handle the big pulls. Choose steel wire rope or synthetic rope to match the job. The winch also accepts an optional wireless remote, sold separately.

Key Features

• 18,000 lb capacity
• 6.8 HP series wound motor
• 3-stage planetary gearing with 345:1 ratio
• Automatic cone brake
• Heat insulated first layer
• Kick-N-Flip freespool allows hand and foot operation

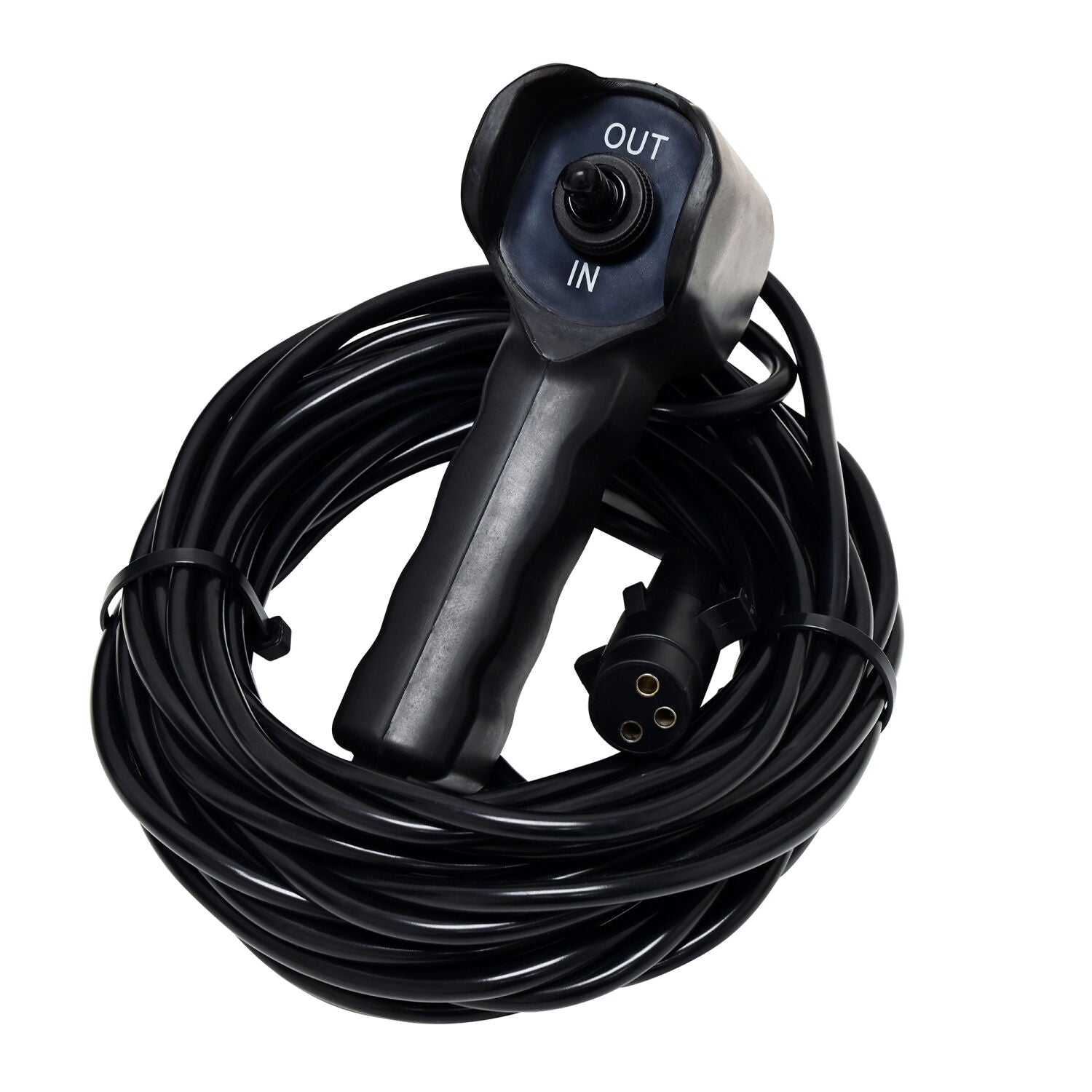

• 30 ft handheld wired remote control
• Optional wireless remote control sold separately (part no. 2277)
• Heavy duty clevis pinned, latched hook
• Mounting hardware included
• Textured black finish

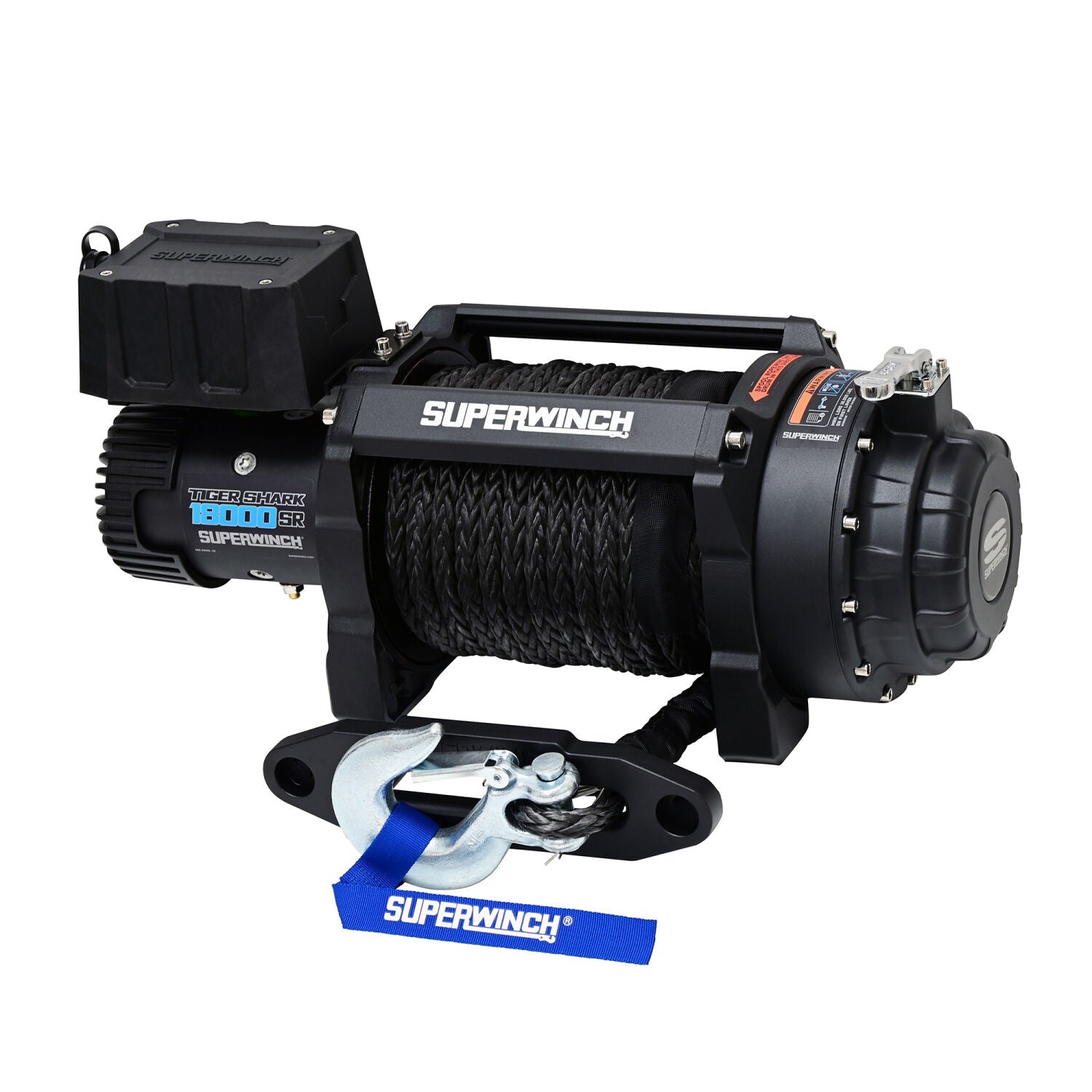

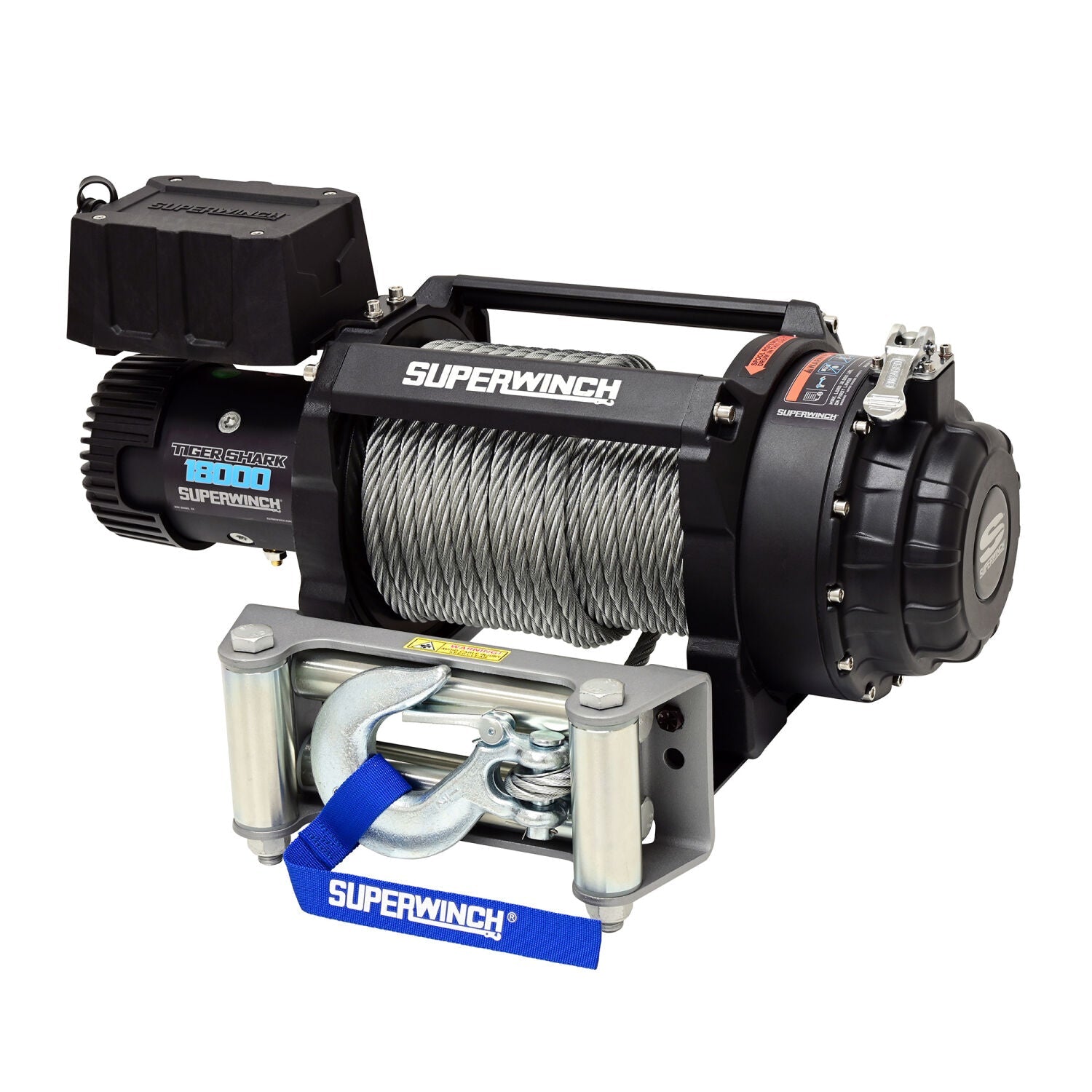

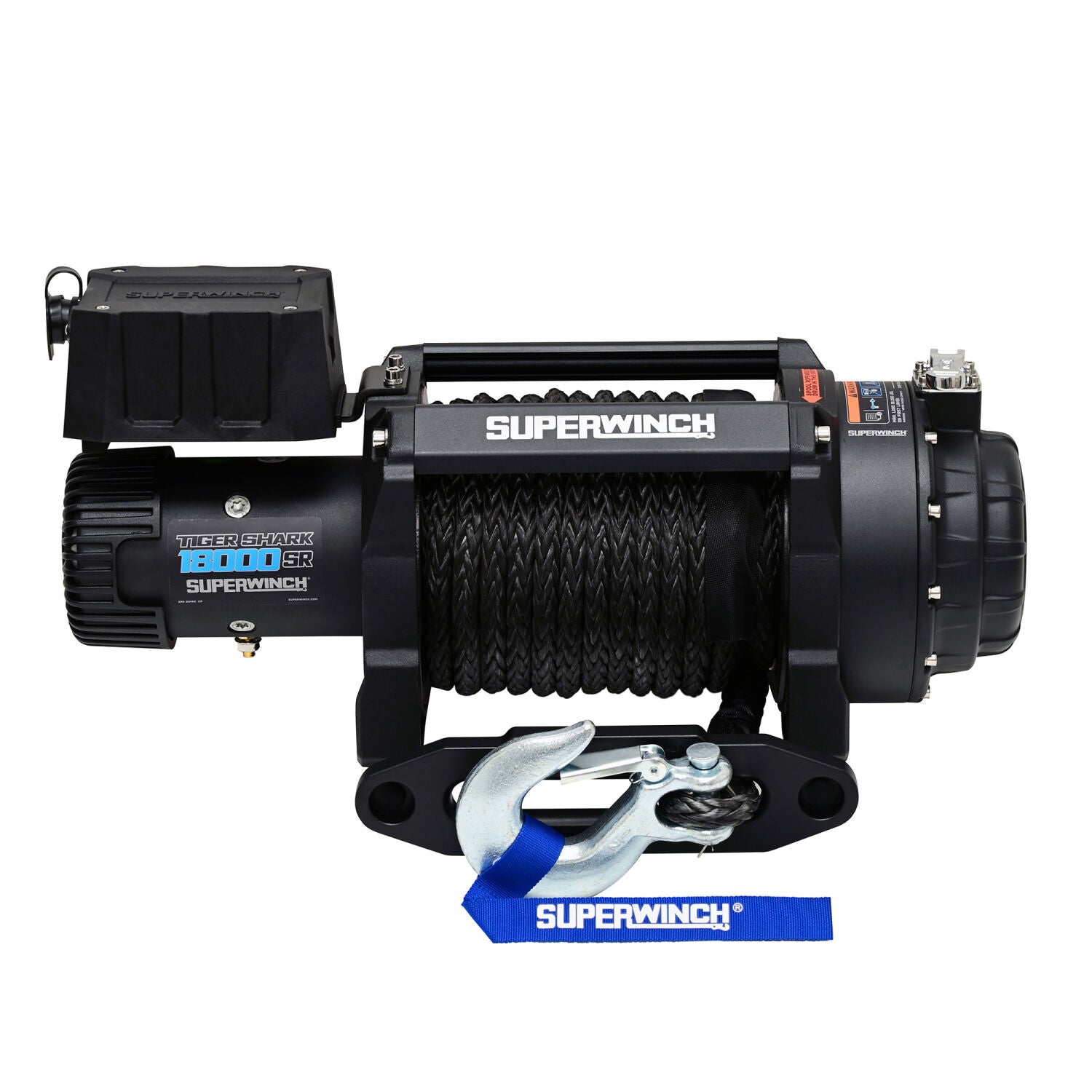

• Steel wire rope version has a stainless steel 4-way roller fairlead; synthetic rope version has an aluminum hawse

Specifications

• Winch Type: Electric
• Voltage: 12V DC

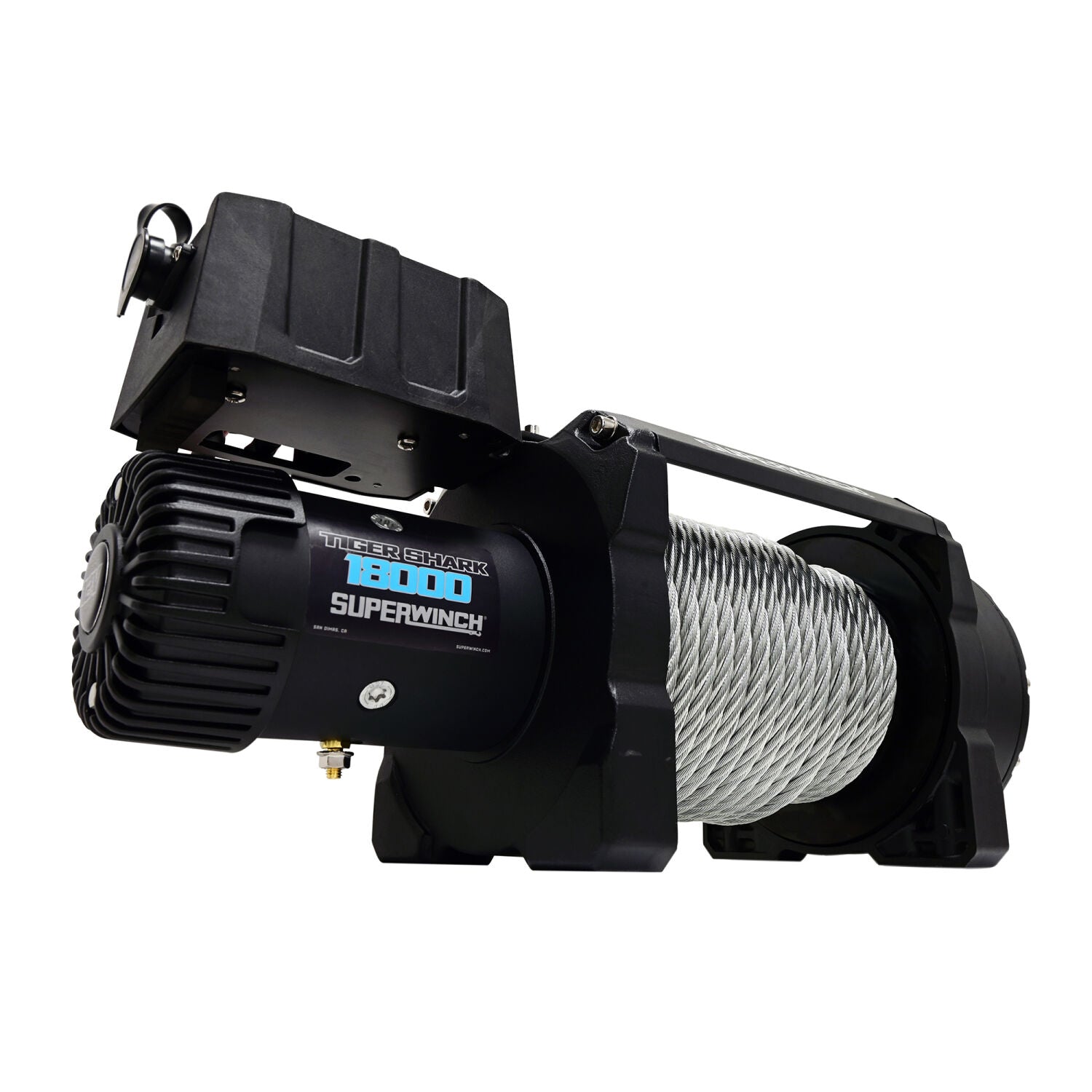

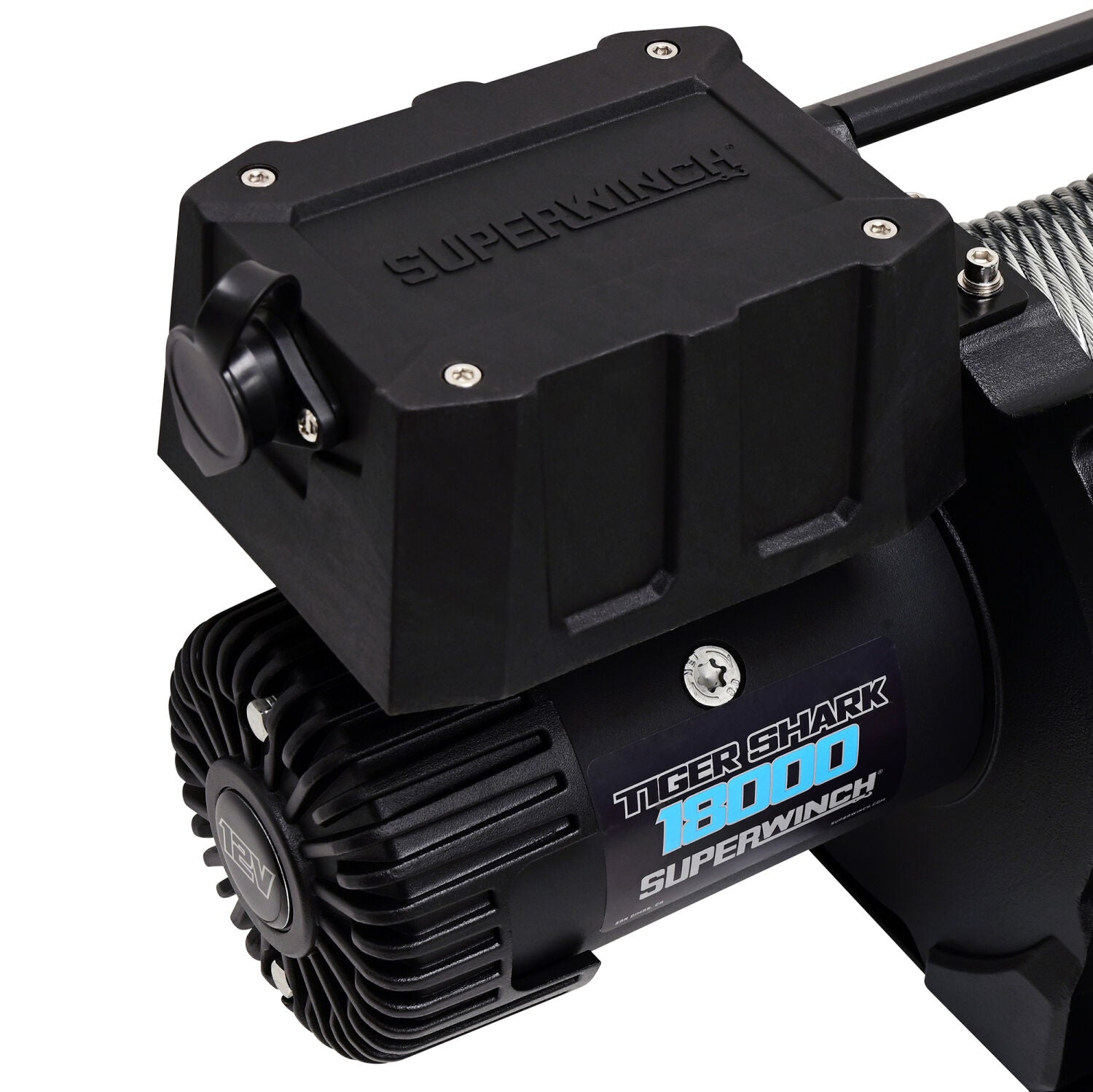

• Motor: Series wound 6.8 HP / 5.0 kW, 12V DC
• Gear System: 3-stage planetary
• Gear Ratio: 345:1

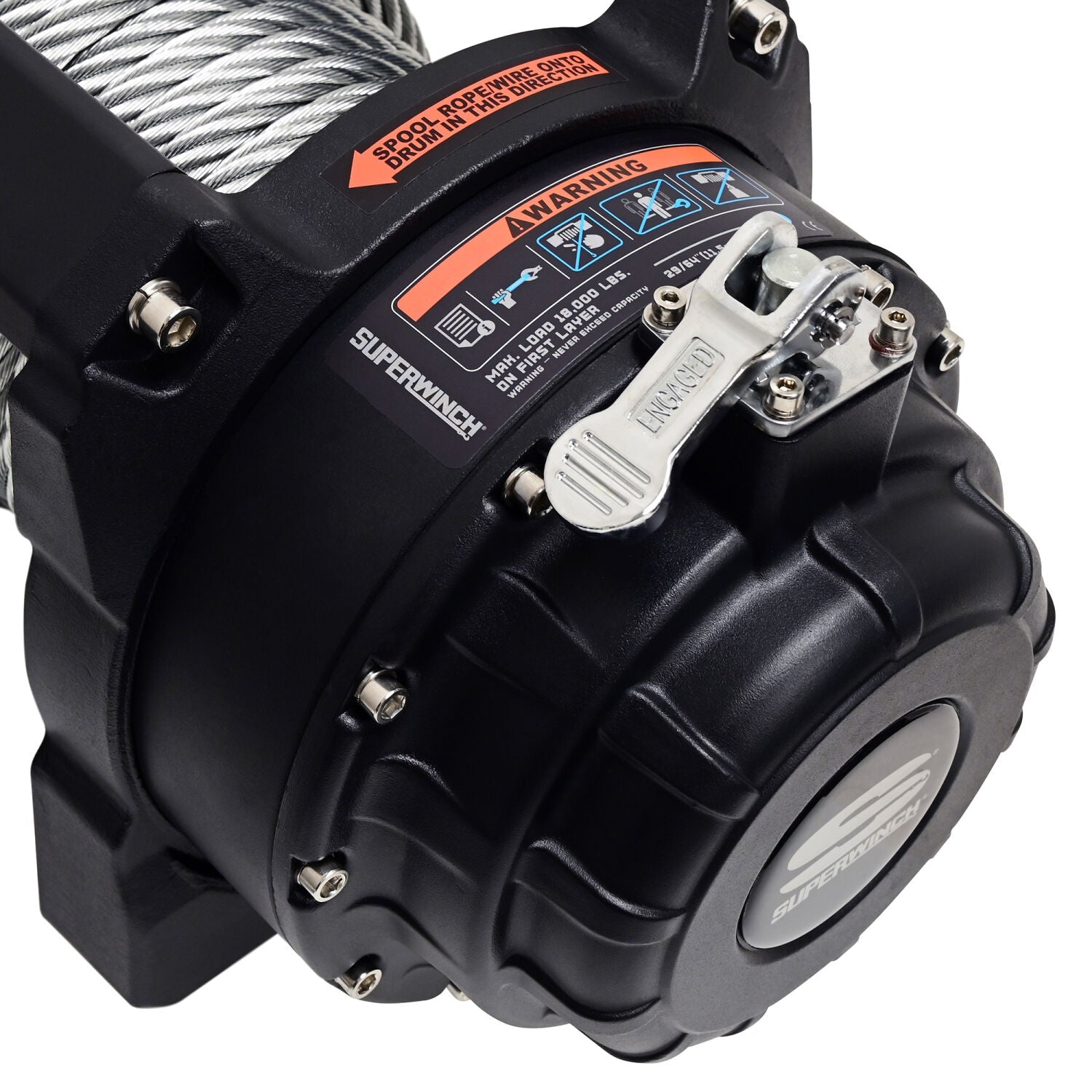

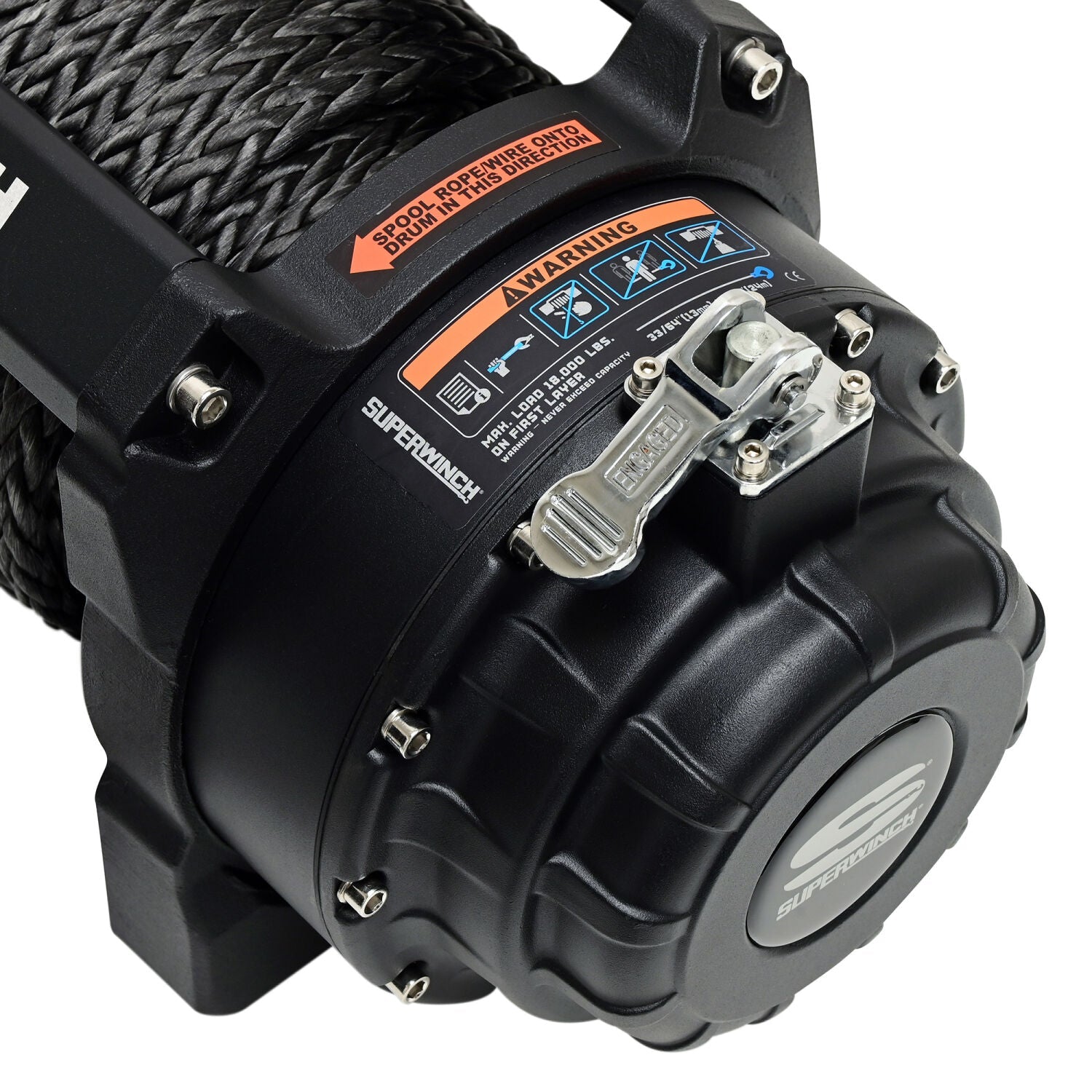

• Clutch: Kick-n-flip
• Brake System: Automatic cone brake

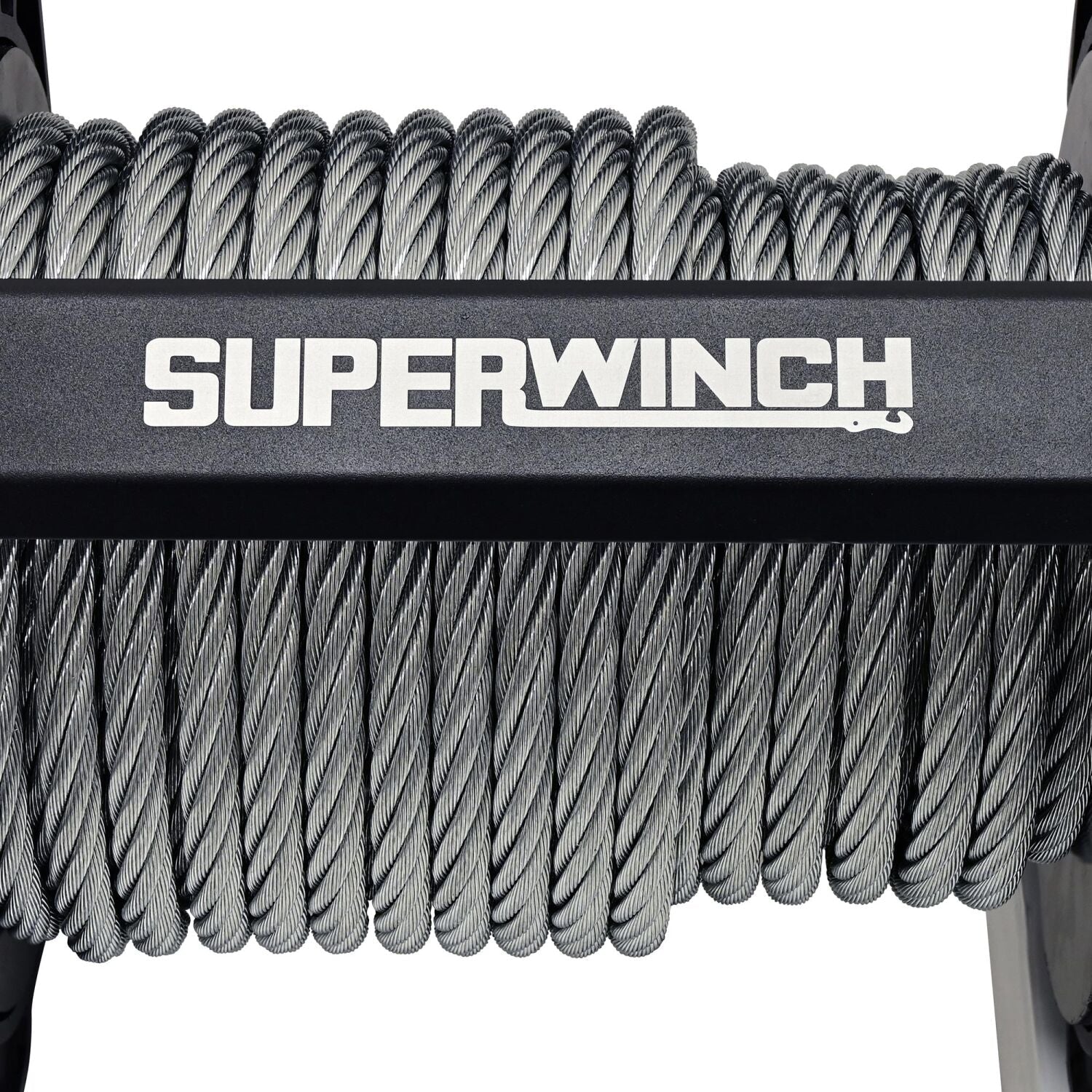

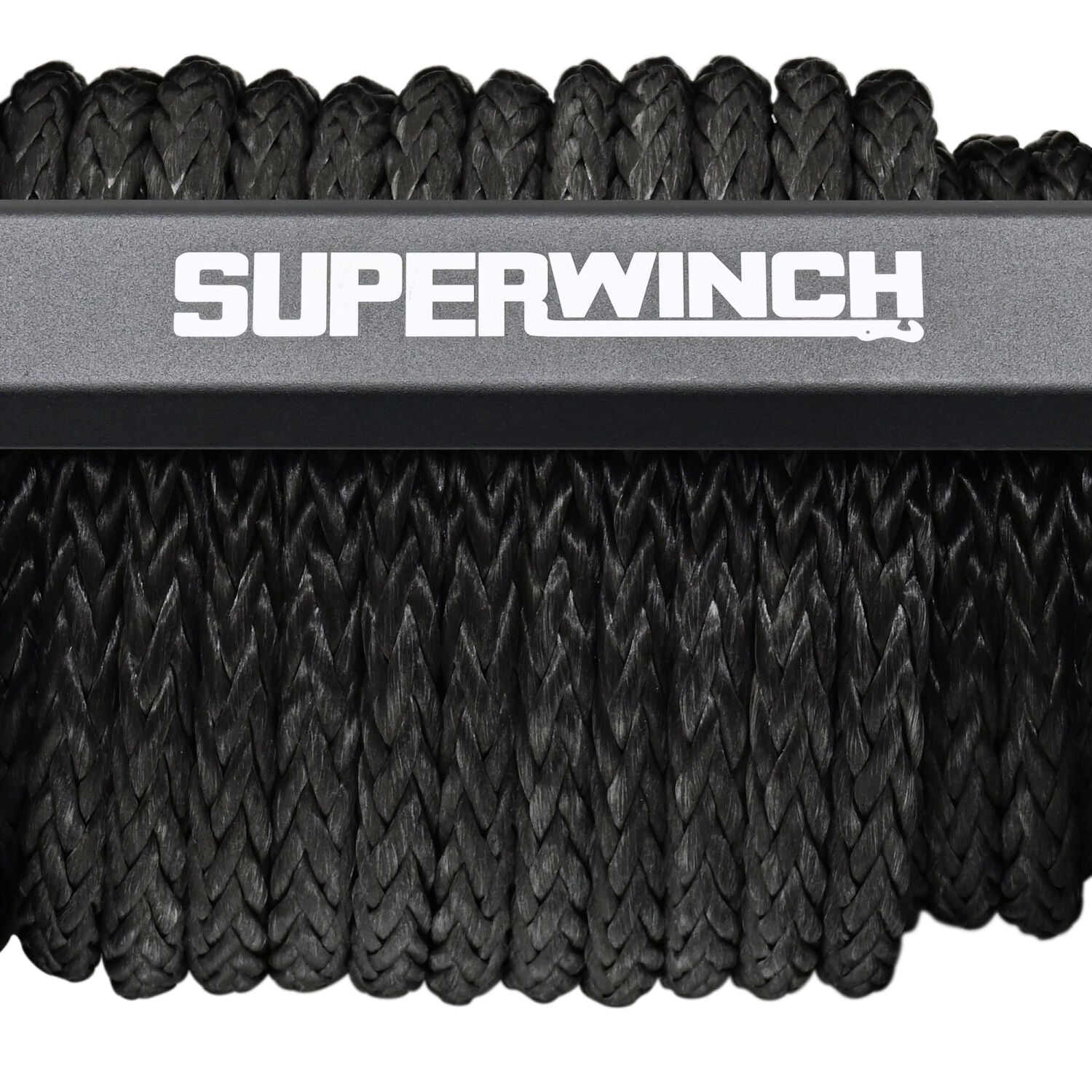

• Rope Material: Steel wire or synthetic, by variant
• Rope Length: 29/64 in x 85 ft (steel wire rope), 33/64 in x 79 ft (synthetic rope)
• Fairlead: Stainless steel 4-way roller (steel wire rope), aluminum hawse (synthetic rope)
• Remote Type: Wired

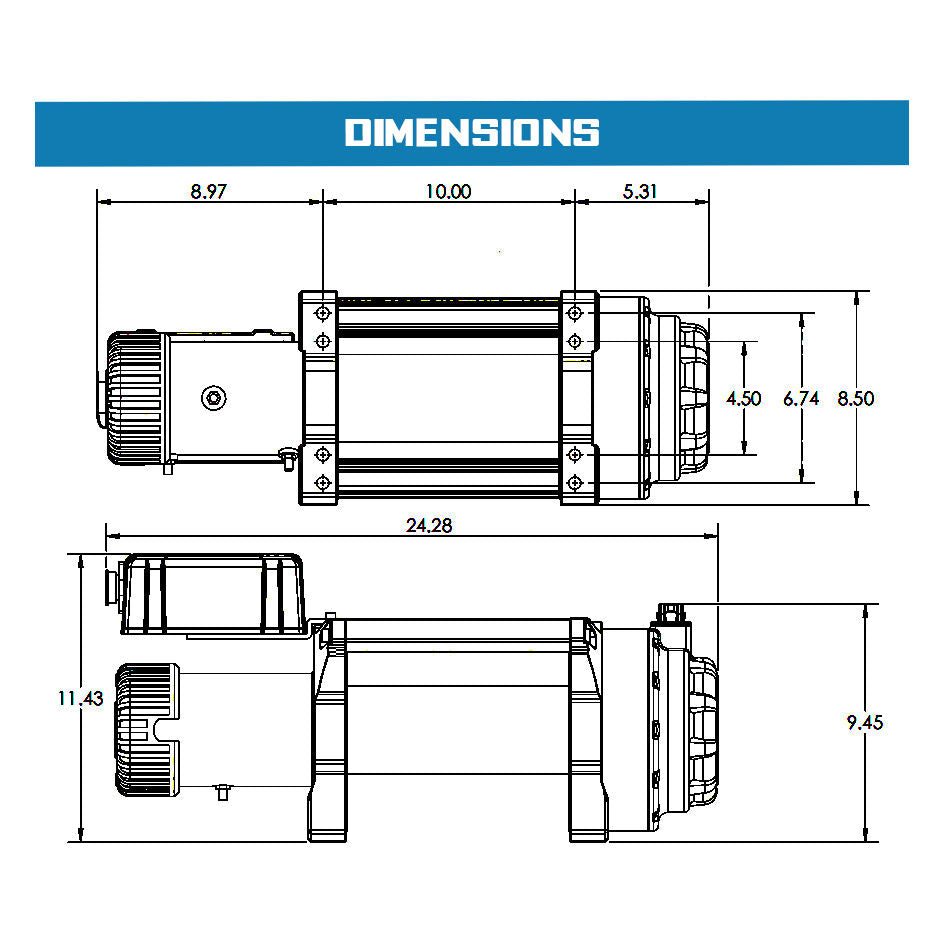

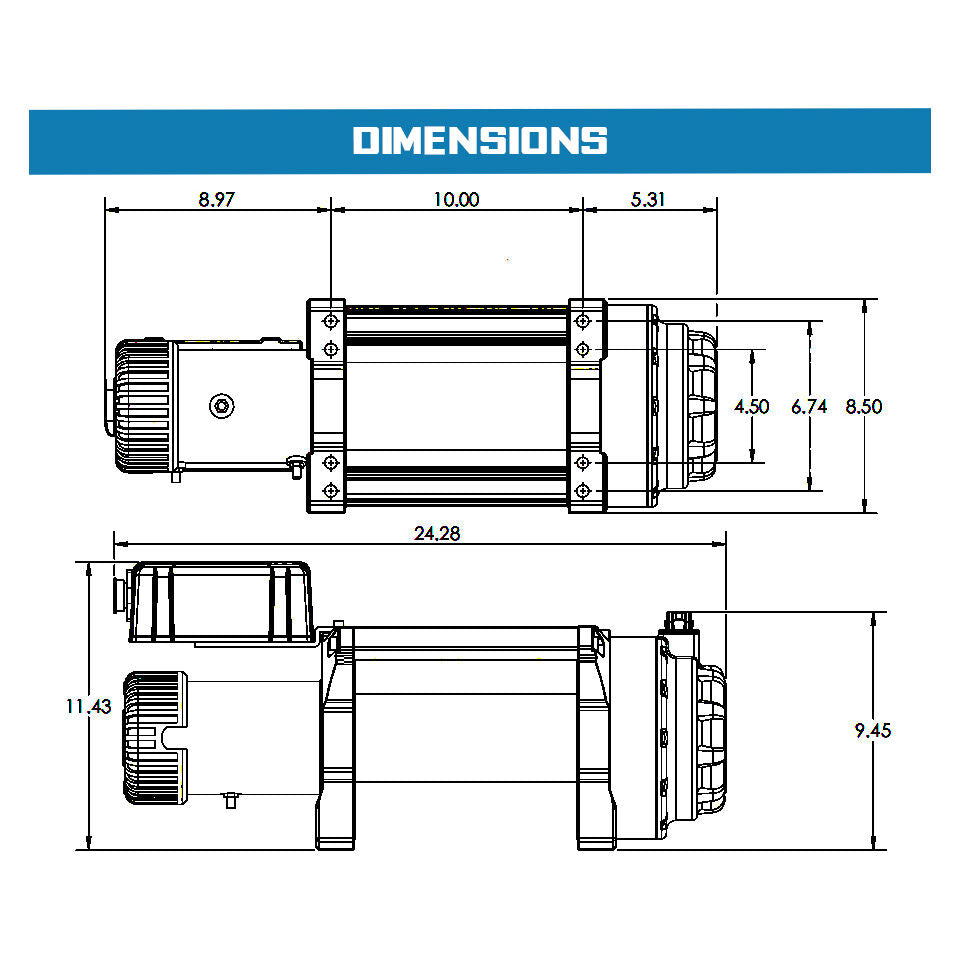

• Mounting Bolt Pattern: 10 in x 4.5 in (254 mm x 114.3 mm) and 10 in x 6.7 in (254 mm x 172 mm)
• Drum: Fully welded steel
• Winch Hook: Heavy duty clevis, pinned and latched
• Color: Black
• Weight: 132 lb (steel wire rope), 106 lb (synthetic rope)
• Width: 12 in
• Height: 16 in

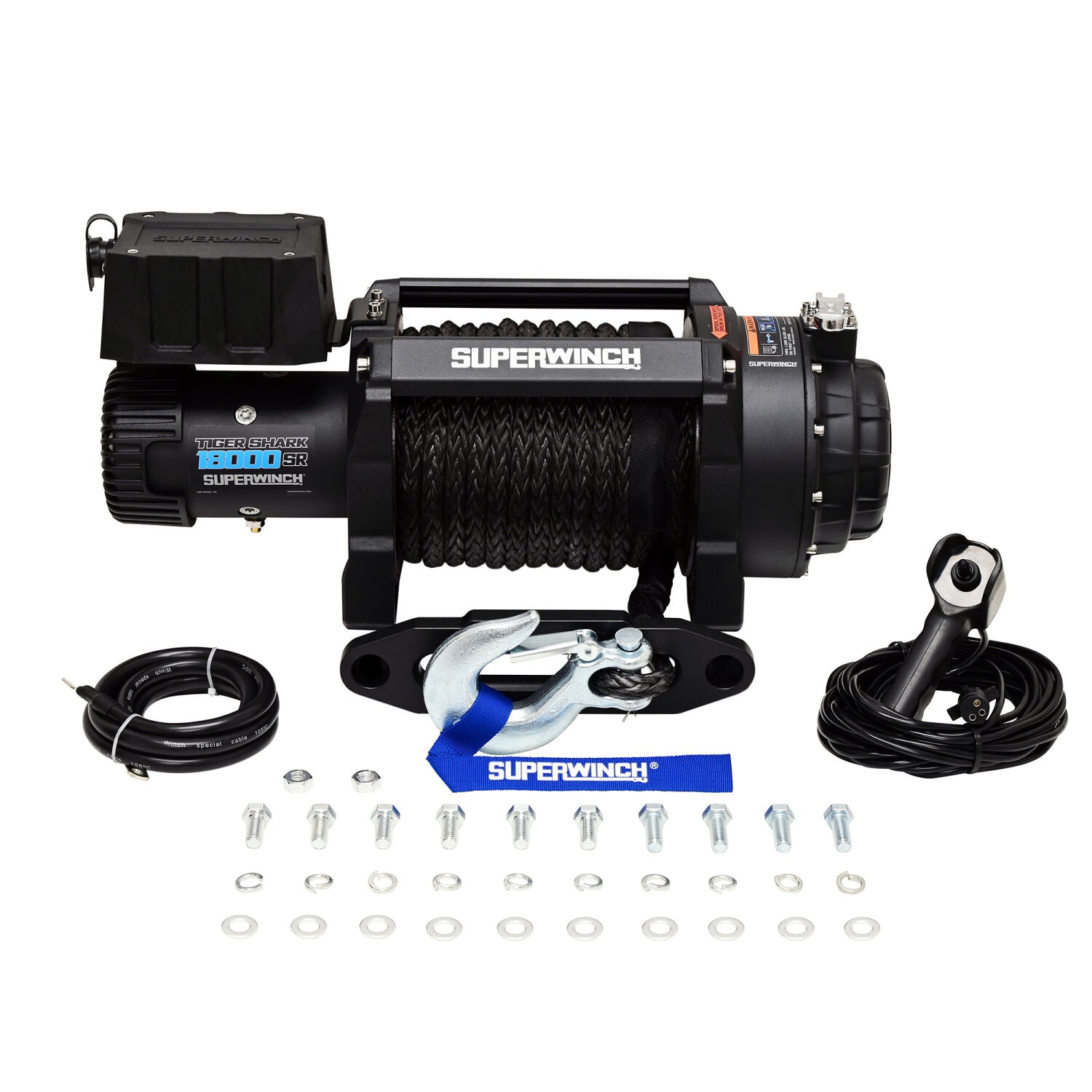

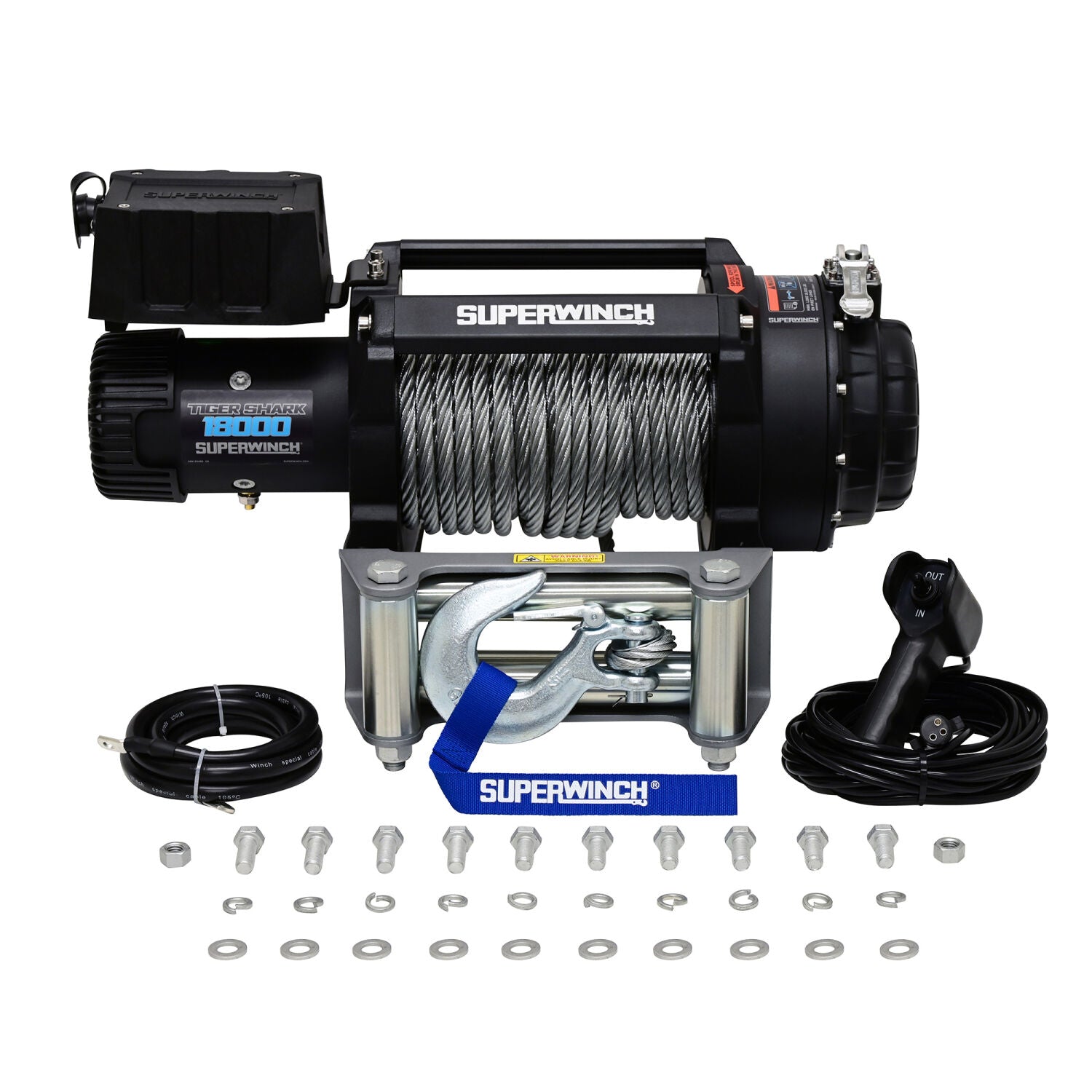

In the Box

• Winch with rope and hook
• Handheld wired remote control
• Mounting hardware

Warranty

Limited lifetime mechanical, limited 7 year electrical.

MPN 1518000 (Steel Wire Rope Black)

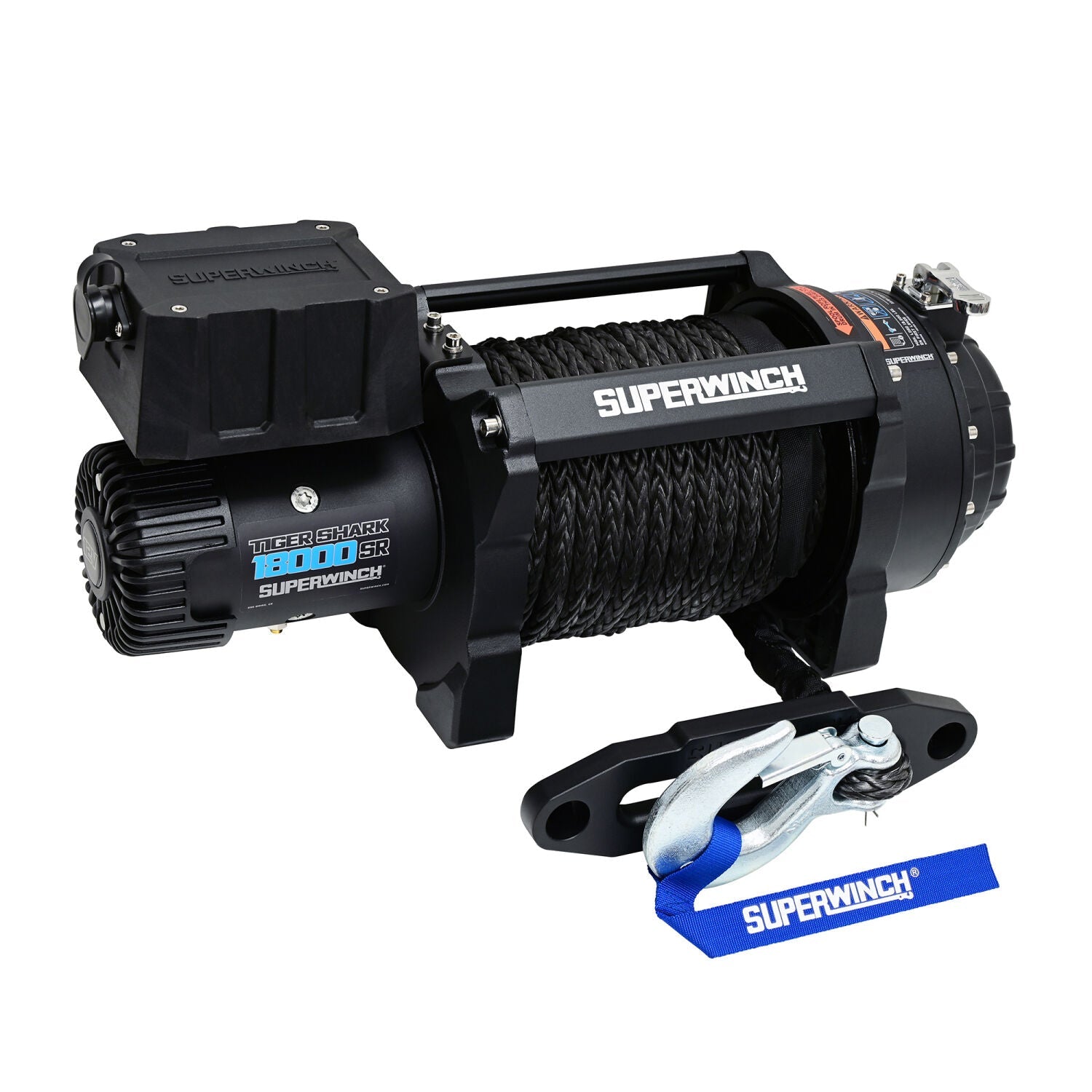

MPN 1518001 (Synthetic Rope Black)
