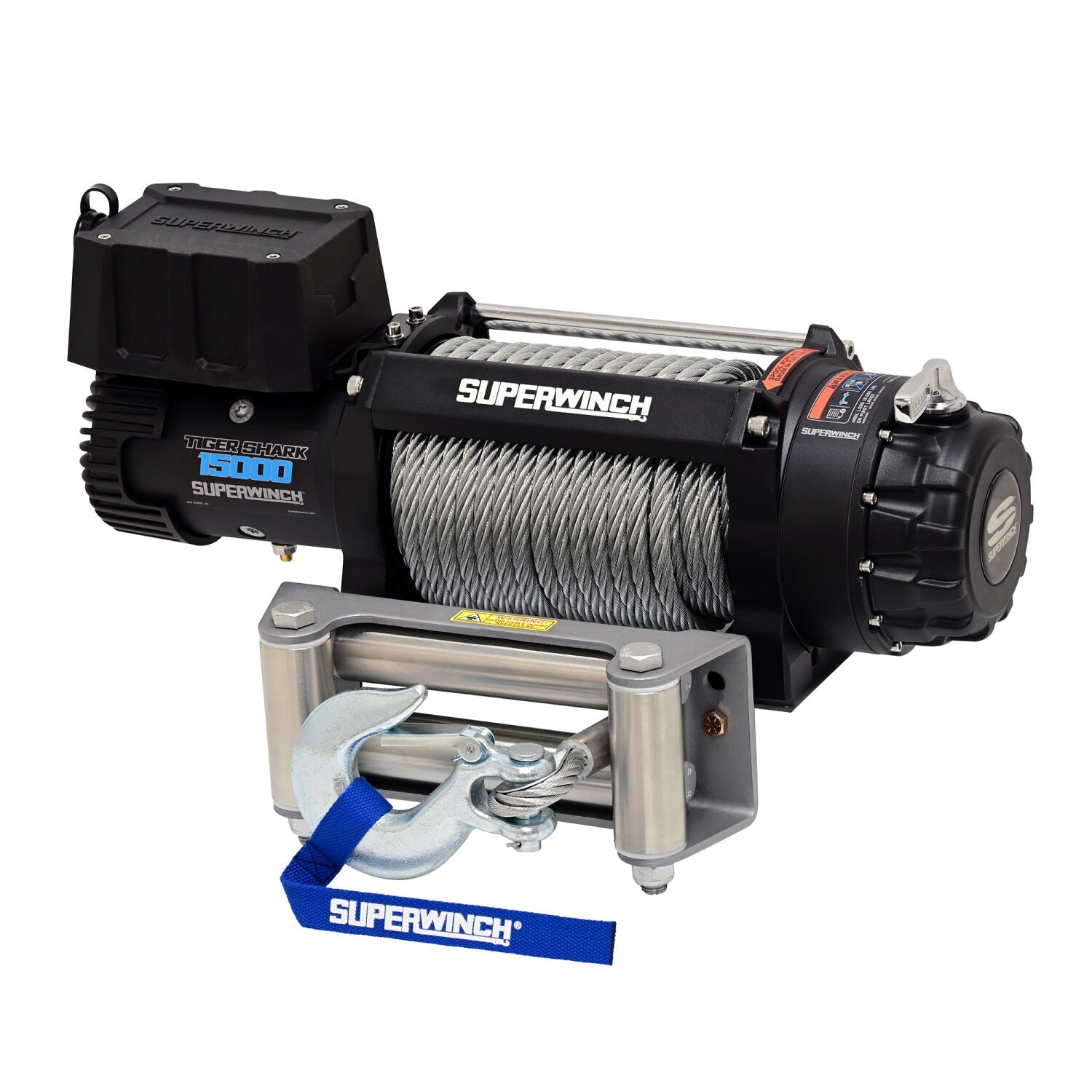

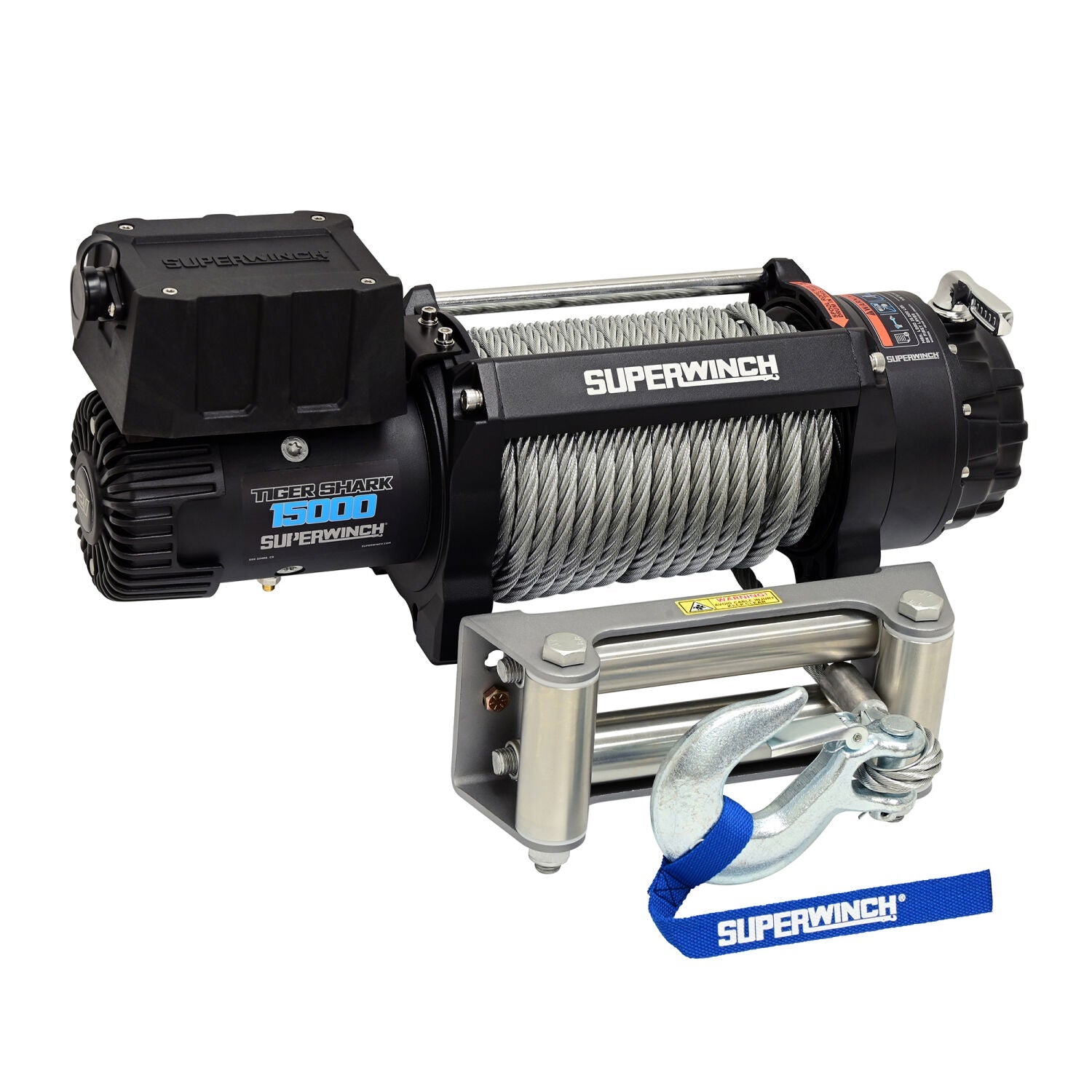

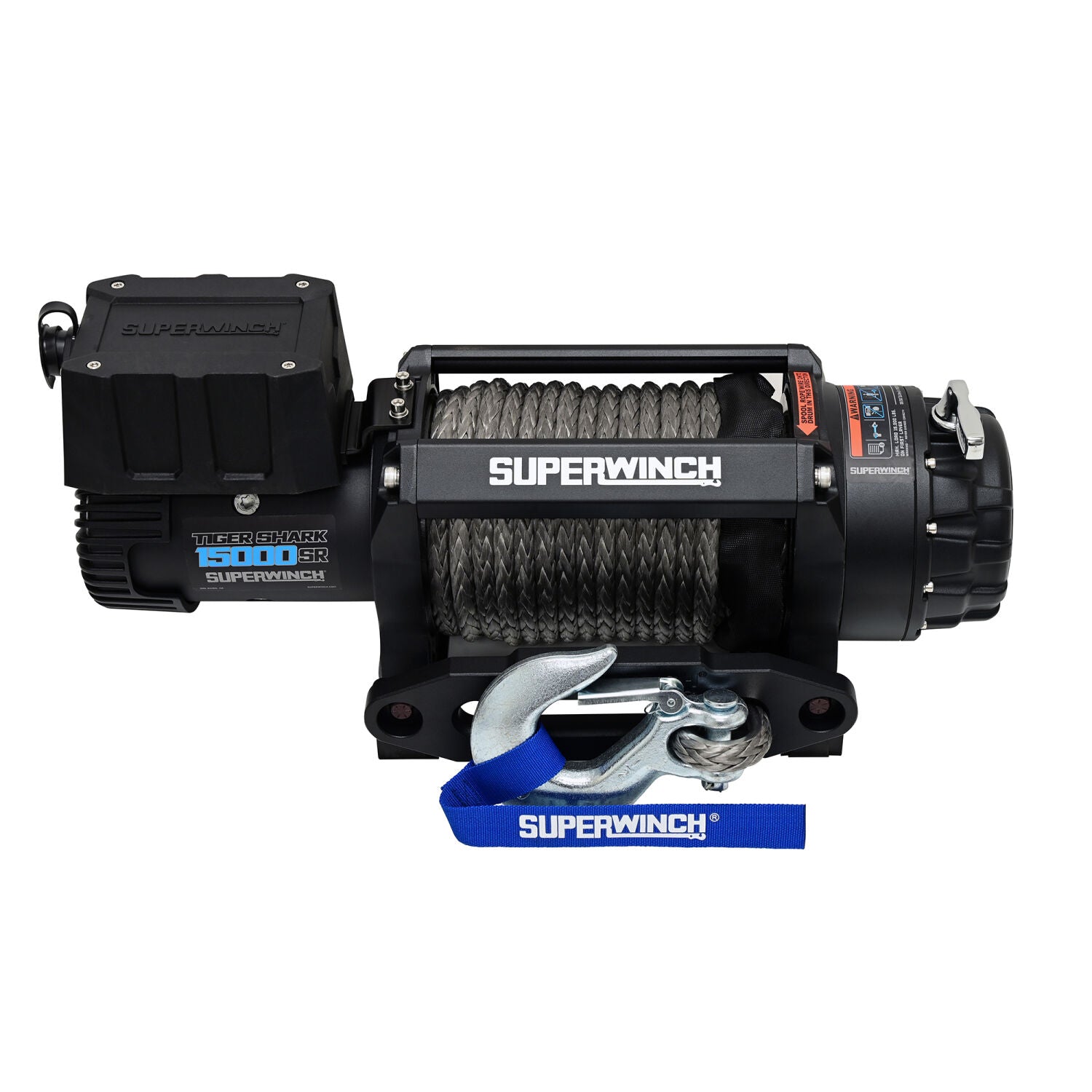

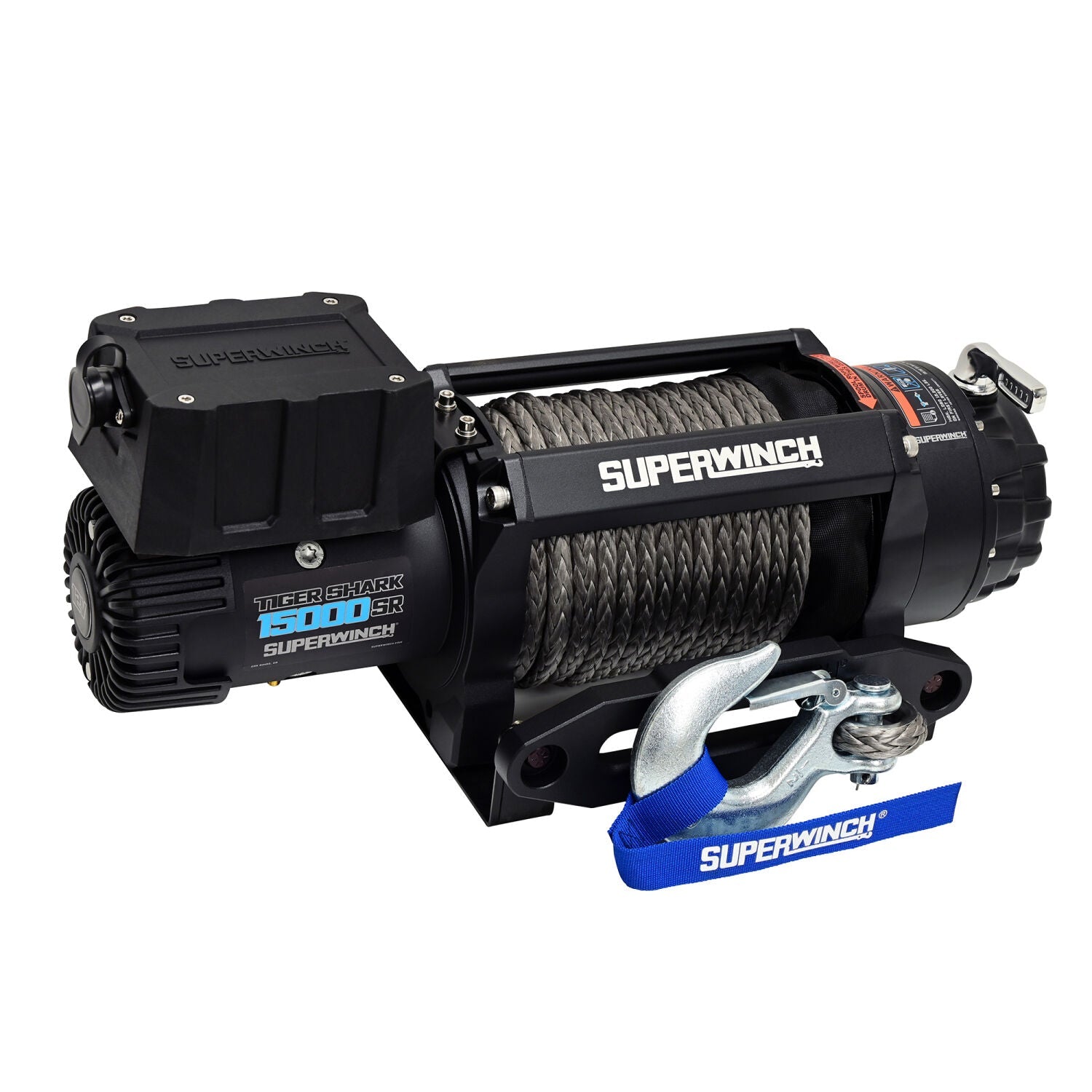

Superwinch Tiger Shark 15000 Winch, 15,000 lb, 12V DC

Heavier vehicles, trailers and roll-off container work call for a winch with more line pull. The Superwinch Tiger Shark 15000 is a 12V DC electric winch rated at 15,000 lb. A 6.8 HP series wound motor drives 3-stage planetary gearing at 262:1, and an automatic cone brake holds the load. A lever shift twist and turn freespool and a 30 ft handheld wired remote keep operation simple, and mounting hardware is included. Mount it and take on the heavy pull. Choose steel wire rope or synthetic rope to match the job.

Key Features

• 15,000 lb capacity
• 6.8 HP series wound motor
• 3-stage planetary gearing with 262:1 ratio
• Automatic cone brake
• Heat insulated first layer
• Lever shift twist and turn freespool

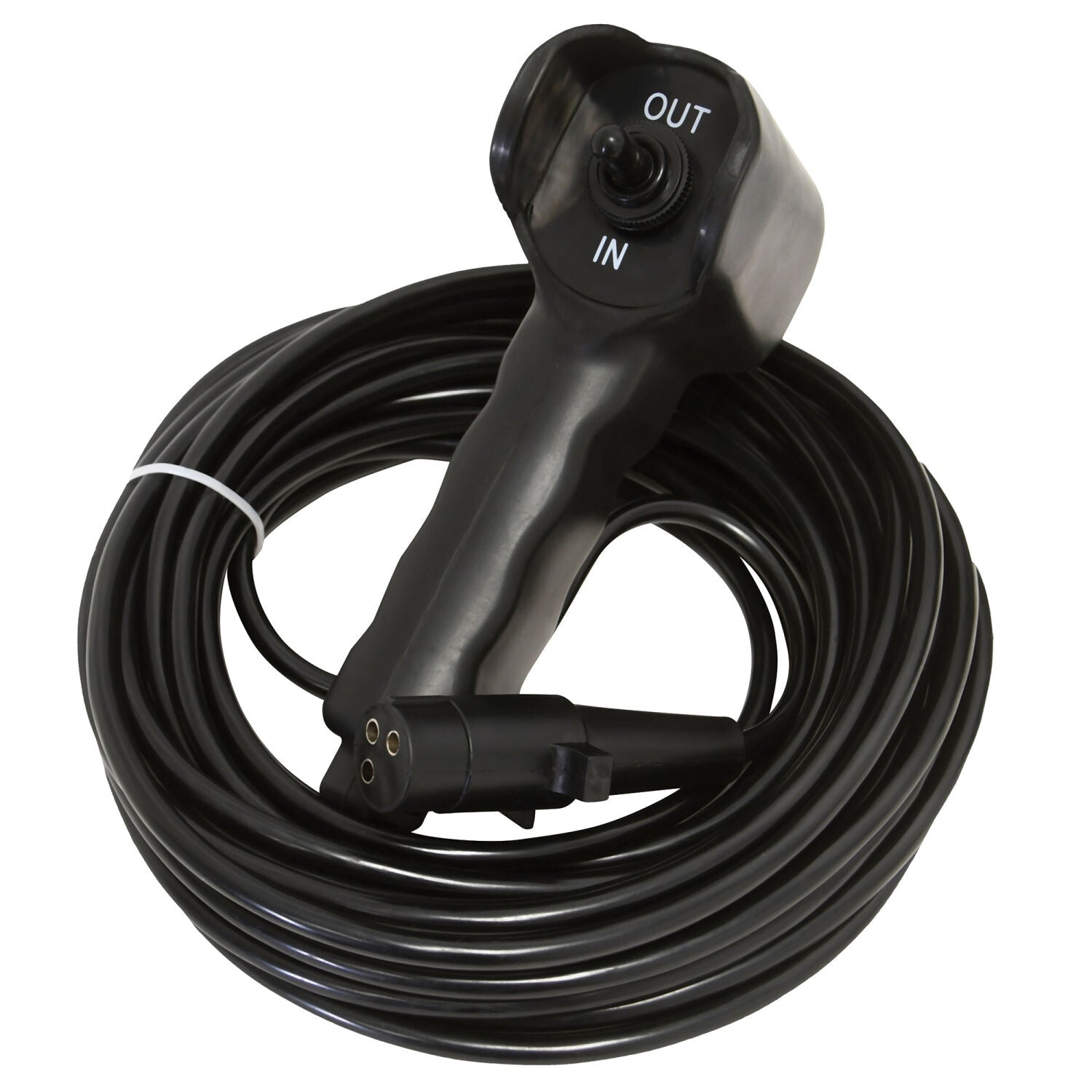

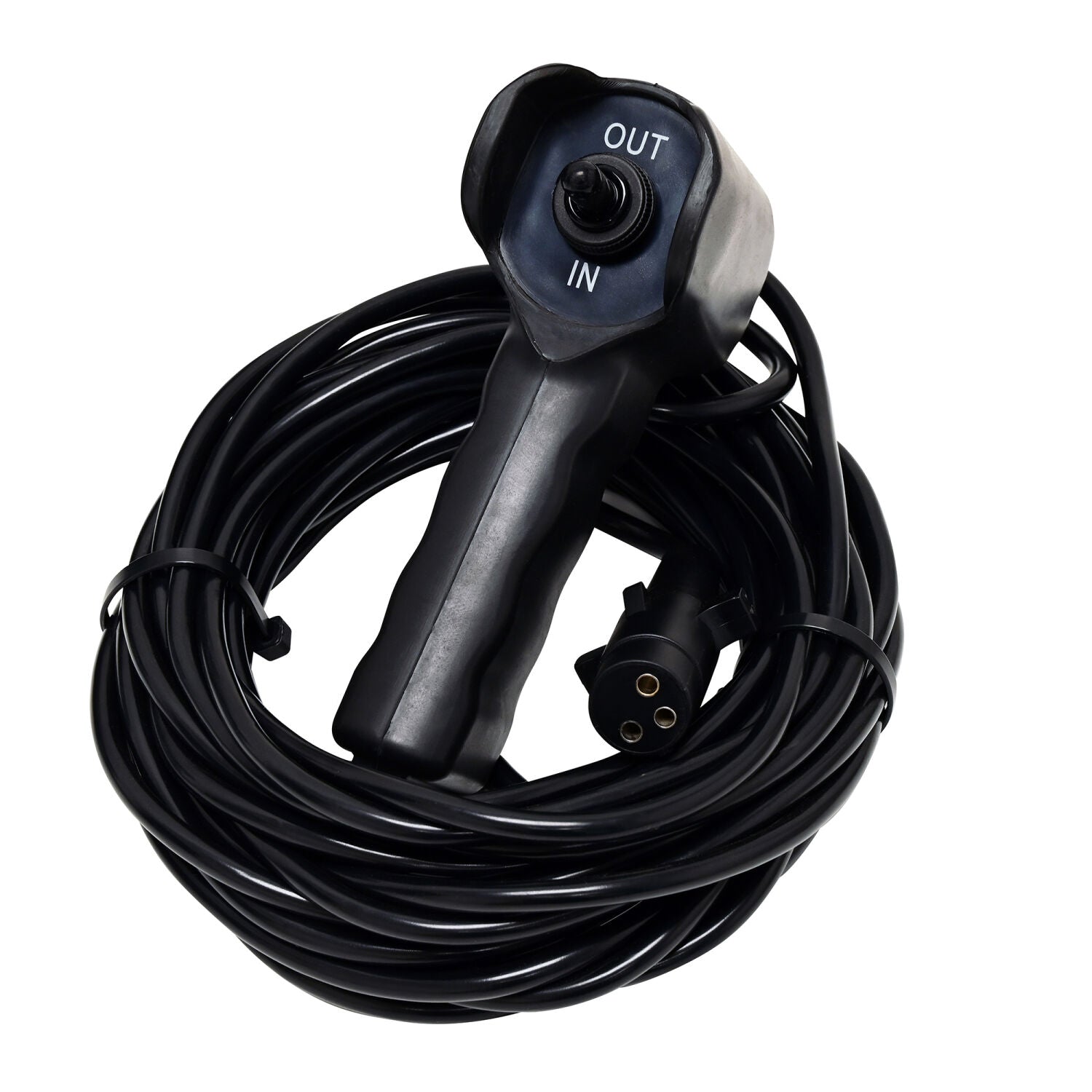

• 30 ft handheld wired remote control
• Optional wireless remote control sold separately (part no. 2277)
• Heavy duty clevis pinned, latched hook
• Mounting hardware included
• Textured black finish

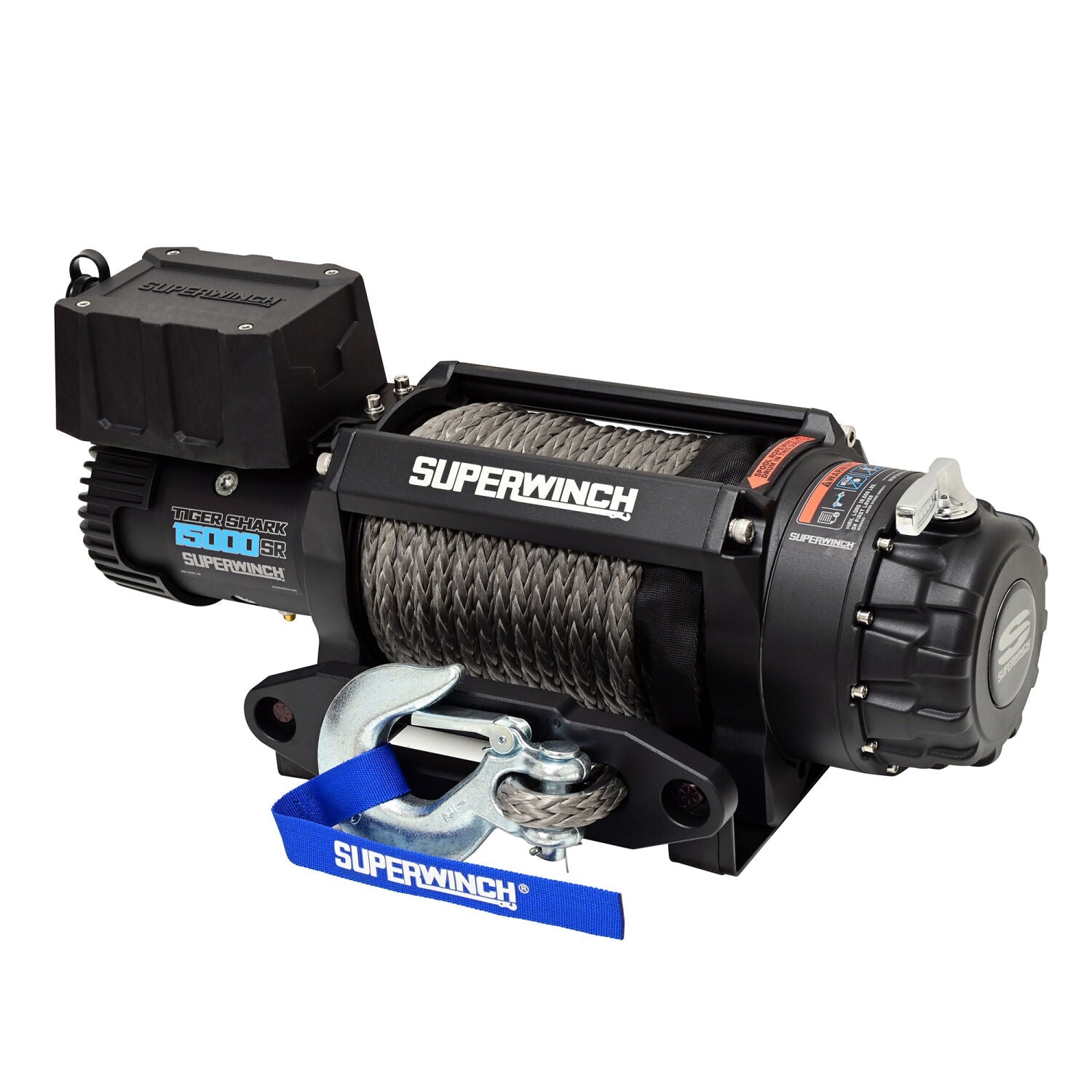

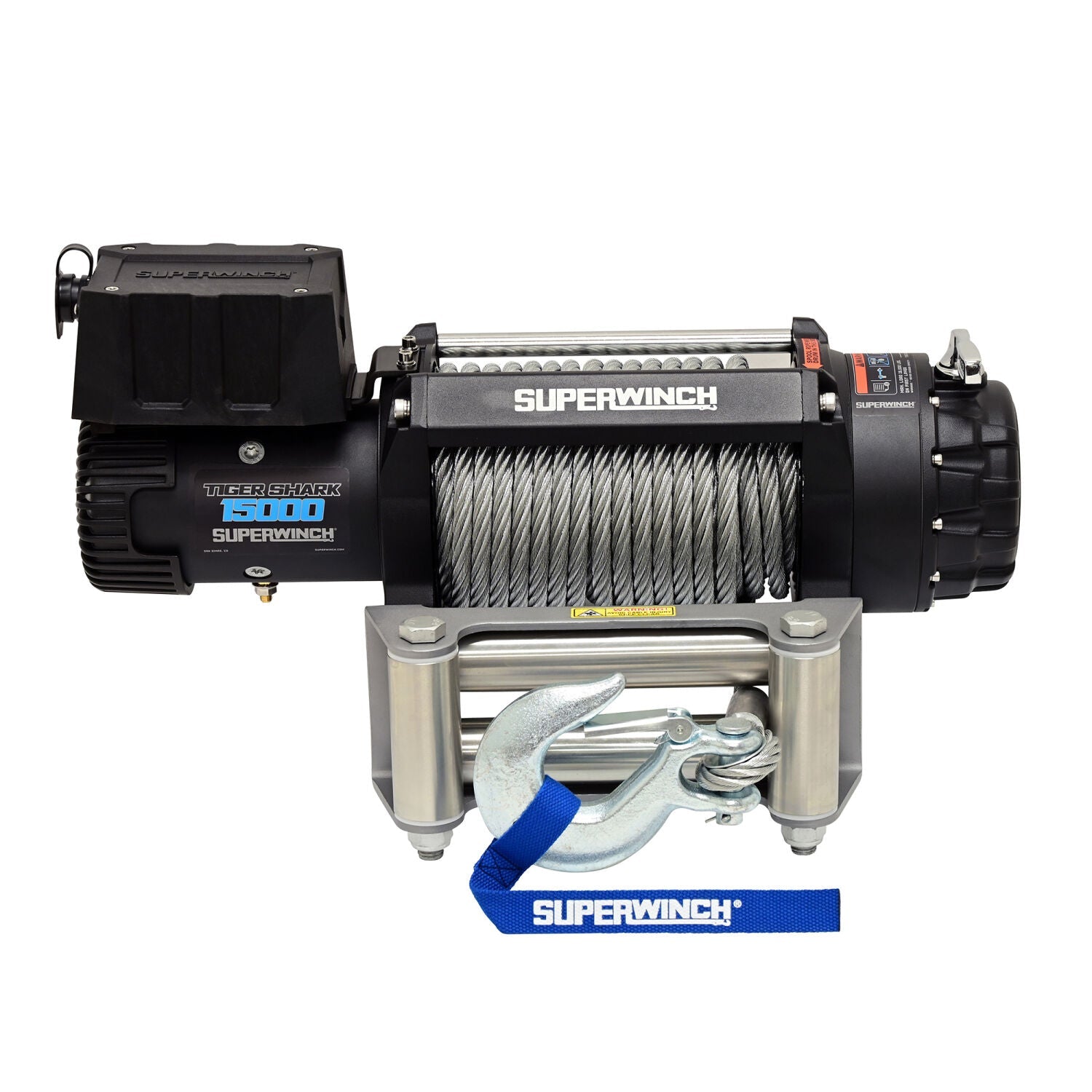

• Steel wire rope version has a stainless steel 4-way roller fairlead; synthetic rope version has an aluminum hawse

Specifications

• Winch Type: Electric
• Voltage: 12V DC
• Motor: Series wound 6.8 HP / 5.0 kW, 12V DC
• Gear System: 3-stage planetary
• Gear Ratio: 262:1
• Clutch: Lever shift twist and turn freespool
• Brake System: Automatic cone brake

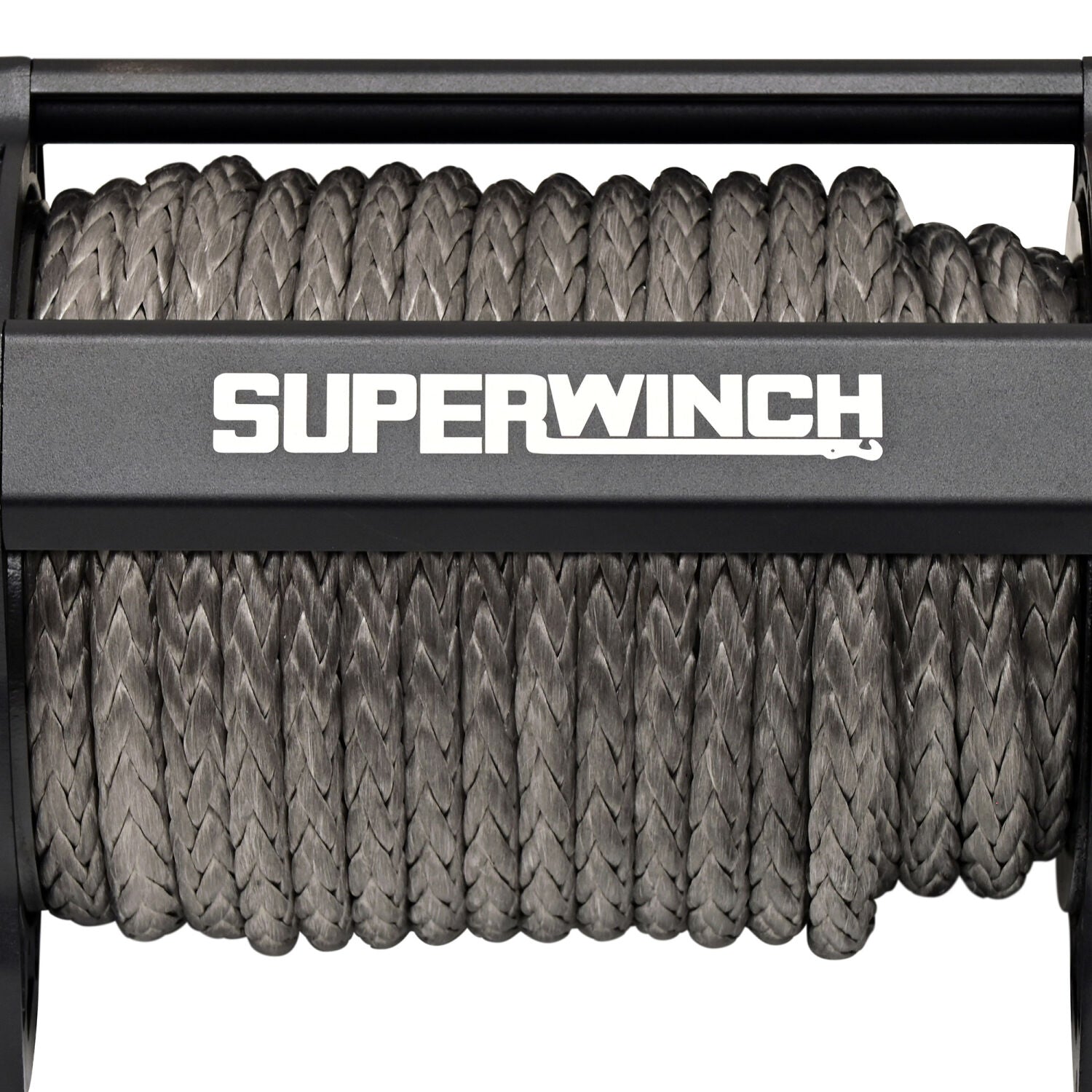

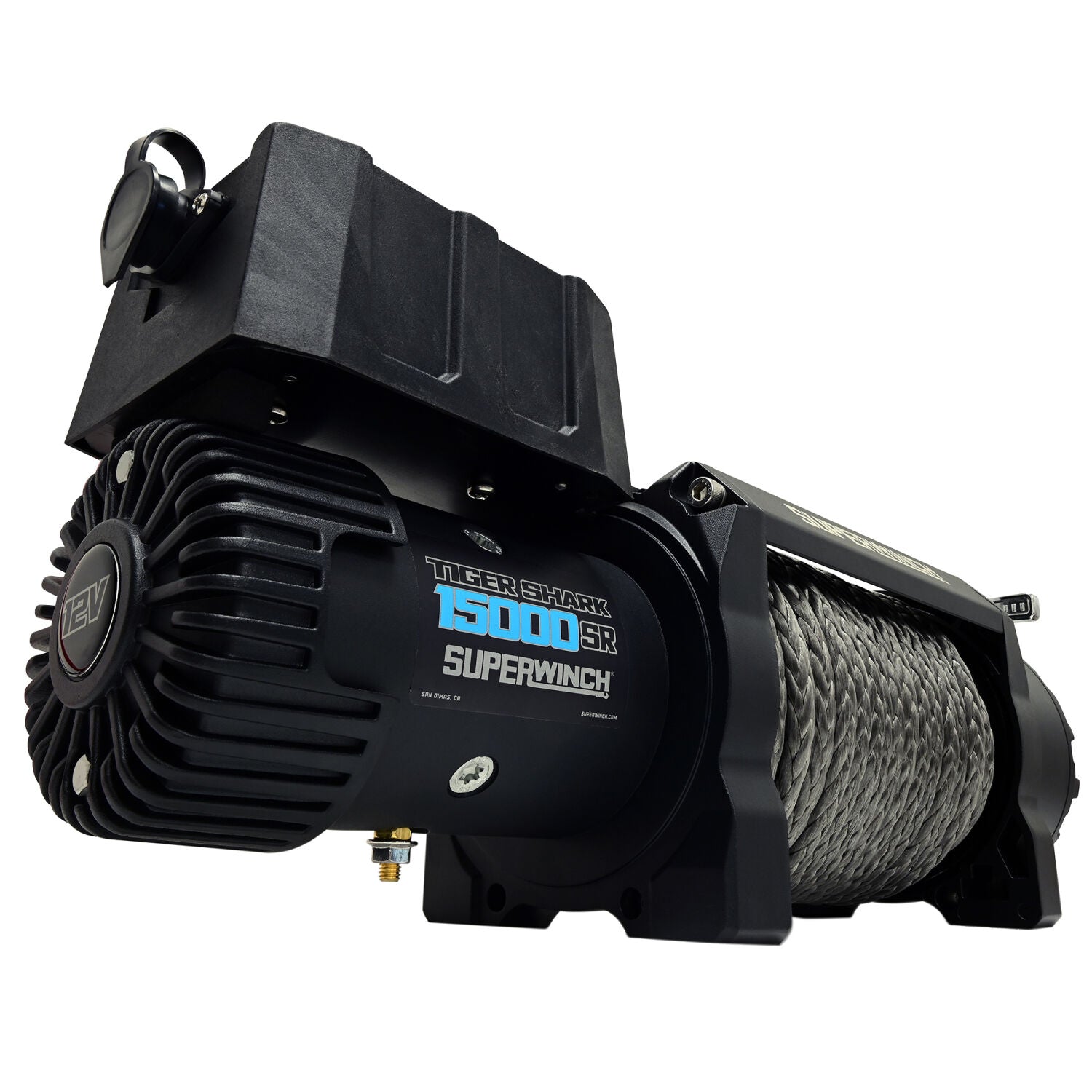

• Rope Material: Steel wire or synthetic, by variant
• Rope Length: 7/16 in x 82 ft (steel wire rope), 15/32 in x 78 ft (synthetic rope)
• Fairlead: Stainless steel 4-way roller (steel wire rope), aluminum hawse (synthetic rope)

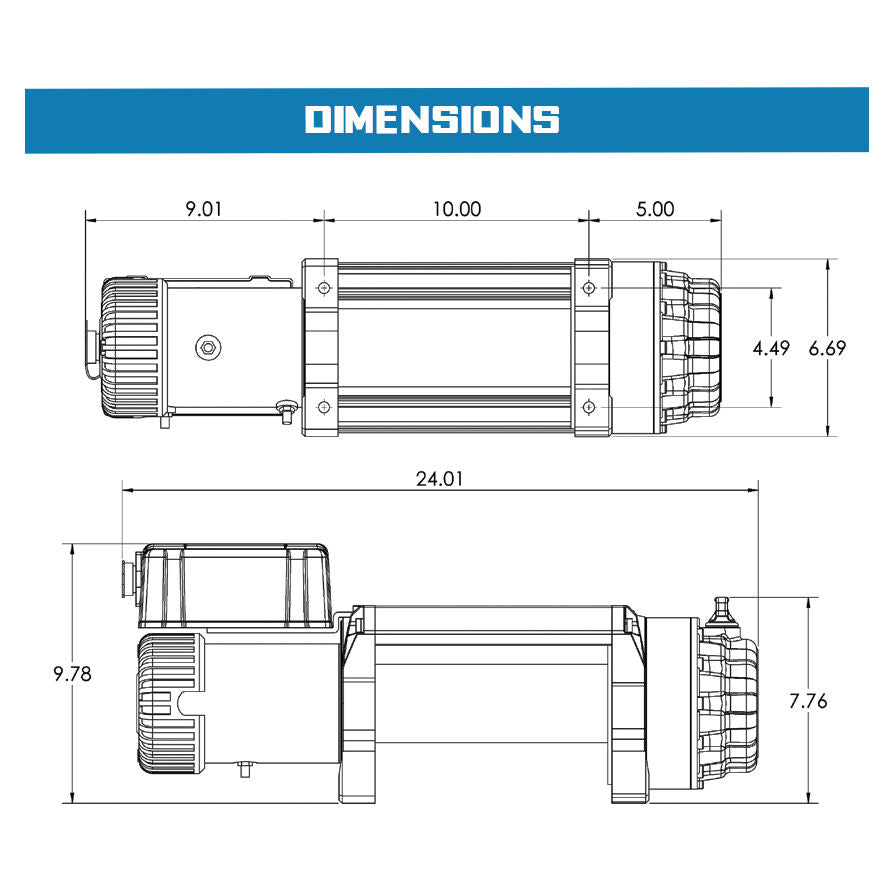

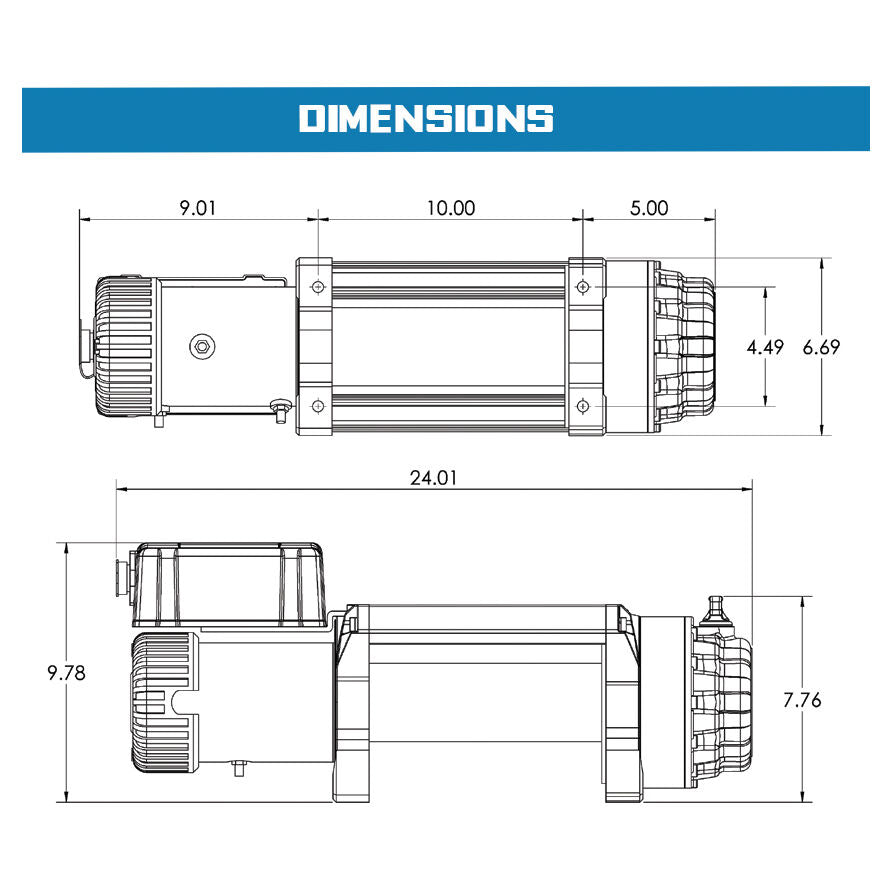

• Mounting Bolt Pattern: 10 in x 4.5 in (254 mm x 114.3 mm)
• Winch Hook: Heavy duty clevis, pinned and latched
• Color: Black
• Weight: 110 lb (steel wire rope), 77 lb (synthetic rope)
• Width: 11.81 in
• Height: 15.75 in

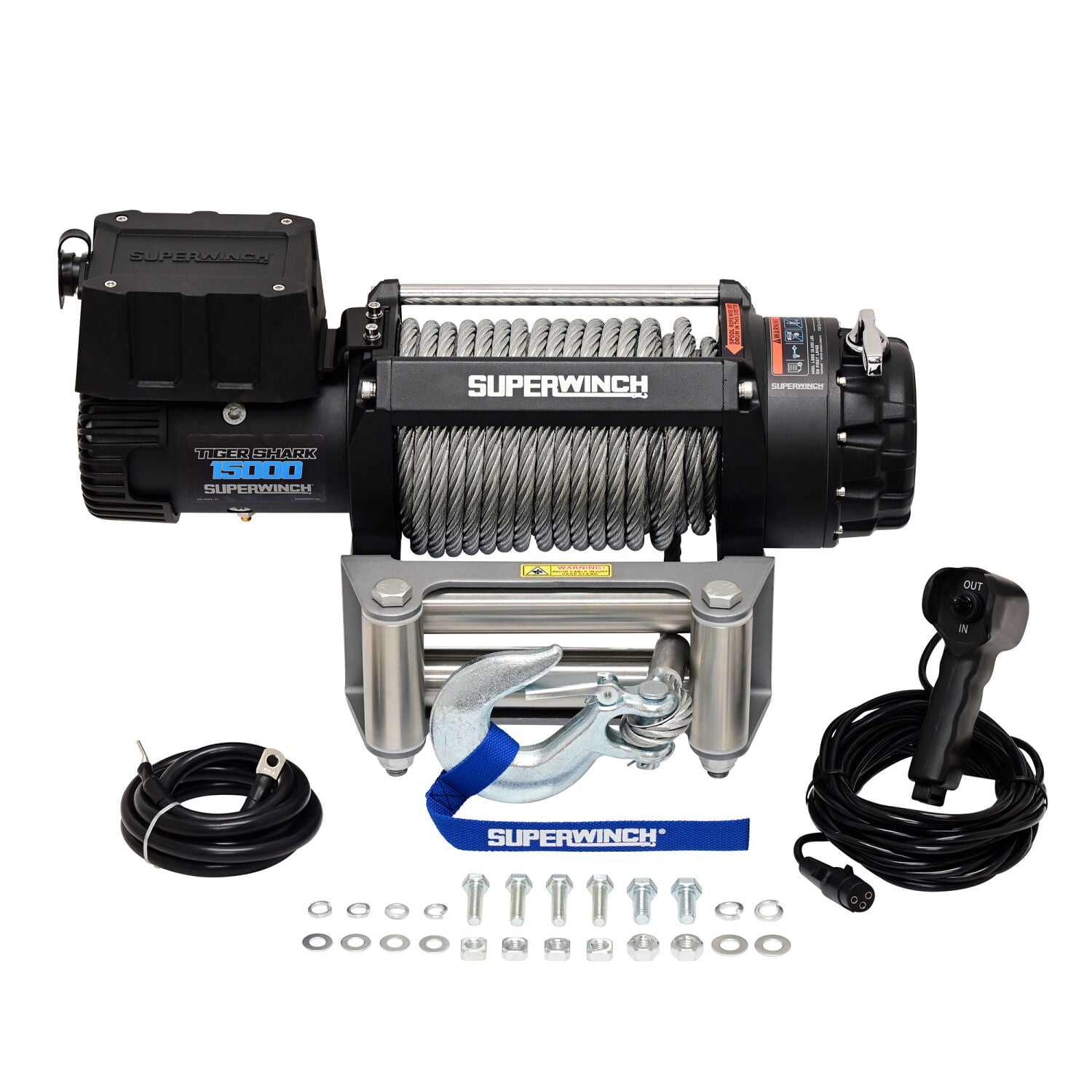

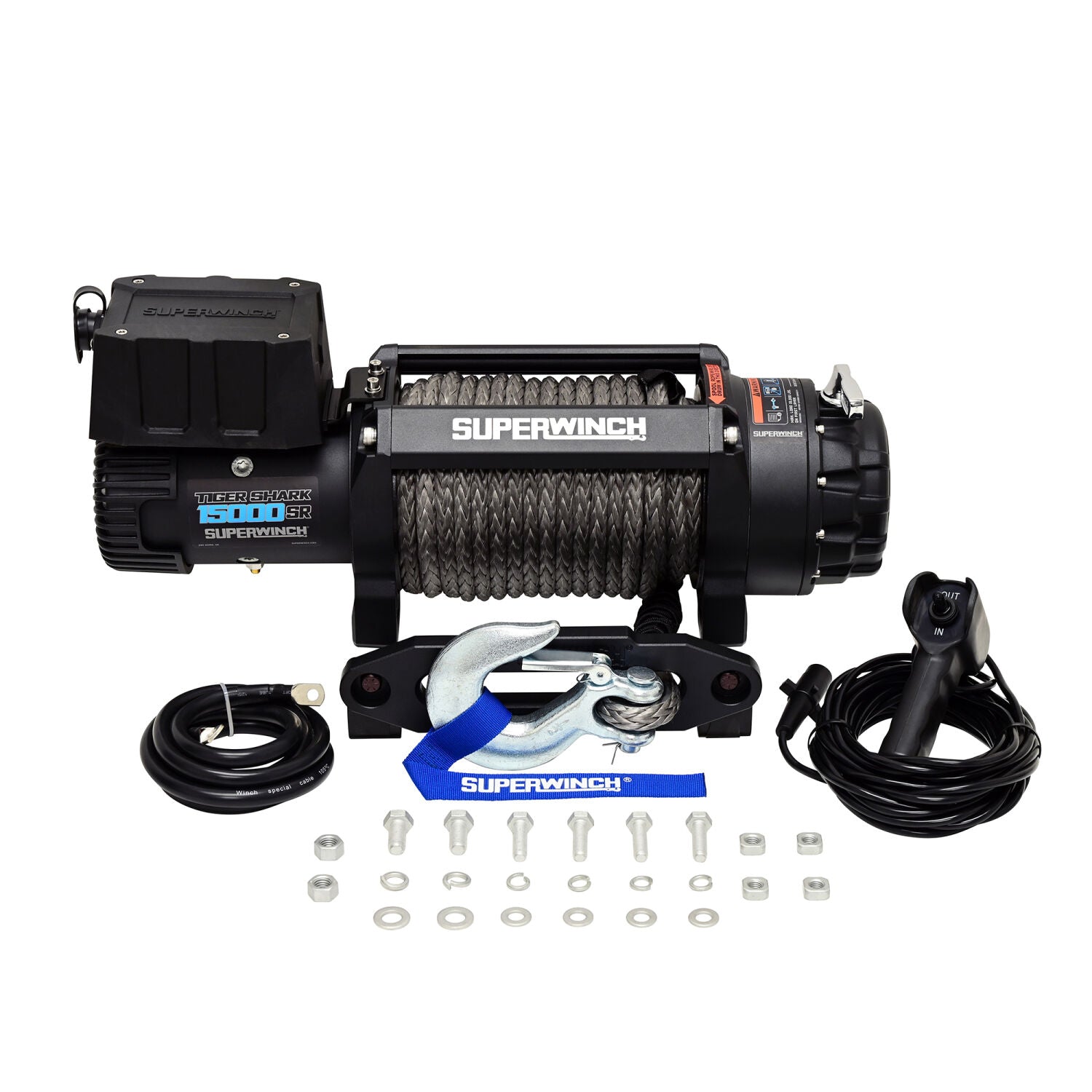

In the Box

• Winch with rope and hook
• Handheld wired remote control
• Mounting hardware

Warranty

Limited lifetime mechanical, limited 7 year electrical.

MPN 1515000 (Steel Wire Rope Black)

MPN 1515001 (Synthetic Rope Black)
