Superwinch Tiger Shark 11500 Winch, 11,500 lb, 12V DC

A rig that sinks in mud or sand needs a winch that can drag it out. The Superwinch Tiger Shark 11500 is a 12V DC electric winch rated at 11,500 lb. A 6.0 HP series wound motor drives 3-stage planetary gearing at 218:1, and an automatic load holding brake keeps the load still. A pull and turn freespool lets you pay out line quickly, and the weather sealed solenoid is built for outdoor use. Mount it to the bumper and recover. Choose steel wire rope or synthetic rope to match the job.

Key Features

• 11,500 lb capacity
• 6.0 HP series wound motor
• 3-stage planetary gearing with 218:1 ratio

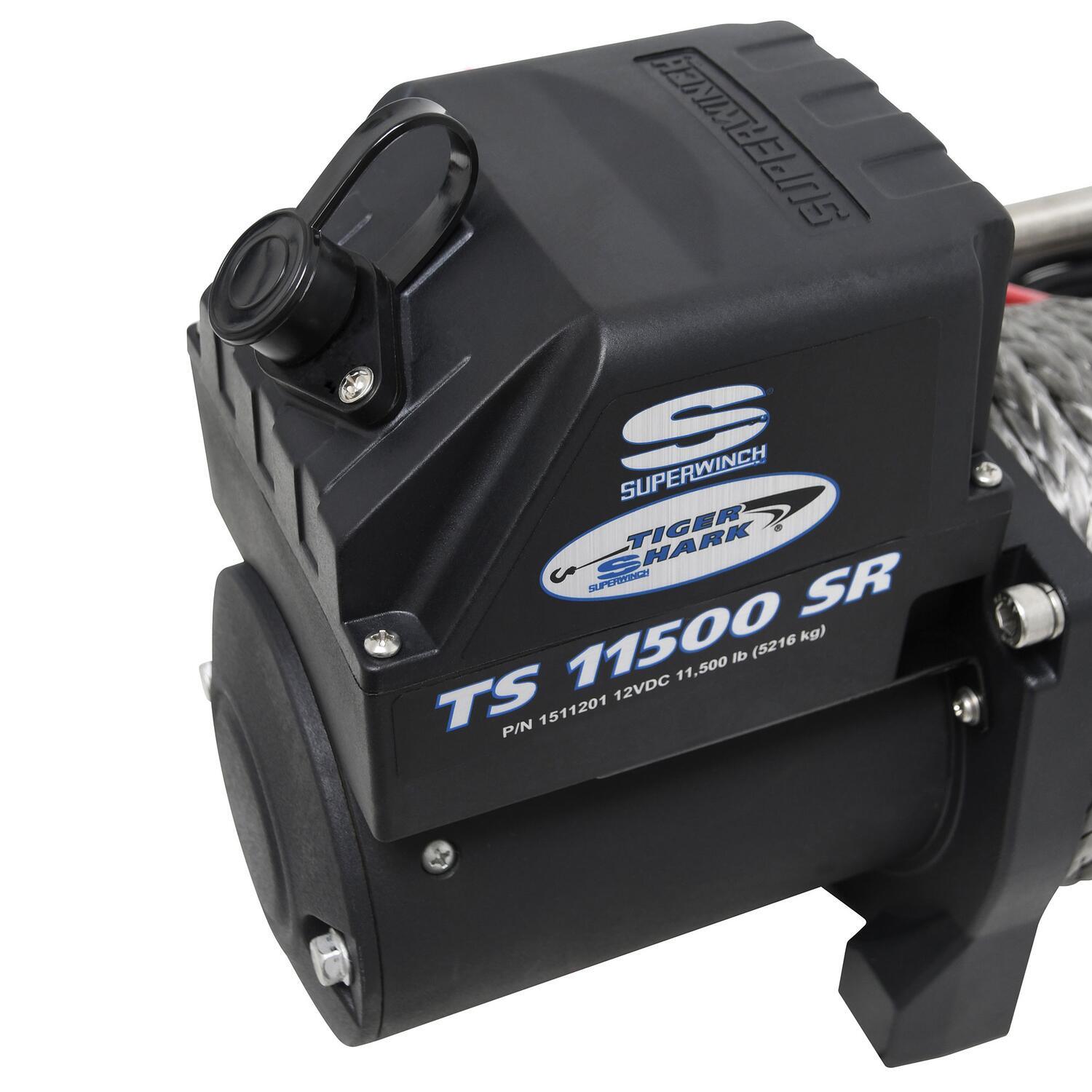

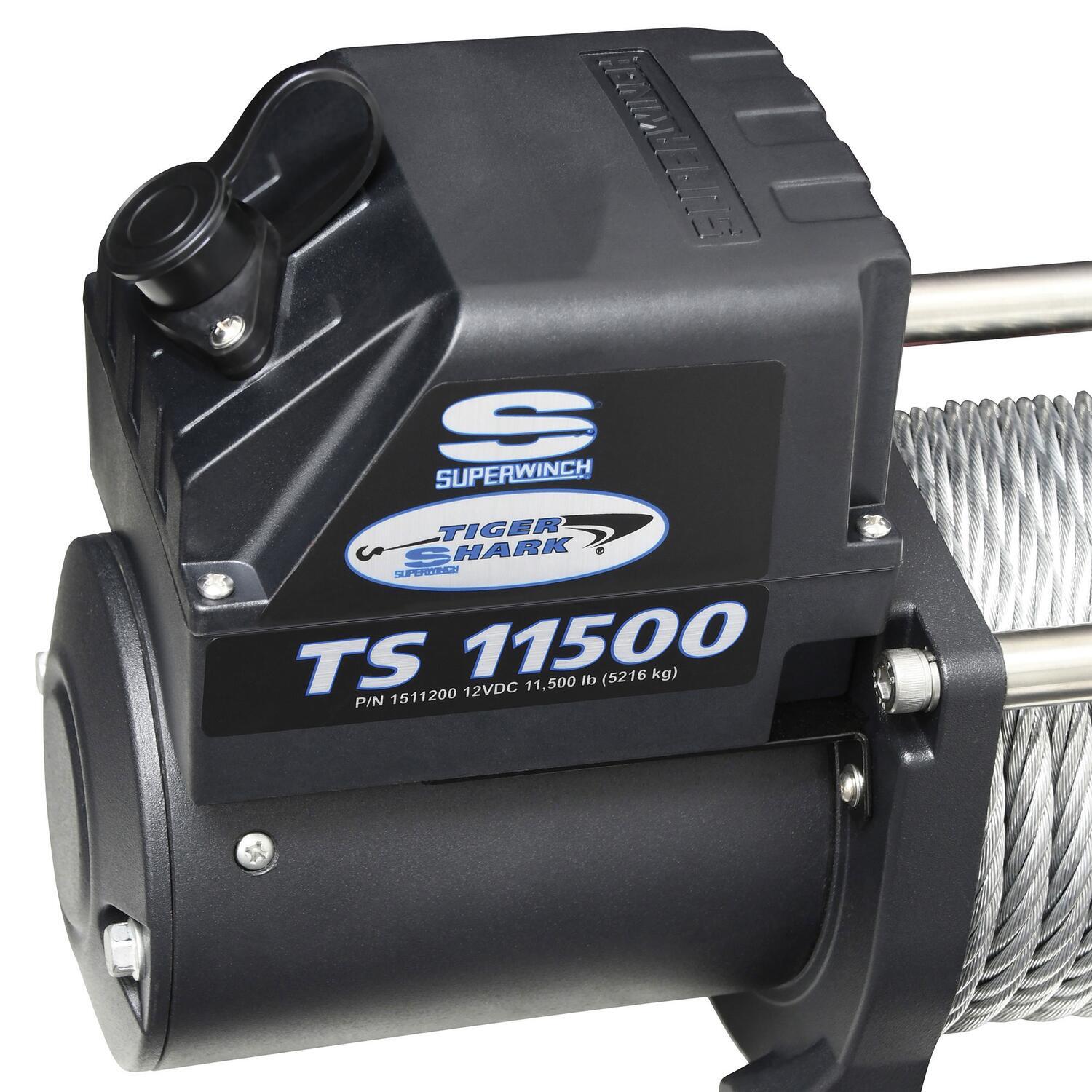

• Weather sealed solenoid
• Heat insulated first layer
• Ergonomic pull and turn freespool
• Heavy duty clevis pinned, latched hook
• Automatic load holding brake
• Handheld wired remote control

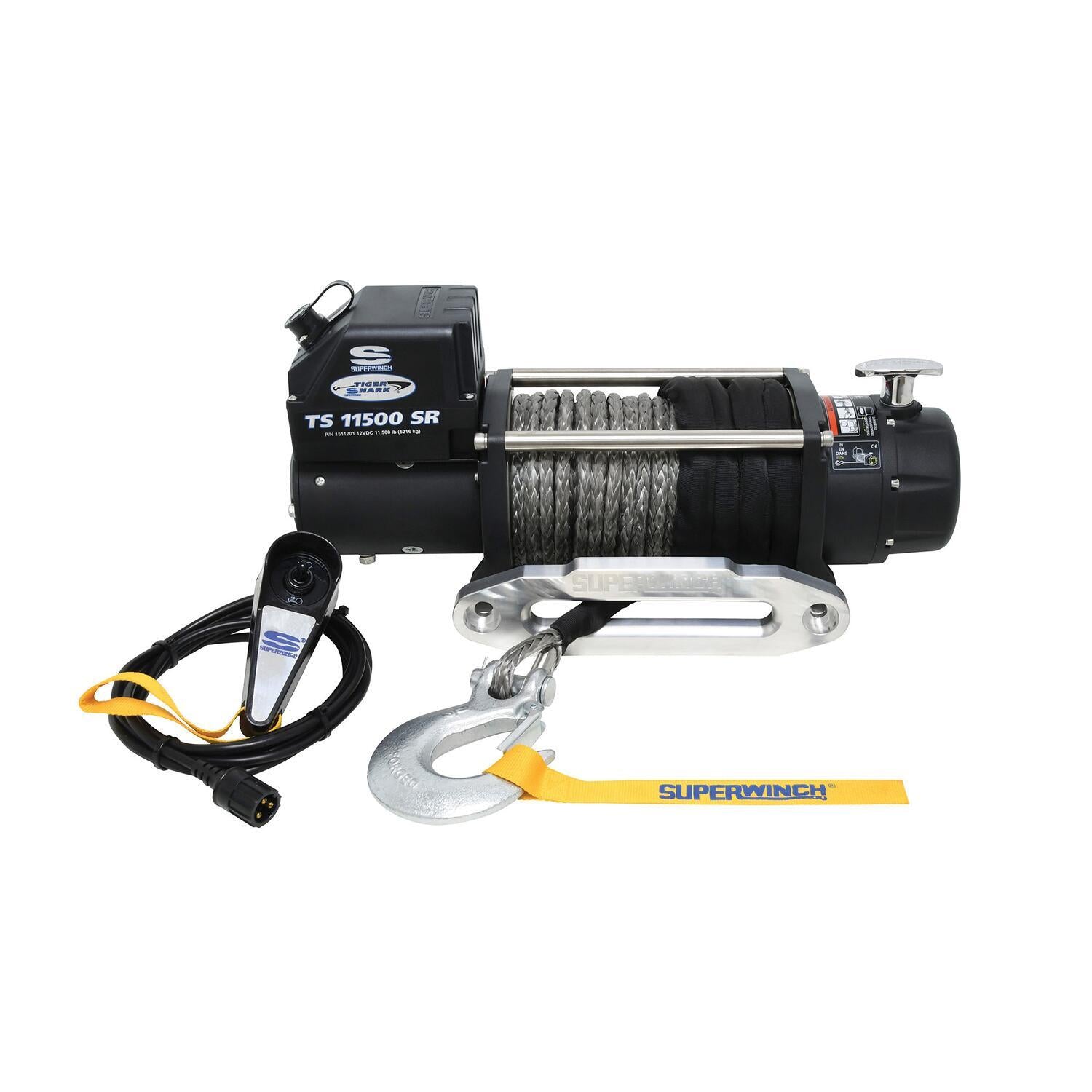

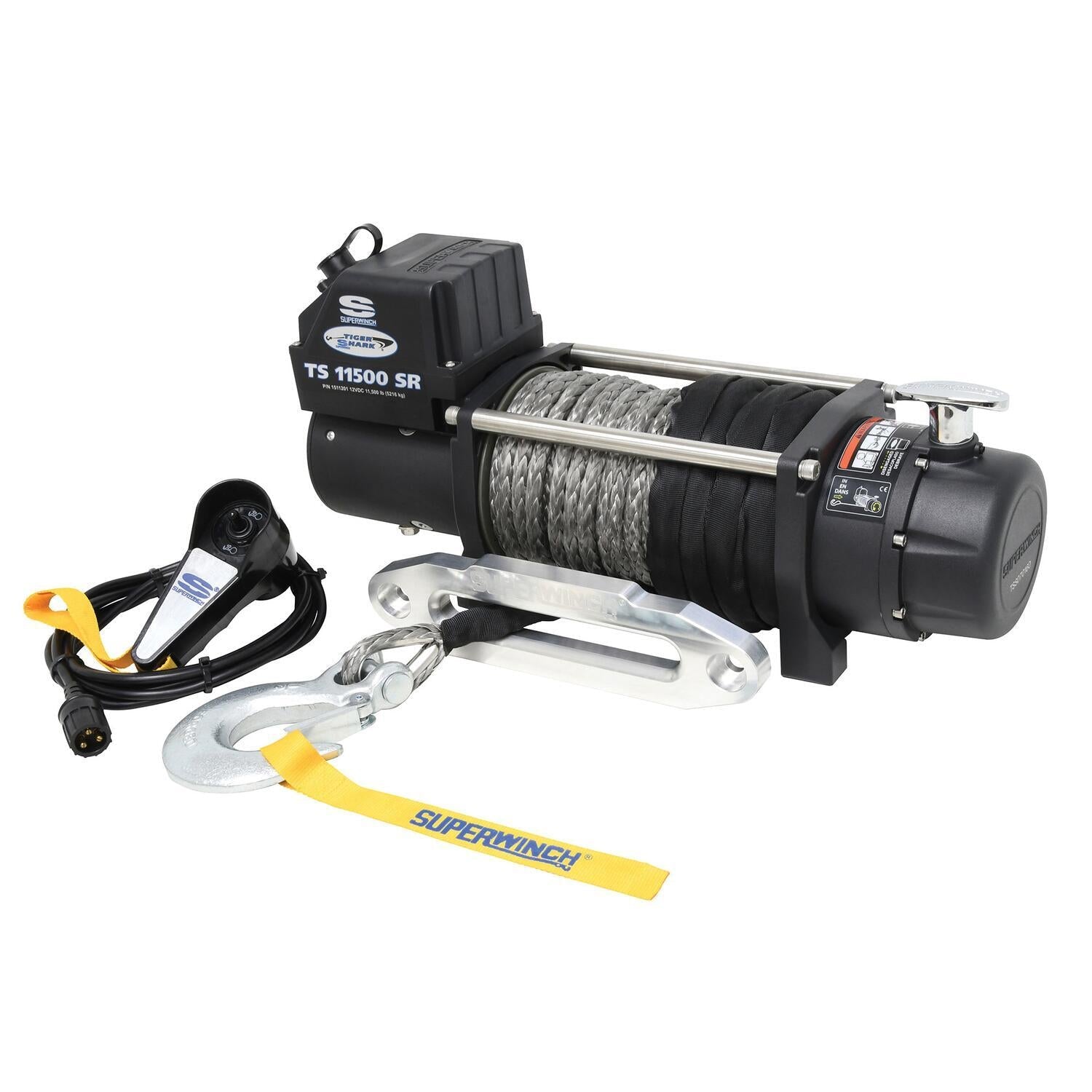

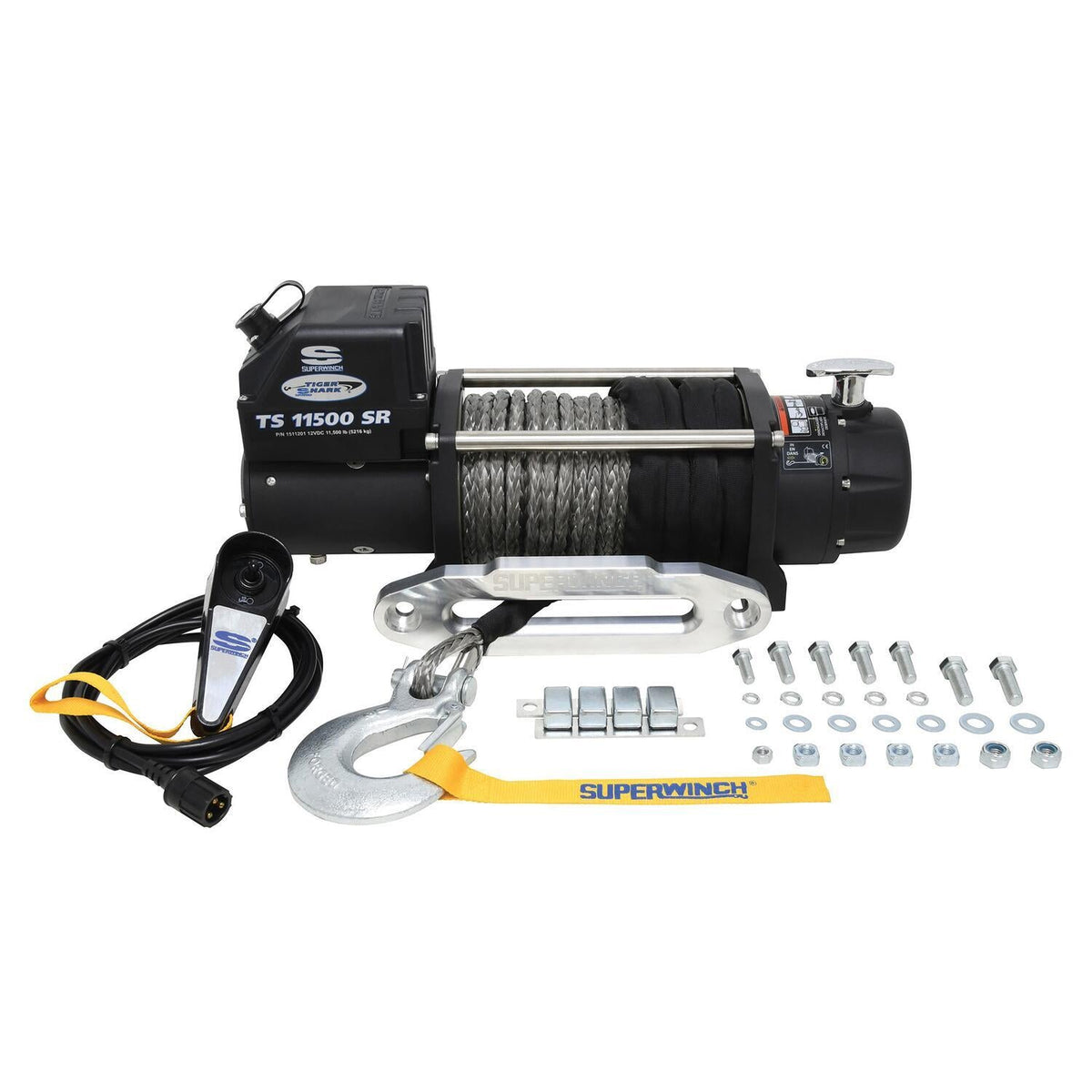

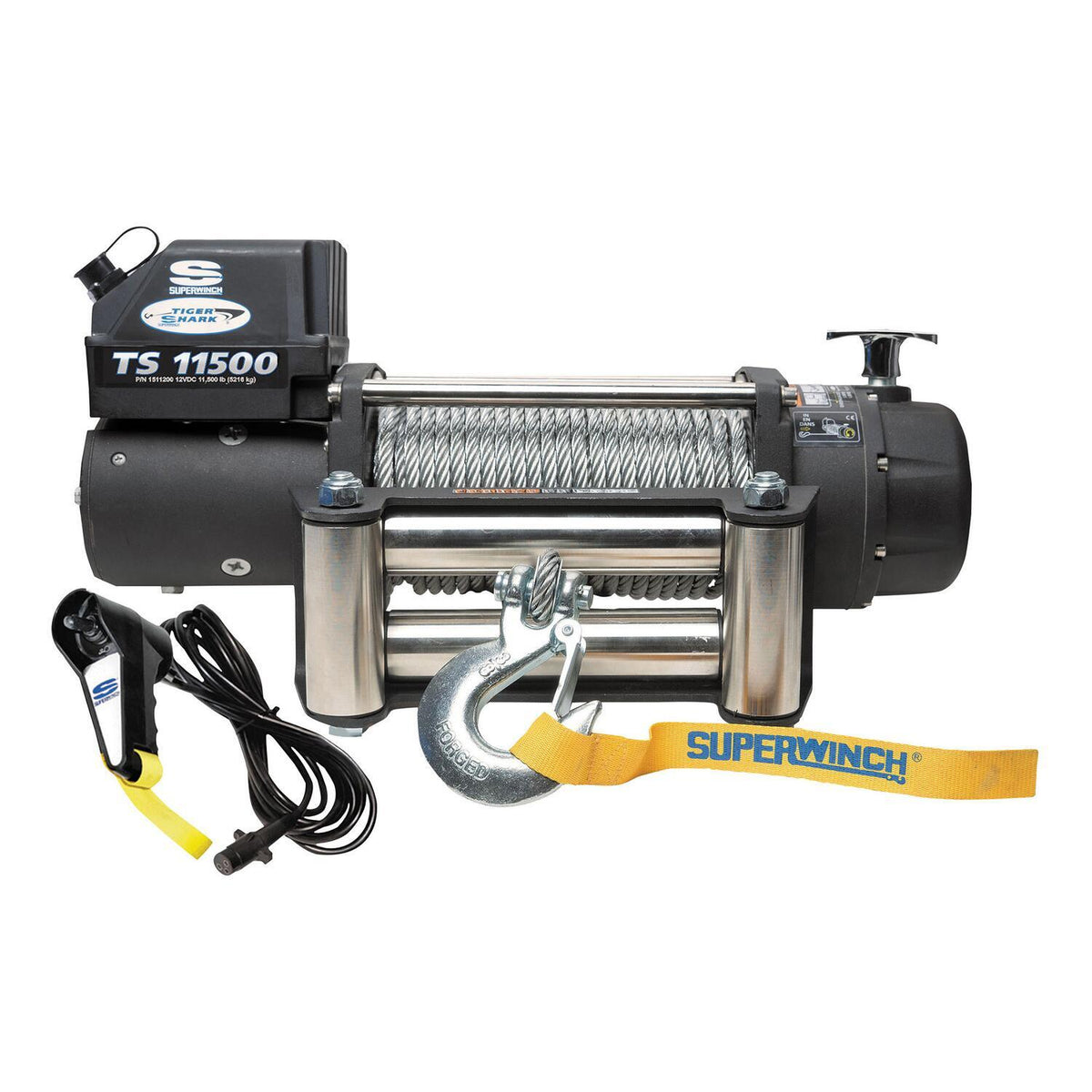

• Steel wire rope version has a stainless steel 4-way roller fairlead; synthetic rope version has an aluminum hawse

Specifications

• Winch Type: Electric
• Voltage: 12V DC
• Motor: Series wound 6.0 HP / 4.4 kW, 12V DC
• Gear System: 3-stage planetary
• Gear Ratio: 218:1

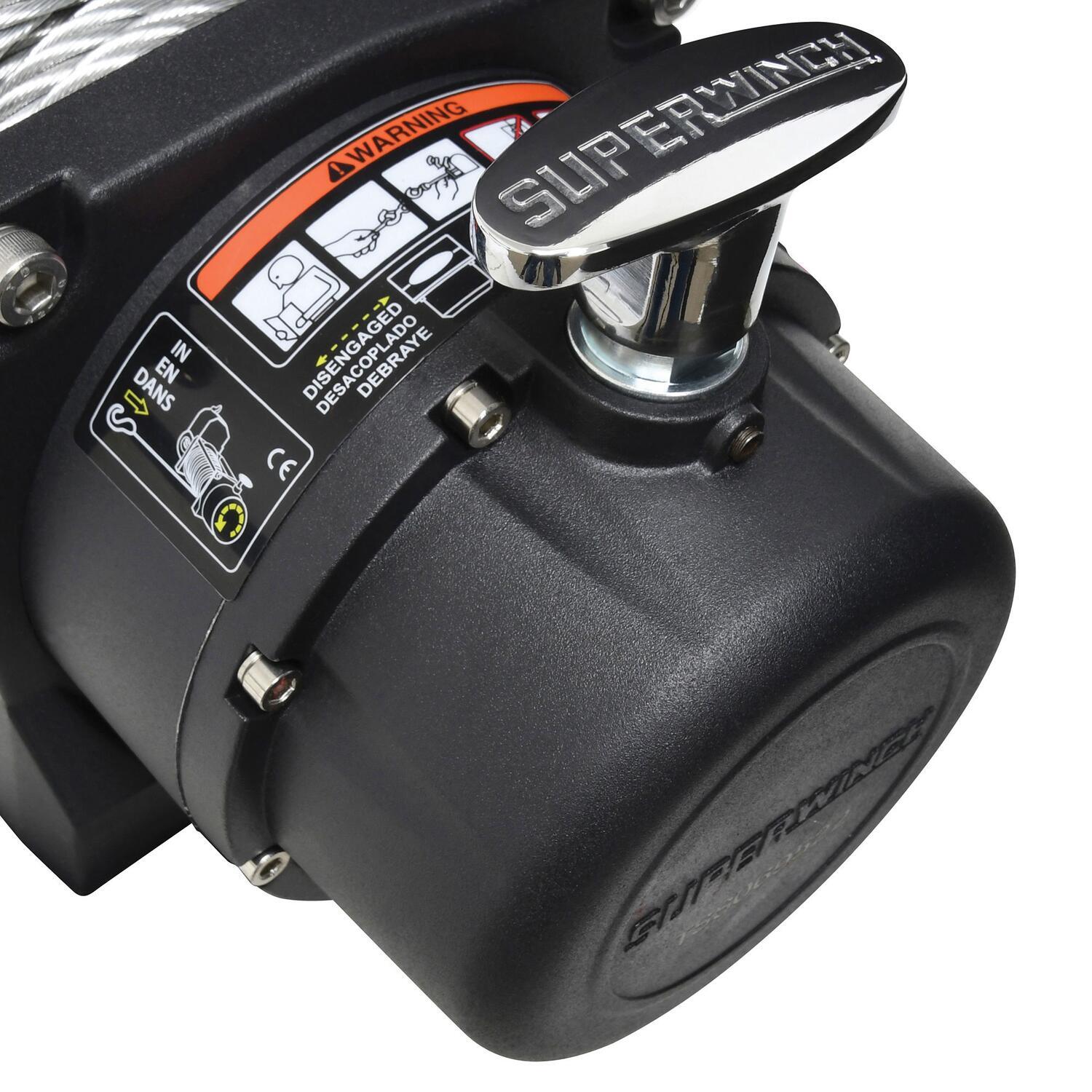

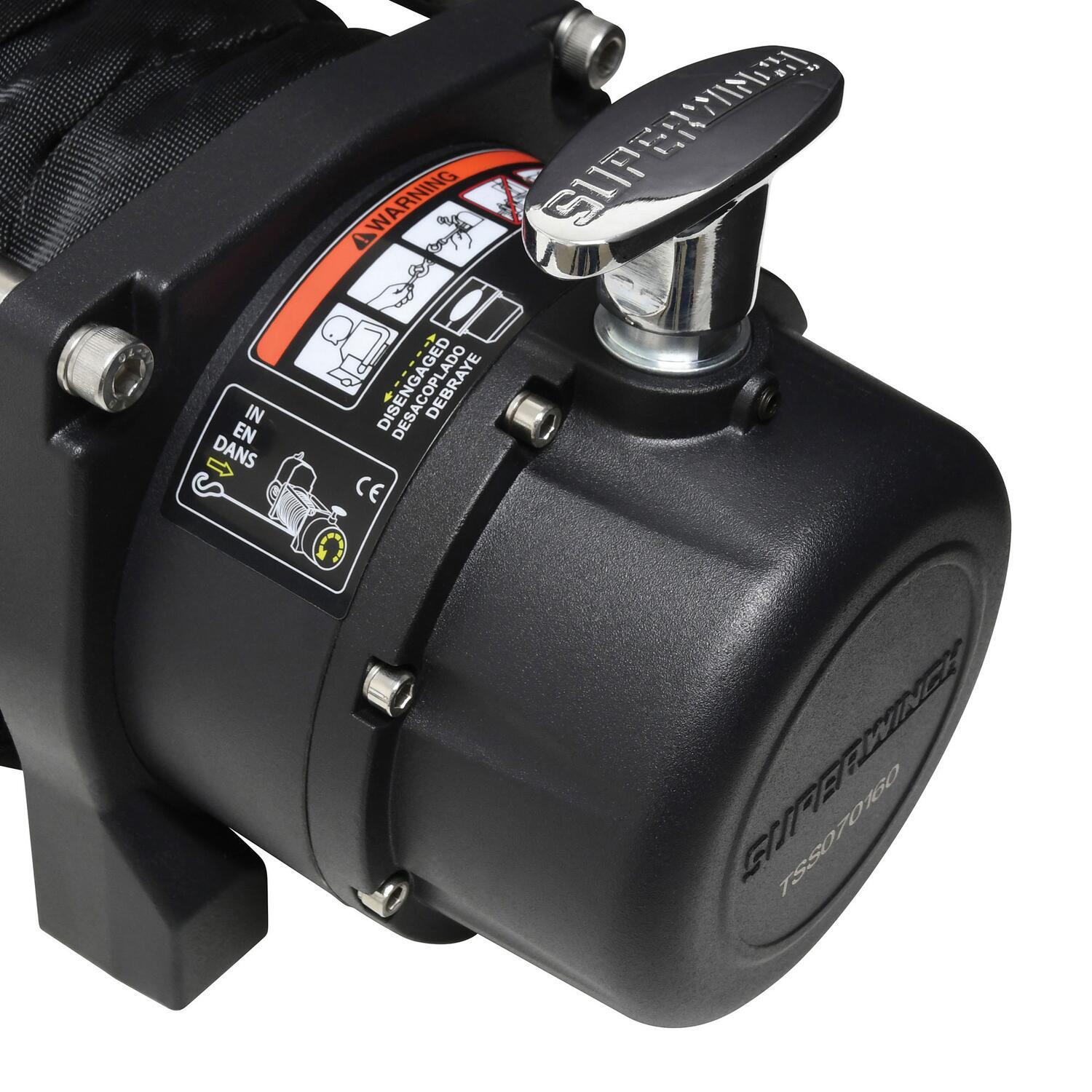

• Clutch: Ergonomic pull and turn
• Brake System: Mechanical, automatic load holding
• Rope Material: Steel wire or synthetic, by variant

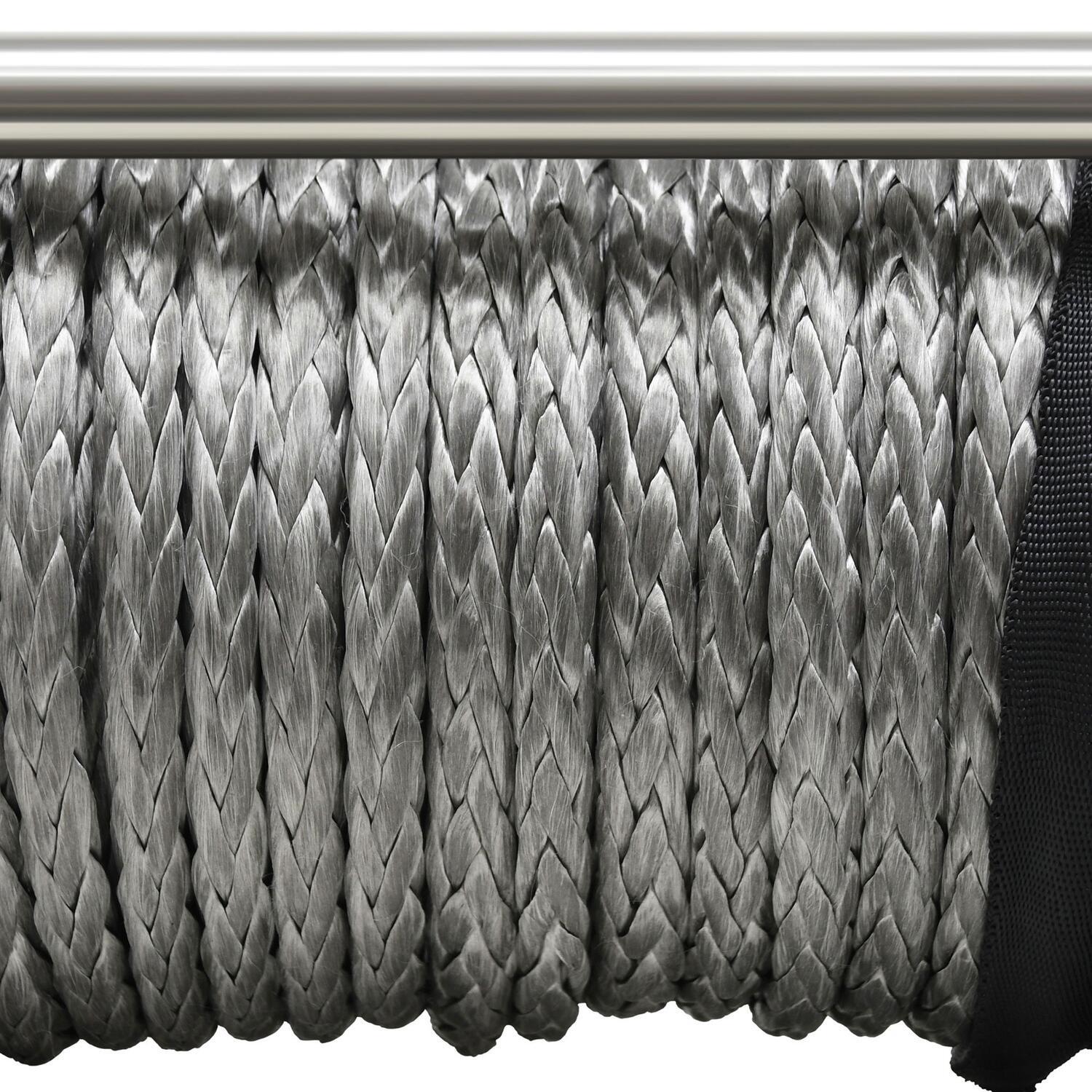

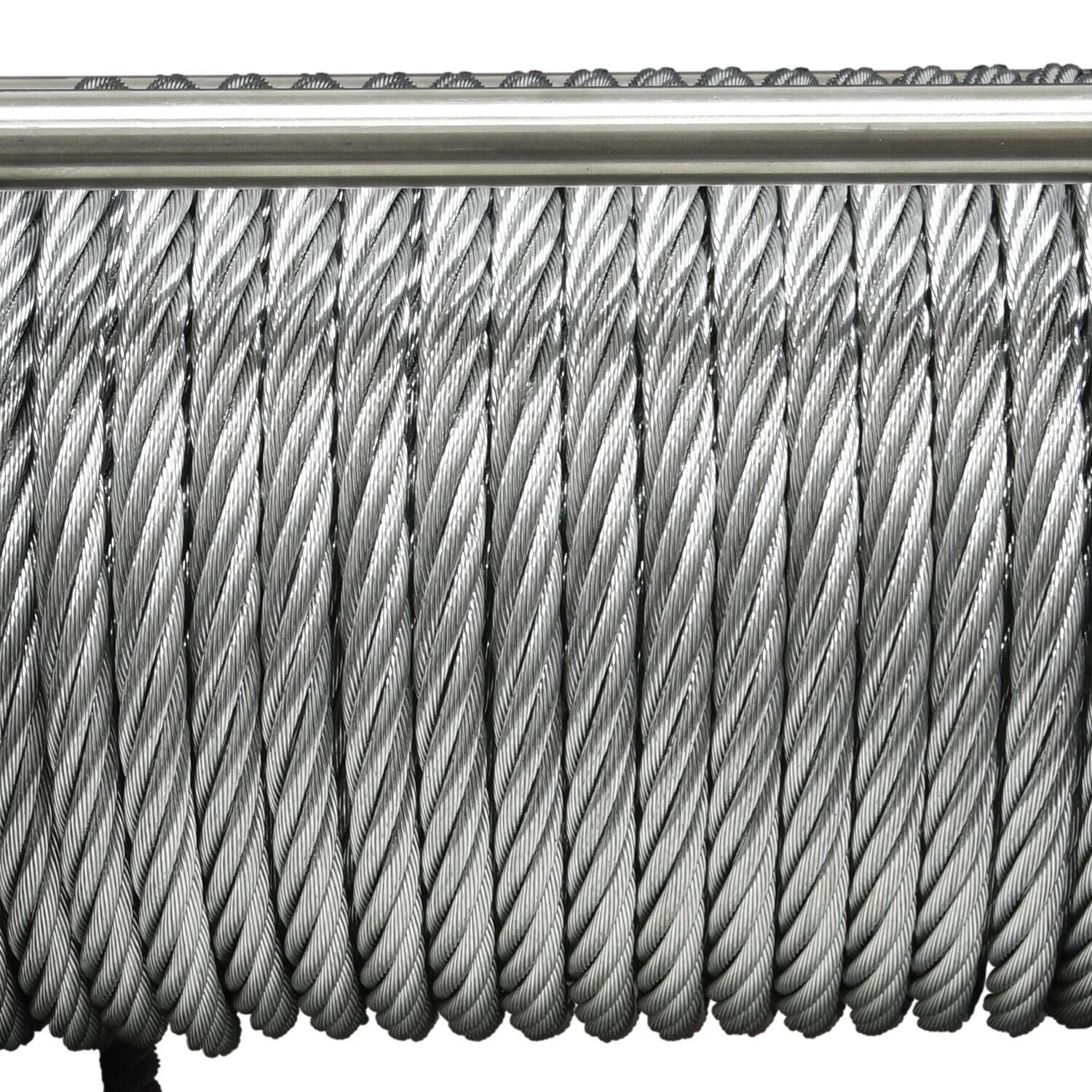

• Rope Length: 3/8 in x 84 ft (steel wire rope), 3/8 in x 80 ft (synthetic rope)
• Fairlead: Stainless steel 4-way roller (steel wire rope), aluminum hawse (synthetic rope)
• Remote Type: Wired
• Mounting Bolt Pattern: 10 in x 4.5 in (254 mm x 114.3 mm)
• Drum: Fully welded steel

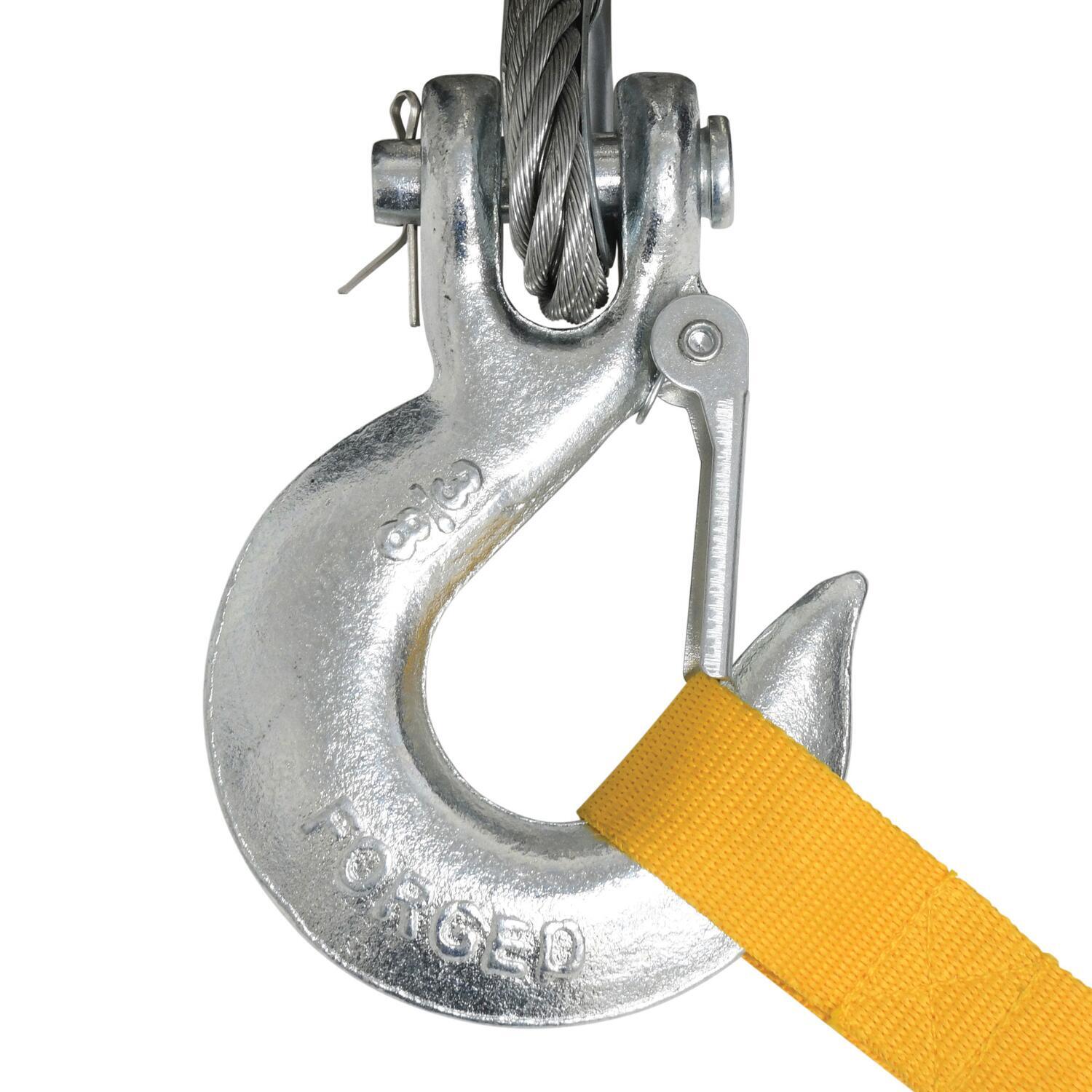

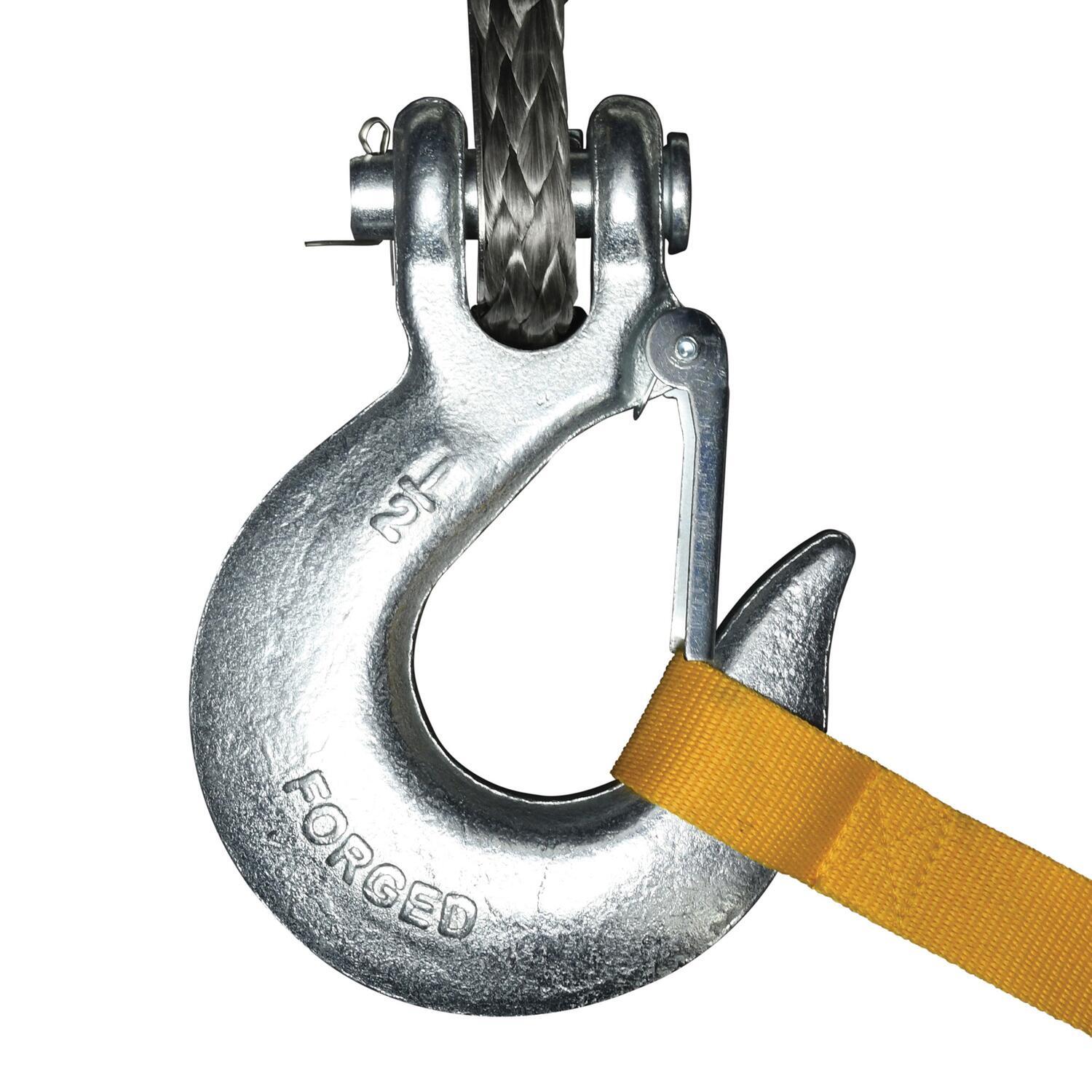

• Winch Hook: Heavy duty clevis, pinned and latched

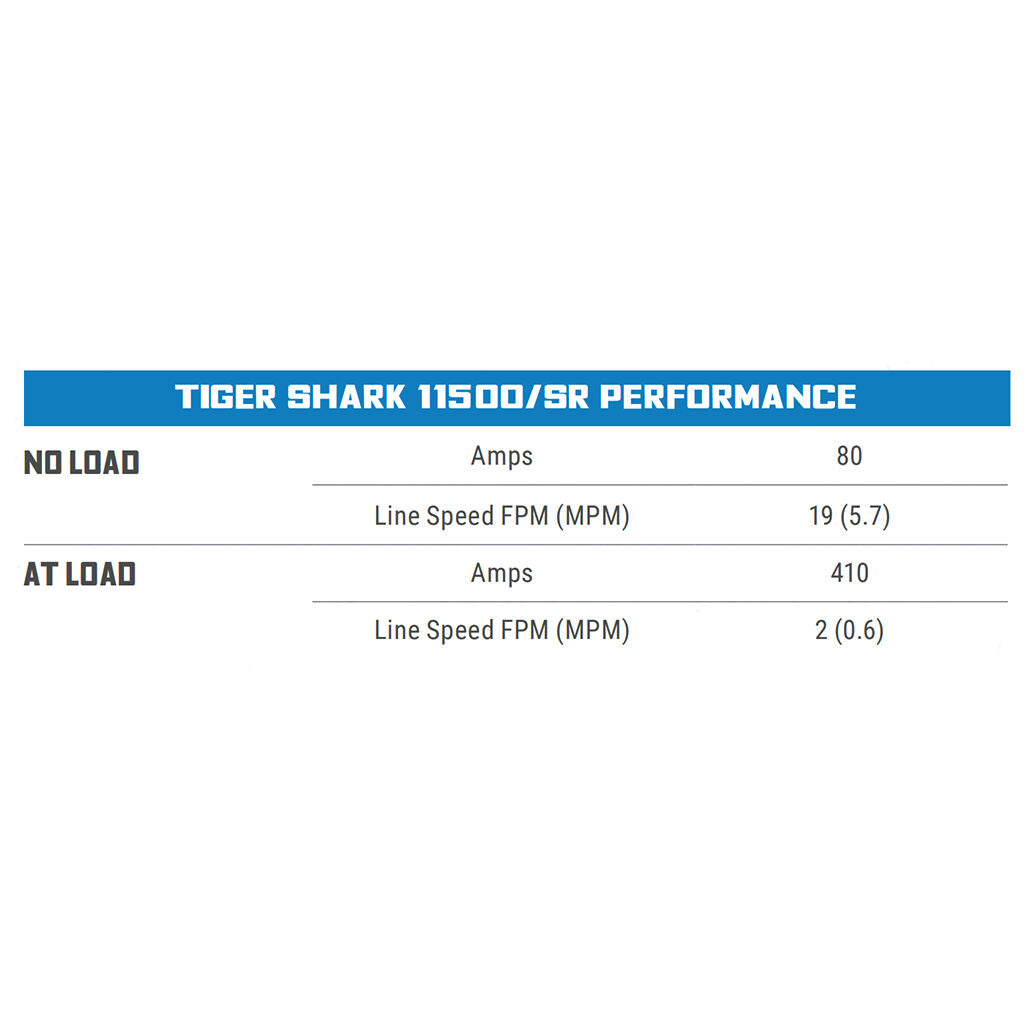

• Line Speed: 19 FPM at 80 amps motor draw
• Color: Black
• Weight: 86 lb (steel wire rope), 63 lb (synthetic rope)

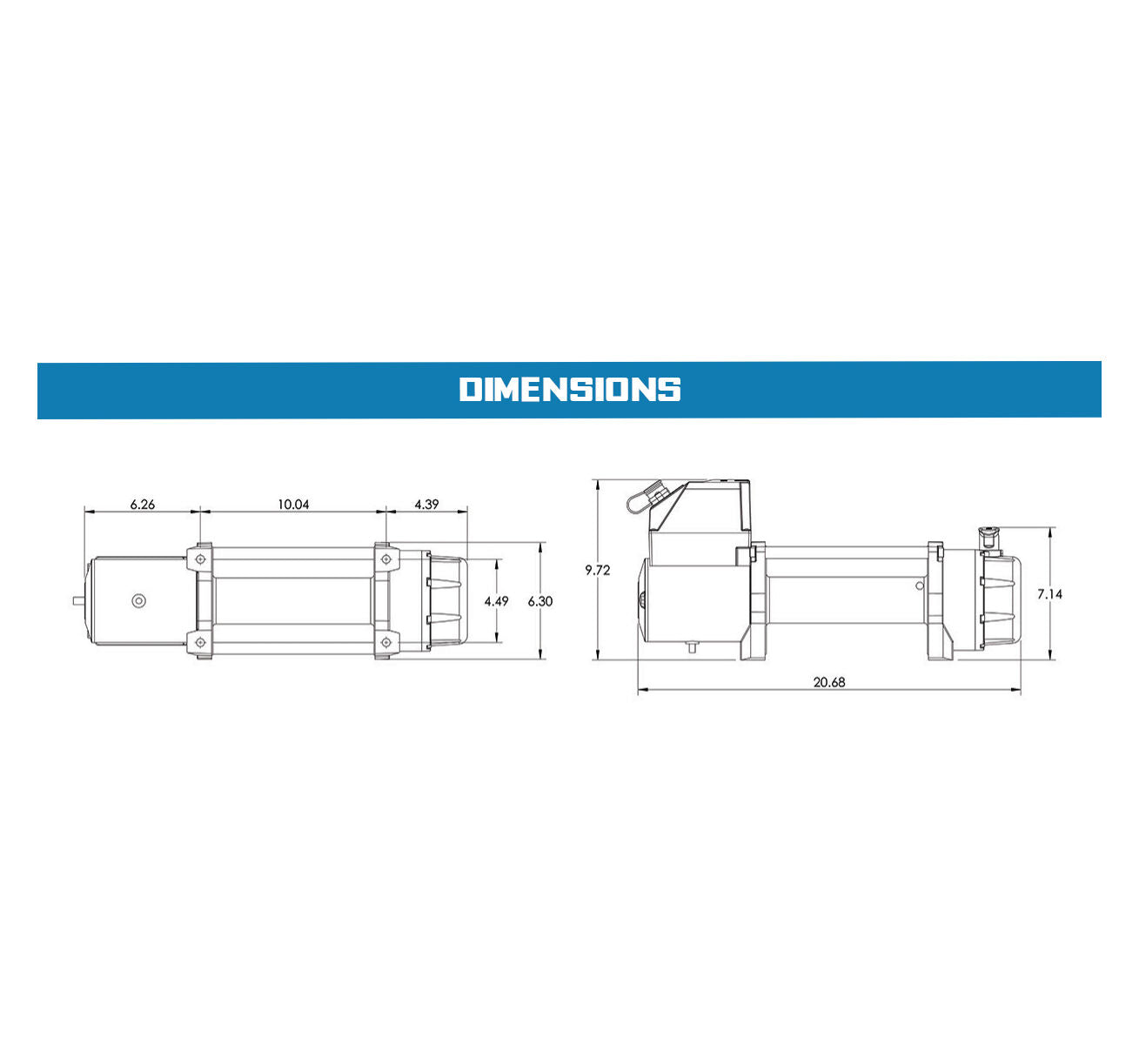

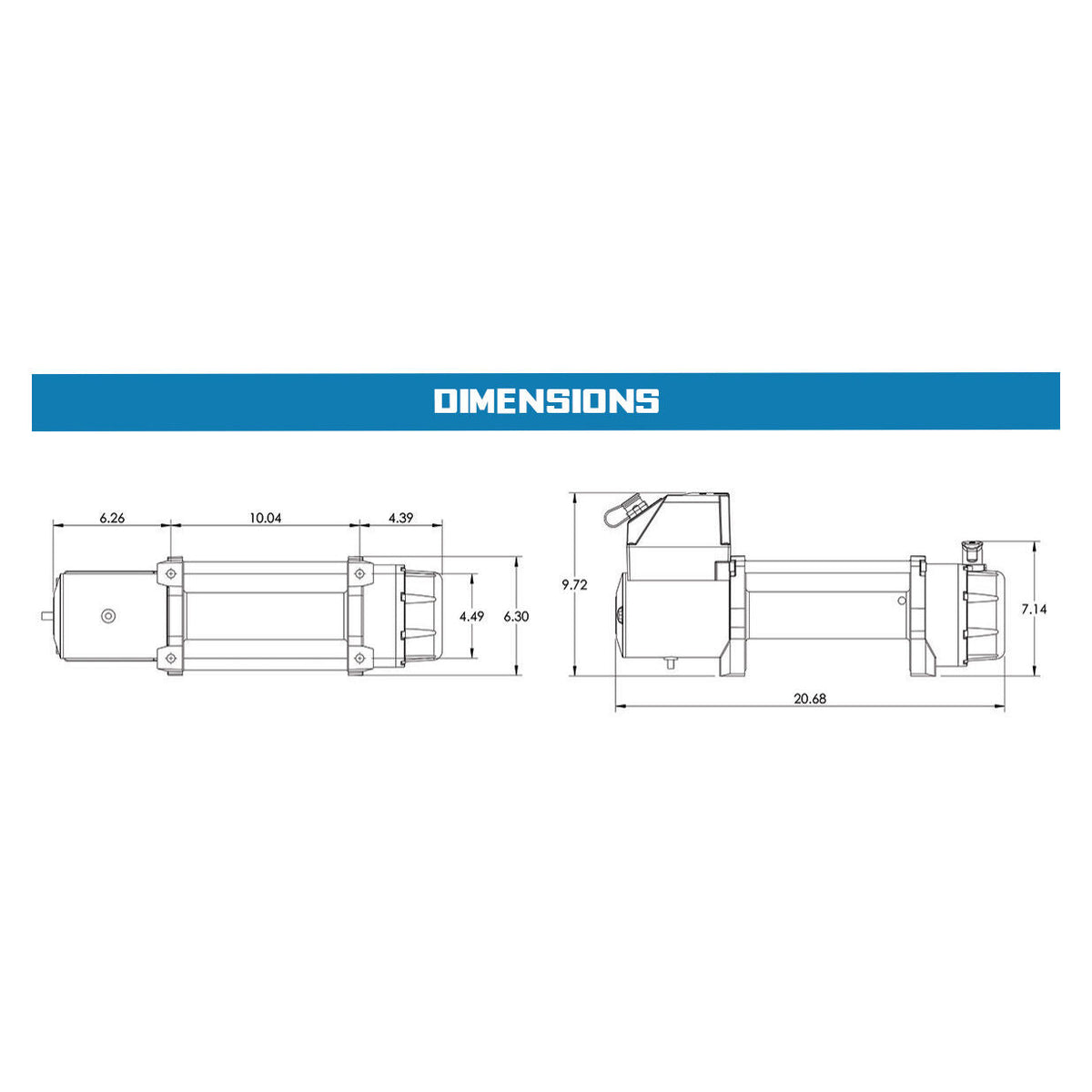

• Width: 12 in
• Height: 12 in

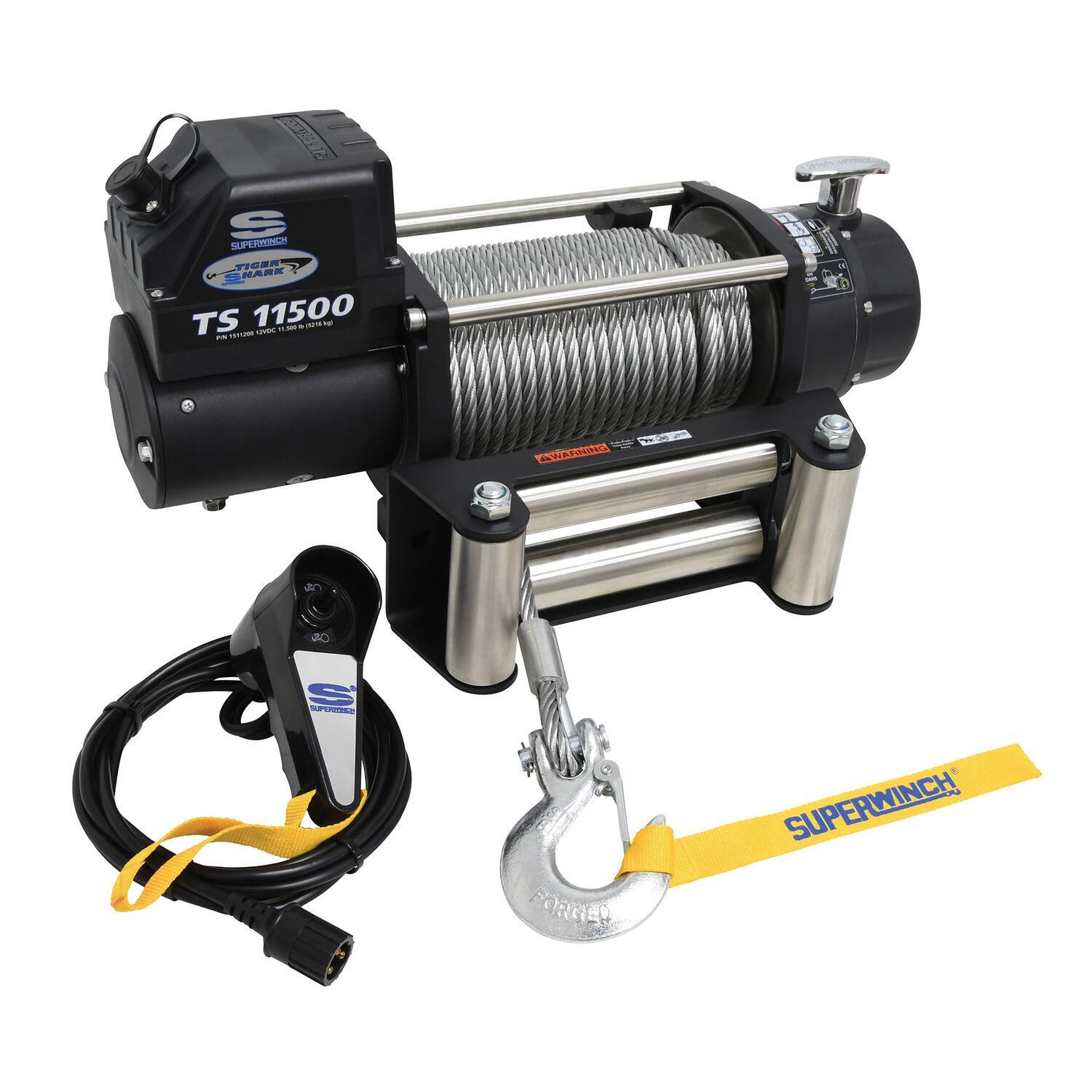

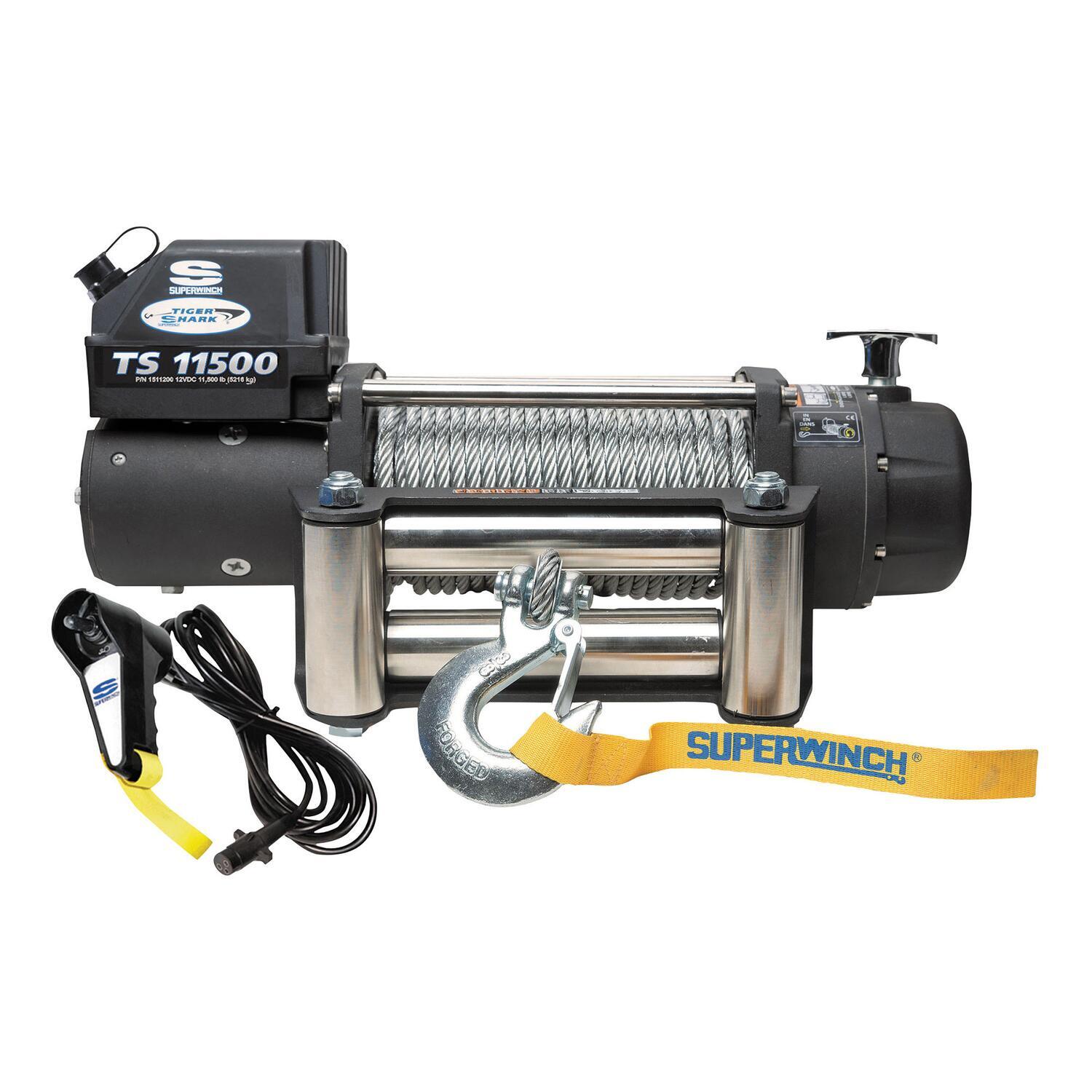

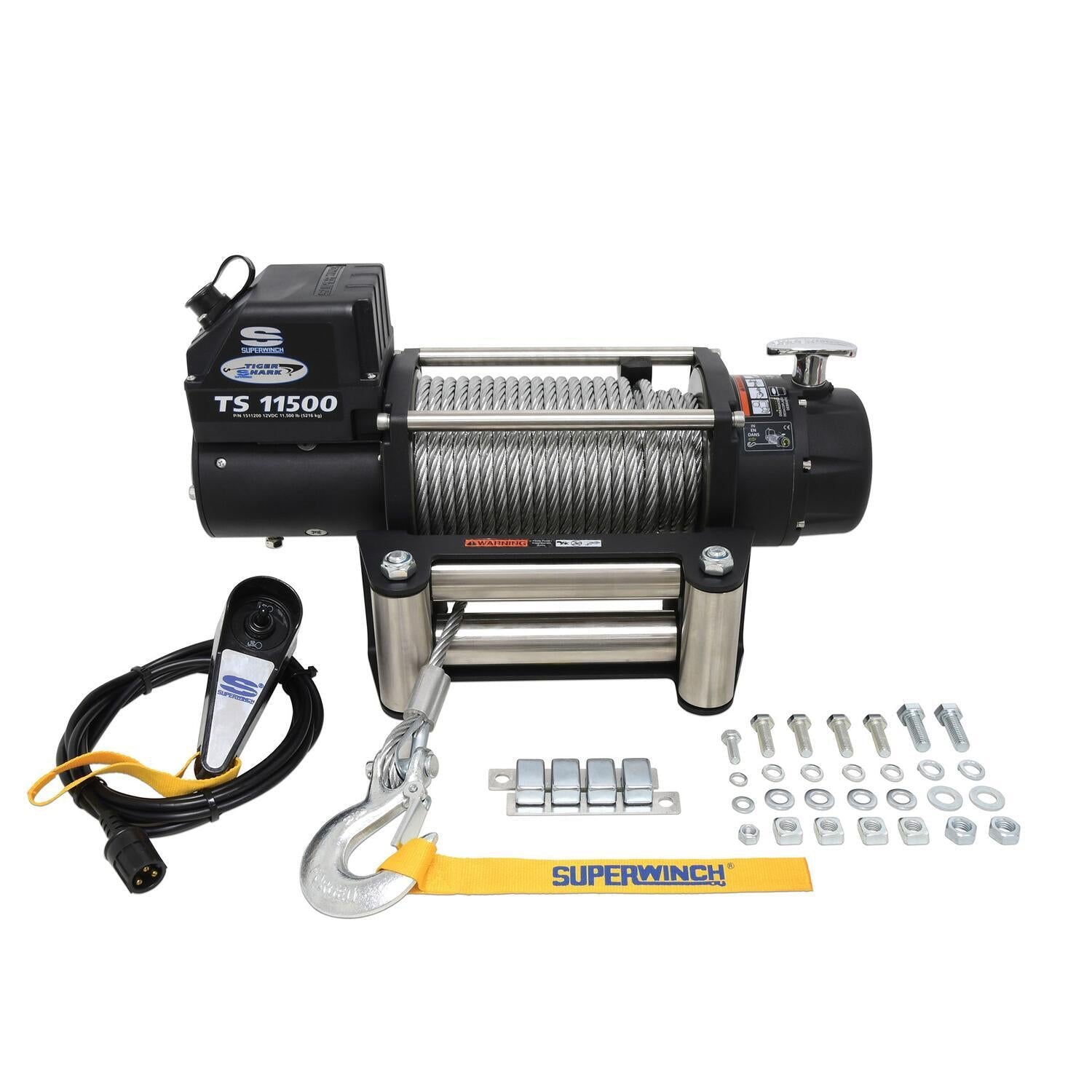

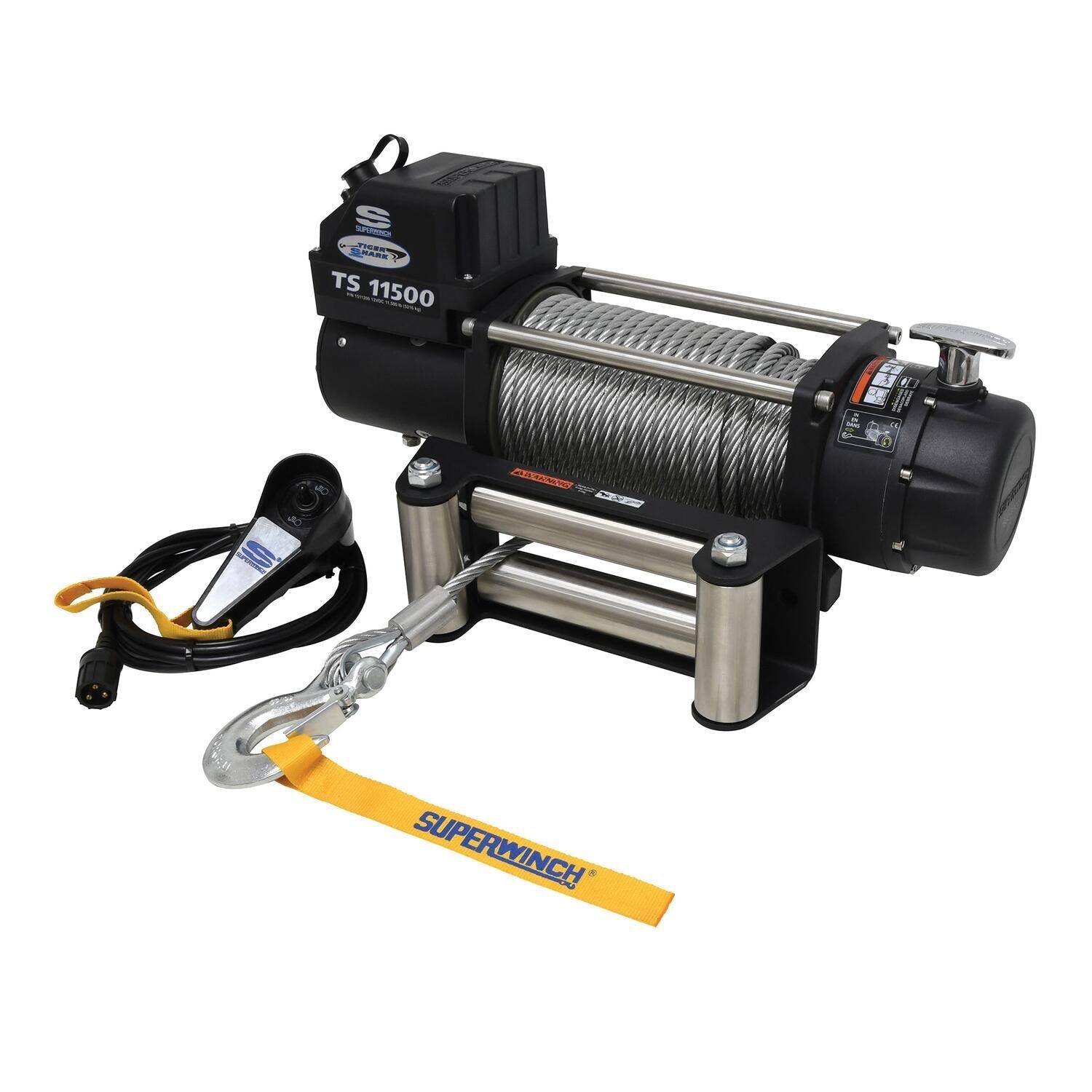

MPN 1511200 (Steel Wire Rope Black)

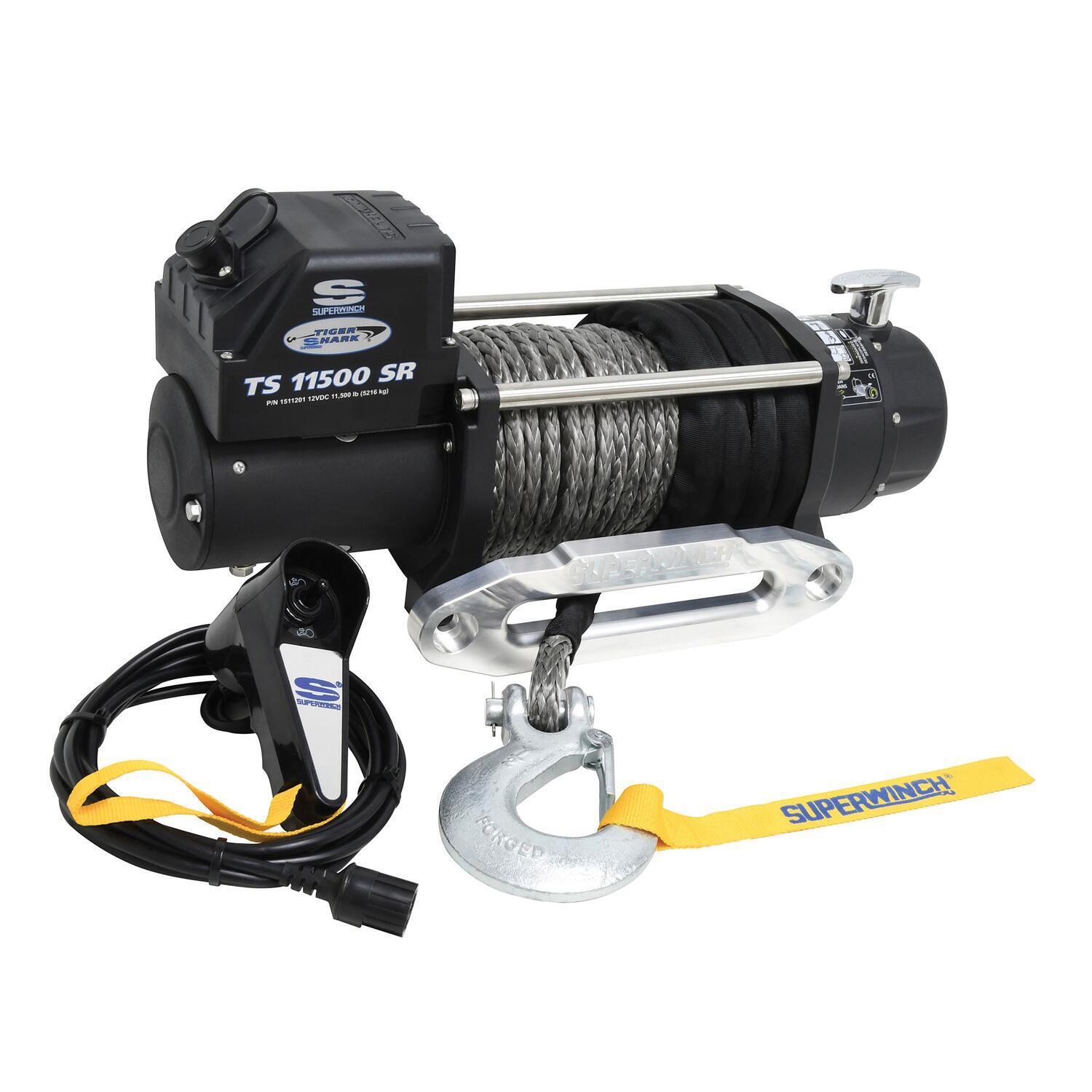

MPN 1511201 (Synthetic Rope Black)
