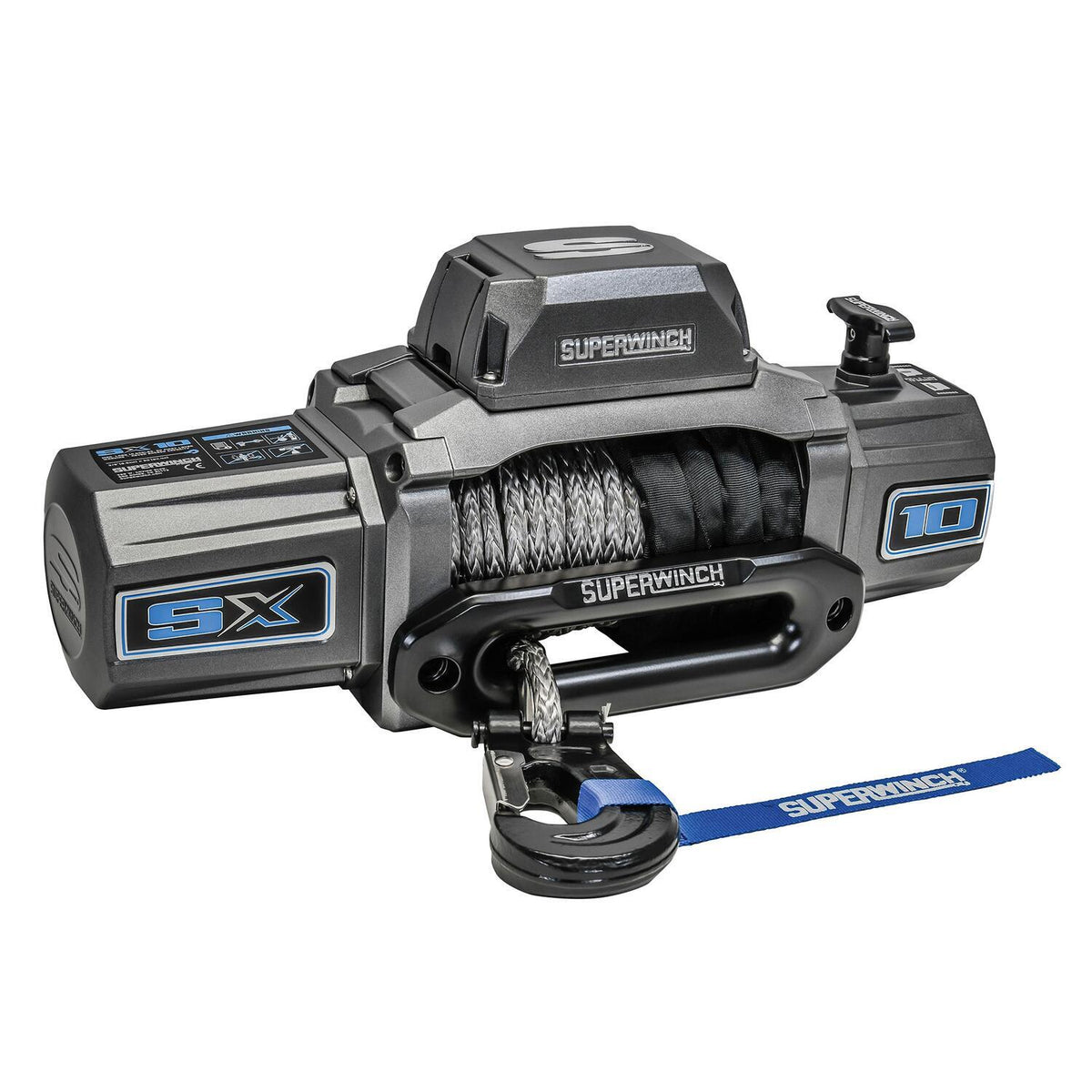

Superwinch SX10 Winch, 10,000 lb, 12V DC, view 31
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 31
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 32
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 32
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 33
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 33
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 34
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 34
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 35
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 35
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 36
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 36
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 37
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 37
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 38
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 38
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 39
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 39
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 40
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 40
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 41
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 41
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 42
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 42
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 43
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 43
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 44
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 44
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 45
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 45
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 46
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 46

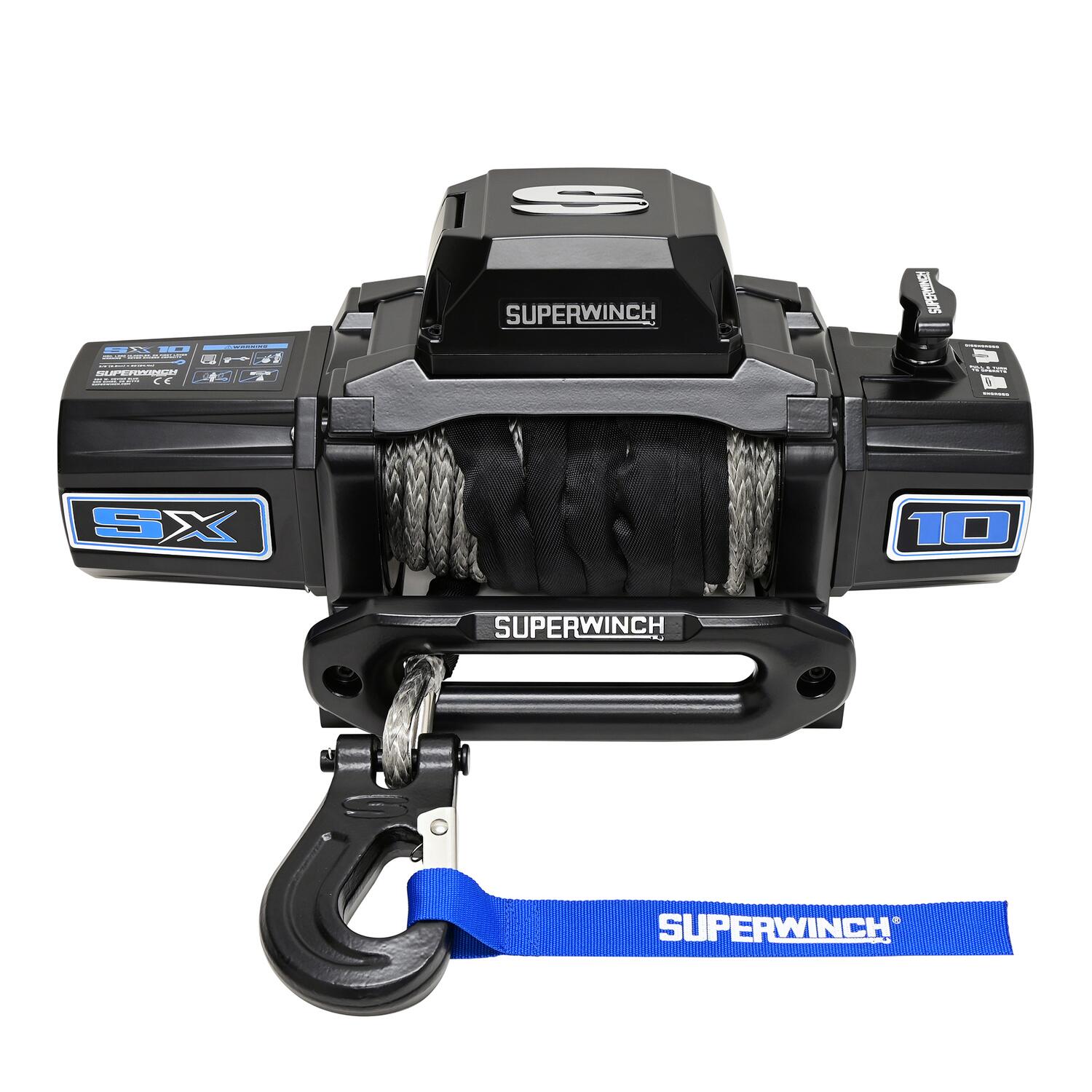

Superwinch SX10 Winch, 10,000 lb, 12V DC, view 47
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 47
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 48
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 48
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 49
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 49
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 50
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 50
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 51
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 51
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 52
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 52
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 53
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 53
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 54
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 54
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 55
Superwinch SX10 Winch, 10,000 lb, 12V DC, view 55
Click to open expanded view

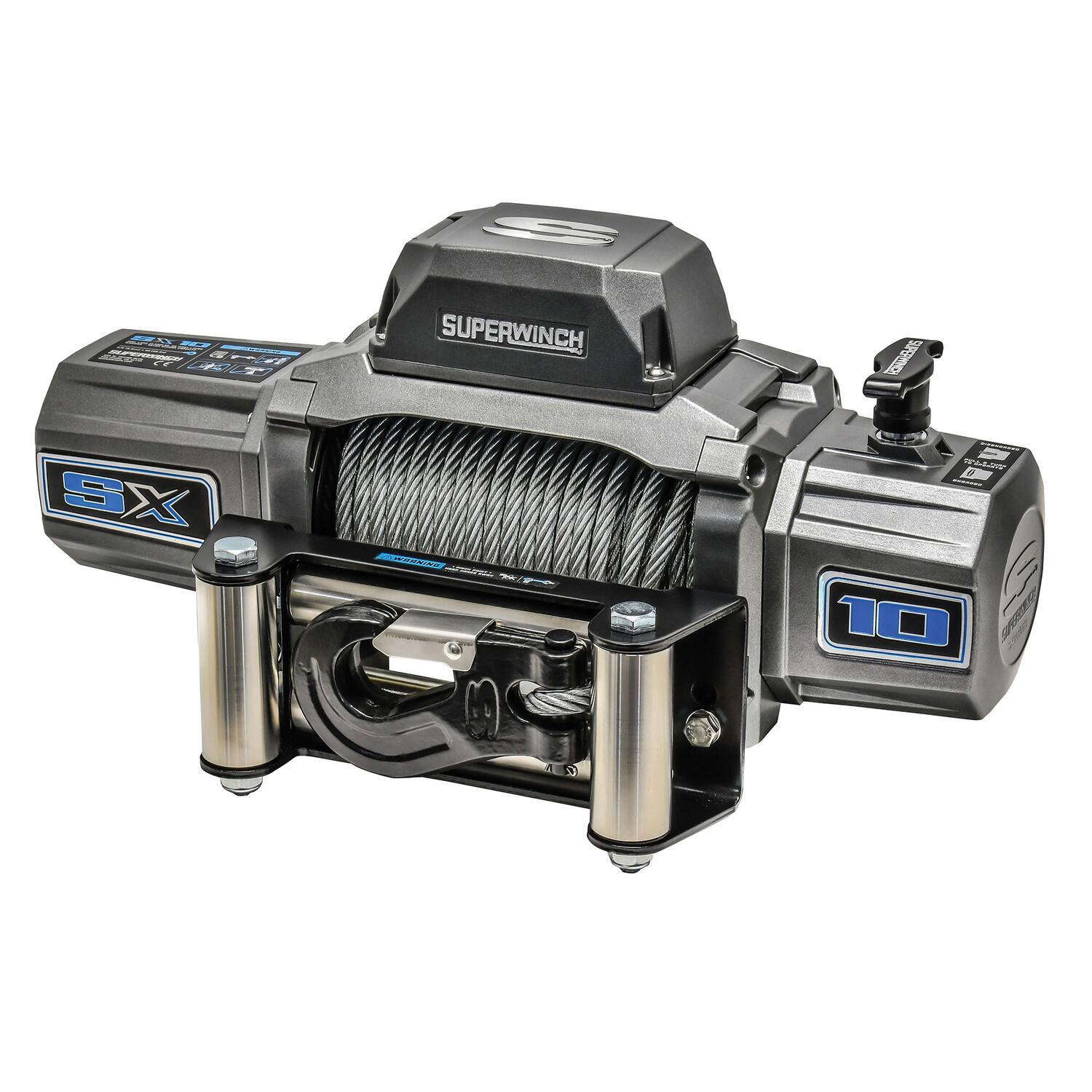

Superwinch SX10 Winch, 10,000 lb, 12V DC

SKU: 1710200
In stock and ready for shipping
Price
$727
Free shipping on orders of $70 or more to the lower 48 states (oversize items may carry a surcharge). Tracking emailed when it ships. 60-day returns on new, uninstalled parts in original packaging. RMA required, some items excluded.
Fitment questions? Call 800-300-6715 or email sales@trailrecon.com
Add To Wishlist
Vehicle Fitment
Install Instructions
Warning: California Residents

Share this product

Share Post Pin E-mail

Superwinch SX10 Winch, 10,000 lb, 12V DC Info & Specs

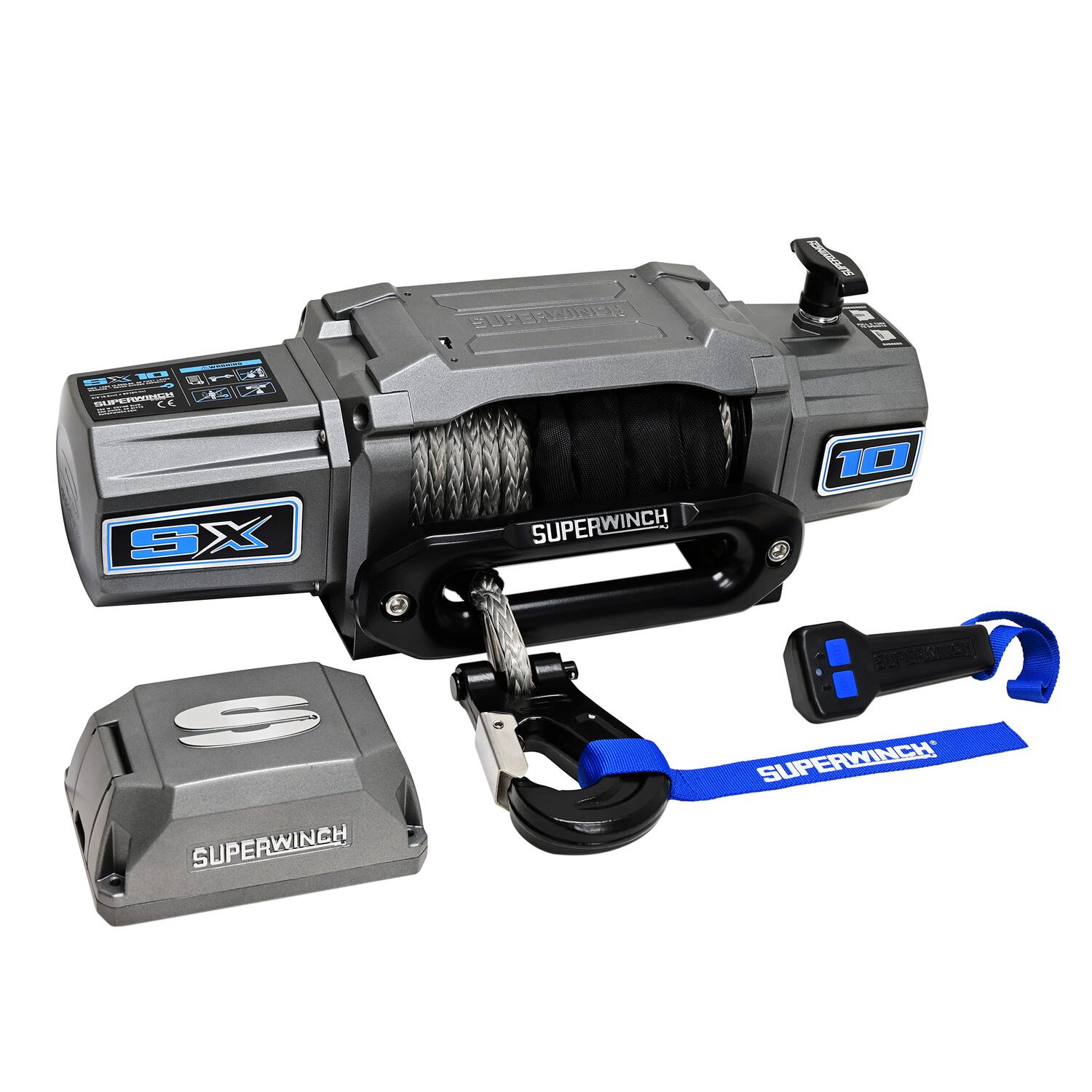

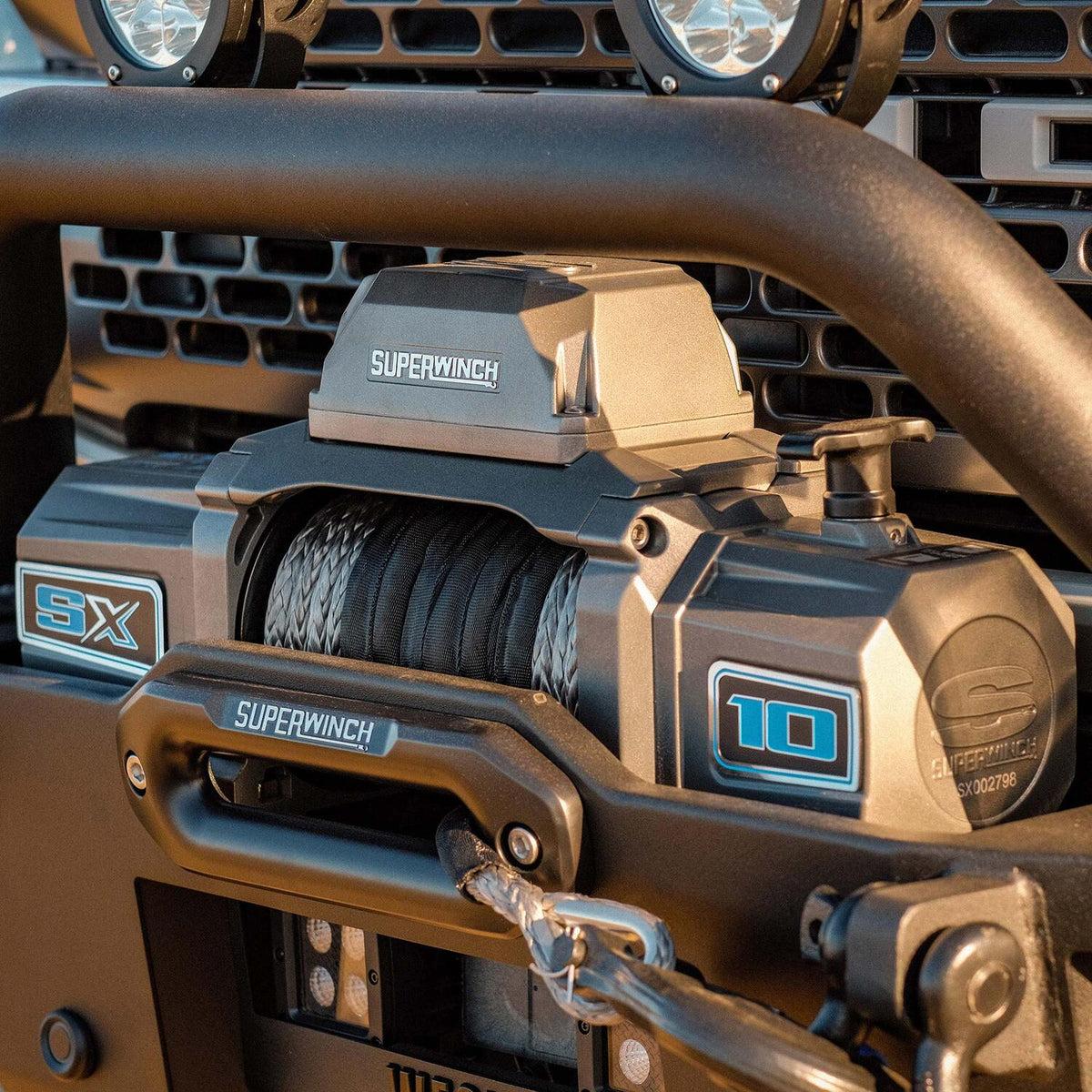

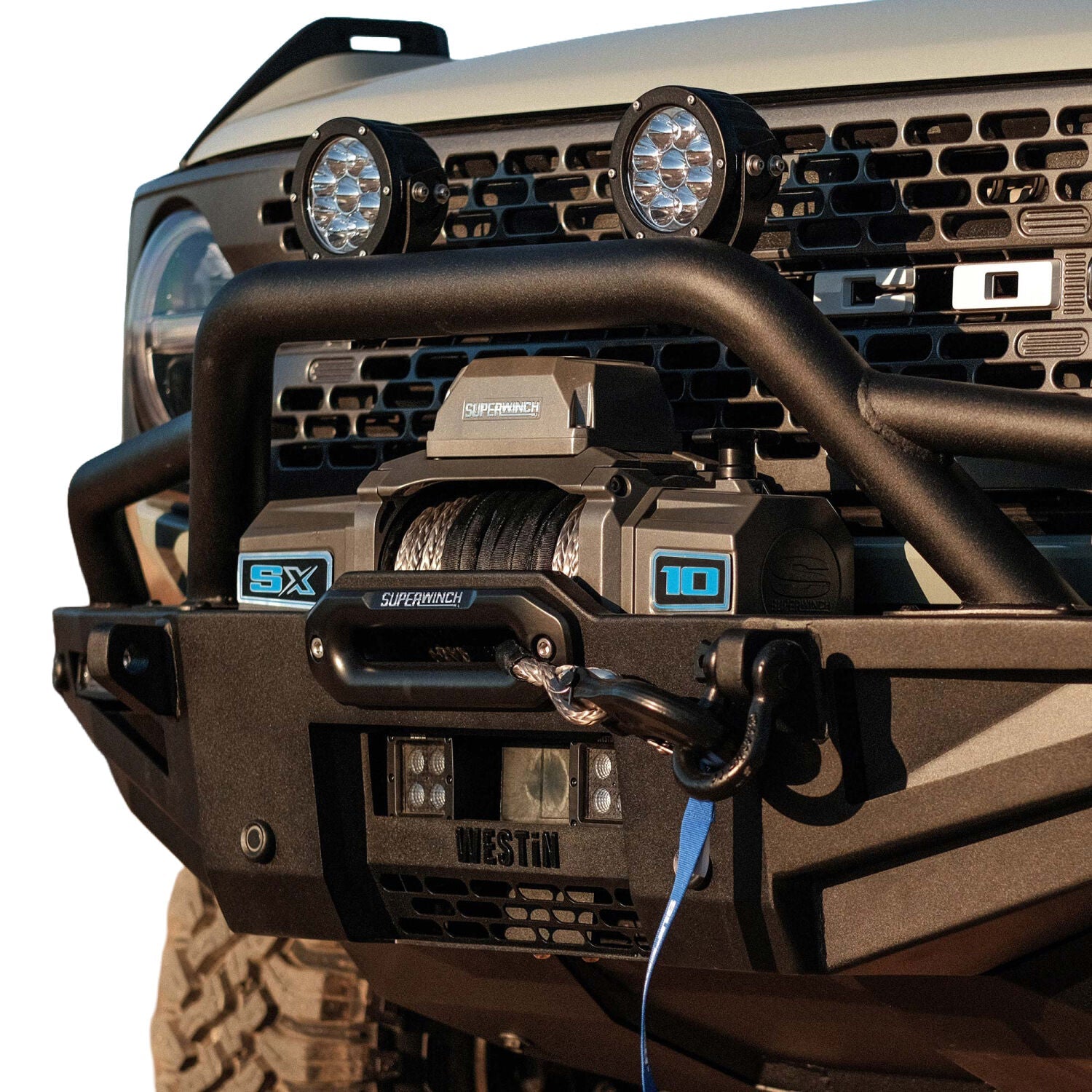

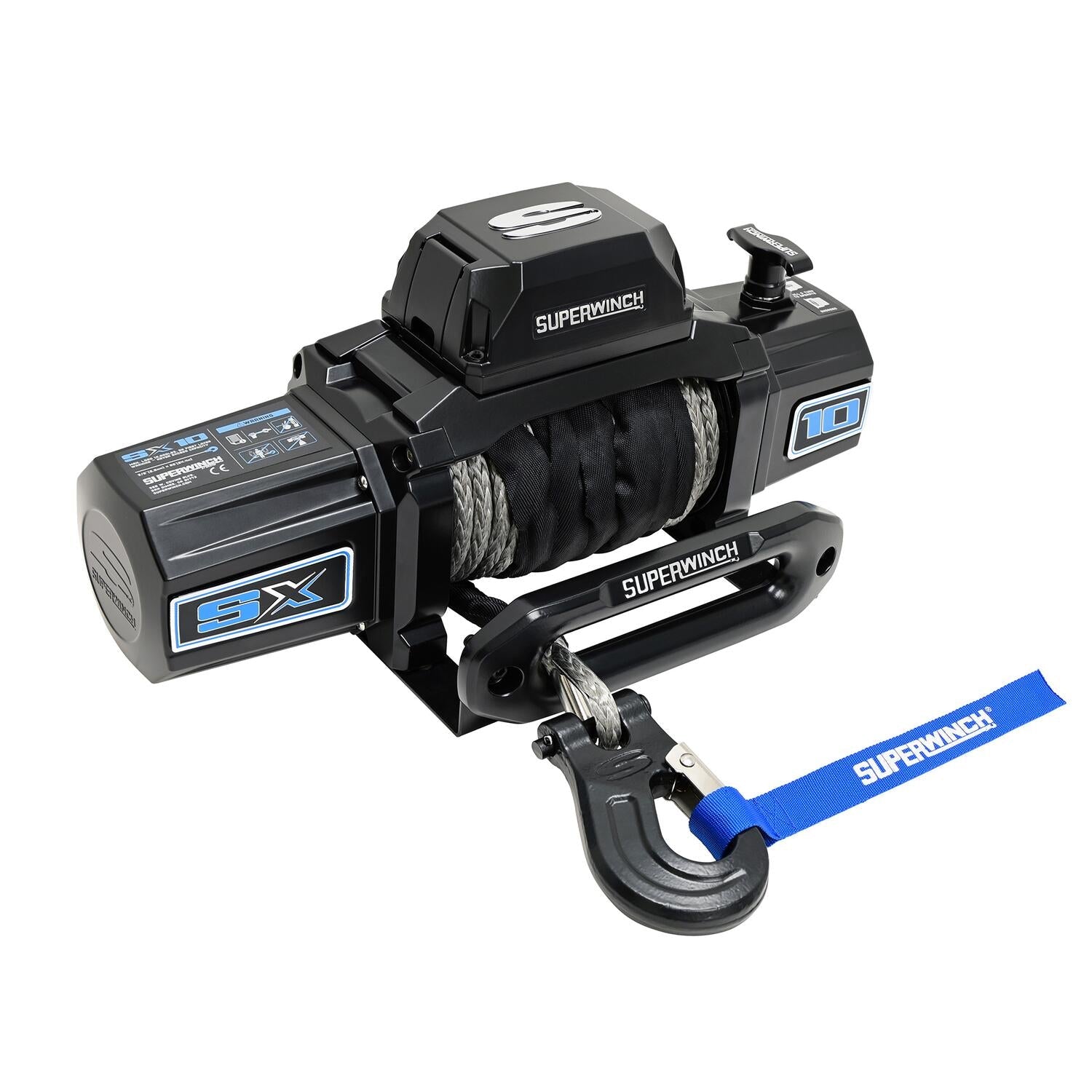

A winch on a trail rig has to survive water, mud and dust. The Superwinch SX10 is a 12V DC electric winch with a 10,000 lb capacity and an IP68 rating for dustproof and waterproof operation. A 5.5 HP sealed motor drives 3-stage planetary gearing at 218:1, and a 100 percent full load holding automatic brake keeps the load. The control box relocates, the gearbox is clockable, and a patented drum light lights up the spool at night. Mount it and recover. Choose steel wire rope or synthetic rope, and graphite or black on the synthetic version.

Key Features

  • 10,000 lb capacity
  • 5.5 HP sealed motor
  • 3-stage planetary gearing with 218:1 ratio
  • 100 percent full load holding automatic mechanical brake

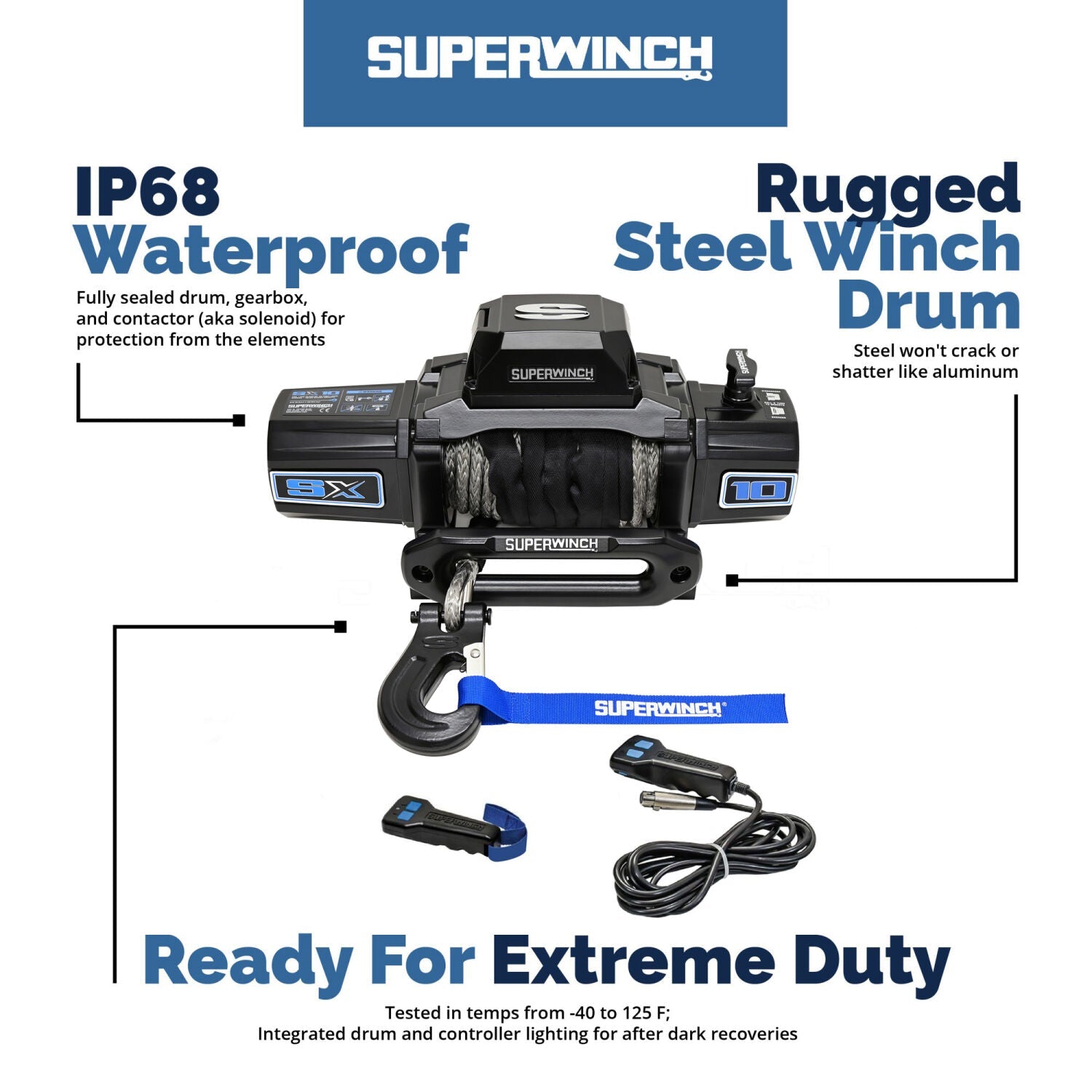

  • IP68 rated waterproof and dustproof

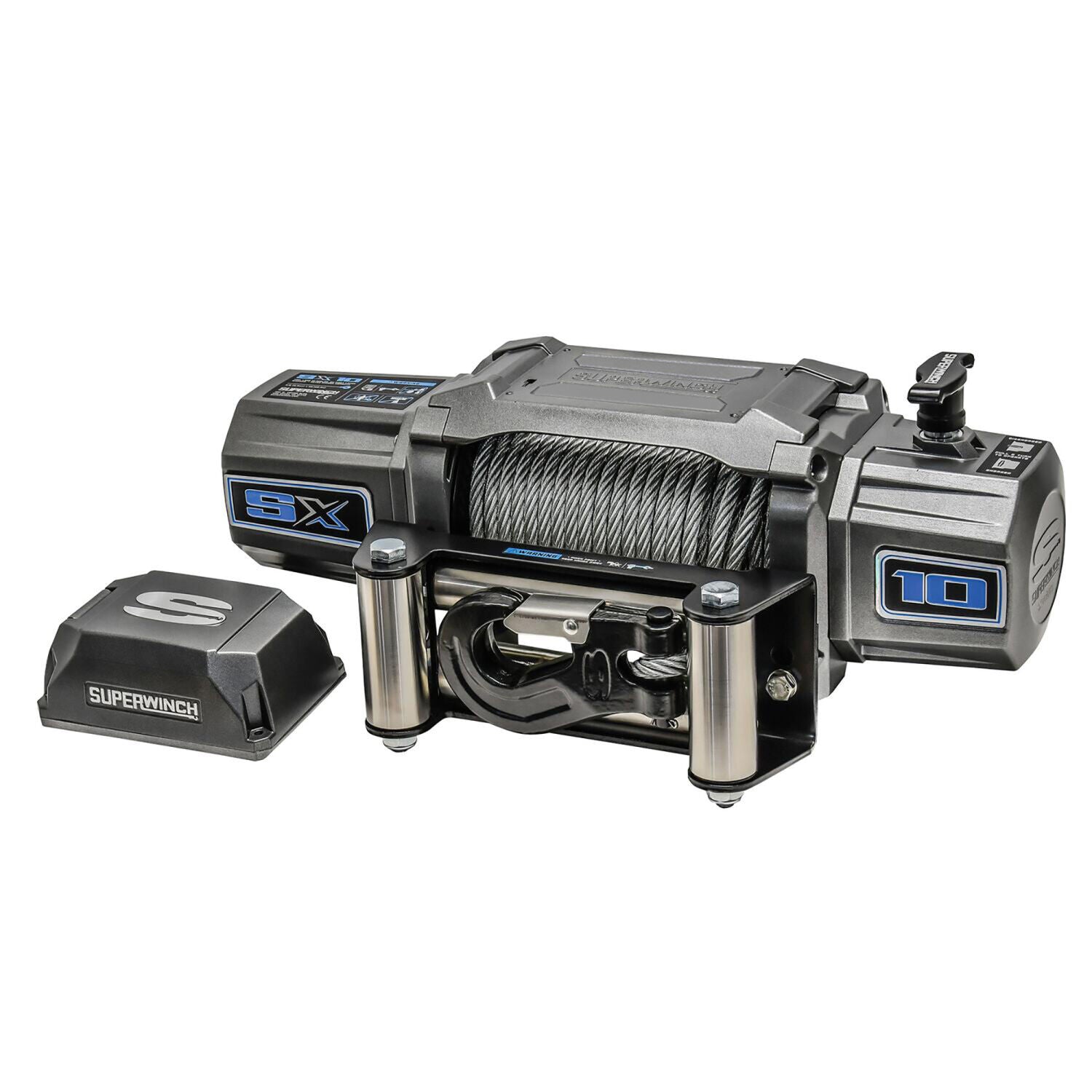

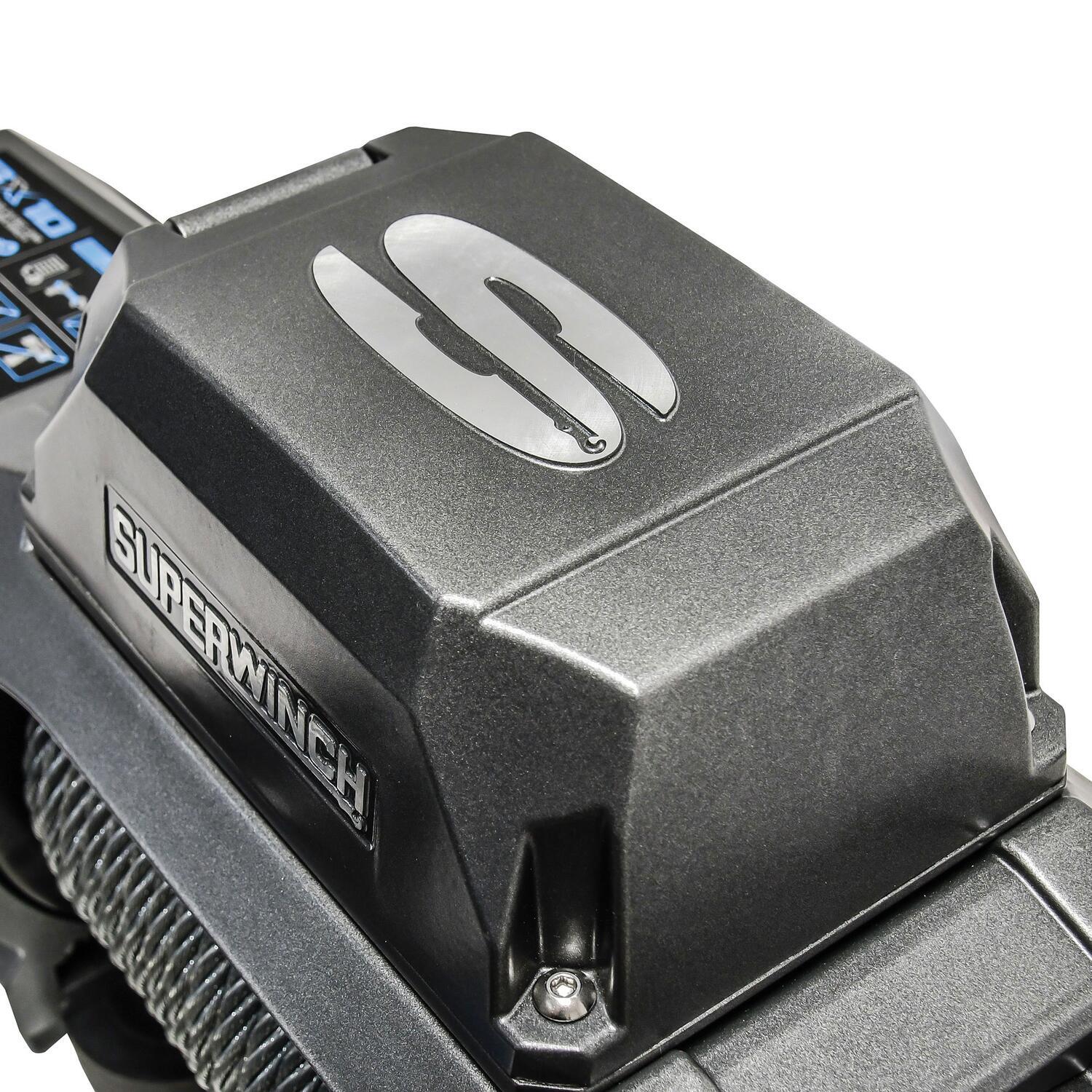

  • Relocatable die-cast aluminum control box
  • Clockable gear box

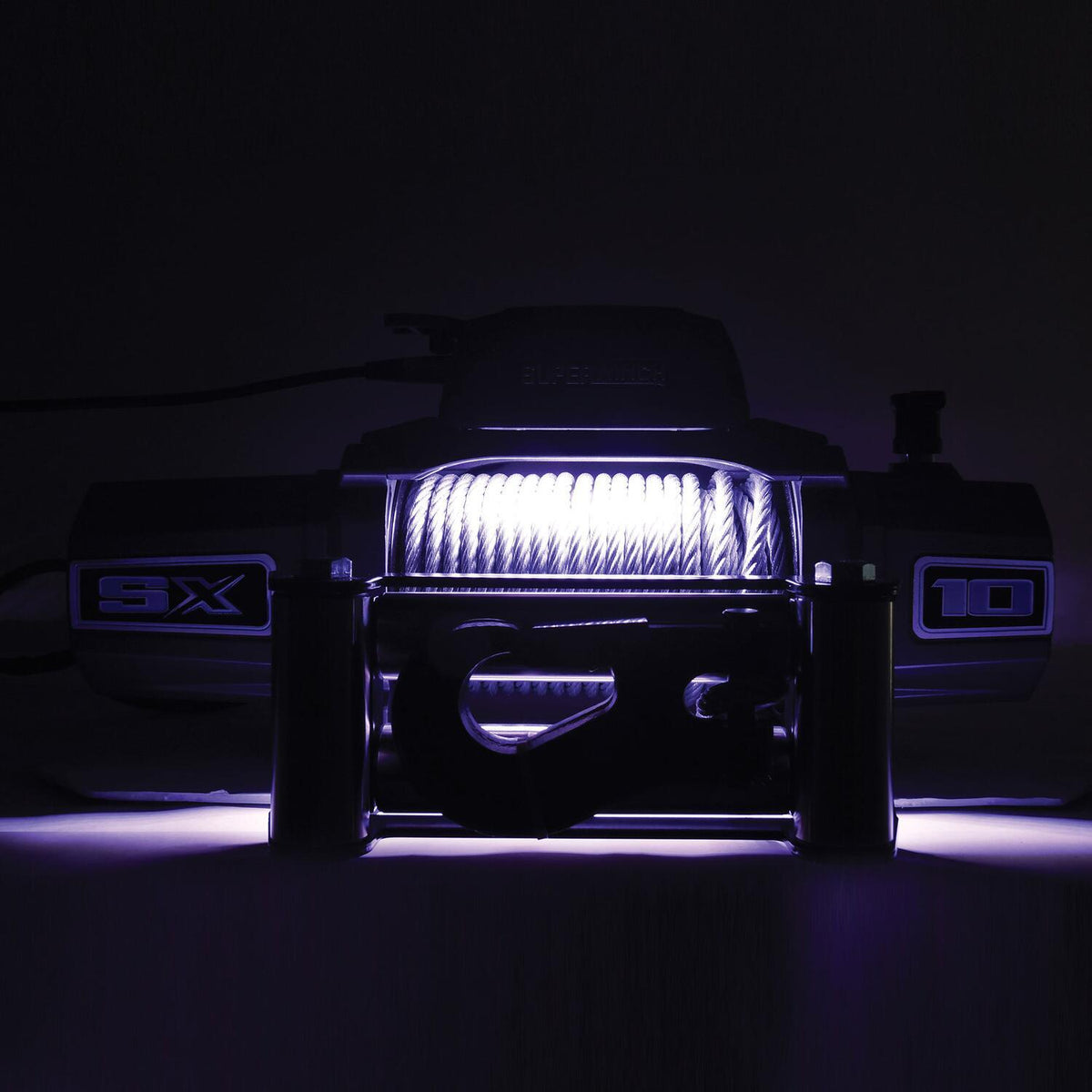

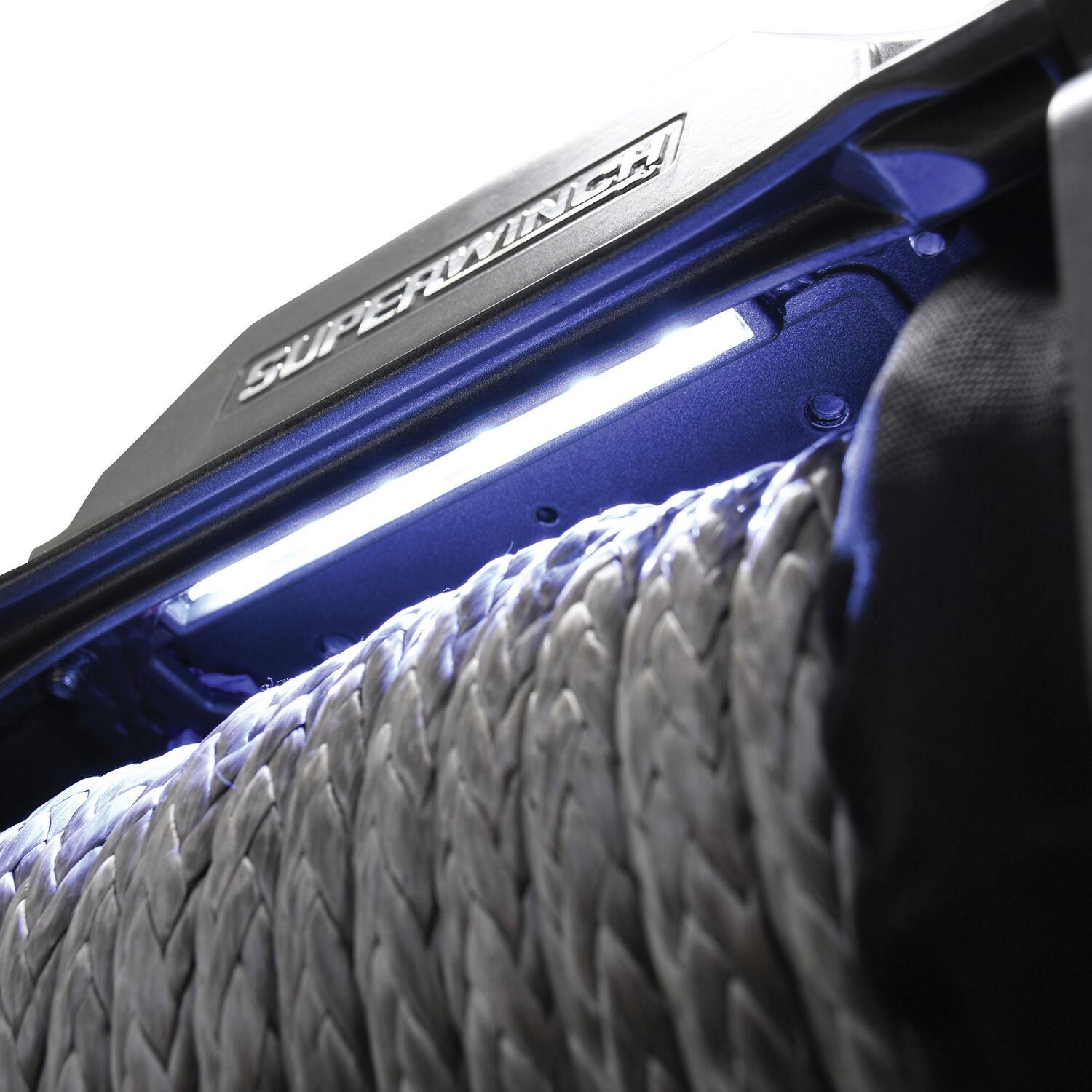

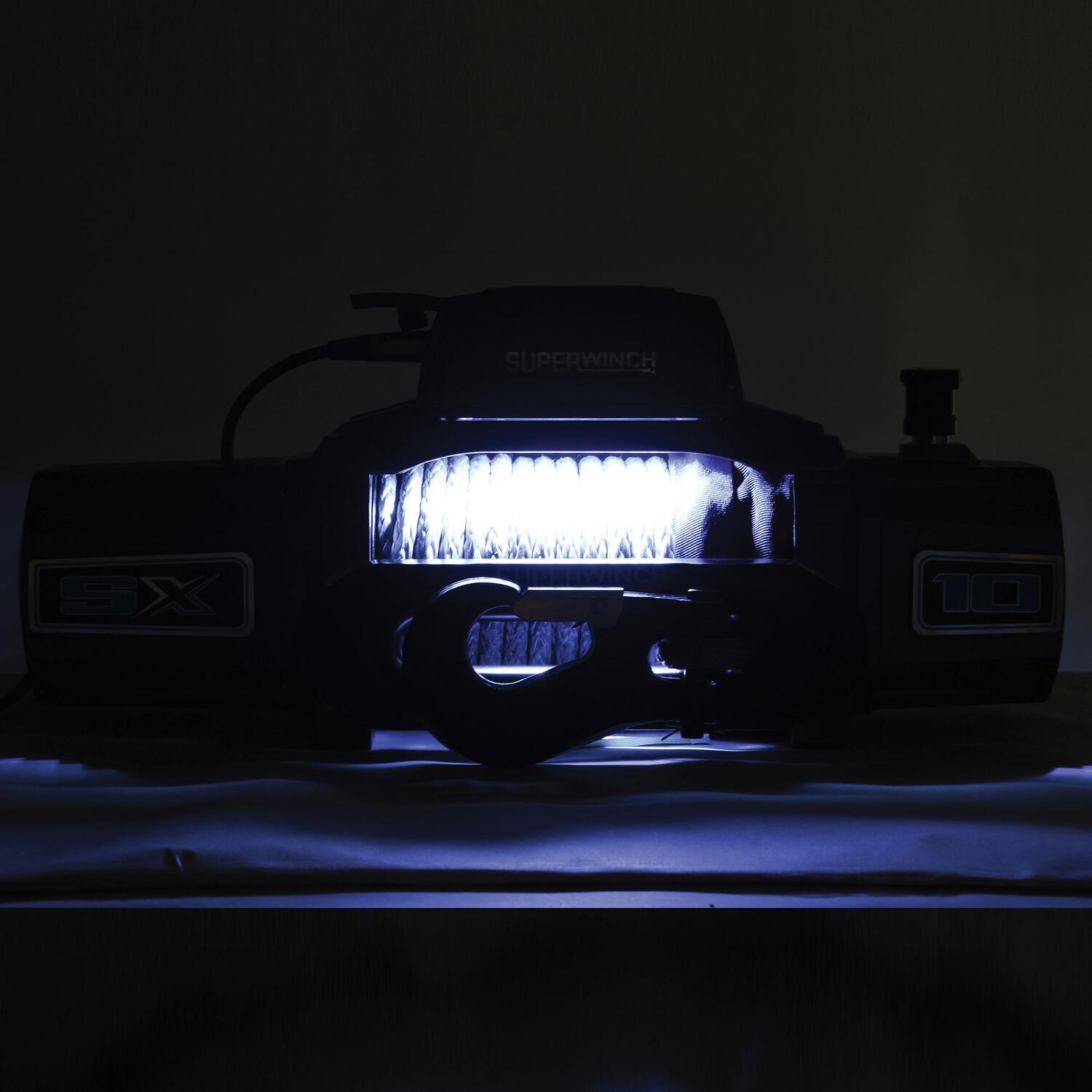

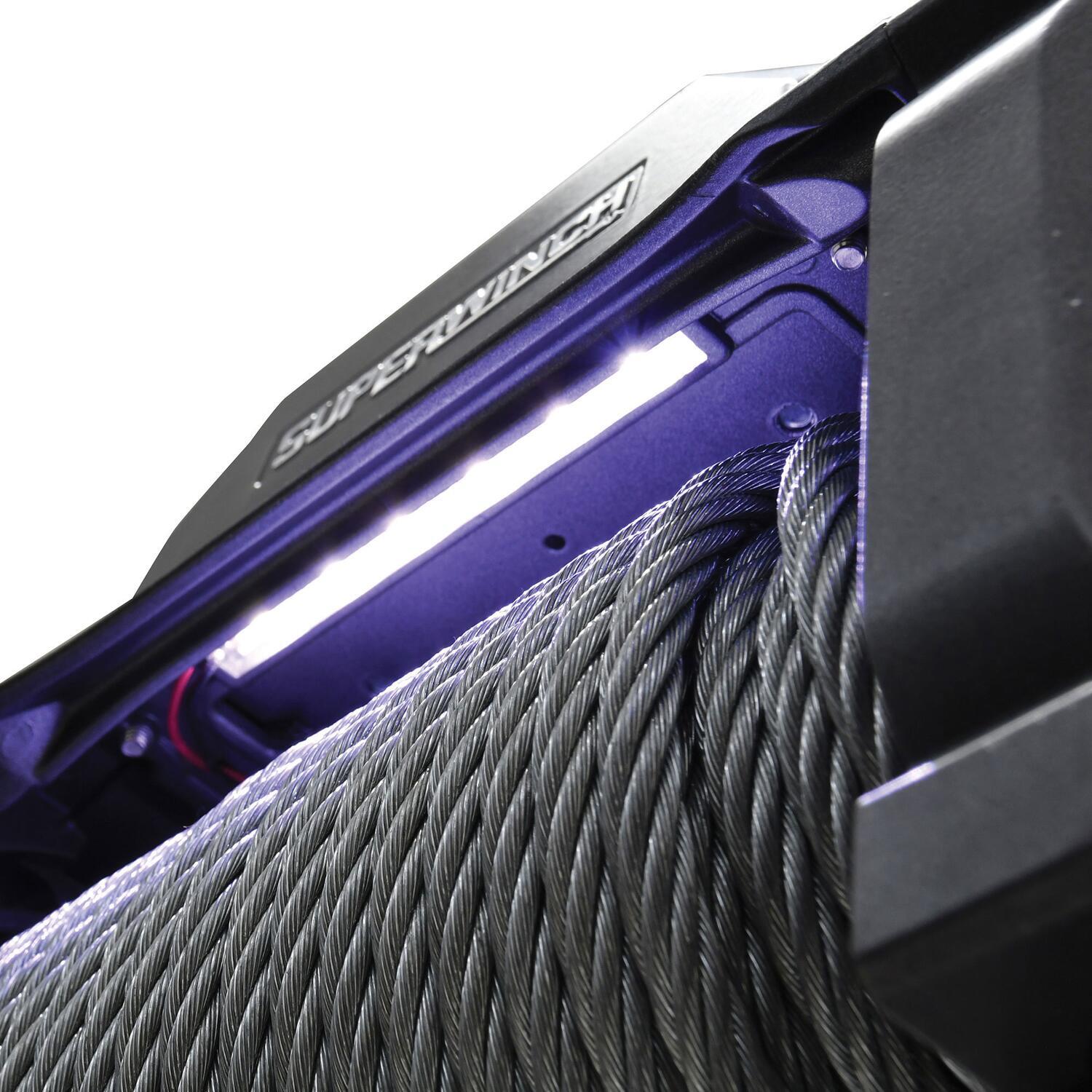

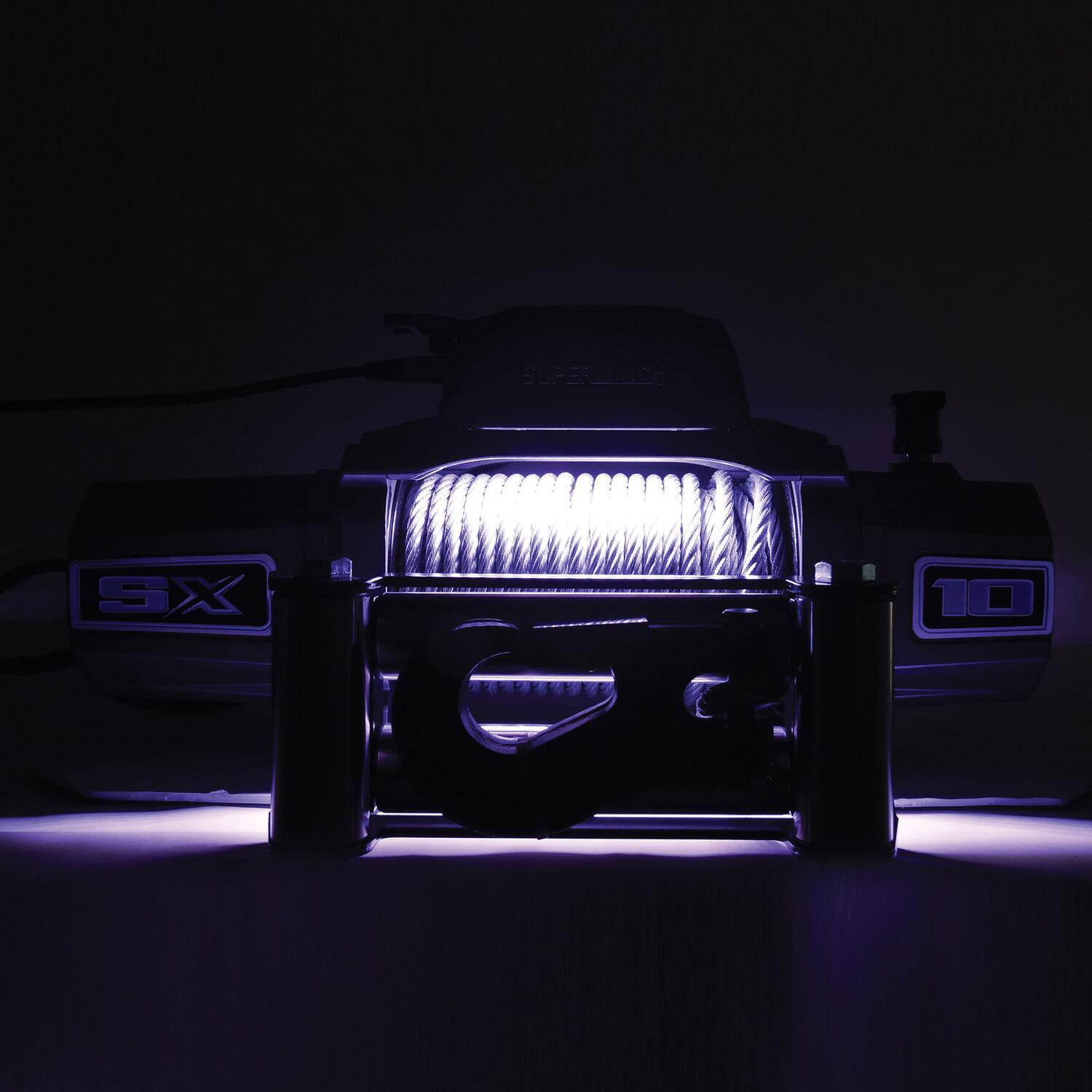

  • Patented drum light

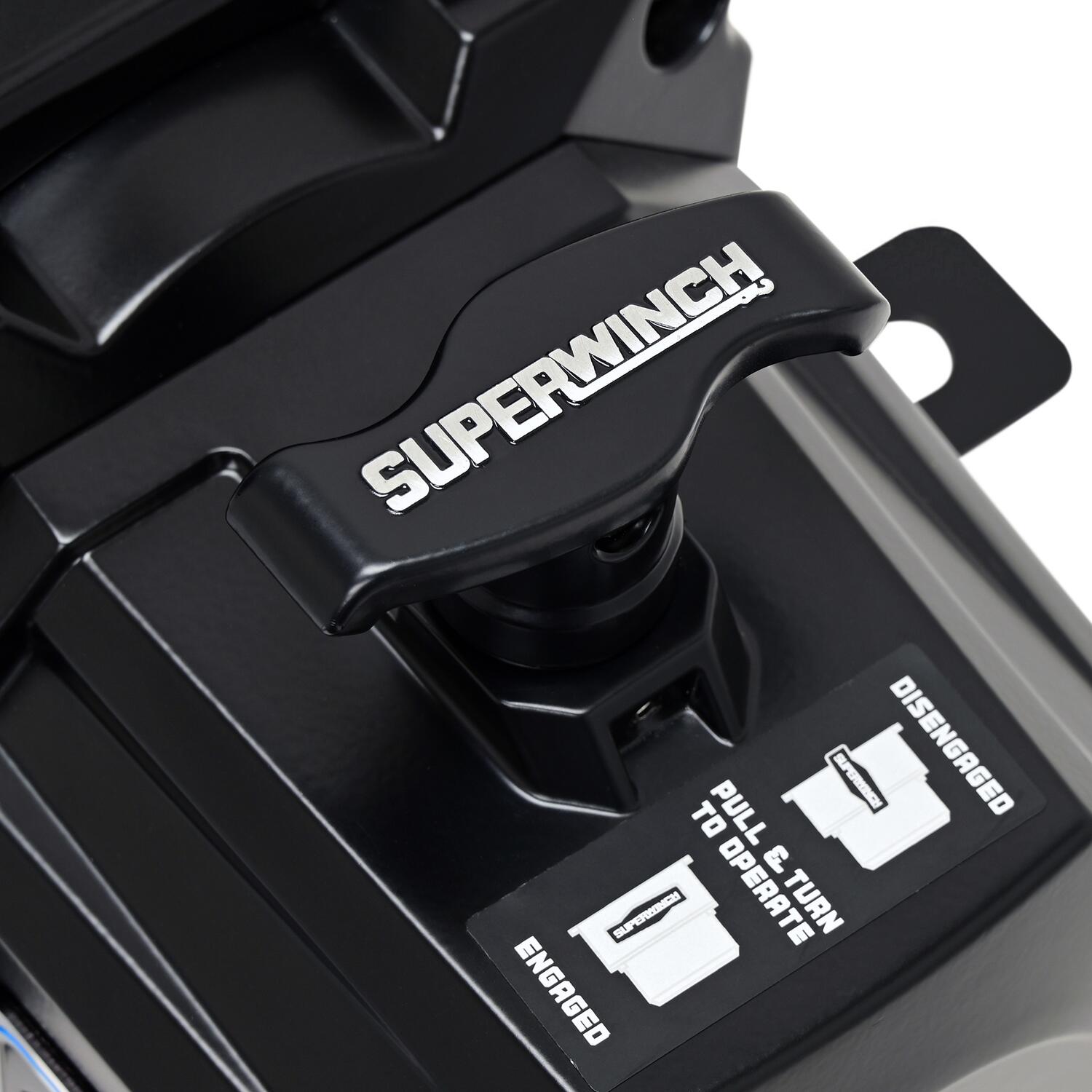

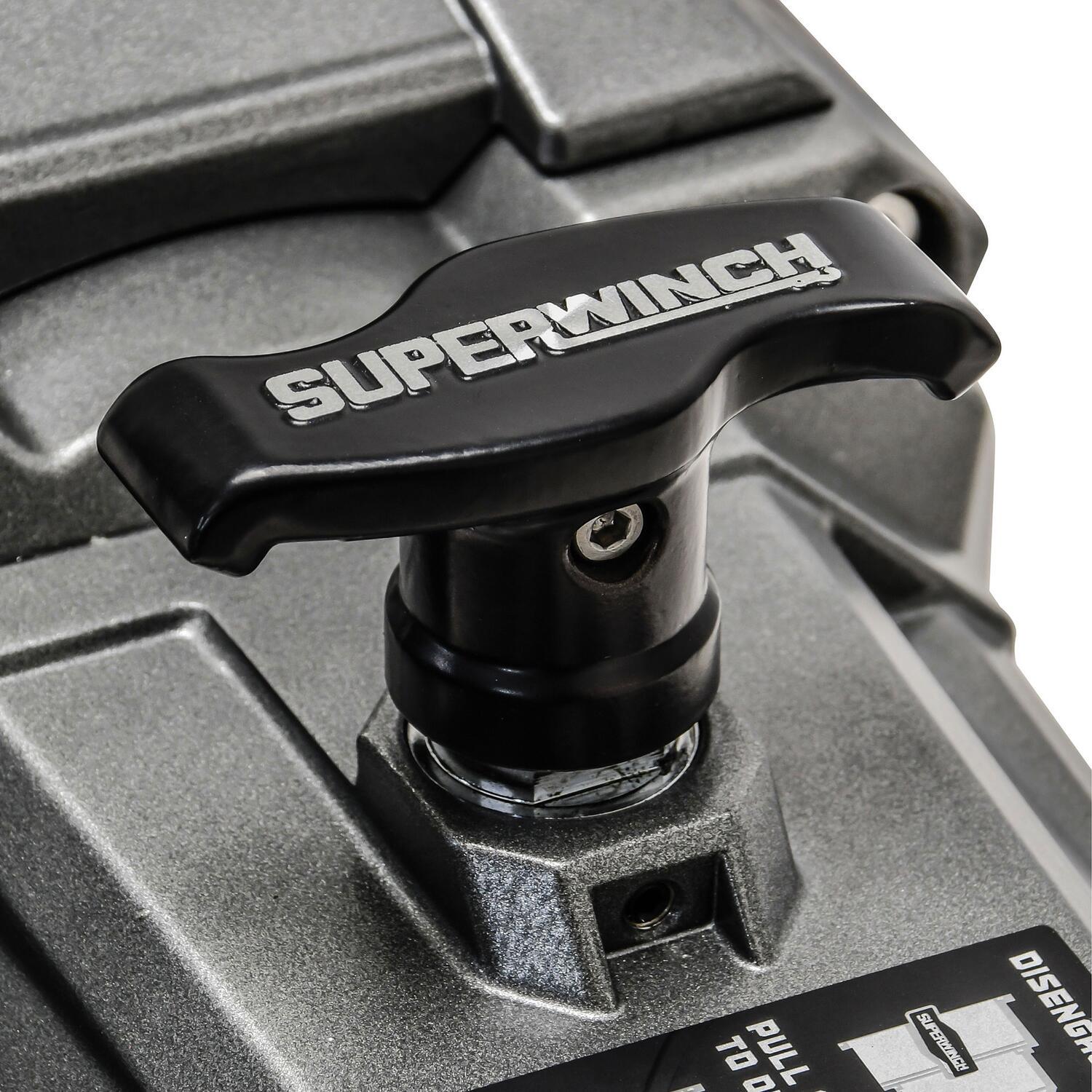

  • Ergonomic pull and turn clutch handle

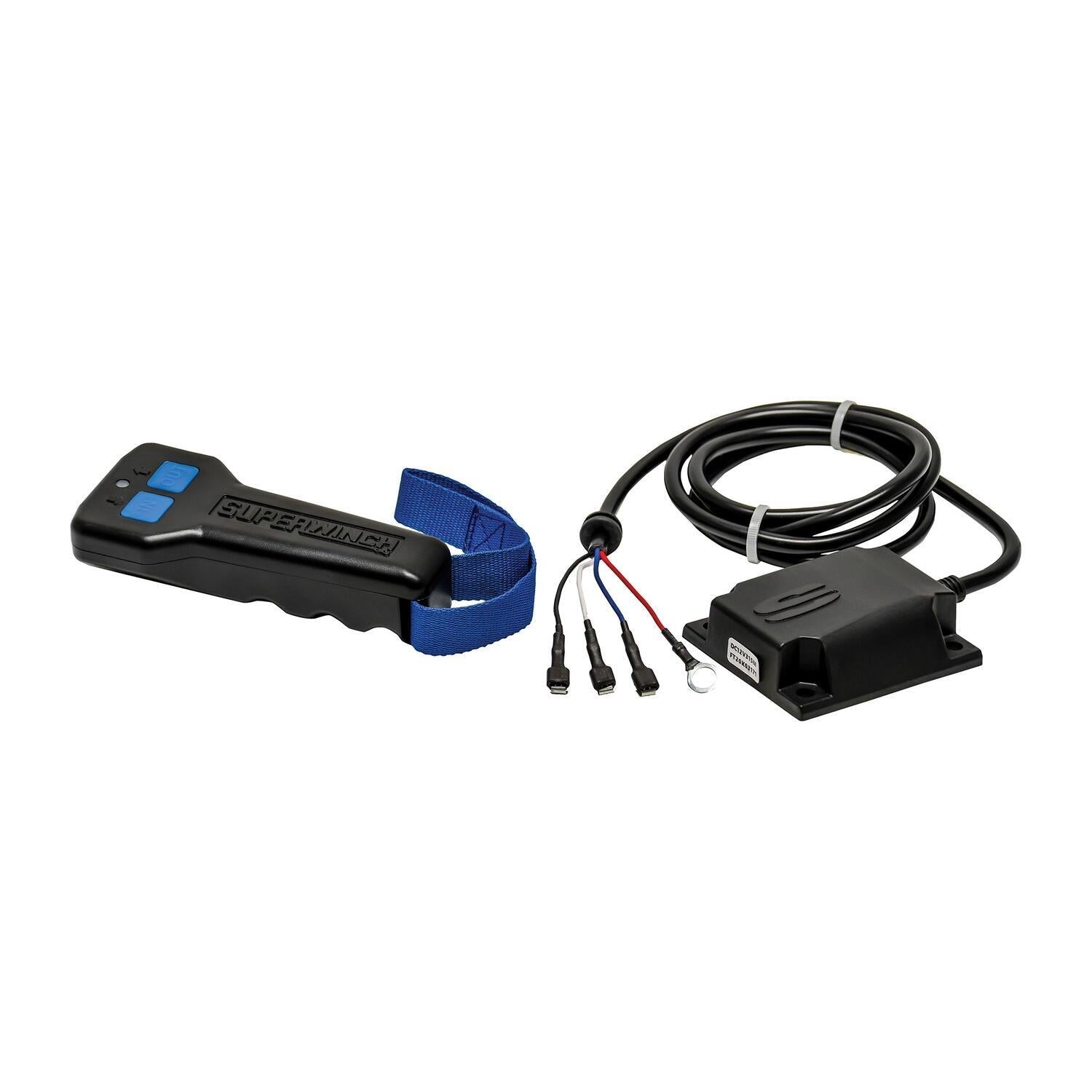

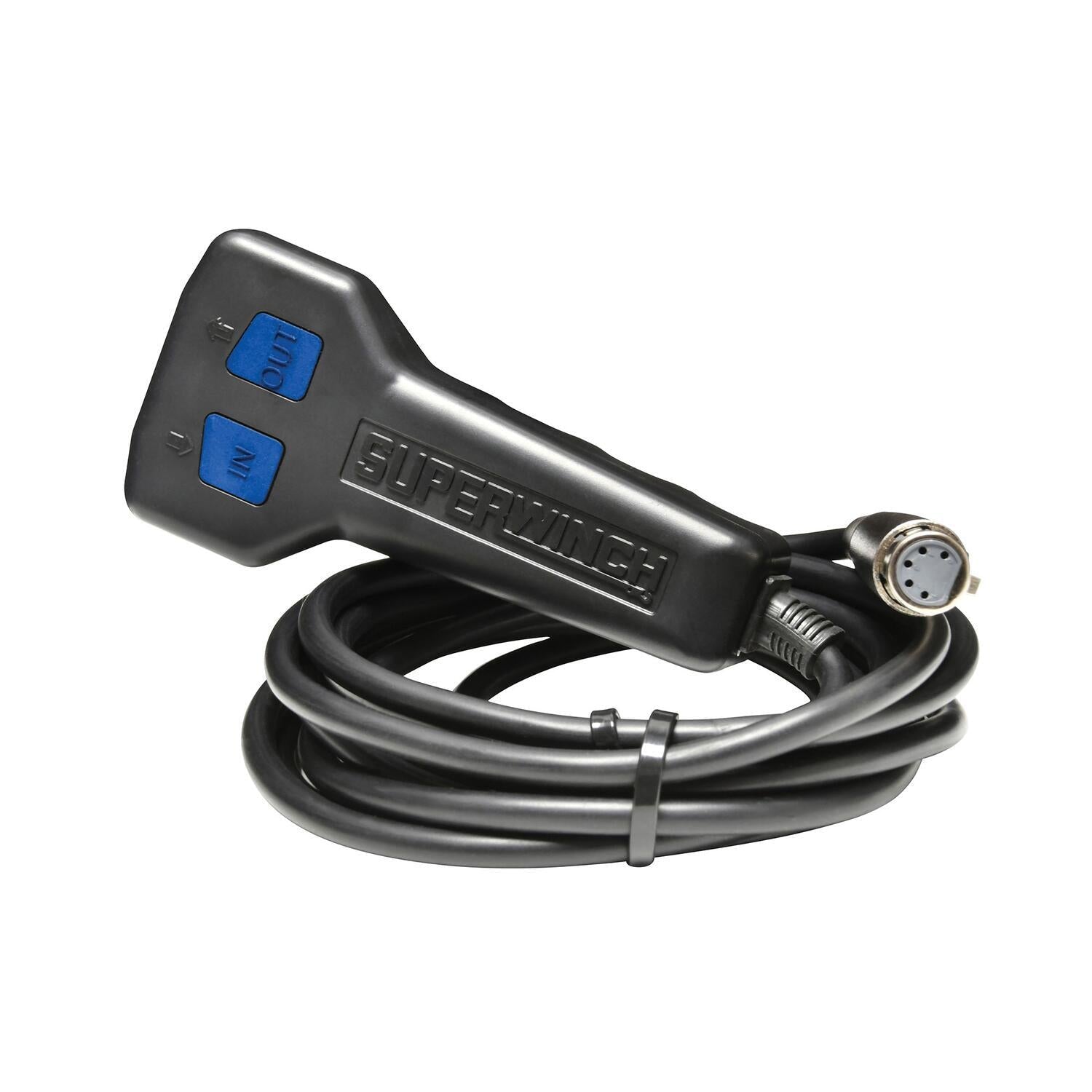

  • Wired remote with integrated rechargeable lithium-ion LED flashlight on the steel wire rope version; the synthetic rope version has wired and wireless remotes
  • Metallic graphite powder coat finish on the graphite versions

Specifications

  • Winch Type: Electric
  • Mounting Type: Bolt-on
  • Voltage: 12V DC
  • Motor: 5.5 HP, 12V DC
  • Gear System: 3-stage planetary
  • Gear Ratio: 218:1
  • Clutch: Pull and turn clutch handle
  • Brake System: 100 percent full load holding automatic mechanical brake

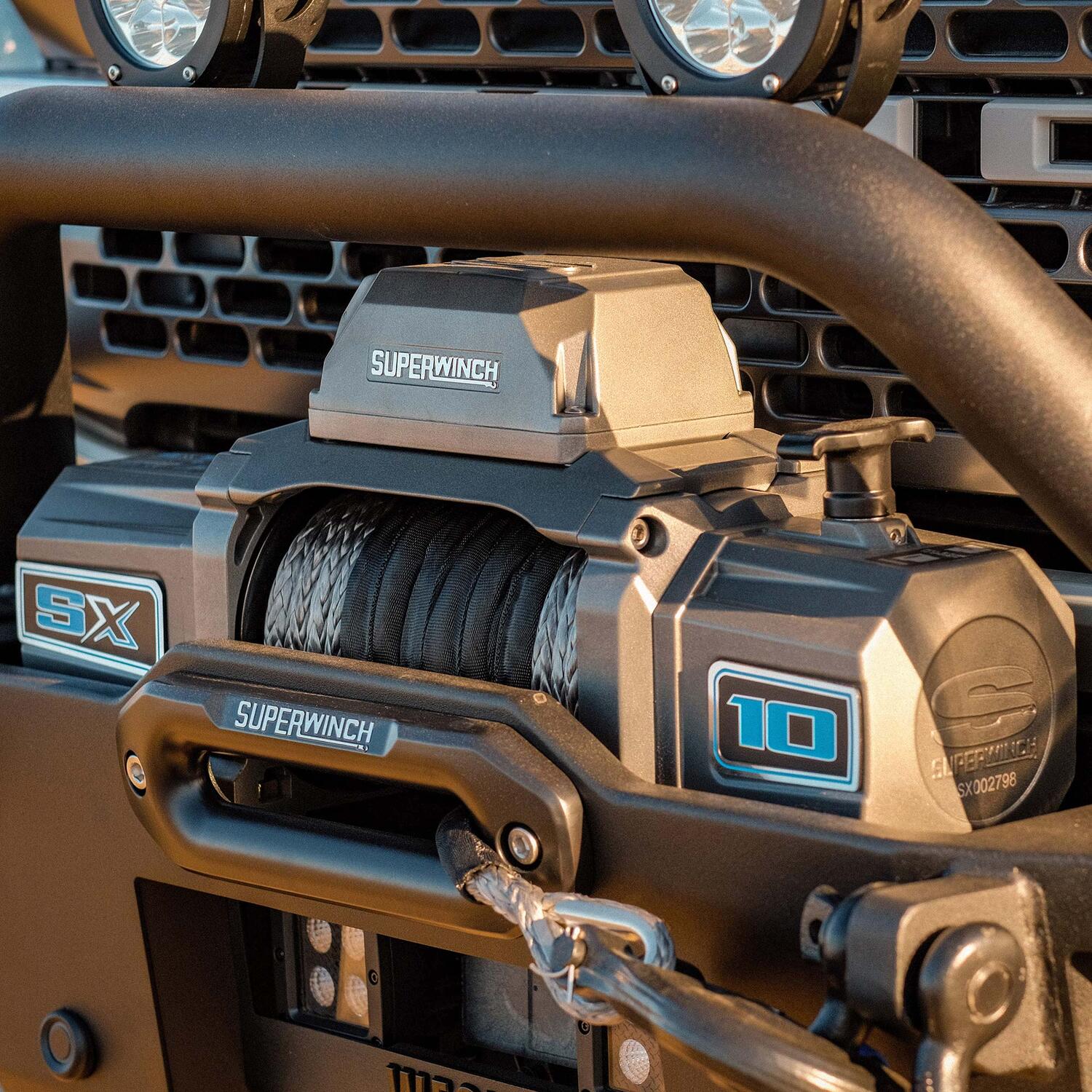

  • Rope Material: Steel wire or synthetic, by variant

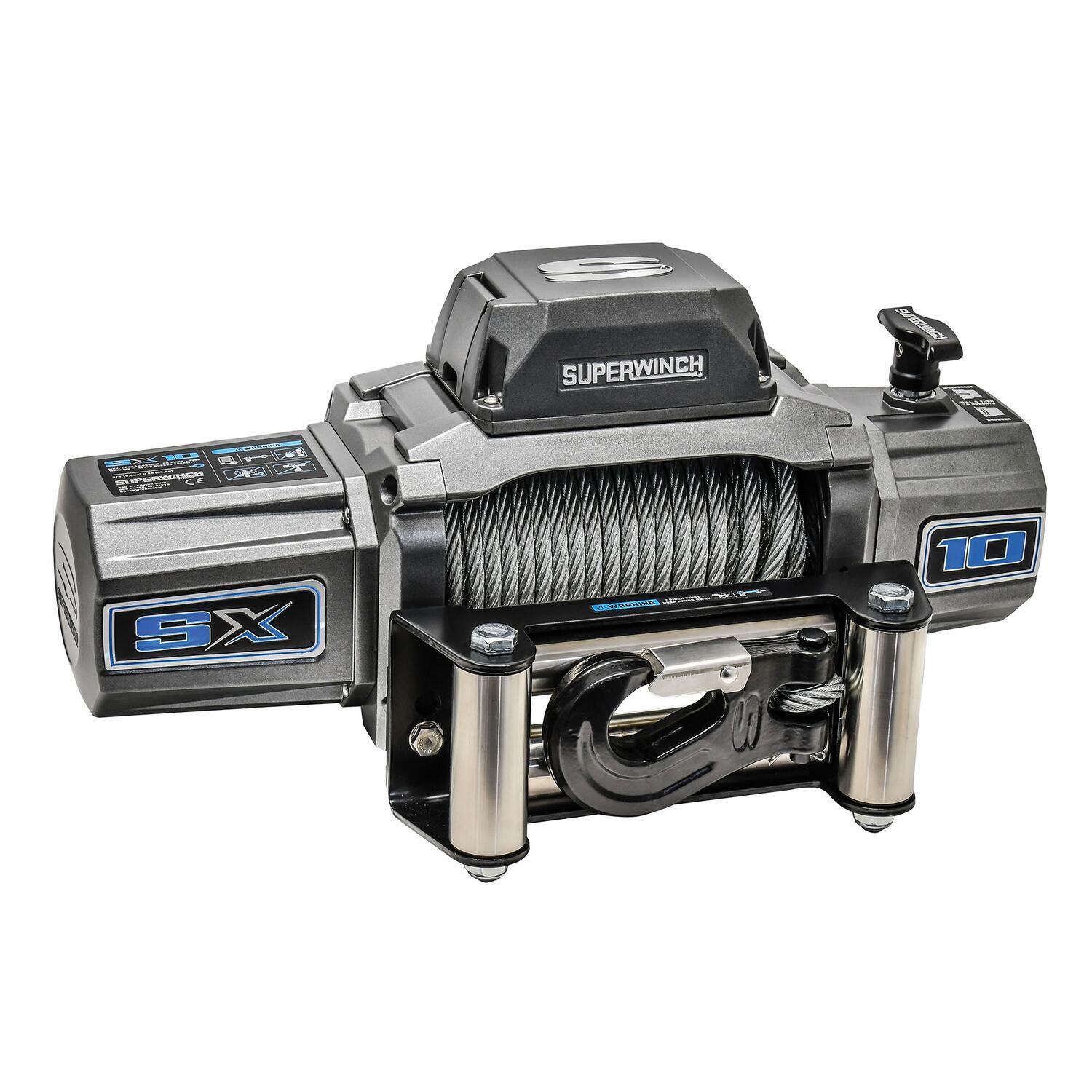

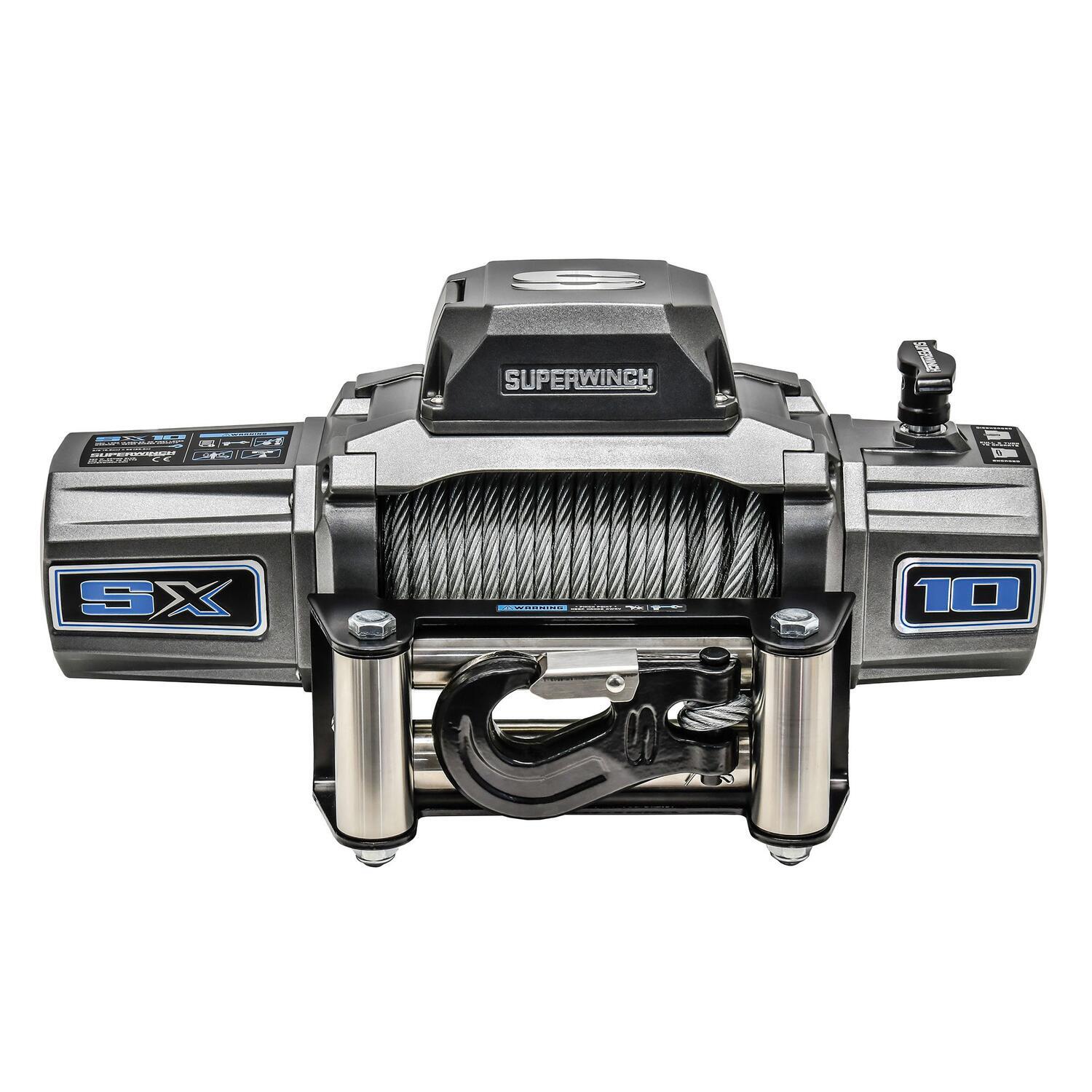

  • Rope Length: 3/8 in x 85 ft (steel wire rope), 3/8 in x 80 ft (synthetic rope)

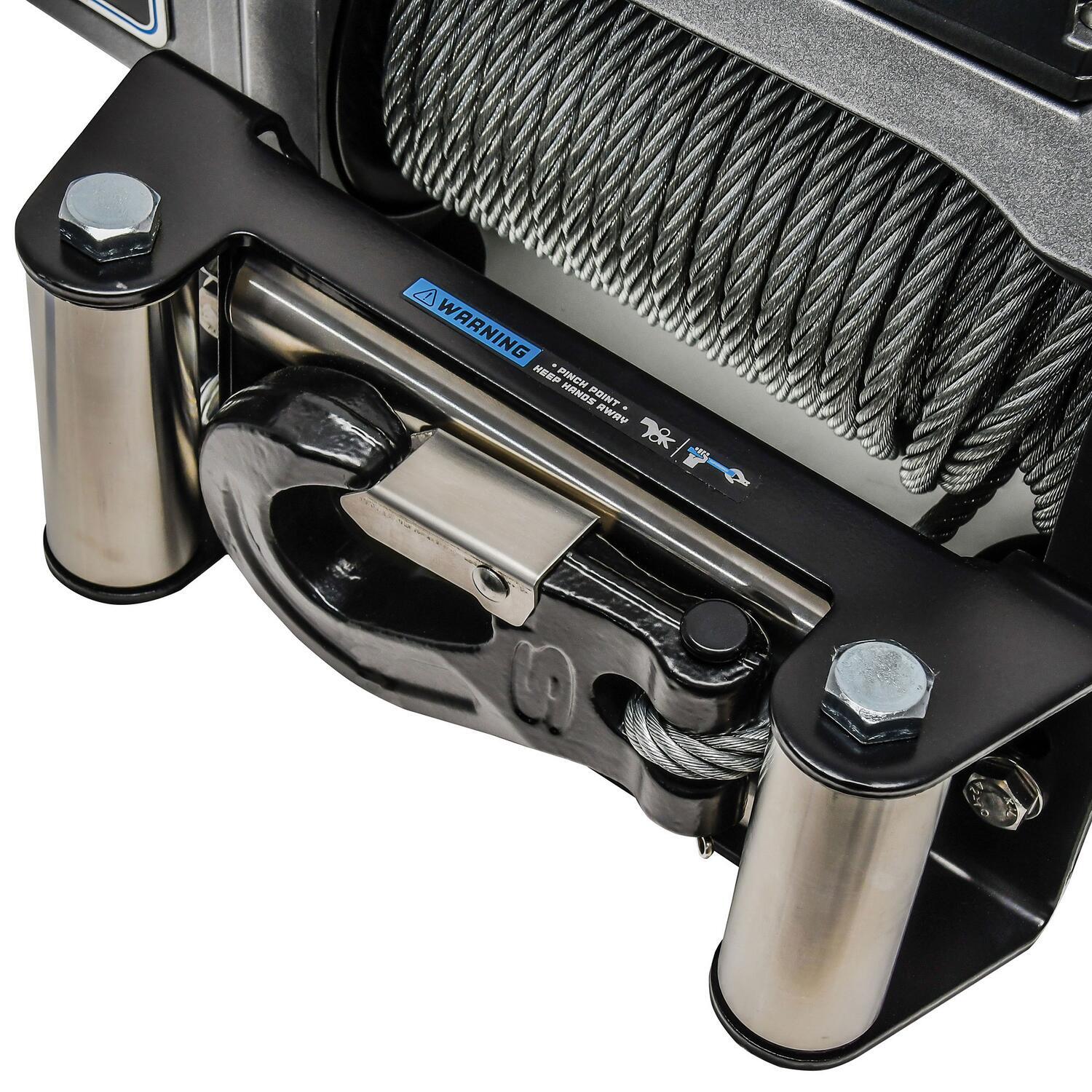

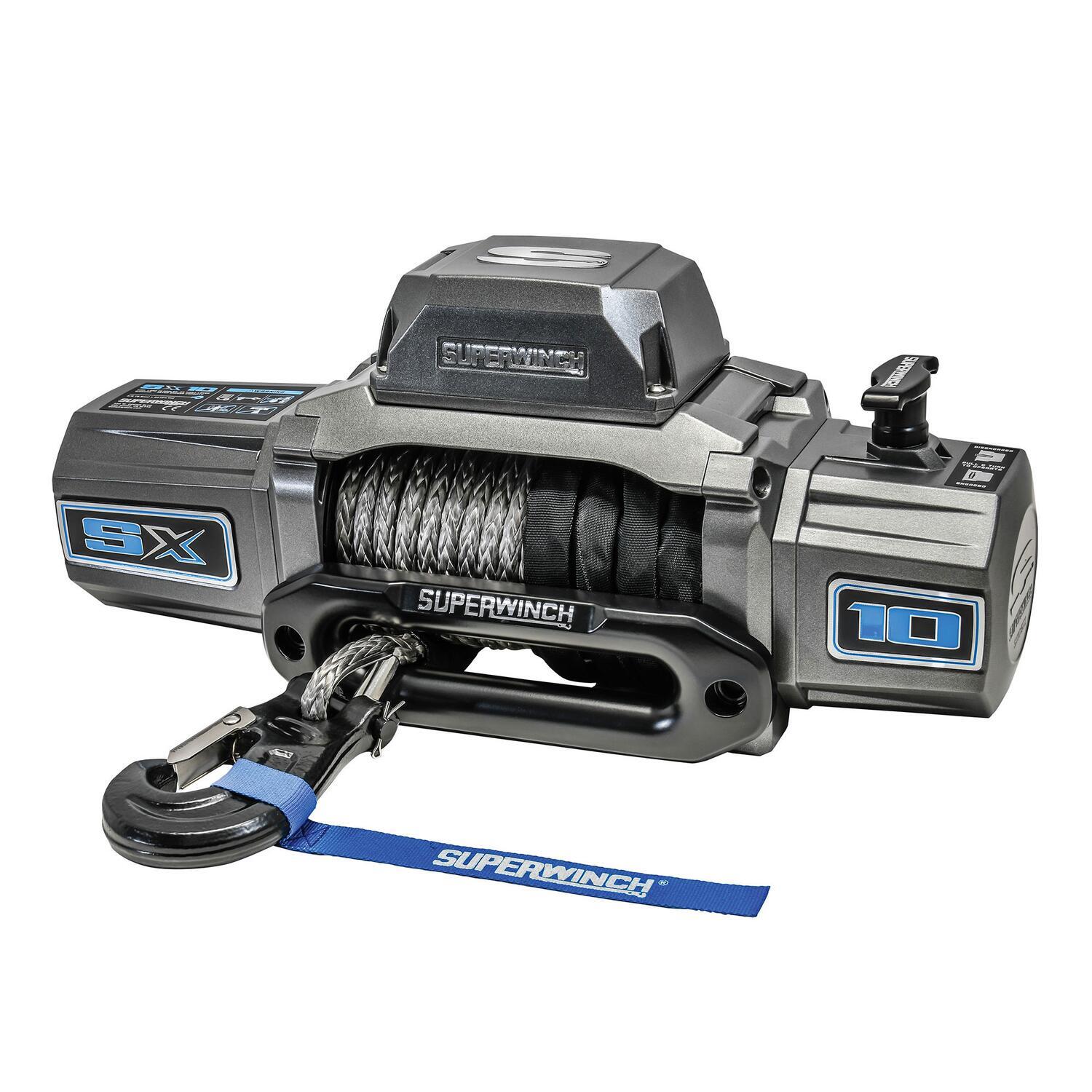

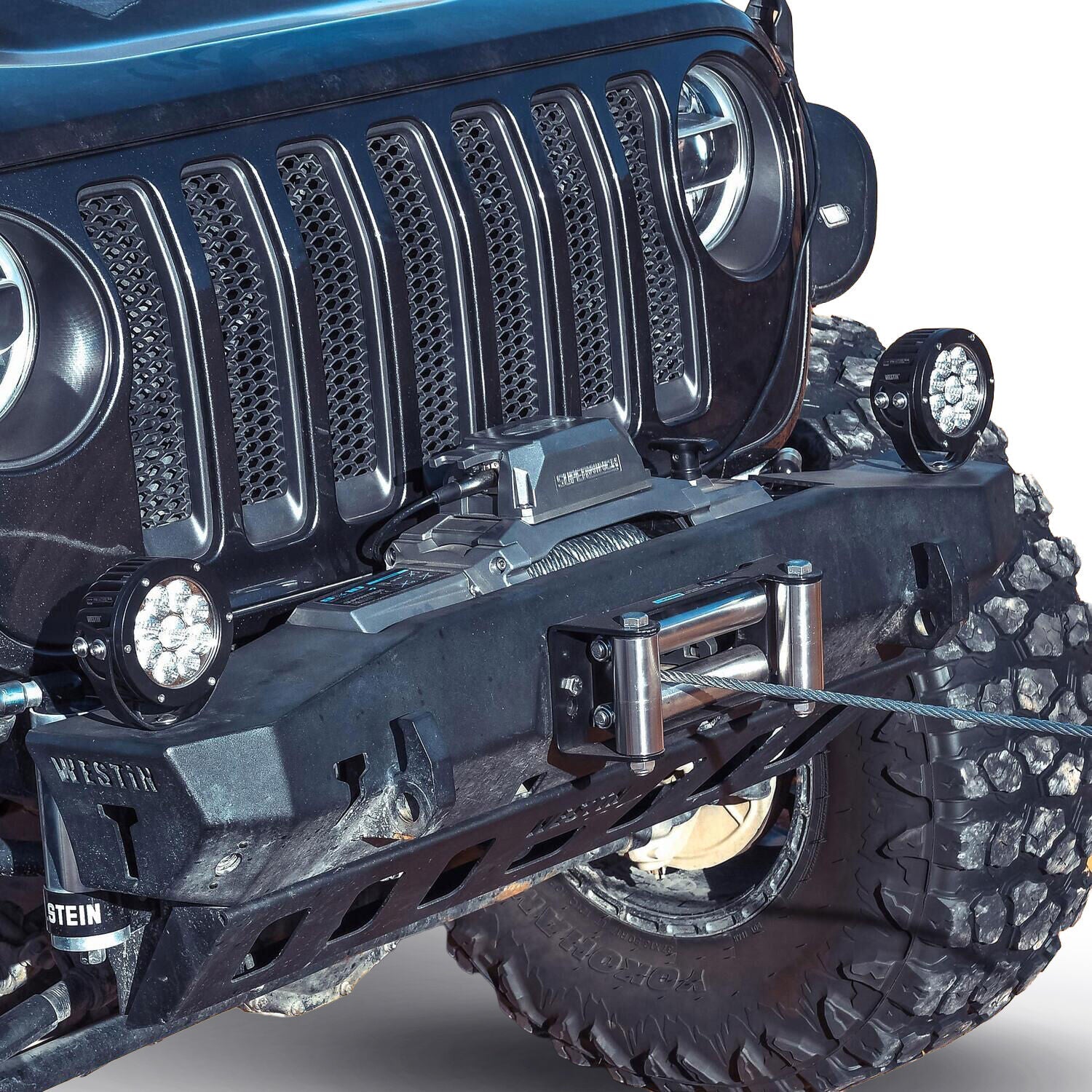

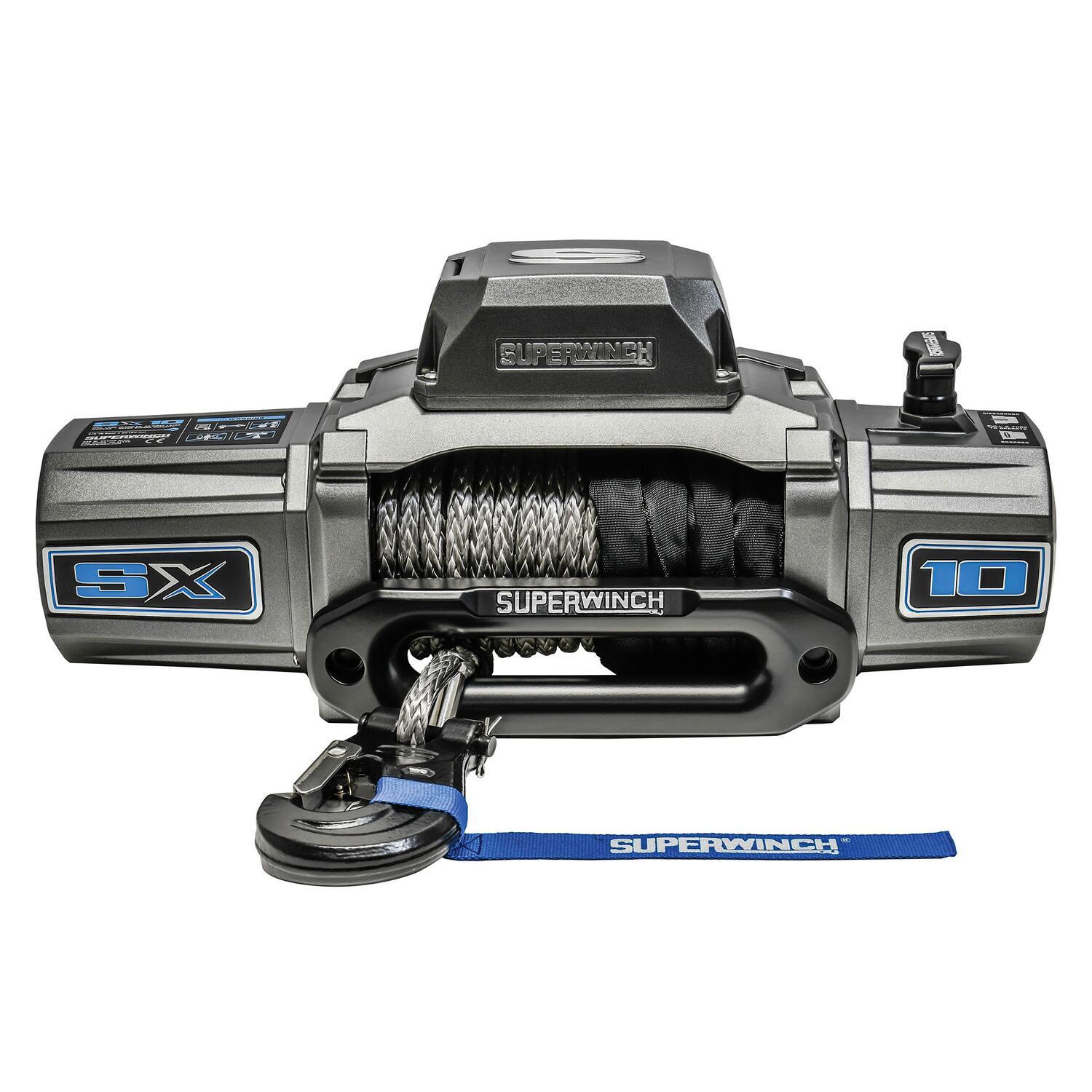

  • Fairlead: Stainless steel 4-way roller (steel wire rope), aluminum hawse (synthetic rope)

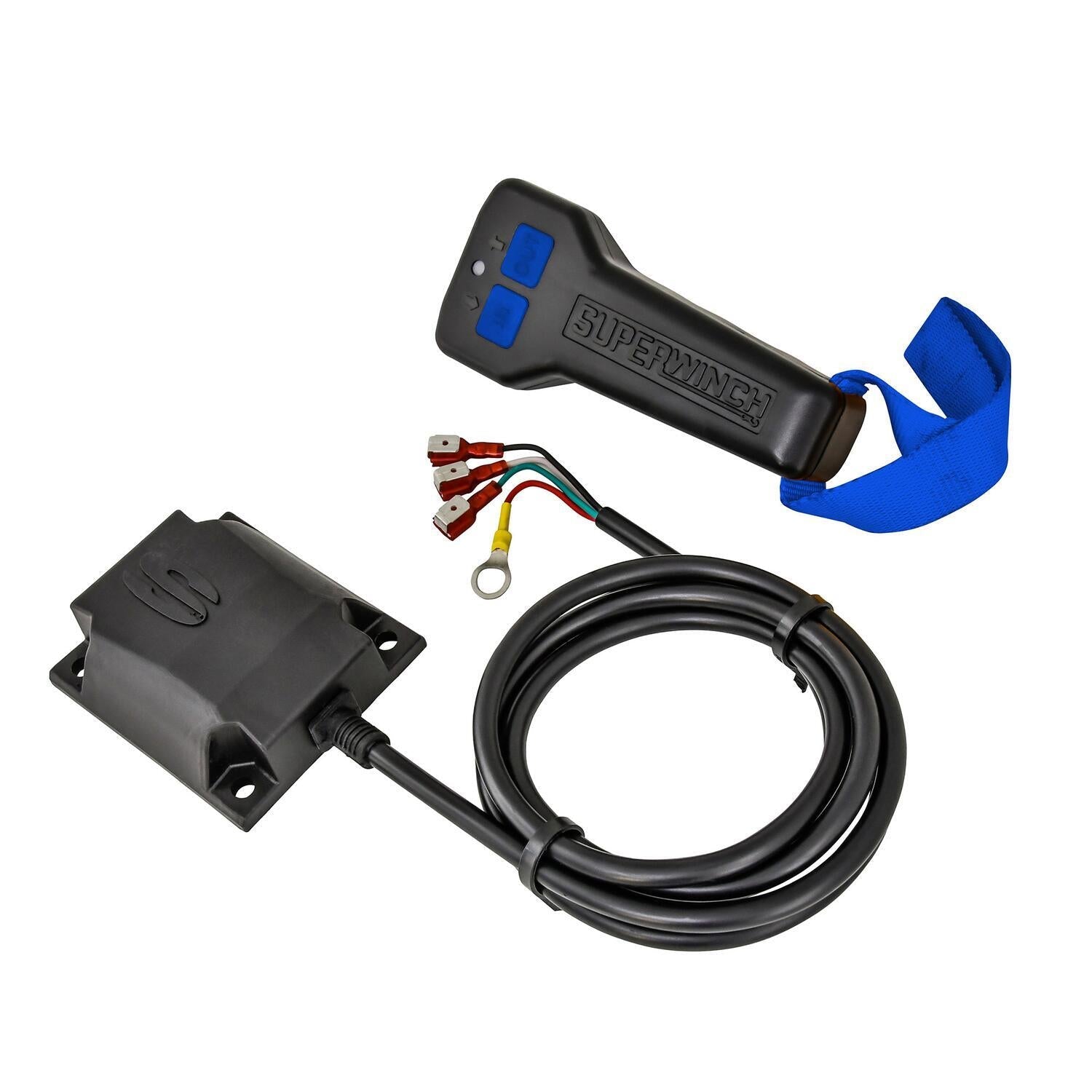

  • Remote Type: Wired (steel wire rope), wired and wireless (synthetic rope)
  • IP Rating: IP68 waterproof and dustproof

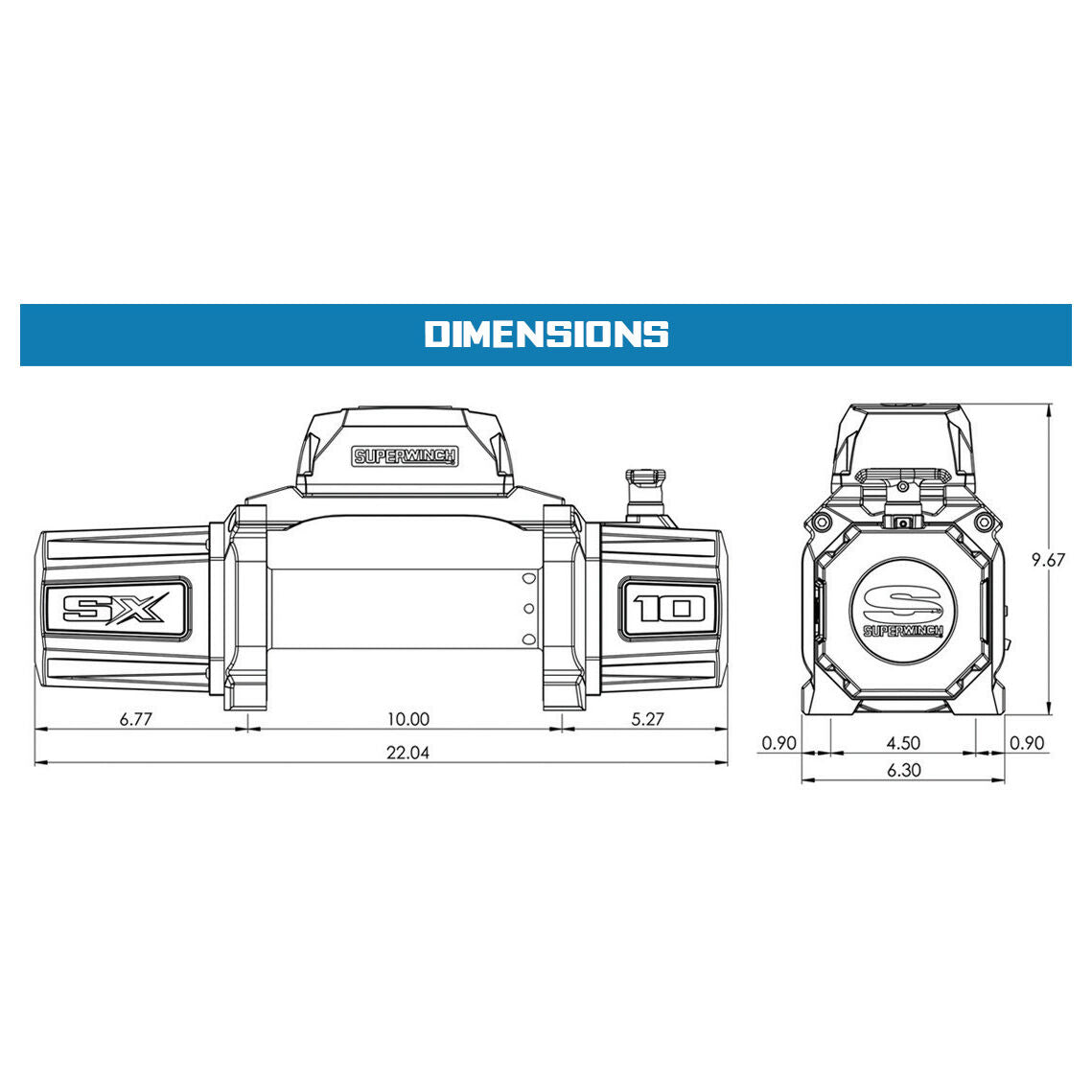

  • Mounting Bolt Pattern: 10 in x 4.5 in (254 mm x 114.3 mm)
  • Mounting Hardware Included: Yes

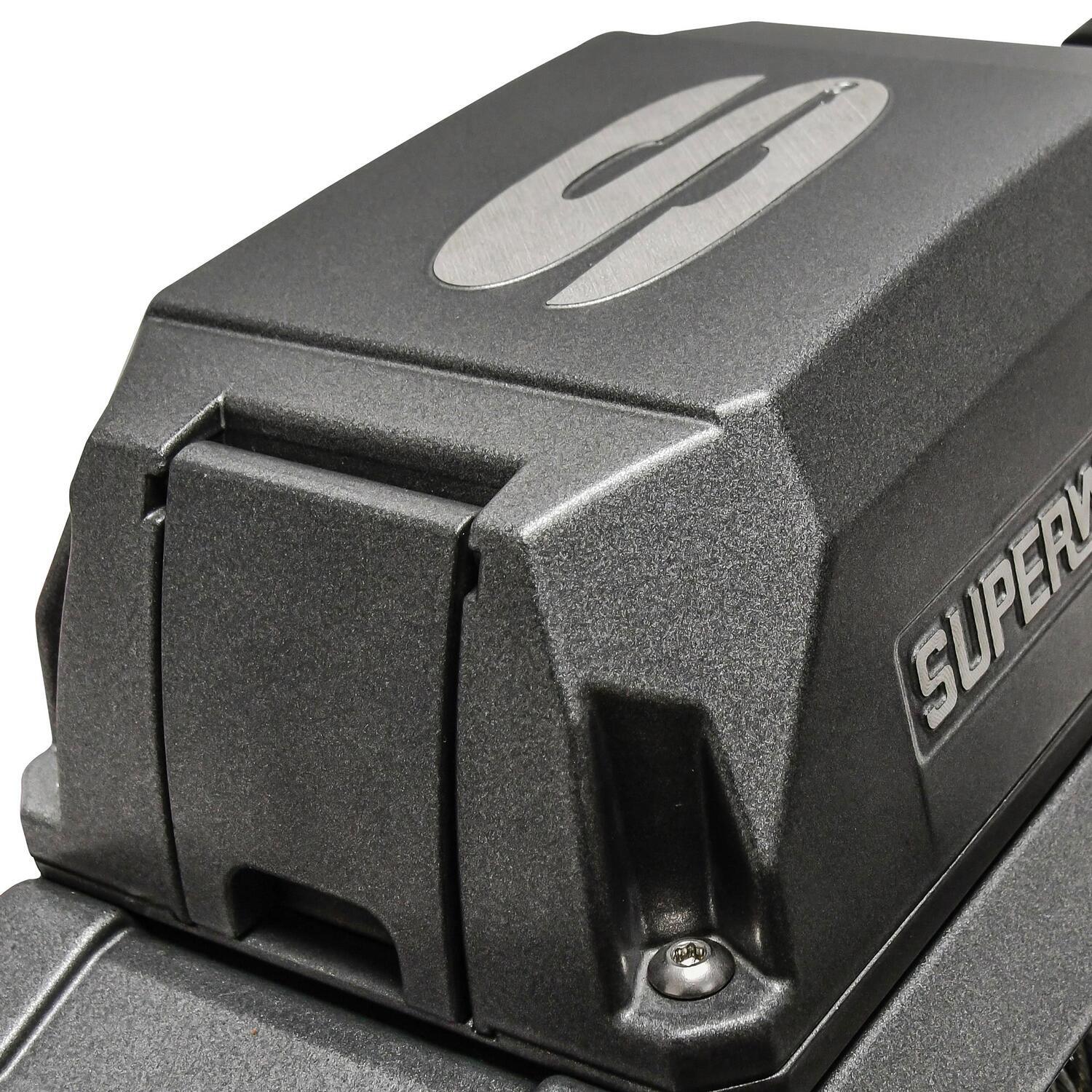

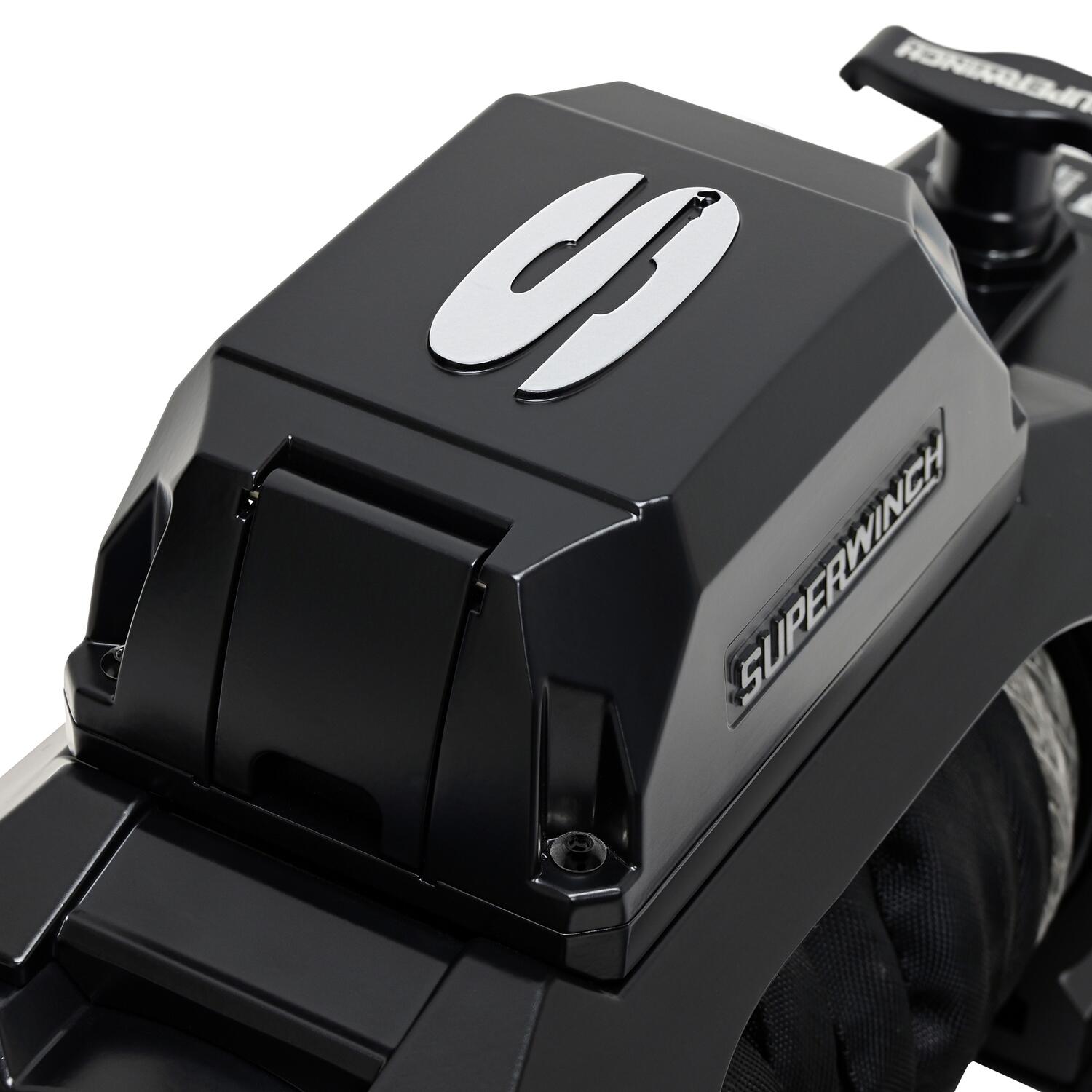

  • Control Box: Relocatable die-cast aluminum

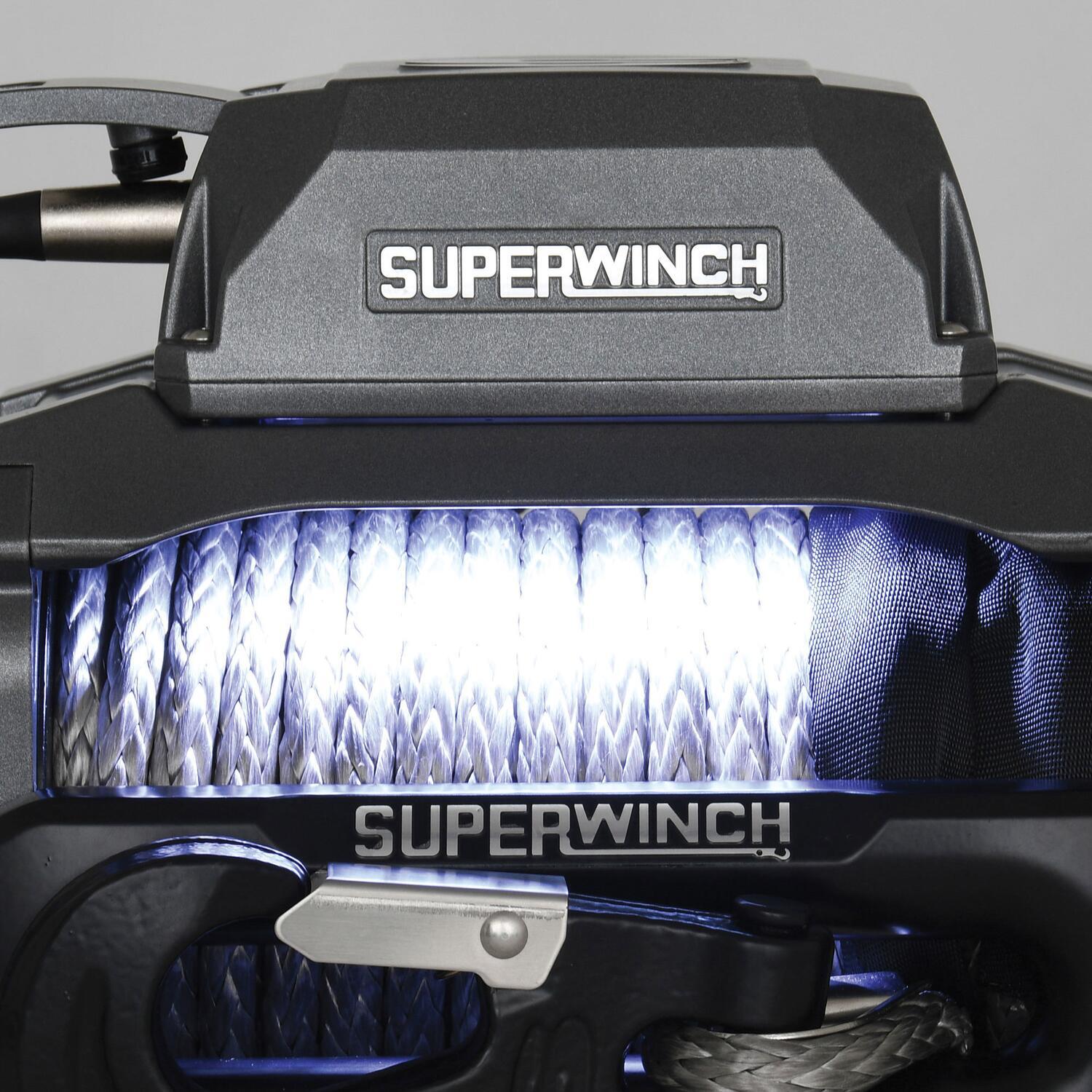

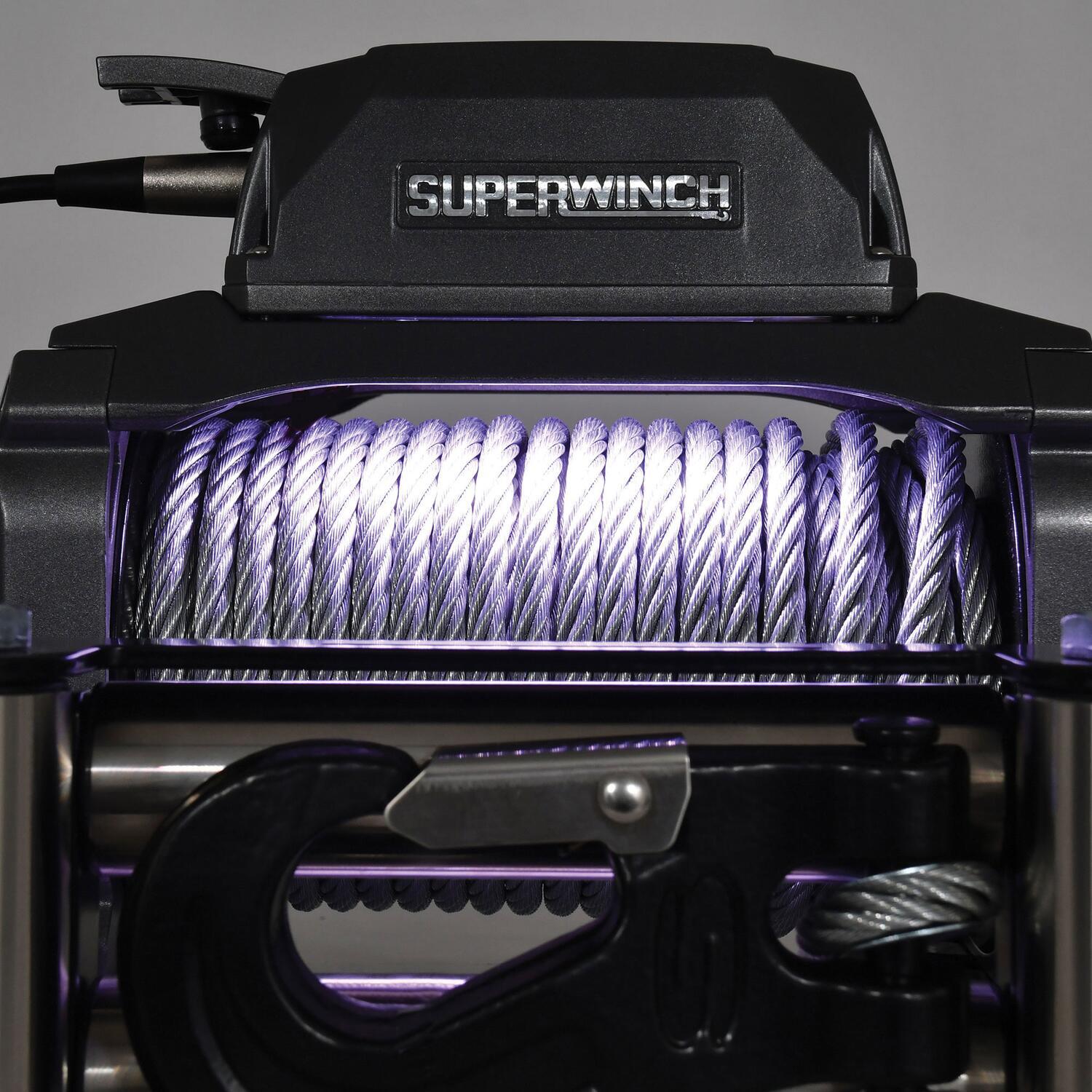

  • Task Lighting: Patented drum light
  • Drum: Fully welded steel

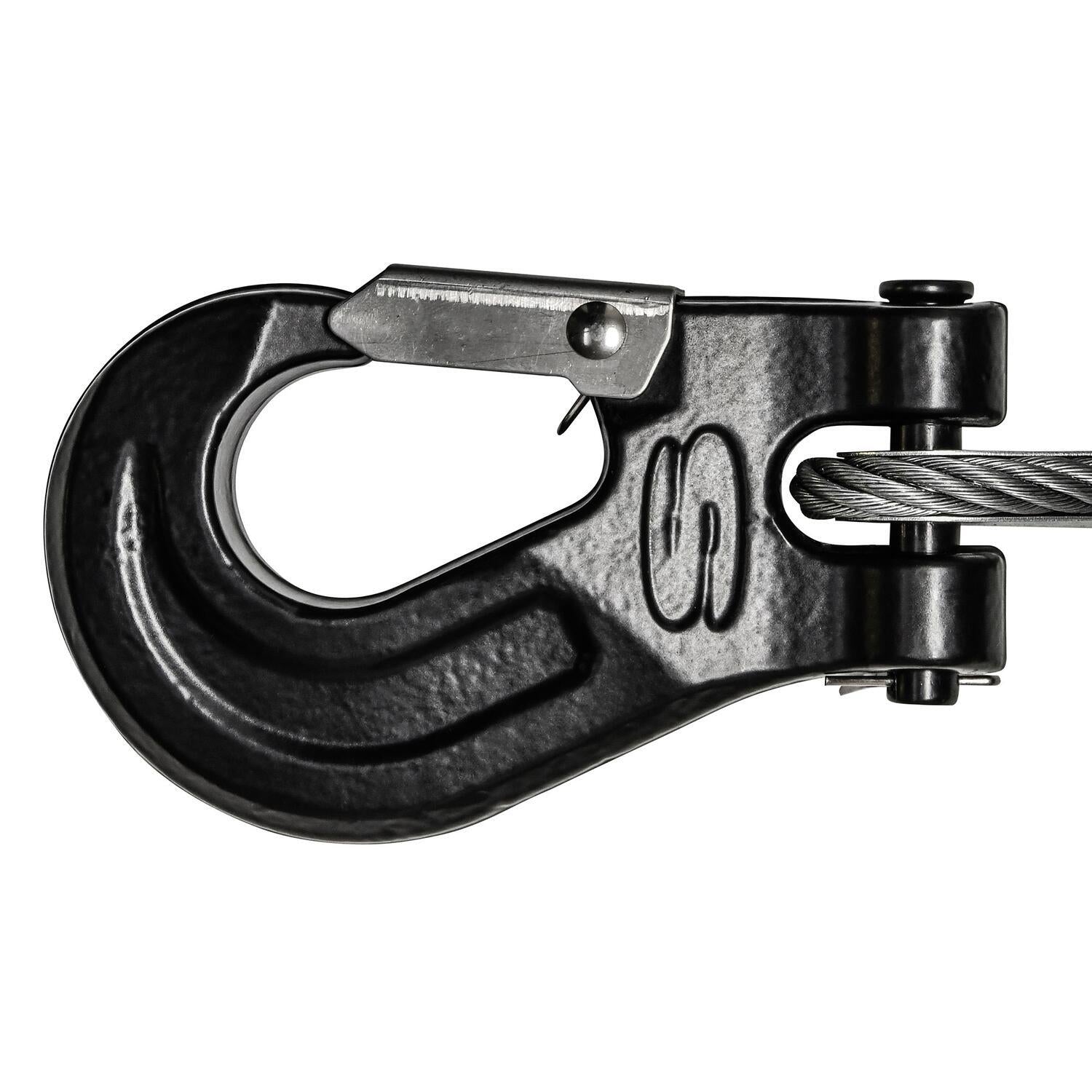

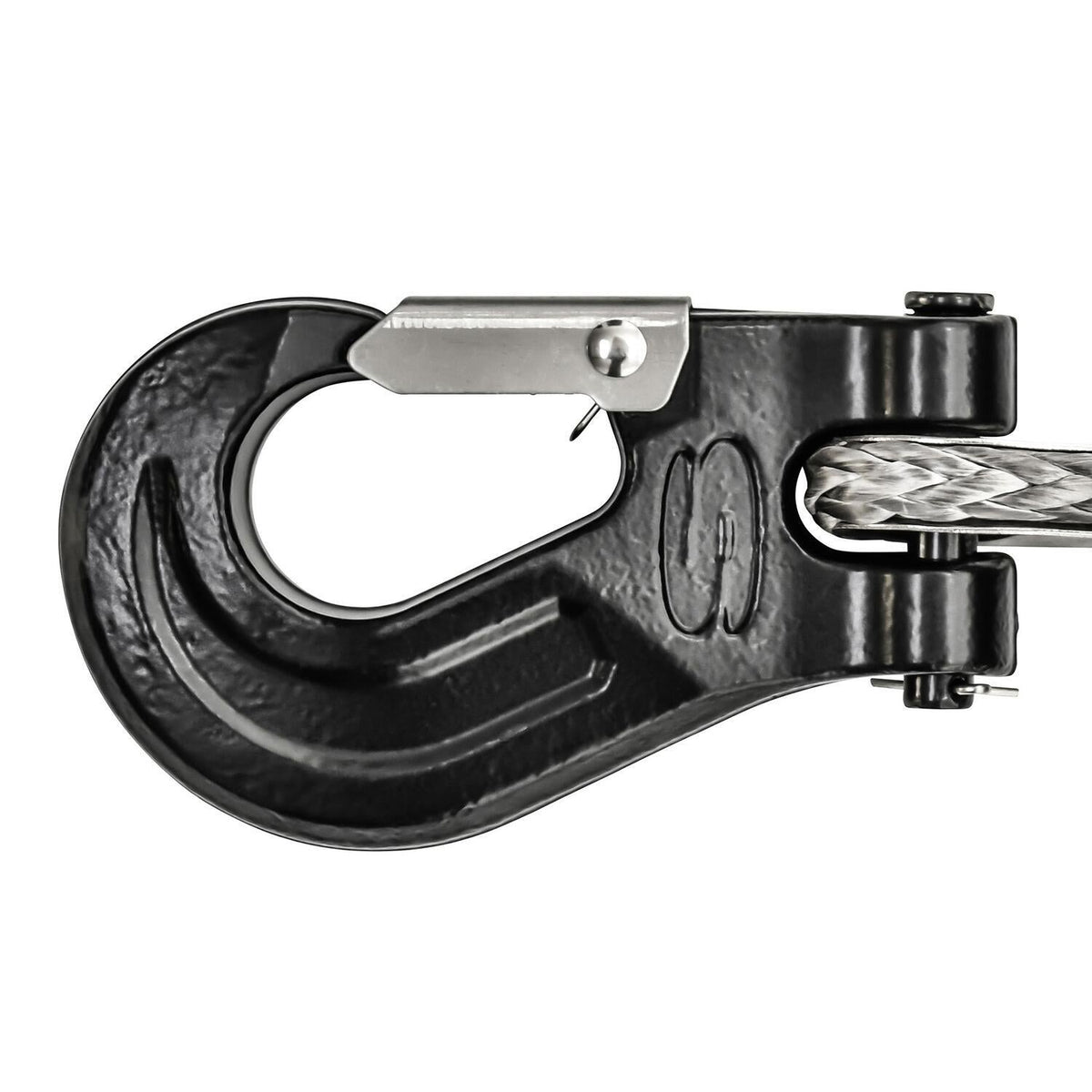

  • Winch Hook: Heavy duty clevis, pinned and latched
  • Color: Graphite (steel wire rope), Graphite or Black (synthetic rope)
  • Weight: 88 lb (steel wire rope), 61 lb (synthetic rope)
  • Width: 13 in
  • Height: 12 in

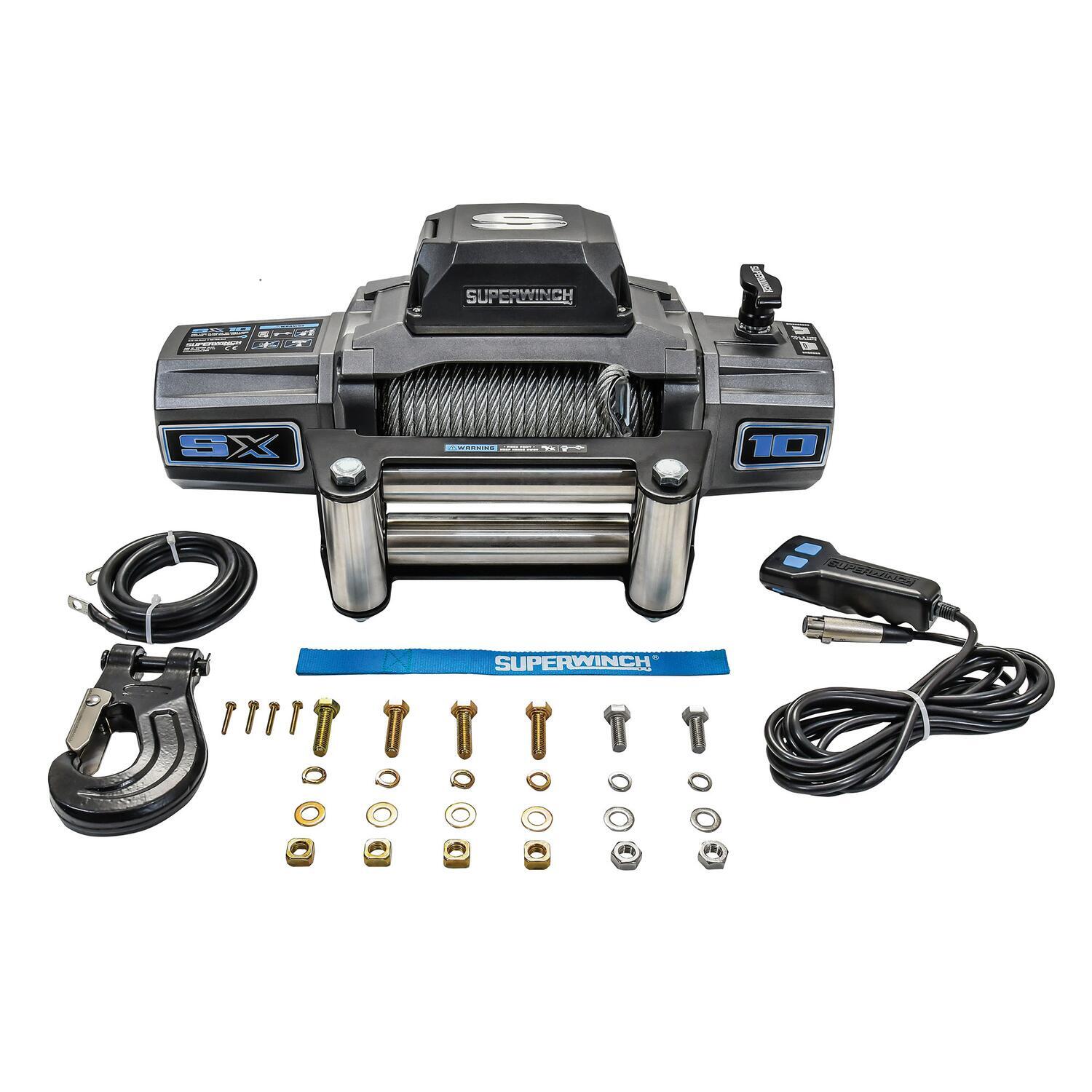

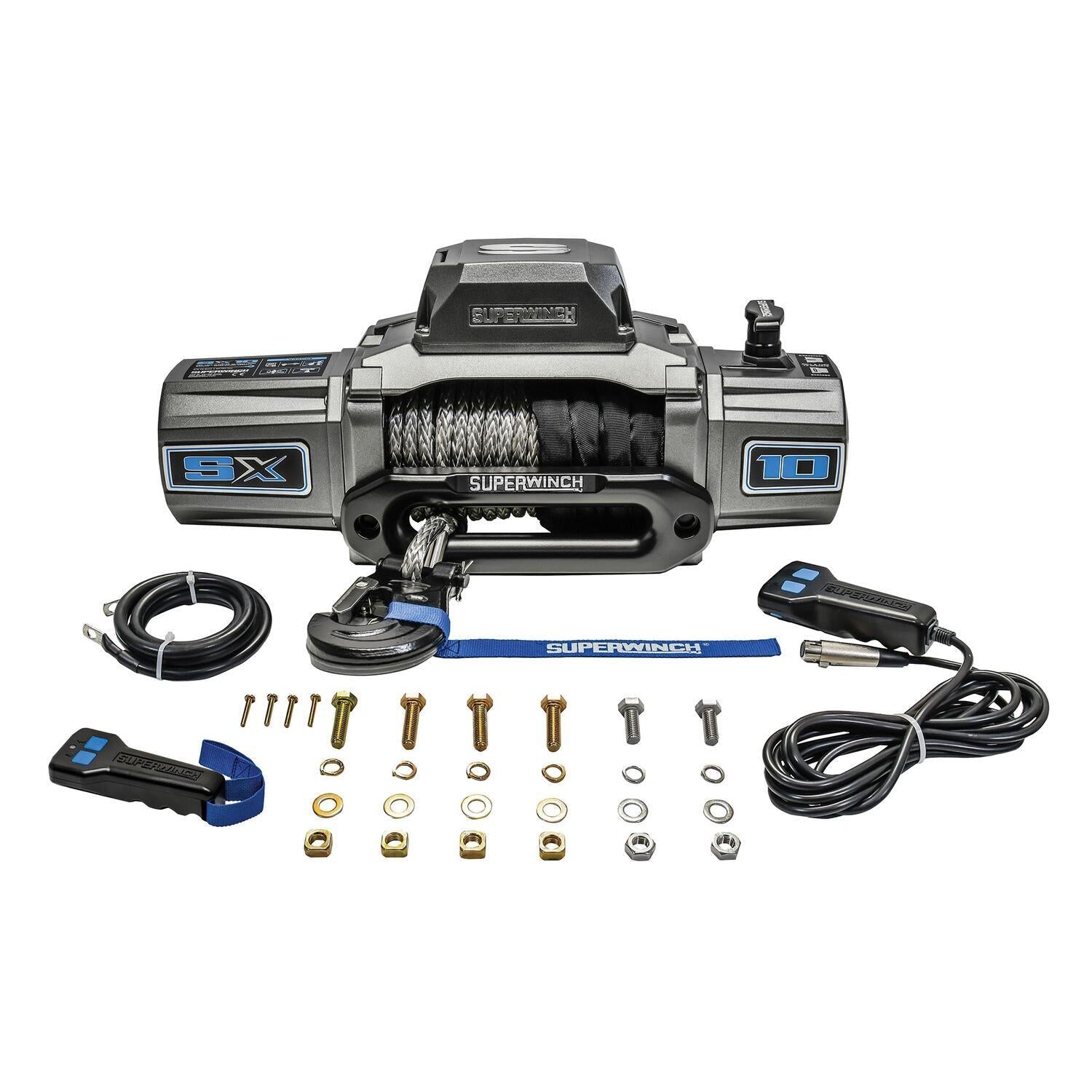

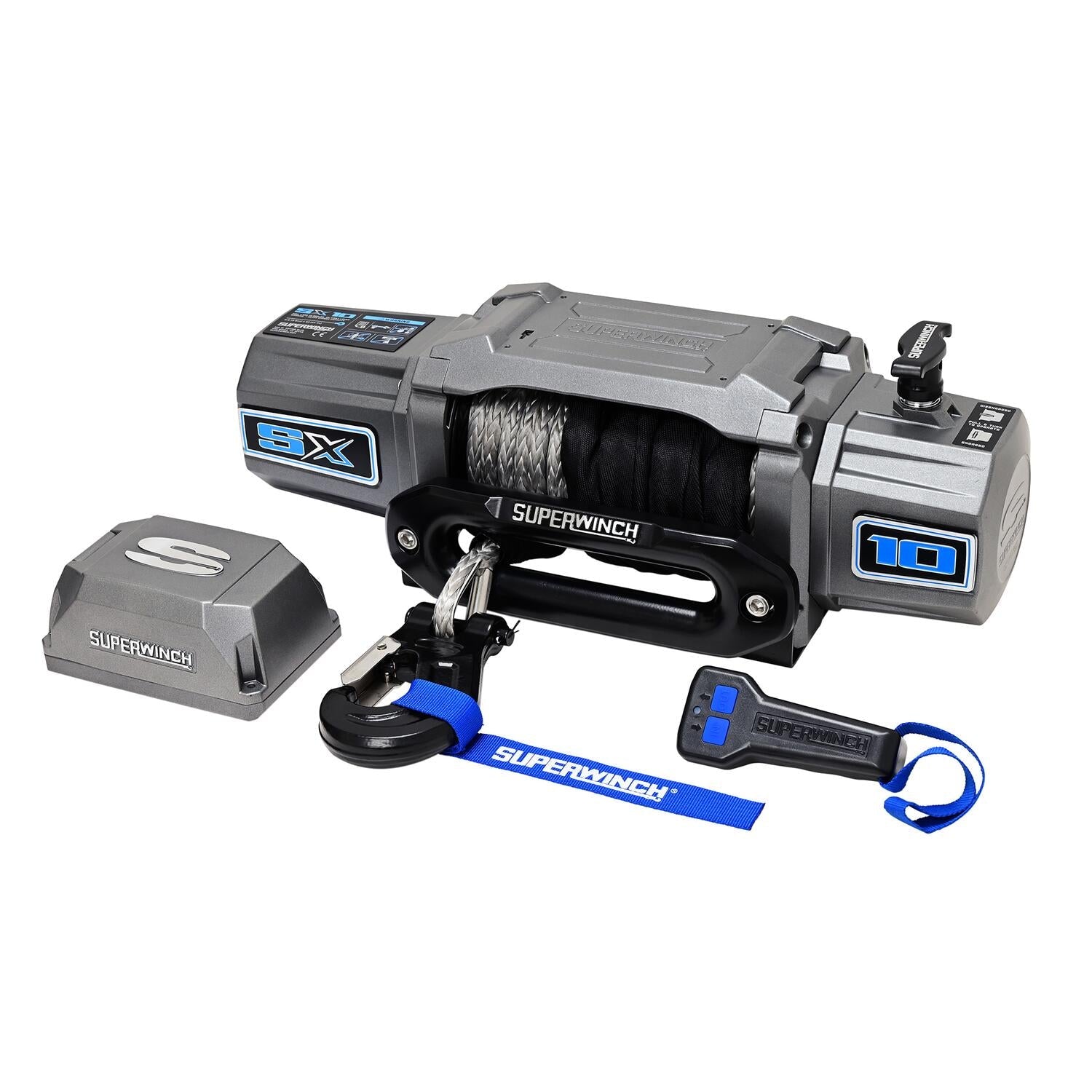

In the Box

  • Winch with rope and hook
  • Wired remote
  • Mounting hardware

Warranty

Limited lifetime mechanical, limited 7 year electrical.

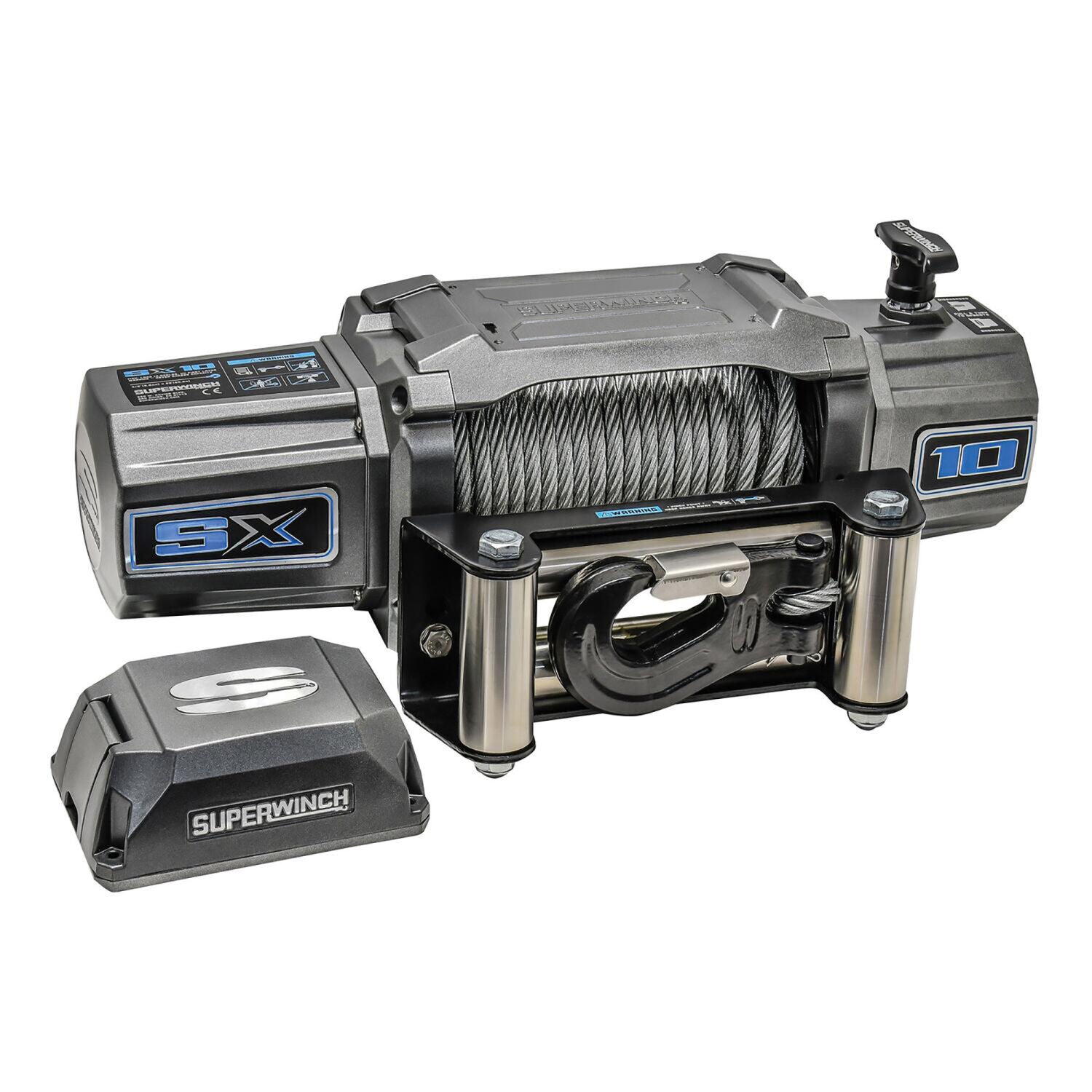

MPN 1710200 (Steel Wire Rope Graphite)

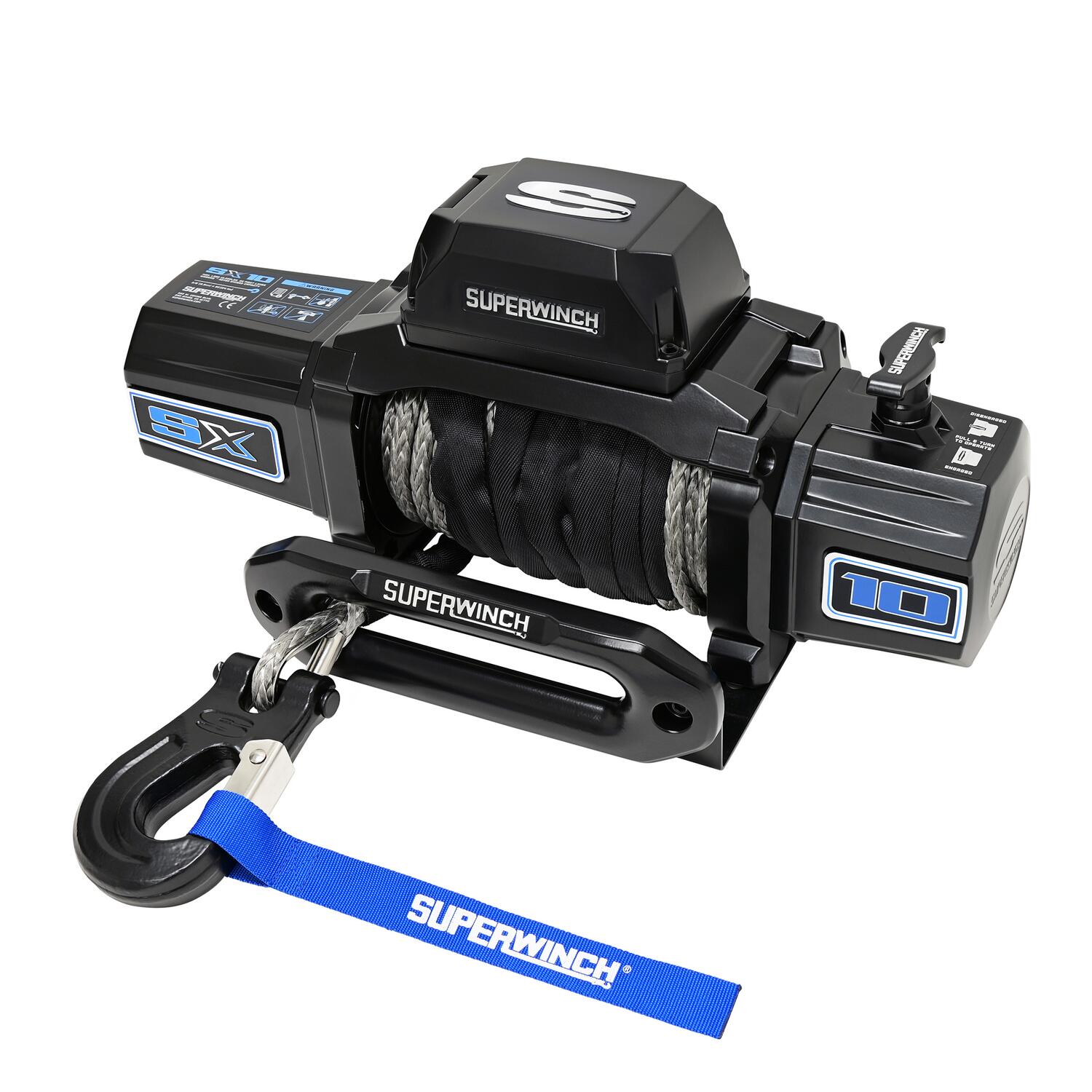

MPN 1710201 (Synthetic Rope Graphite)

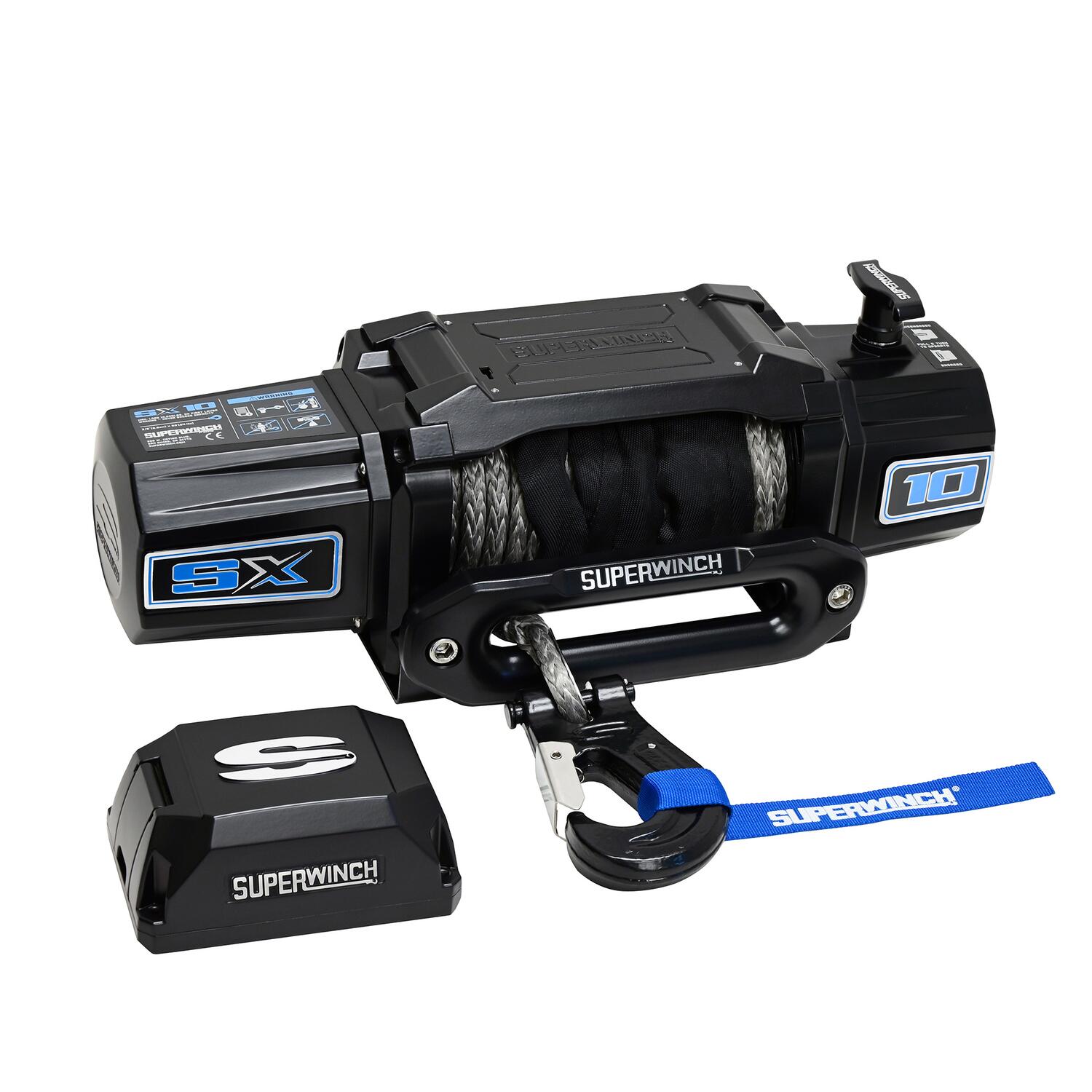

MPN 1710204 (Synthetic Rope Black)
