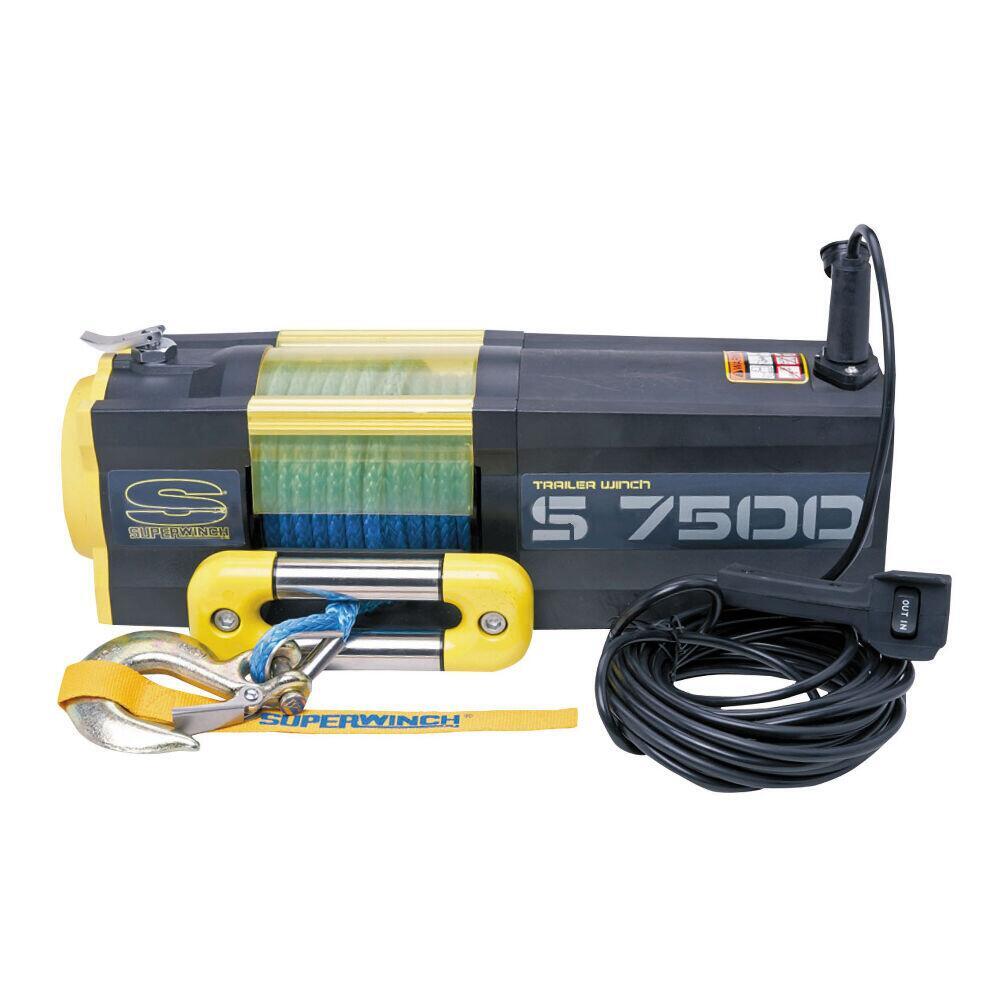

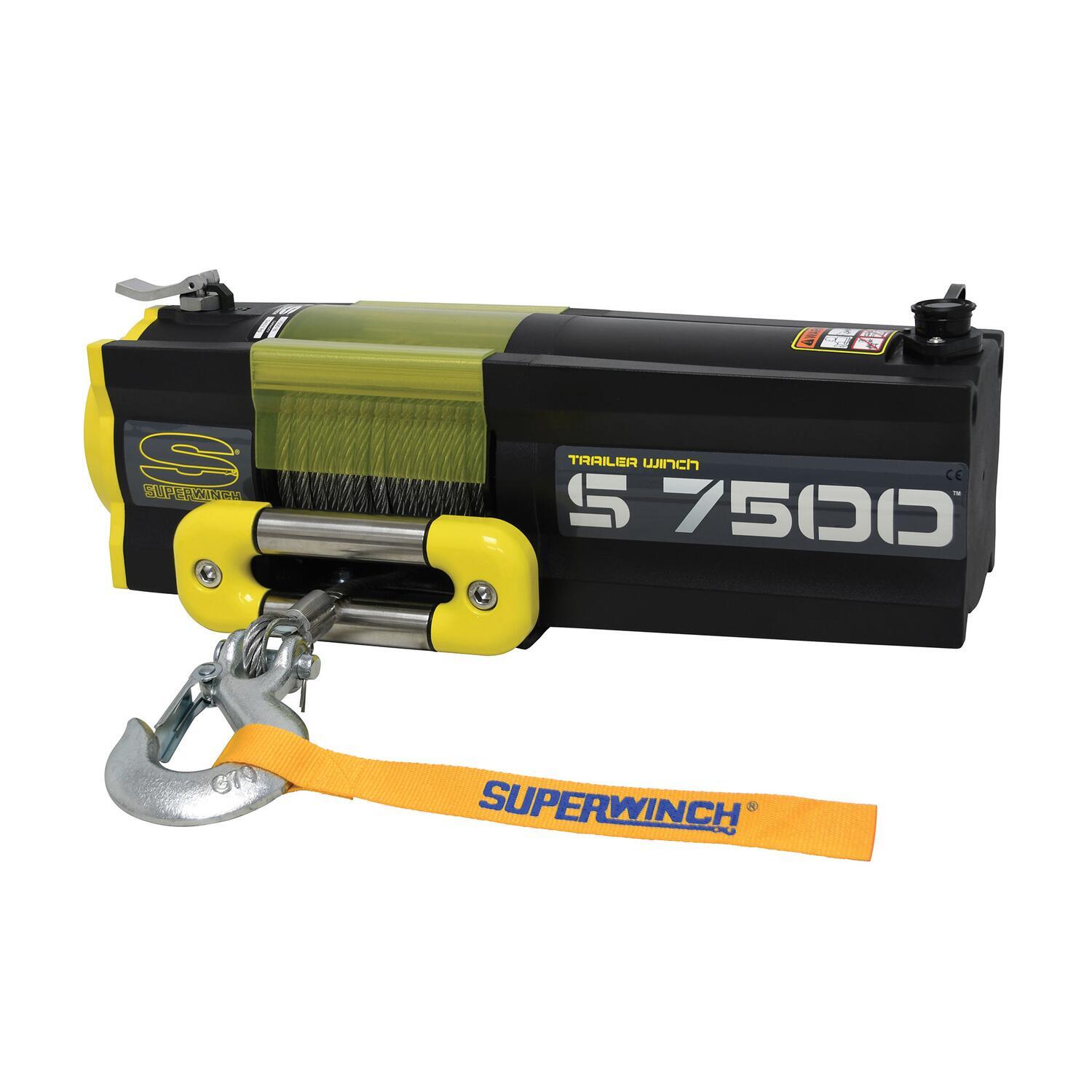

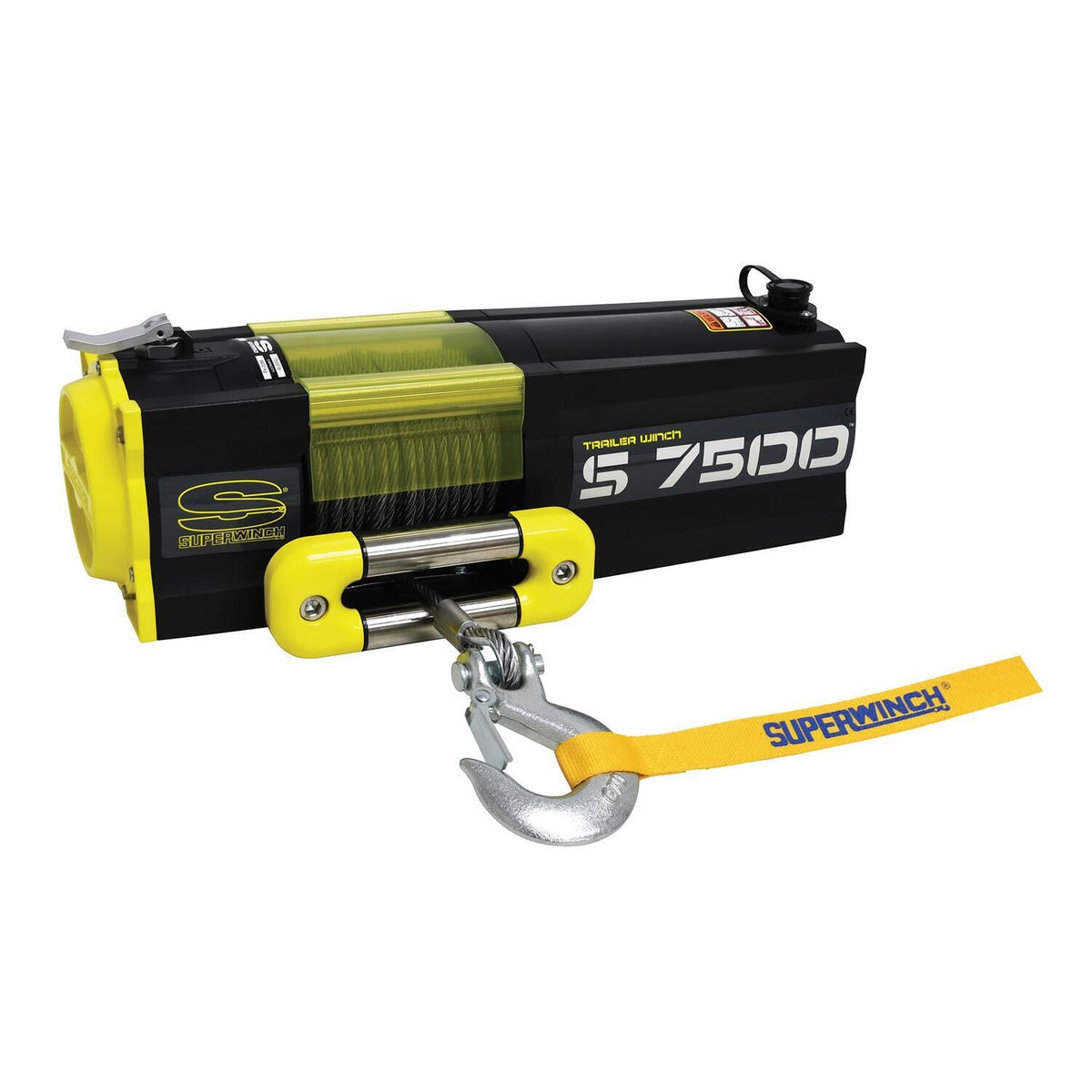

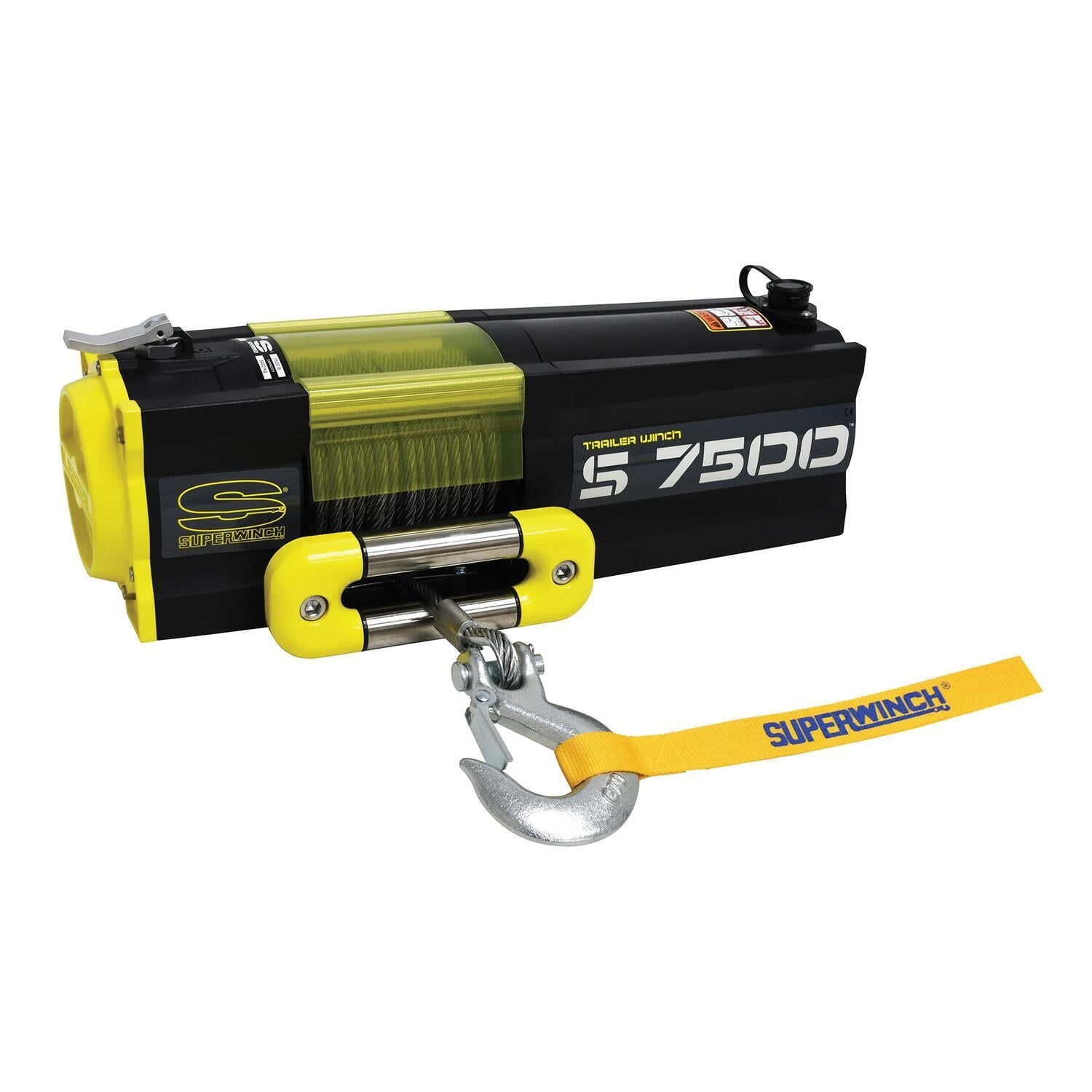

Superwinch S7500 Trailer Winch, 7,500 lb, 12V DC

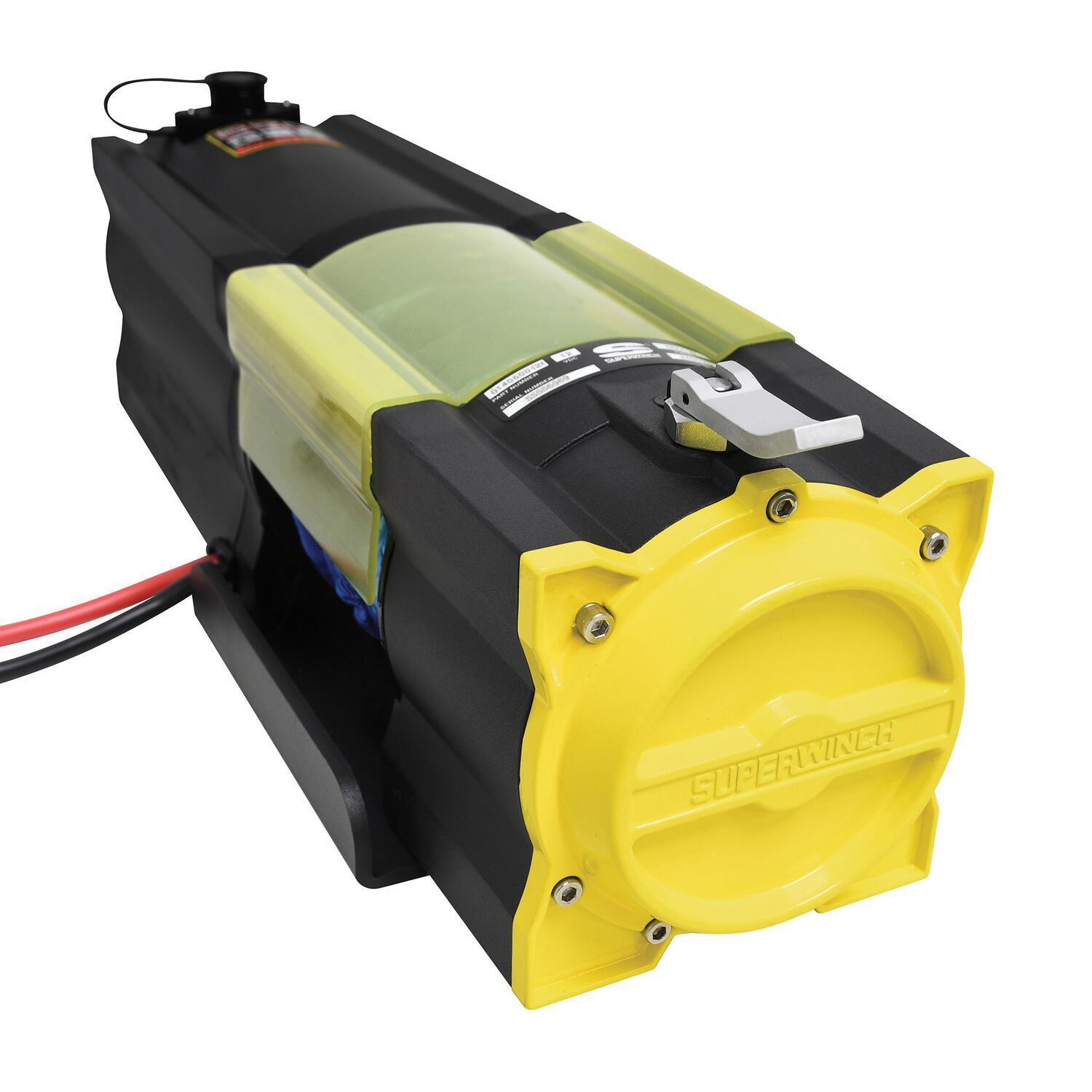

A heavier trailer or a stubborn load calls for more line pull. The Superwinch S7500 trailer winch is rated for 7,500 lb and is powered by a 3.6 HP permanent magnet motor through an all steel 3-stage planetary gearbox. A tinted cover protects the cable, drum and operator's fingers, and a 2-hole drum keeps steel cable from detaching. The machined aluminum freespool lever works by hand or foot. Bolt it down and pull. The wired remote reaches 30 ft, so the operator can stand clear while the load moves. Steel wire rope or synthetic rope is available.

Key Features

• 7,500 lb capacity
• 3.6 HP permanent magnet motor with dynamic braking
• All steel 3-stage planetary gearing with 249:1 ratio
• Sealed solenoid

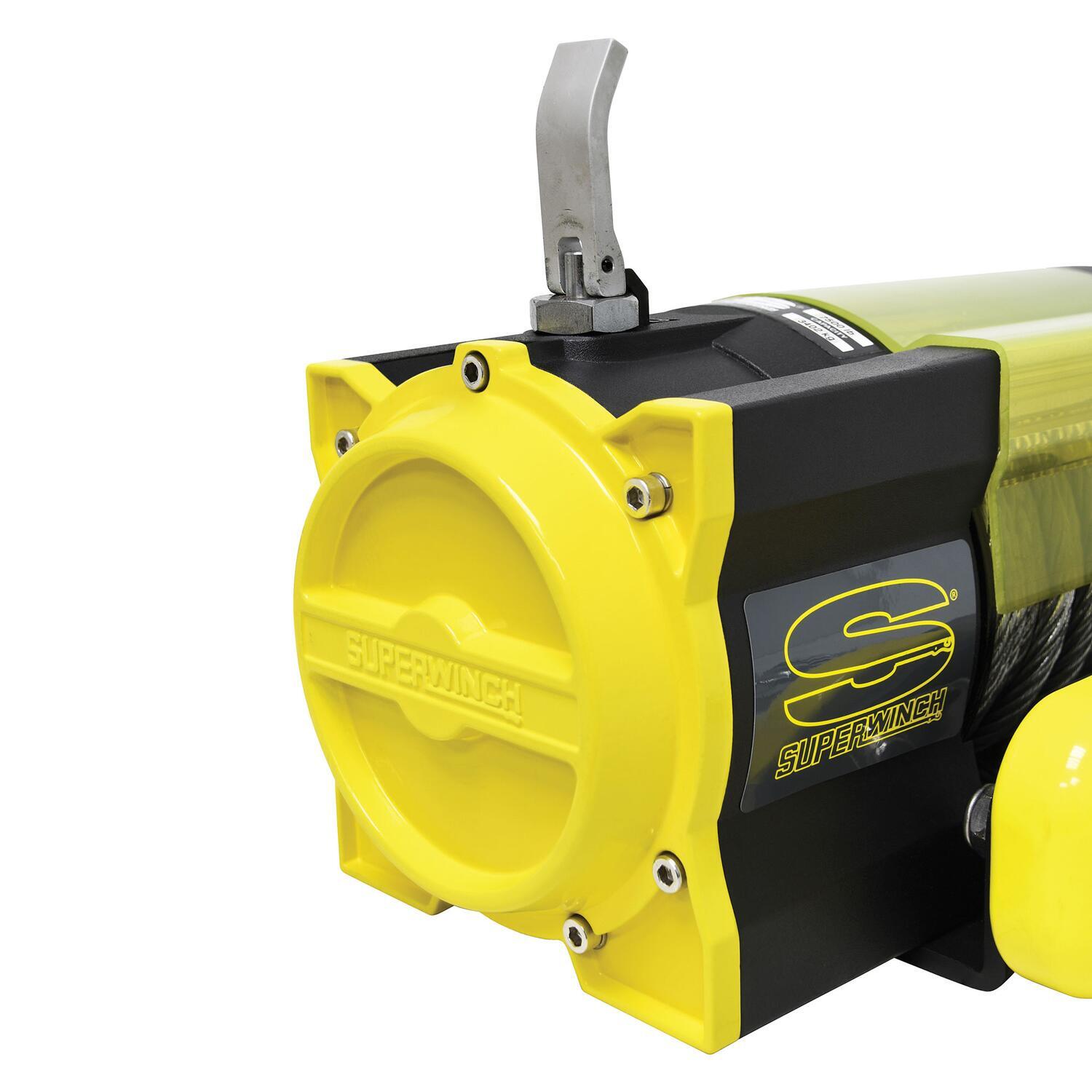

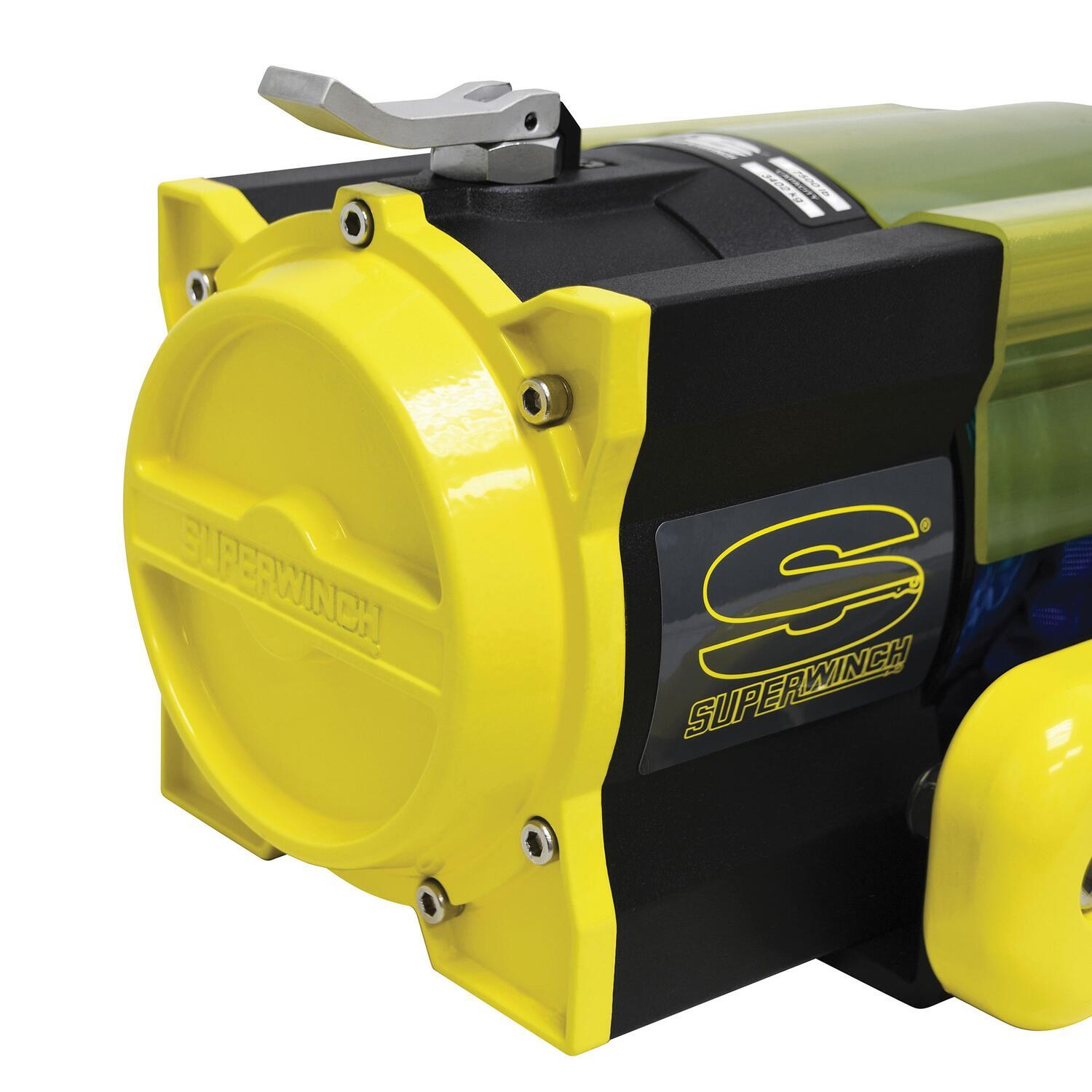

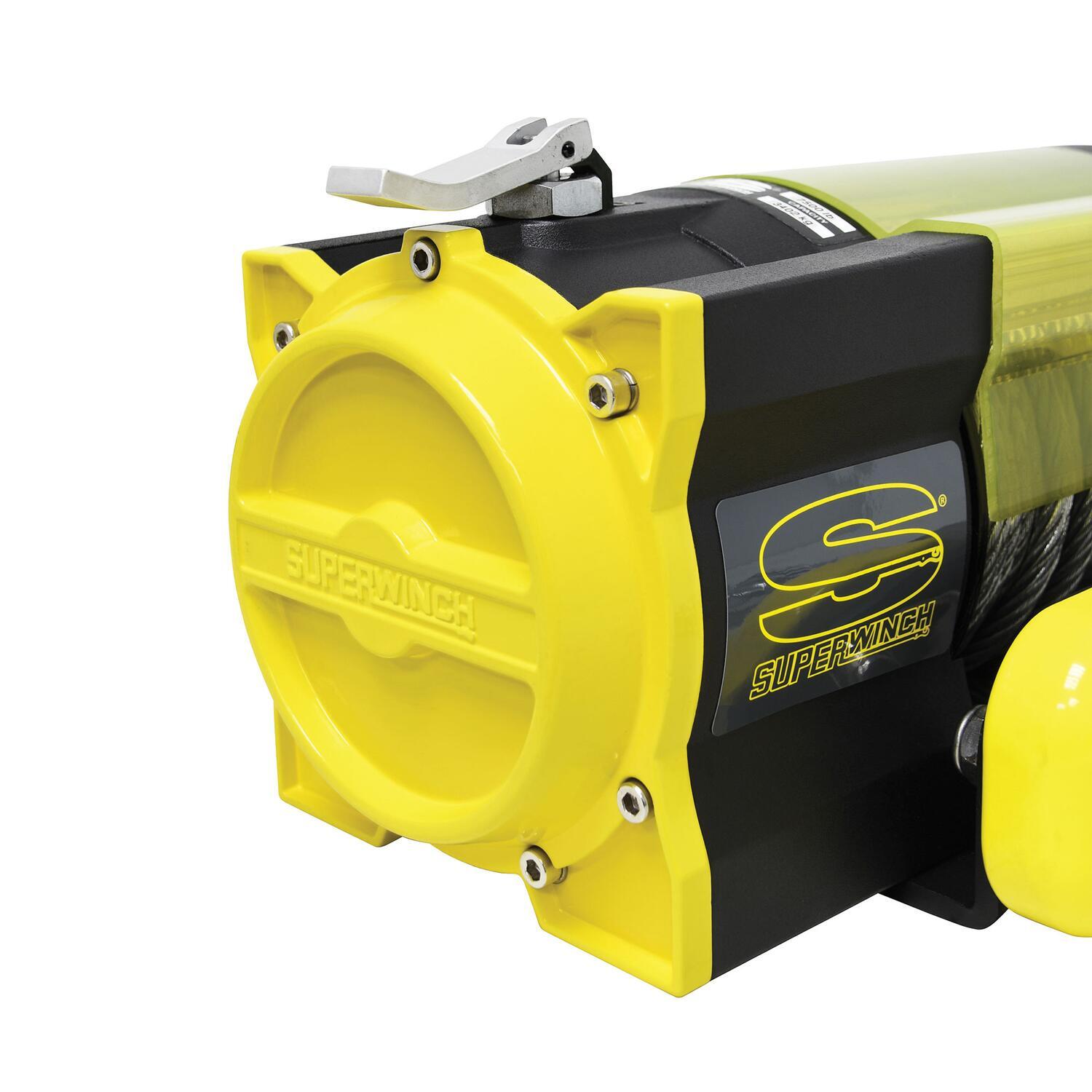

• Lever style freespool for hand or foot operation
• Steel cut gears
• Automatic load holding brake

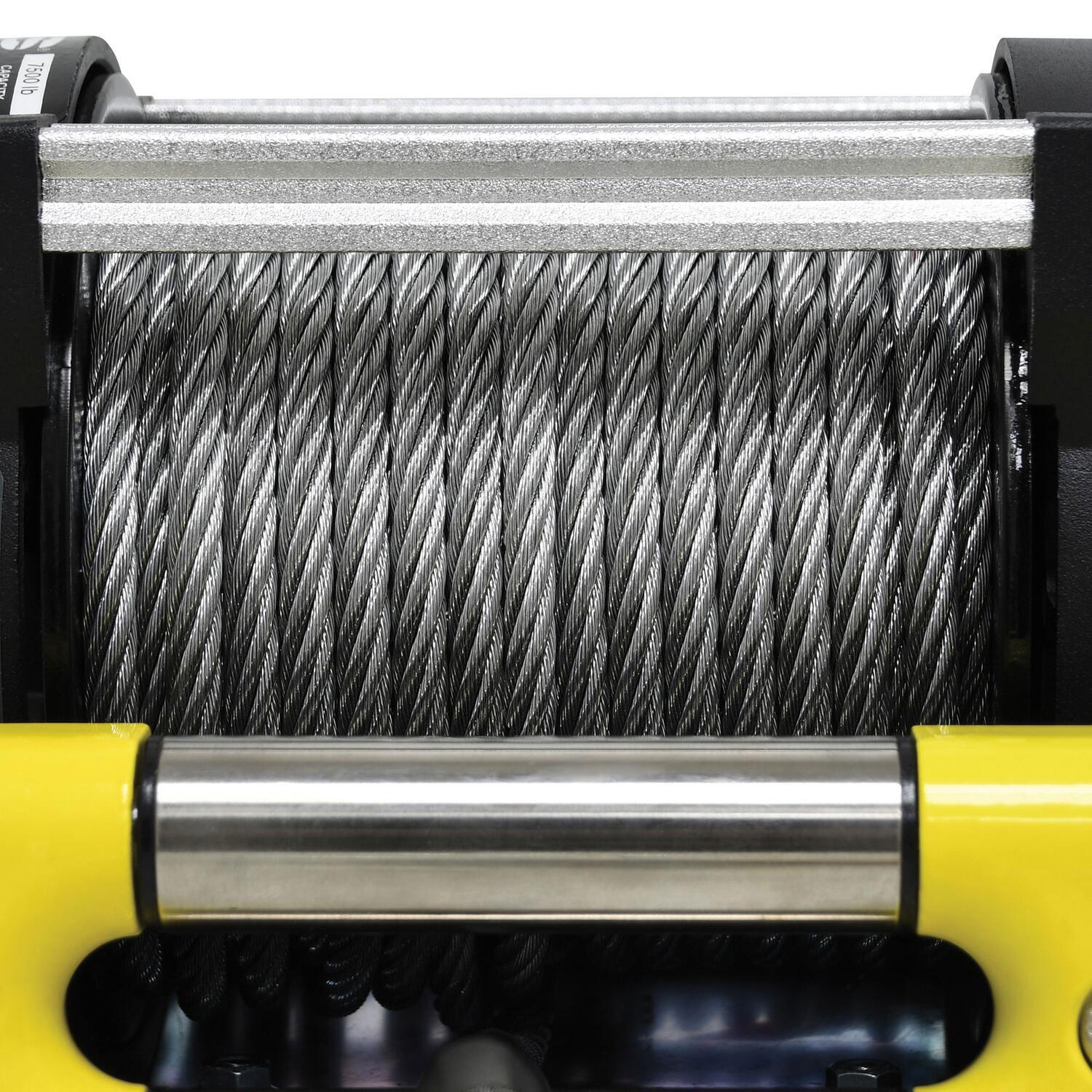

• 2-hole drum keeps steel cable from detaching
• Stainless steel 2-way roller fairlead

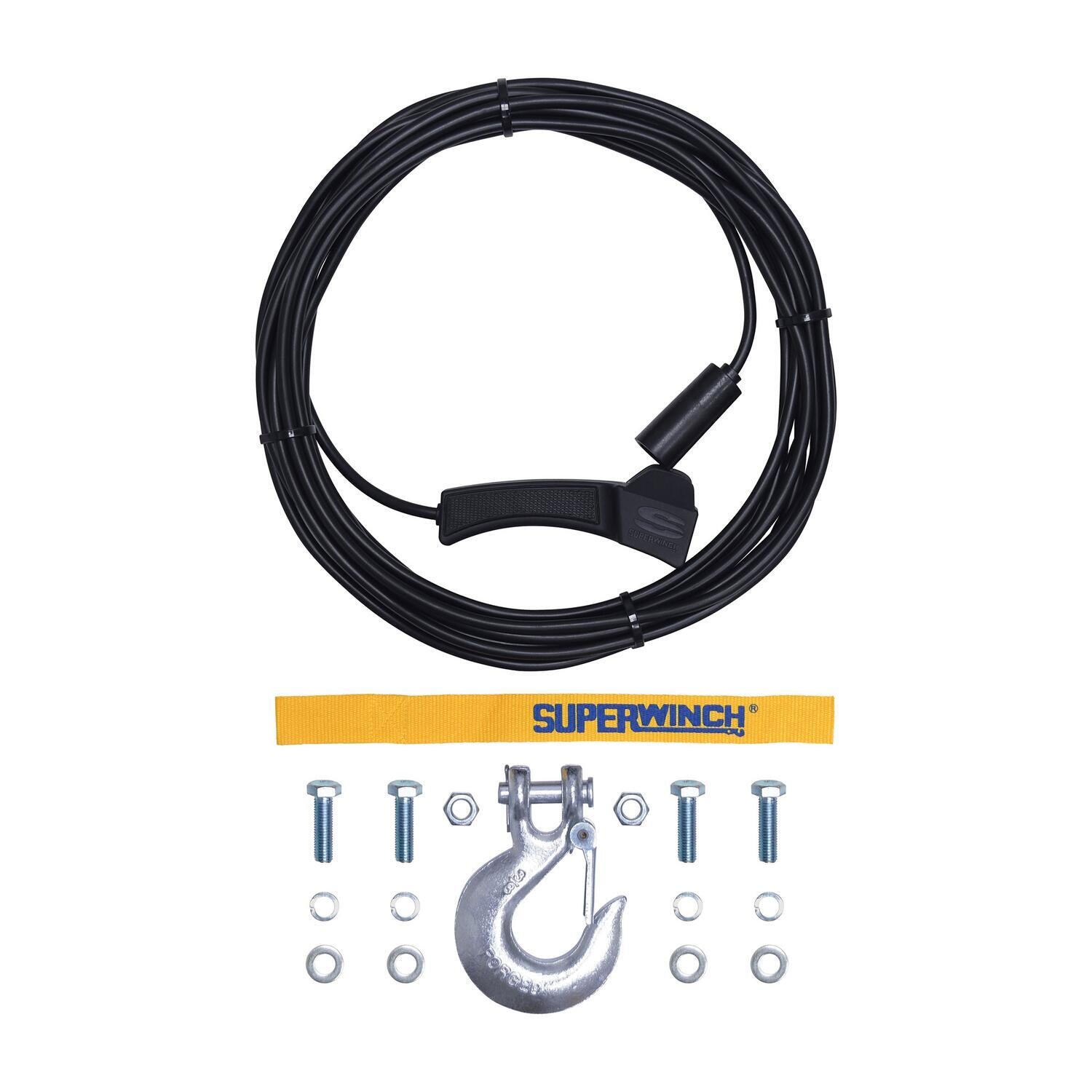

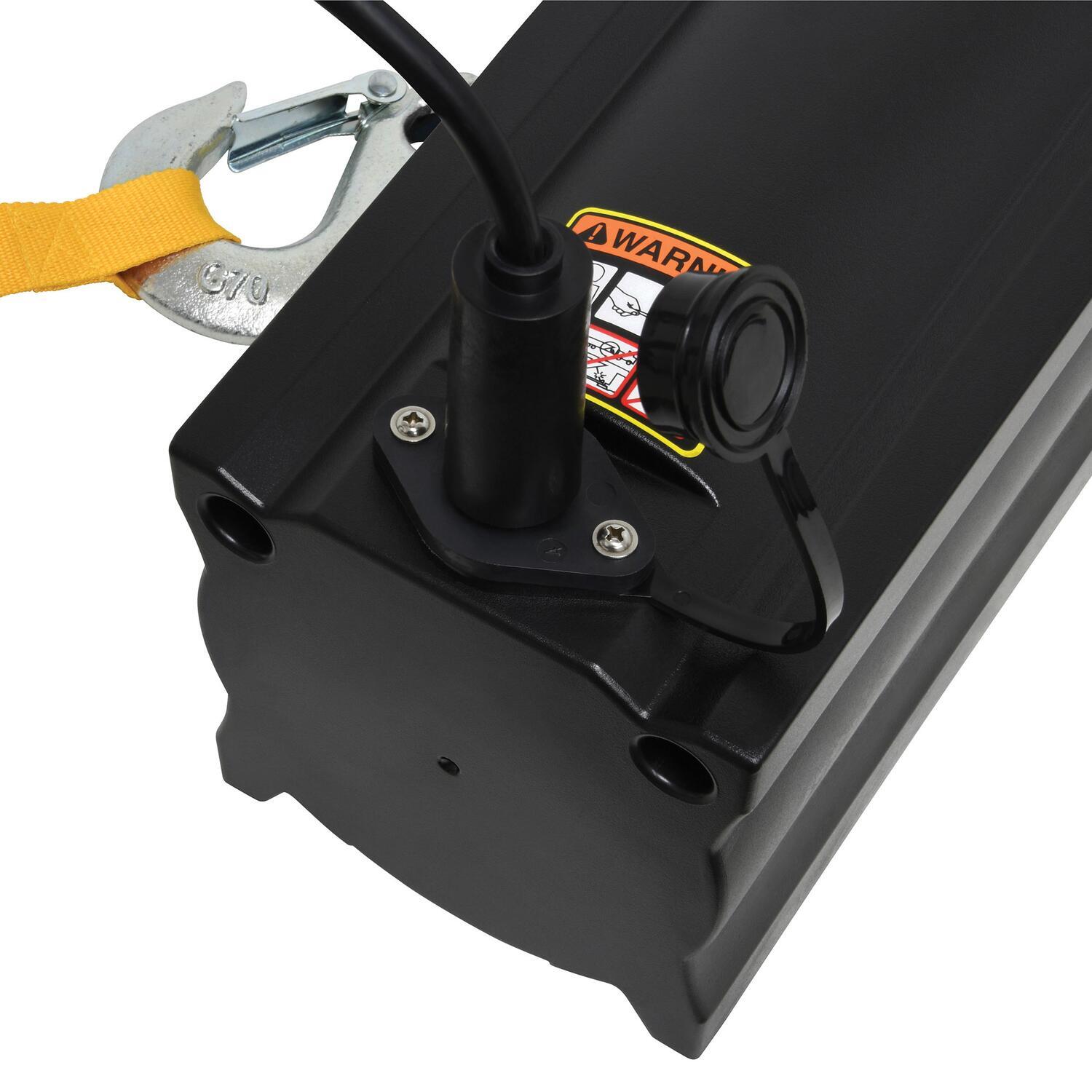

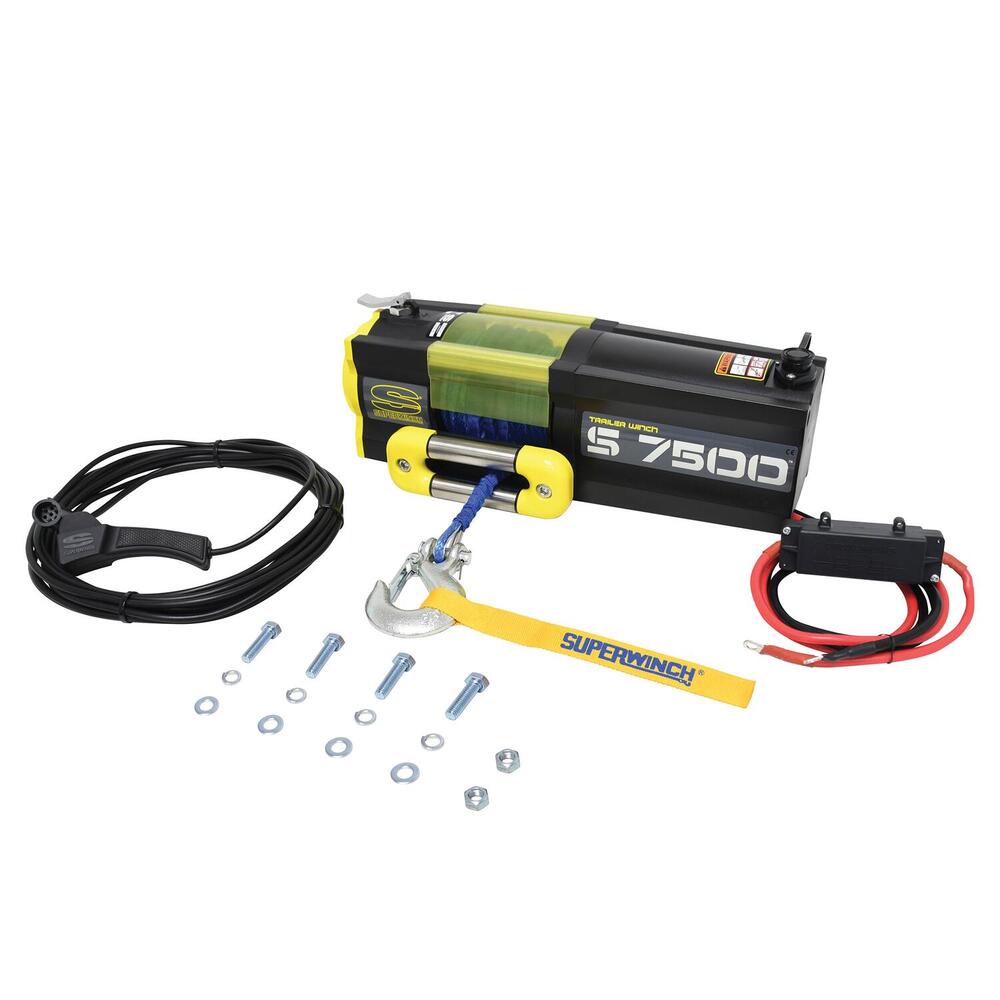

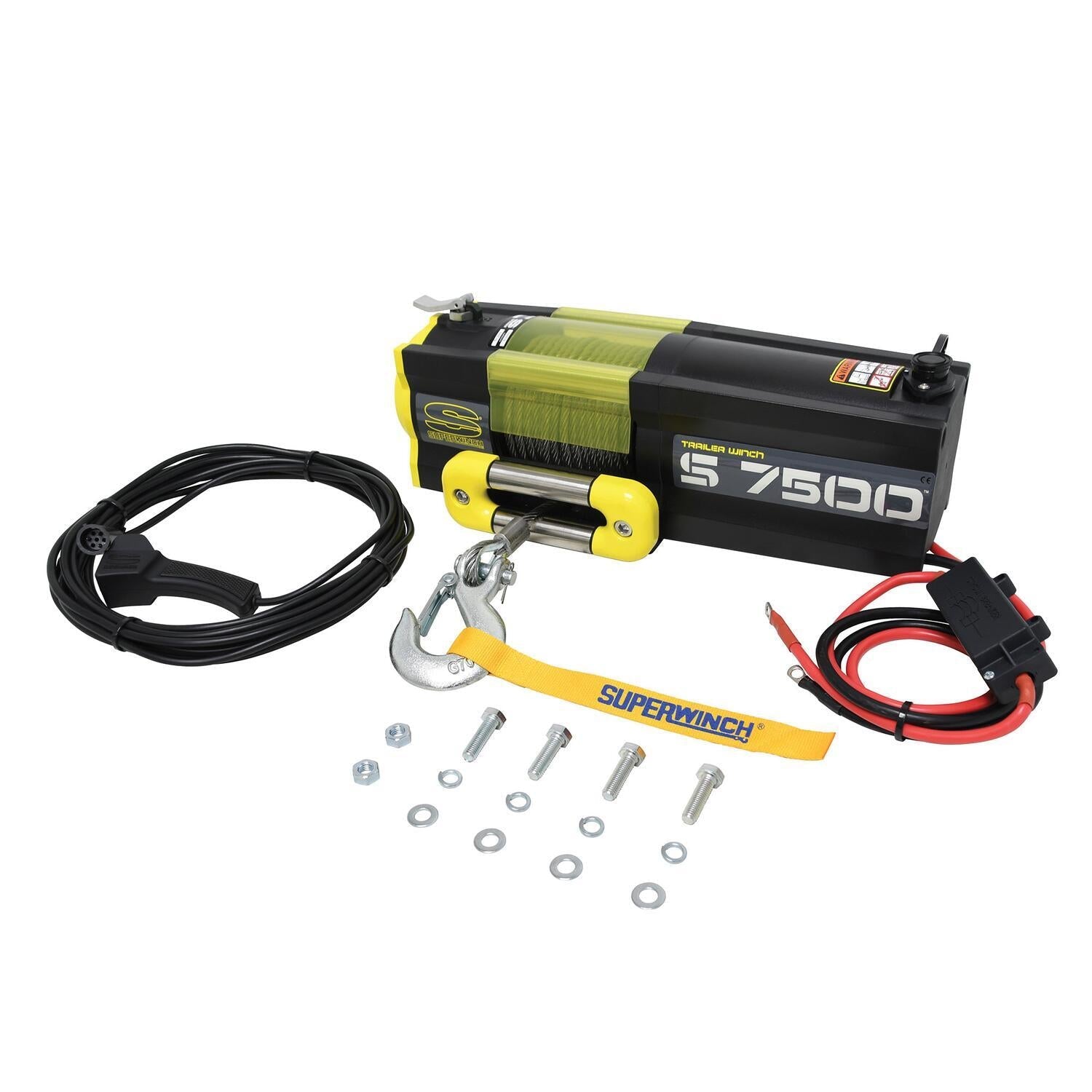

• 30 ft wired remote

Specifications

• Winch Type: Electric
• Voltage: 12V DC
• Motor: 3.6 HP permanent magnet, 12V DC
• Gear System: 3-stage planetary
• Gear Ratio: 249:1
• Clutch: Kick-n-flip
• Brake System: Mechanical, automatic load holding, outside drum

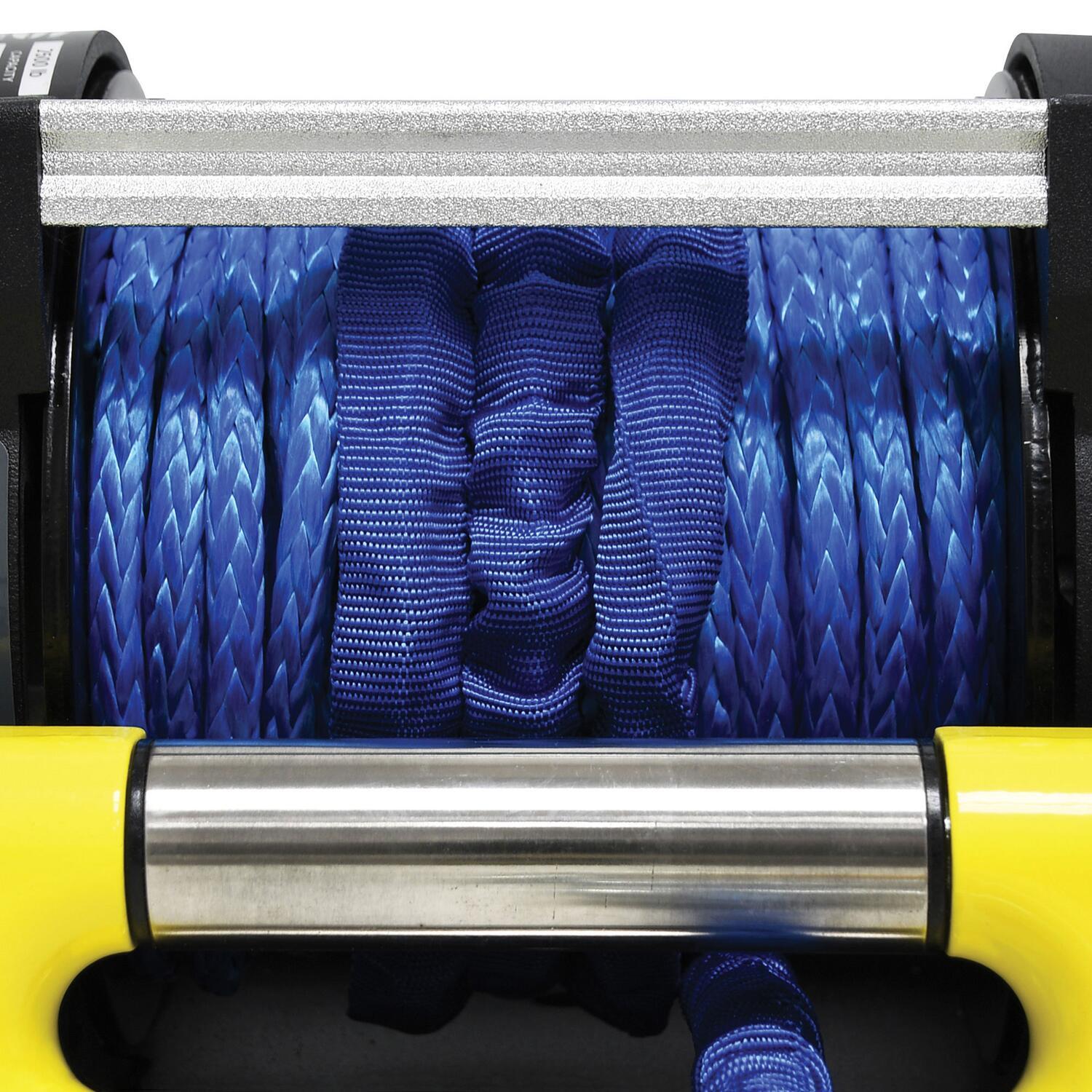

• Rope Material: Steel wire or synthetic, by variant
• Rope Length: 5/16 in x 55 ft
• Remote Type: Wired
• Mounting Bolt Pattern: 4 bolt
• Winch Hook: Heavy duty clevis, pinned and latched

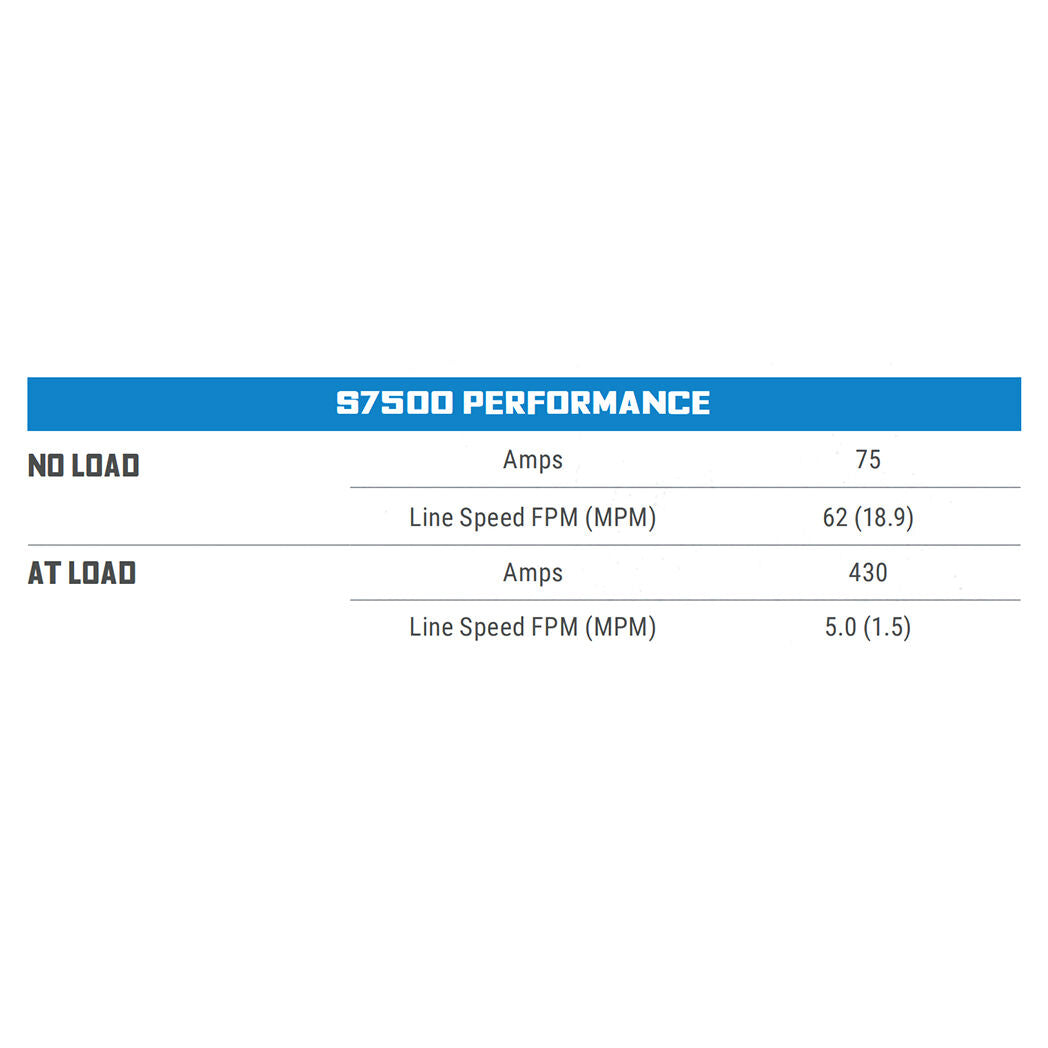

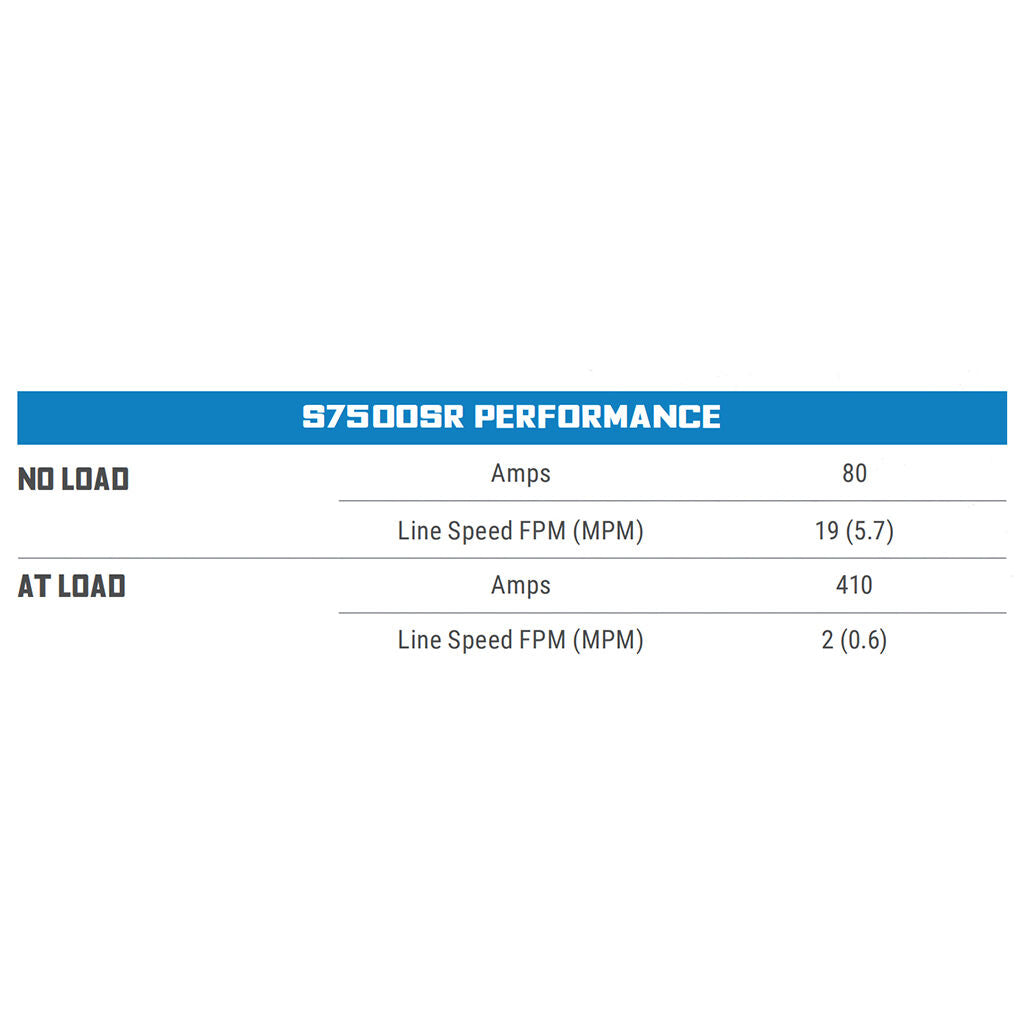

• Line Speed: 19 FPM at 80 amps motor draw
• Color: Yellow
• Weight: 56 lb (steel wire rope), 40 lb (synthetic rope)

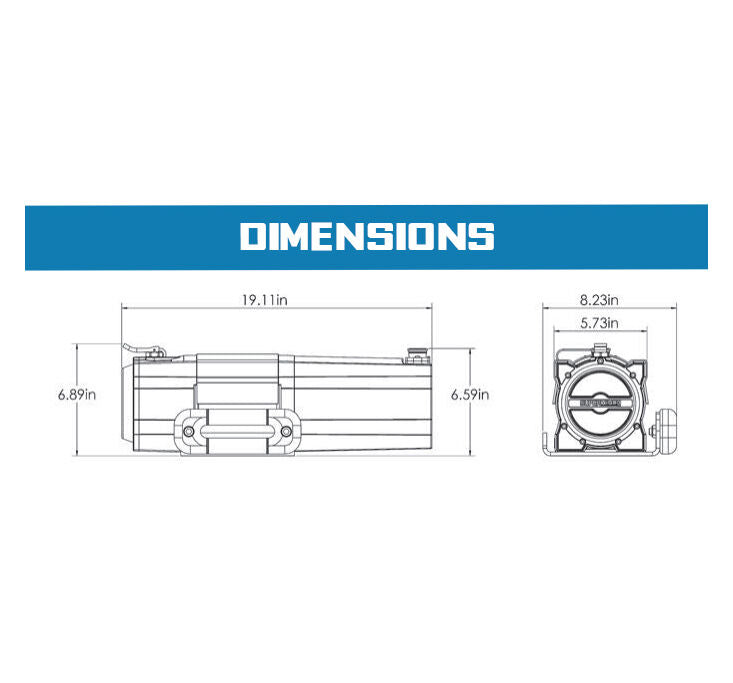

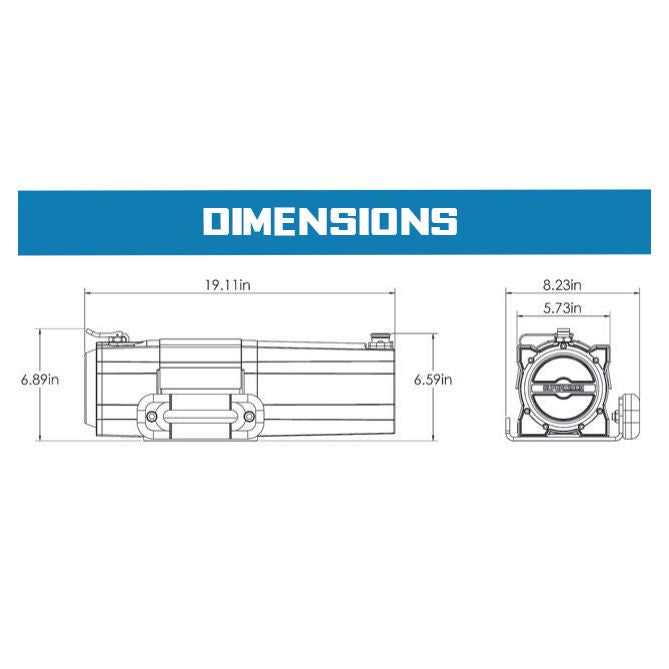

• Width: 13 in
• Height: 9 in

MPN 1475200 (Steel Wire Rope Yellow)

MPN 1475201 (Synthetic Rope Yellow)
