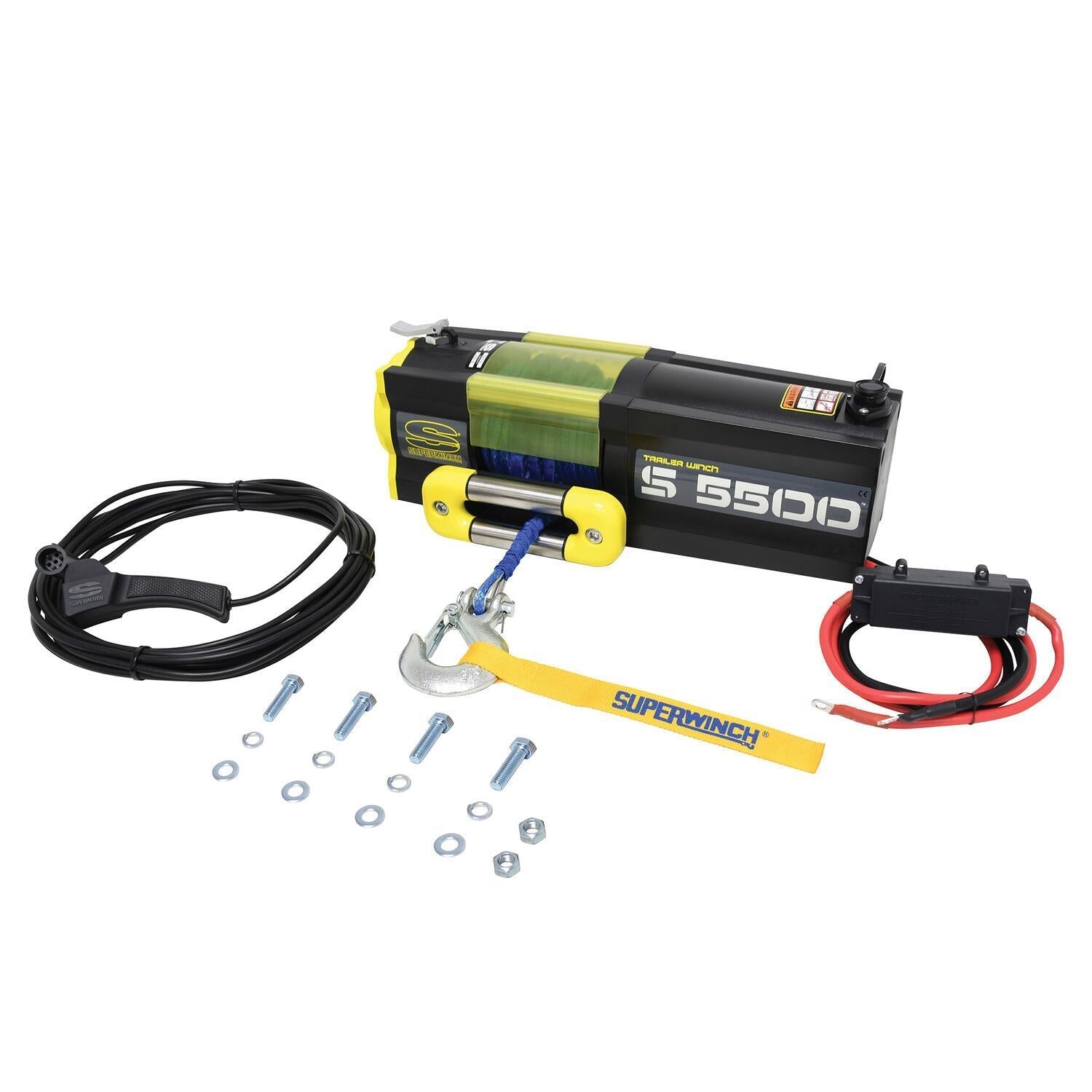

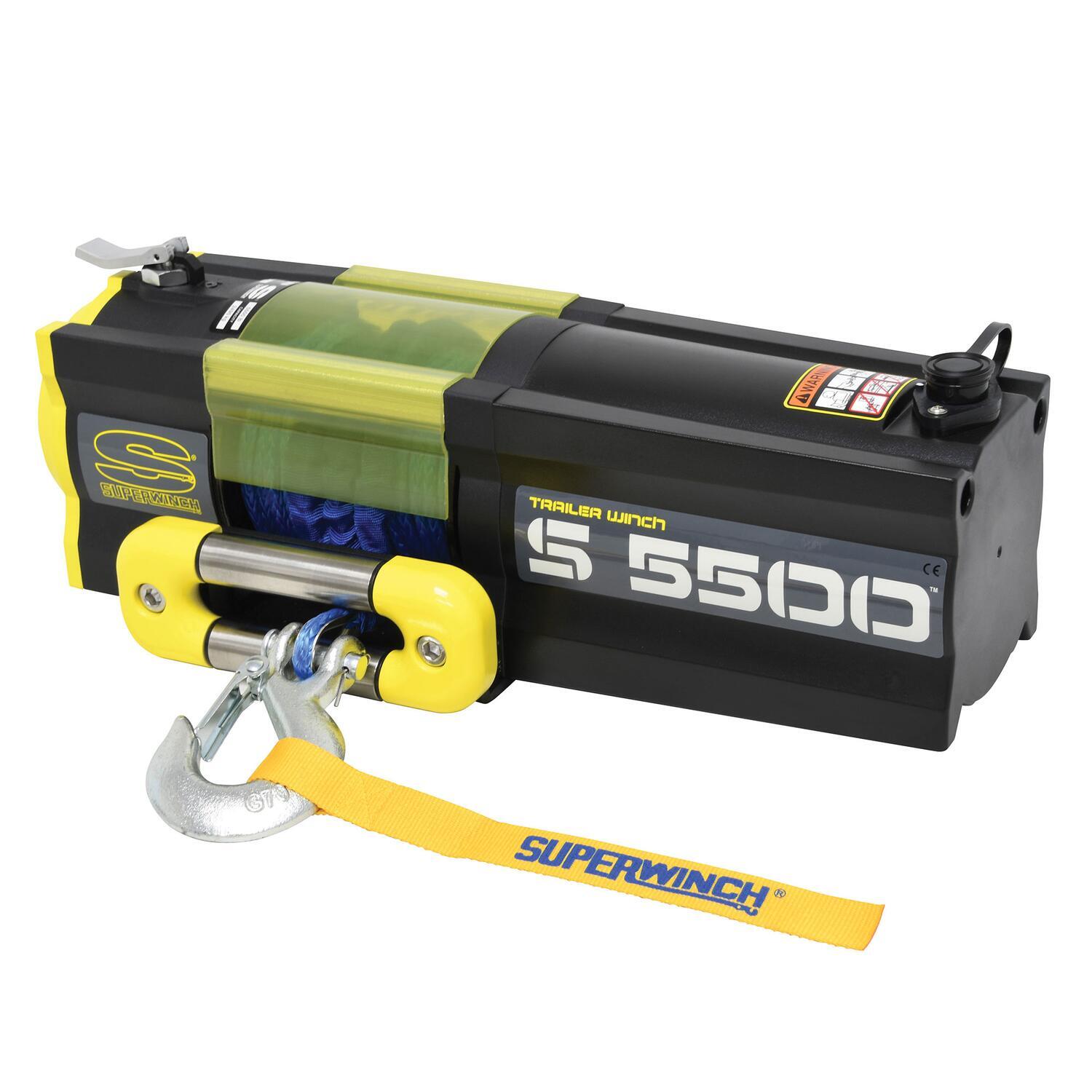

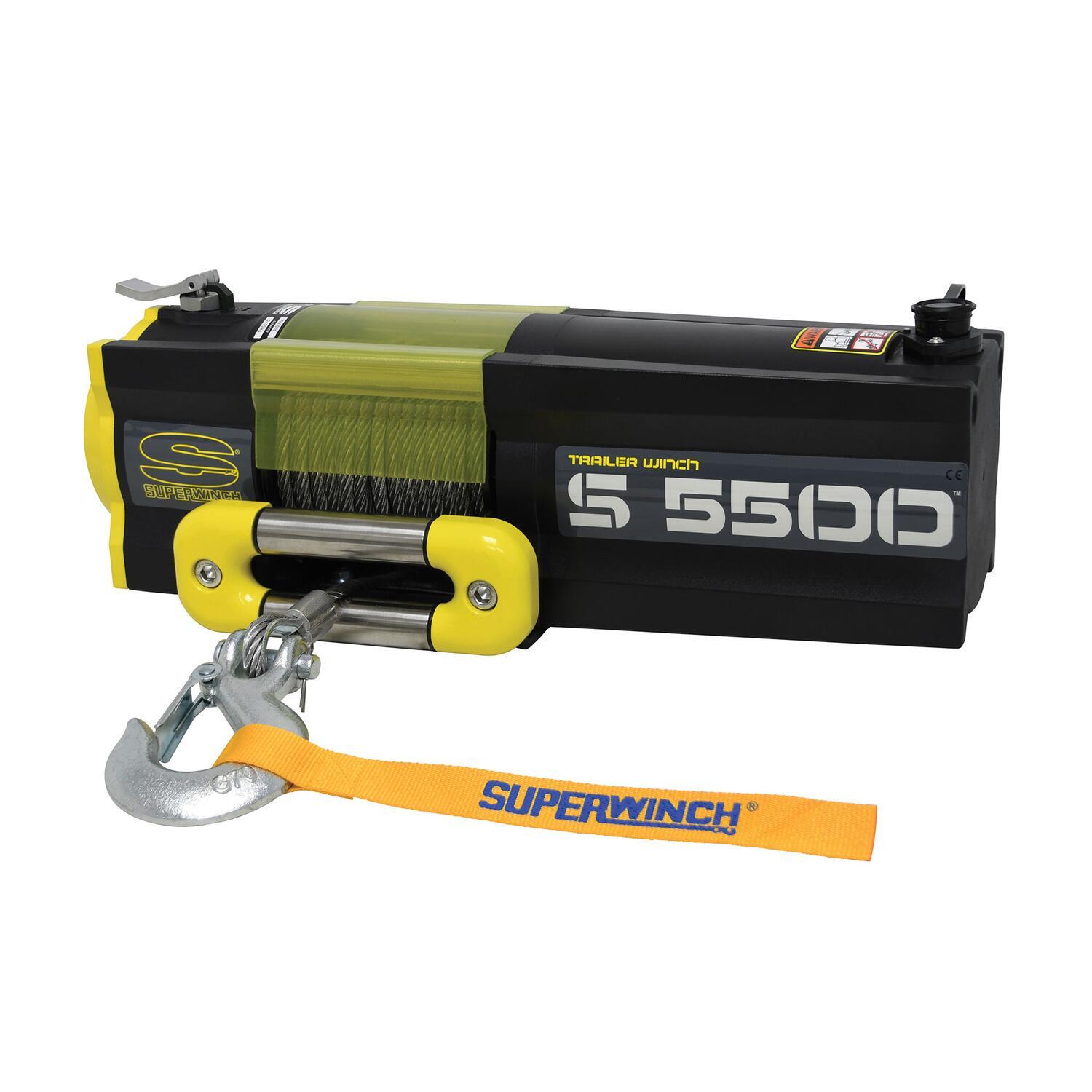

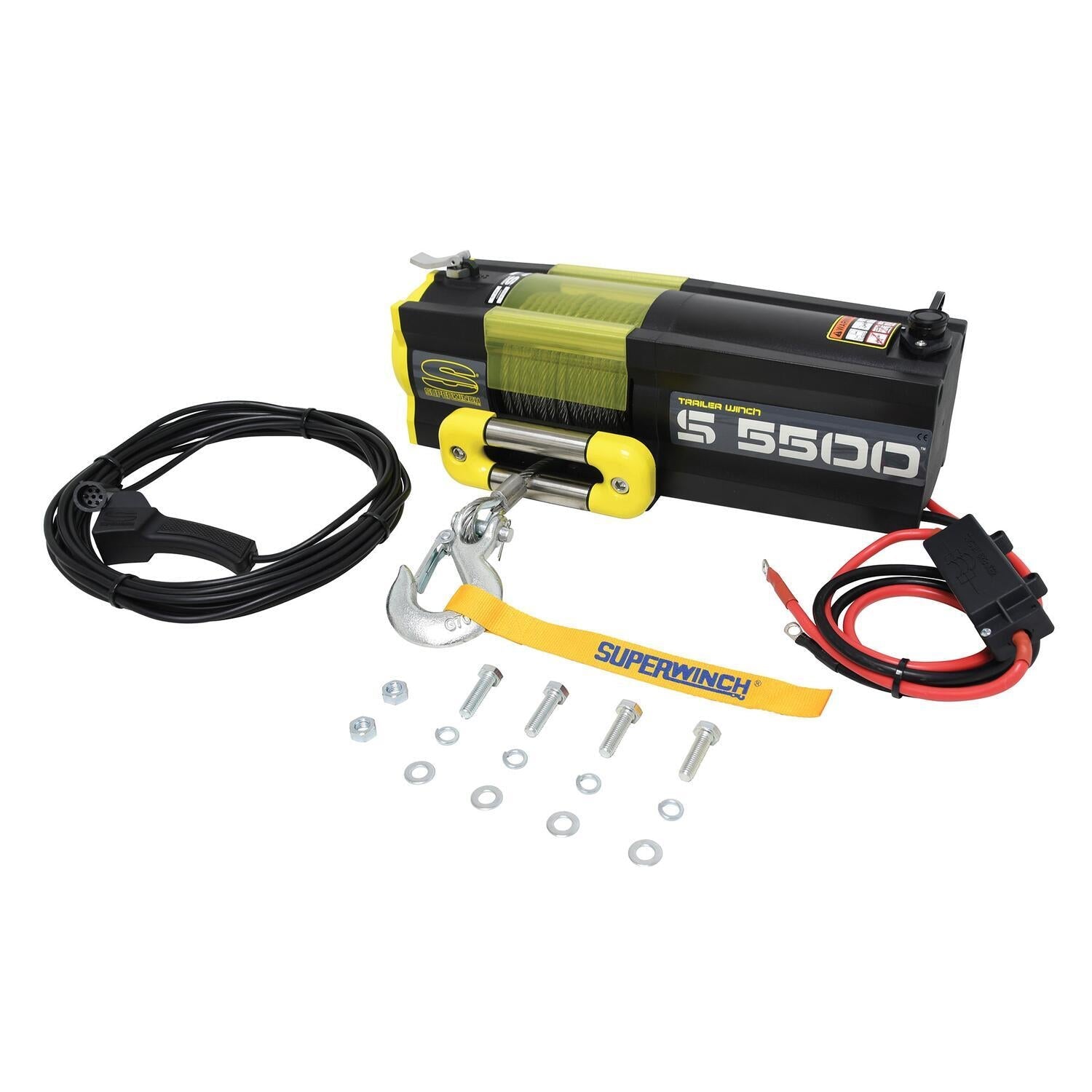

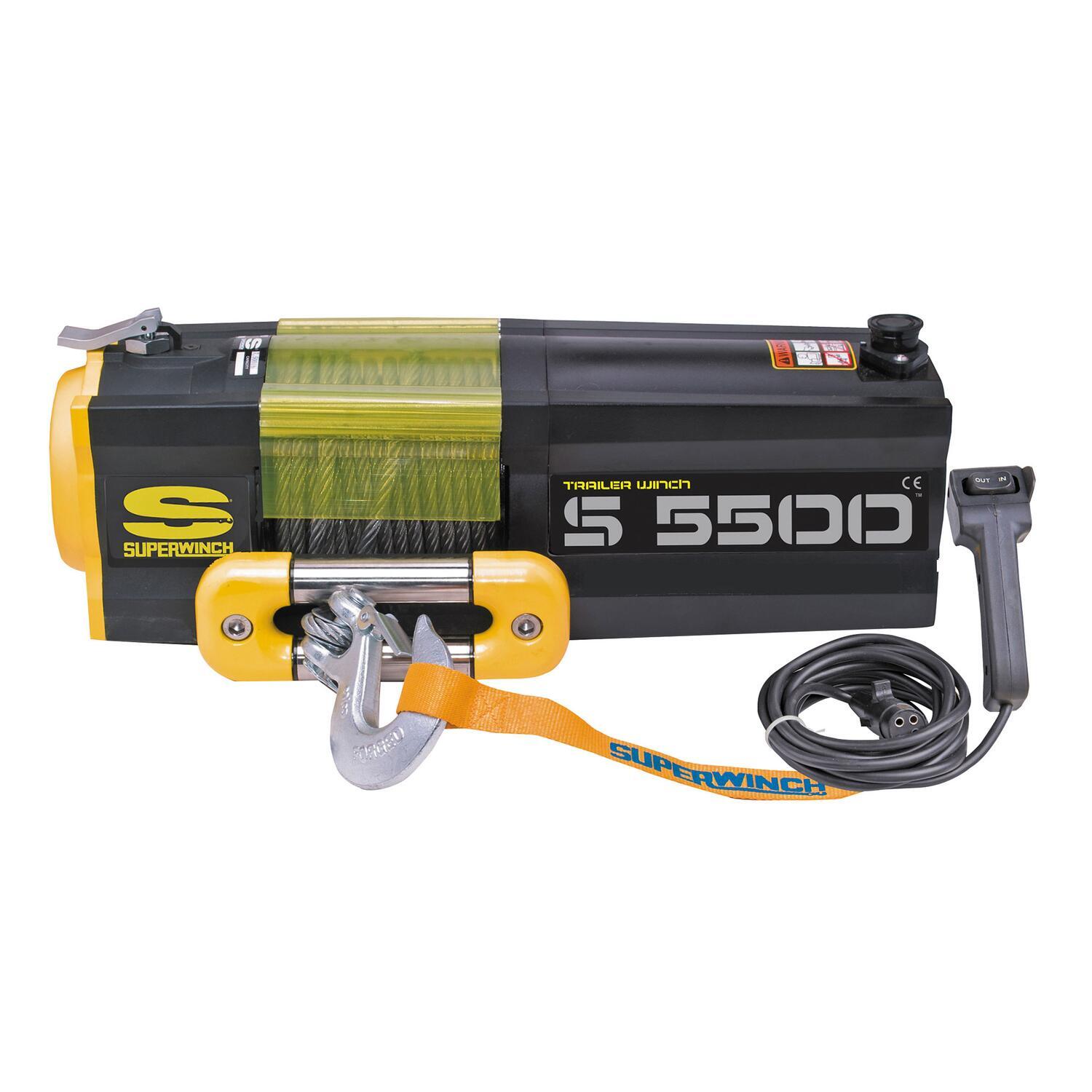

Superwinch S5500 Trailer Winch, 5,500 lb, 12V DC

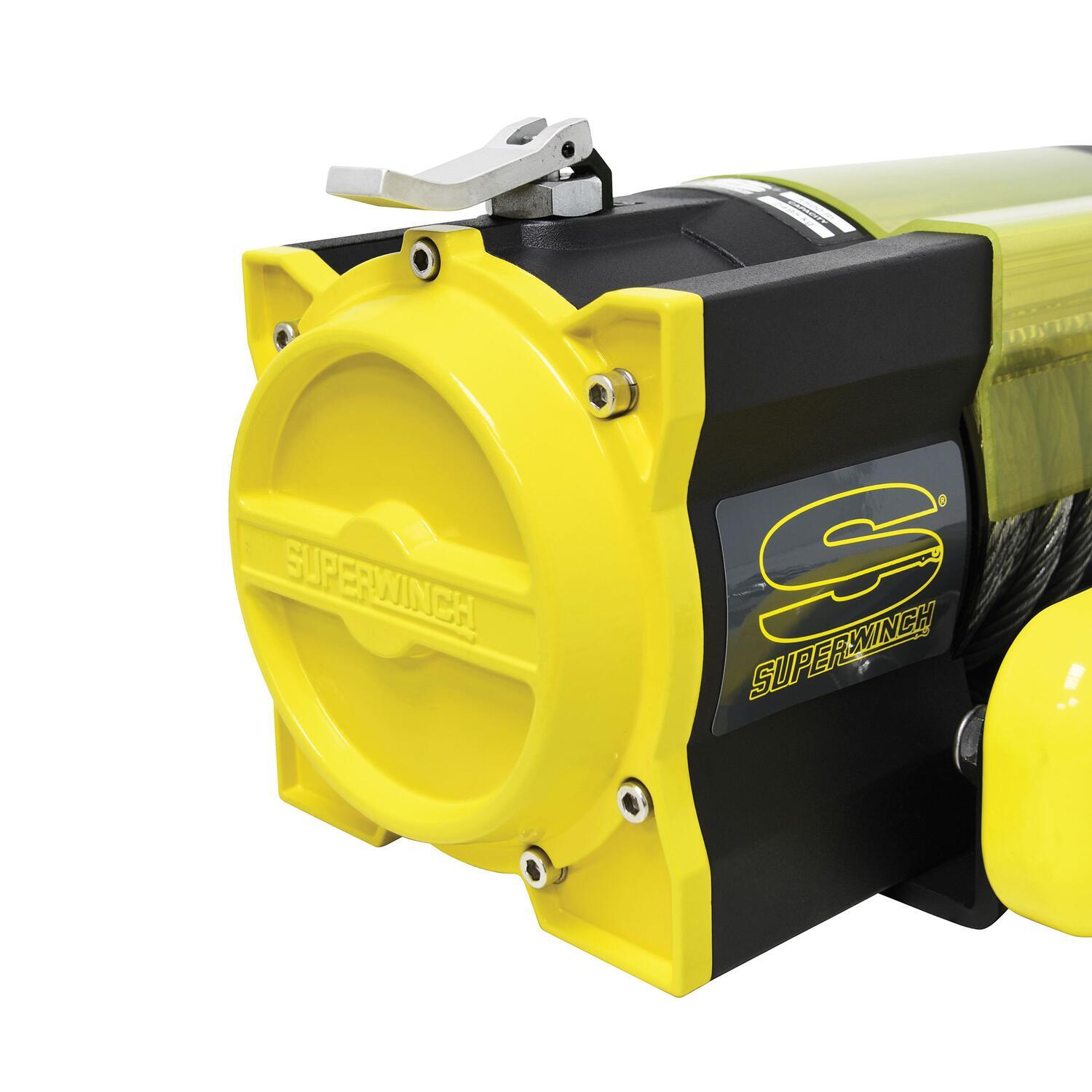

Loading a heavy trailer by hand wears you down. The Superwinch S5500 is a trailer specific 12V DC winch rated at 5,500 lb. A 3.6 HP permanent magnet motor drives an all steel 3-stage planetary gearbox, and a tinted protective cover shields the cable, drum and operator's fingers. The machined aluminum freespool lever can be worked by hand or by foot. Mount it to the trailer and let it do the pulling. The wired remote reaches 30 ft, so the operator can stand clear while the trailer loads. Steel wire rope or synthetic rope is available.

Key Features

• 5,500 lb capacity
• 3.6 HP permanent magnet motor with dynamic braking
• All steel 3-stage planetary gearing
• Sealed solenoid

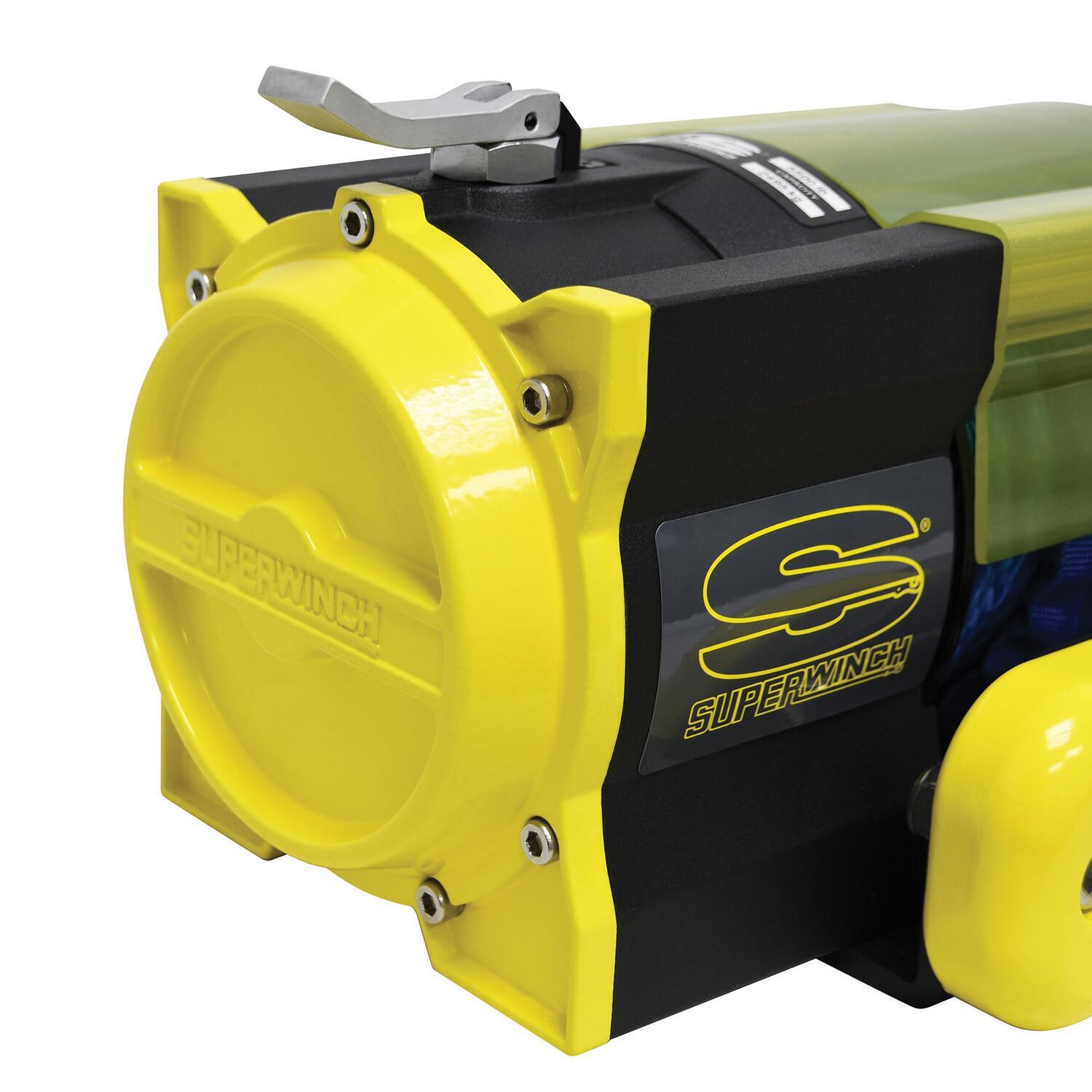

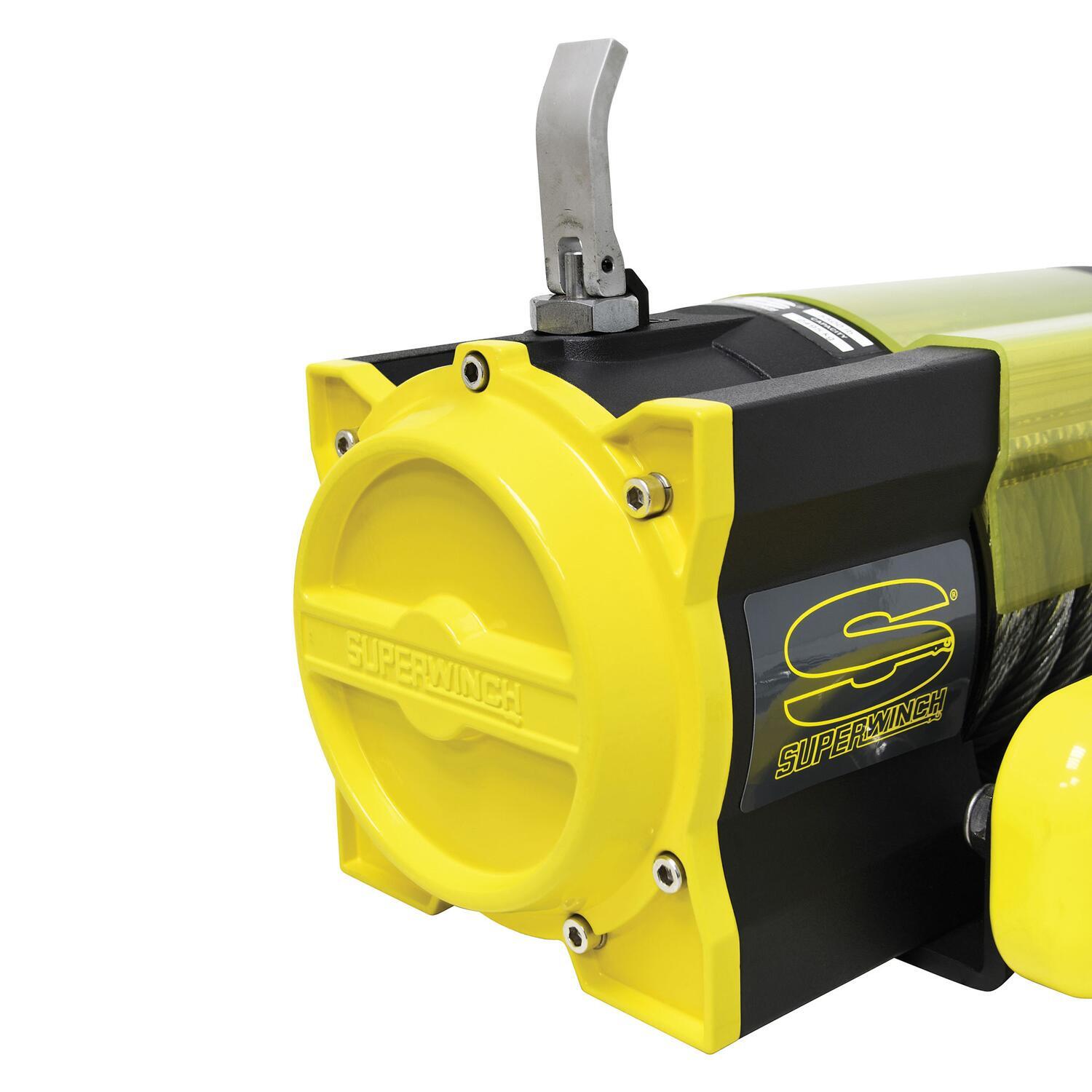

• Lever style freespool for hand or foot operation
• Steel cut gears
• Automatic load holding brake

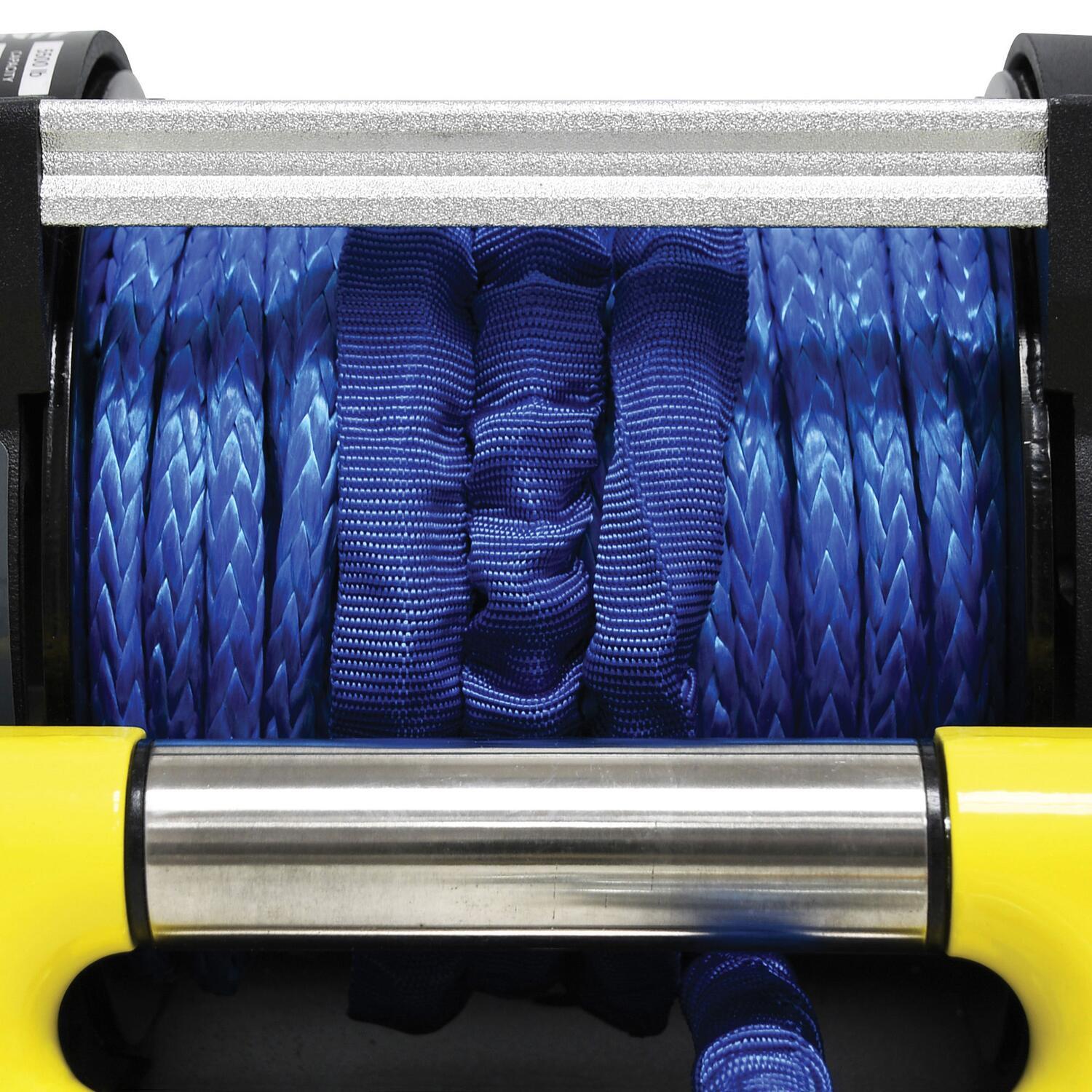

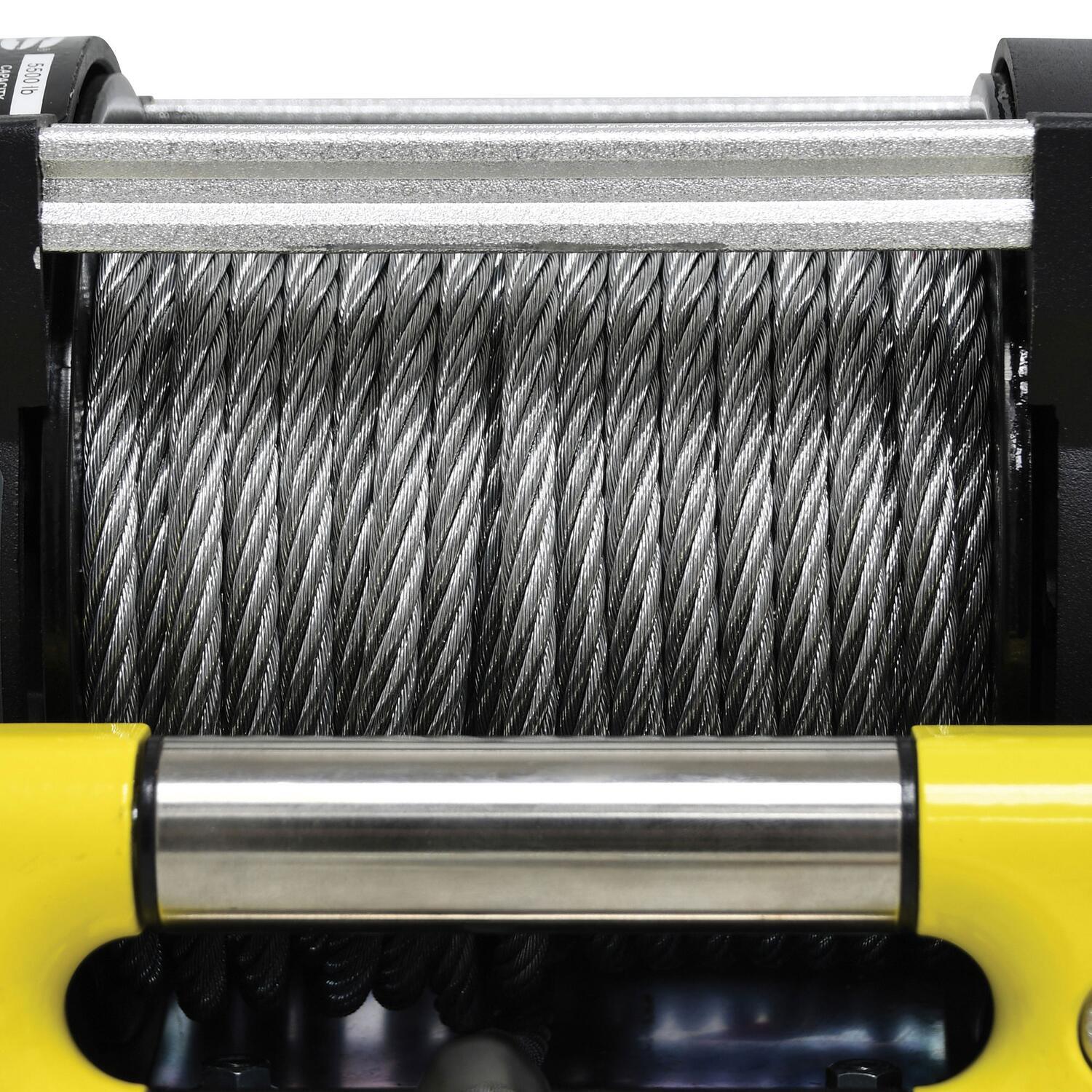

• Stainless steel 2-way roller fairlead

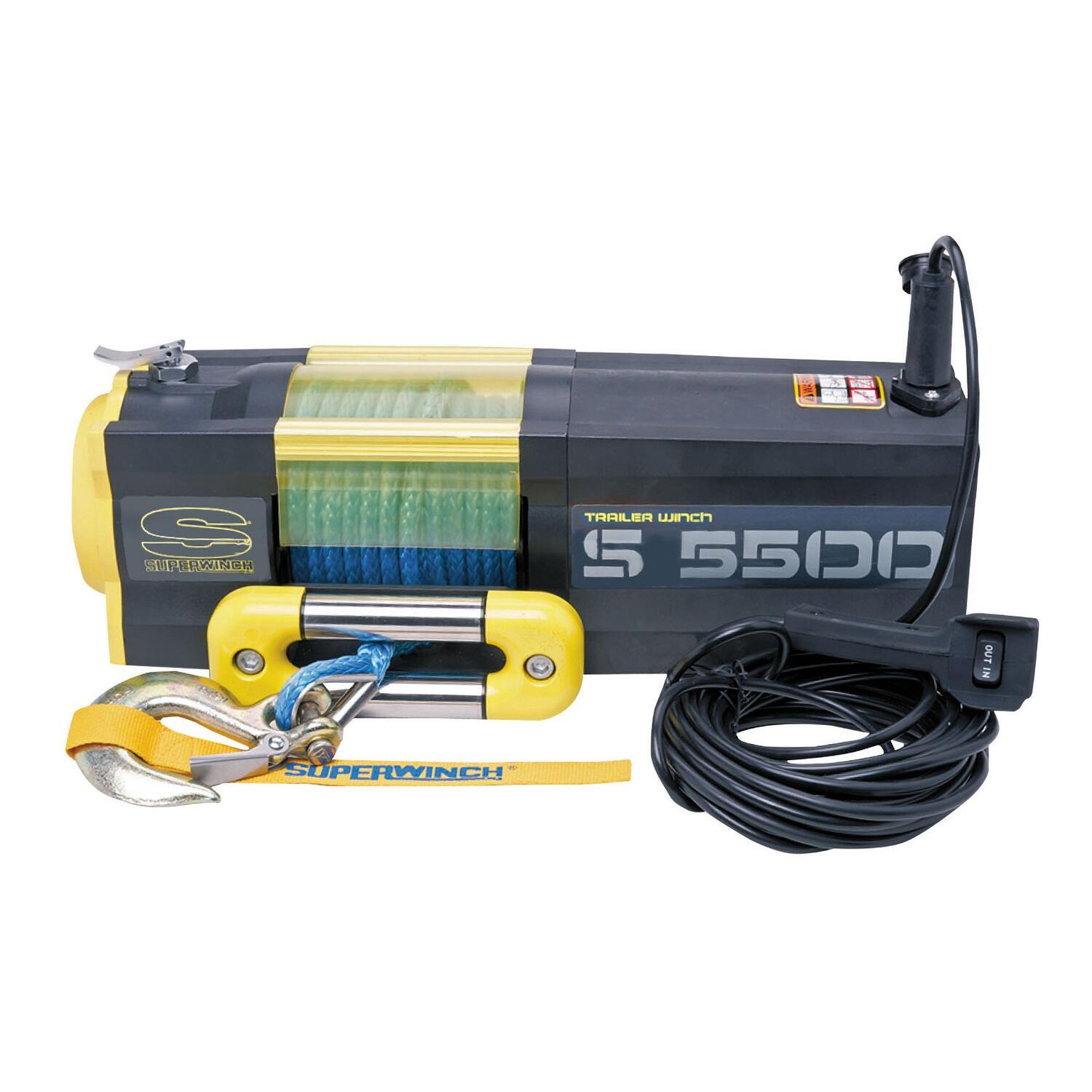

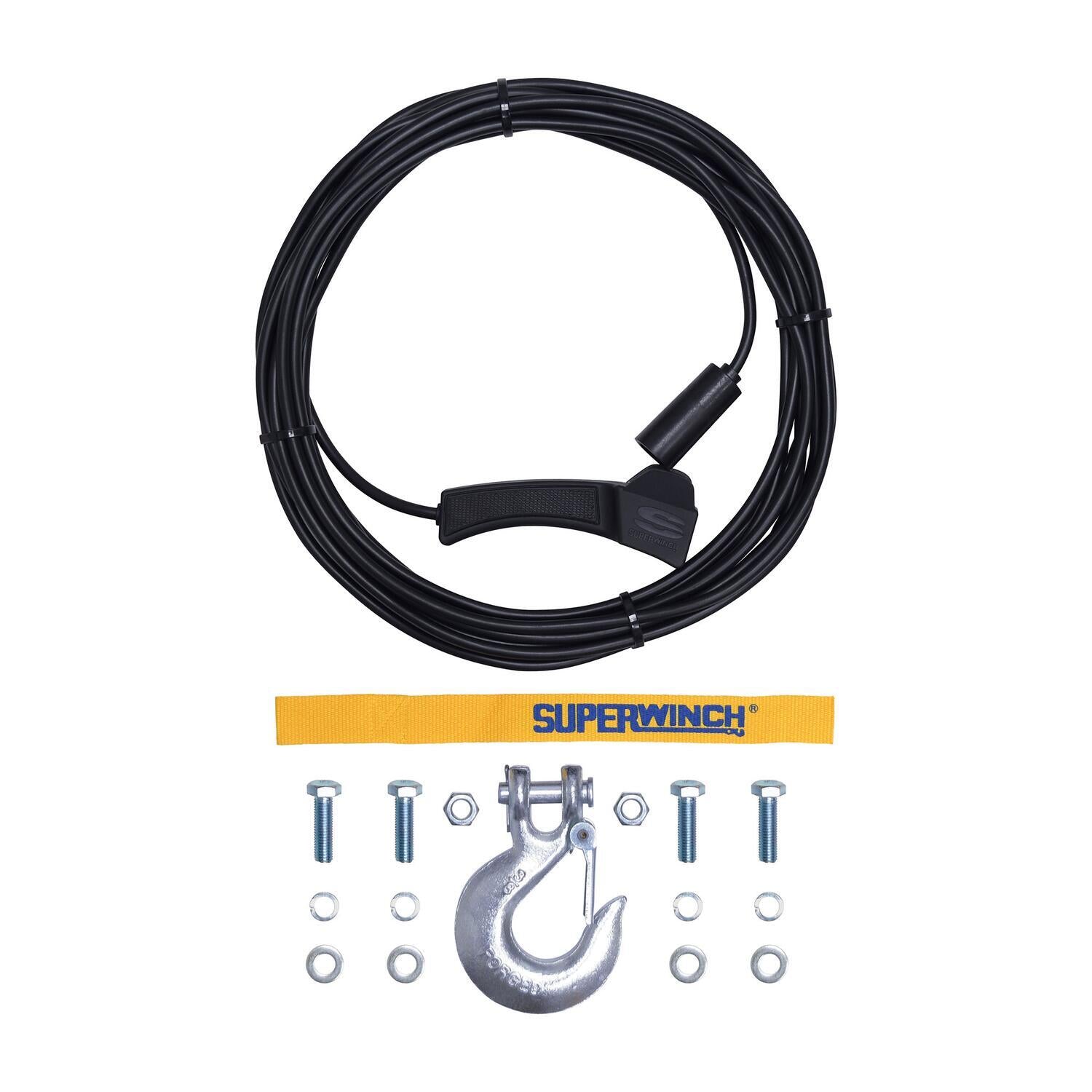

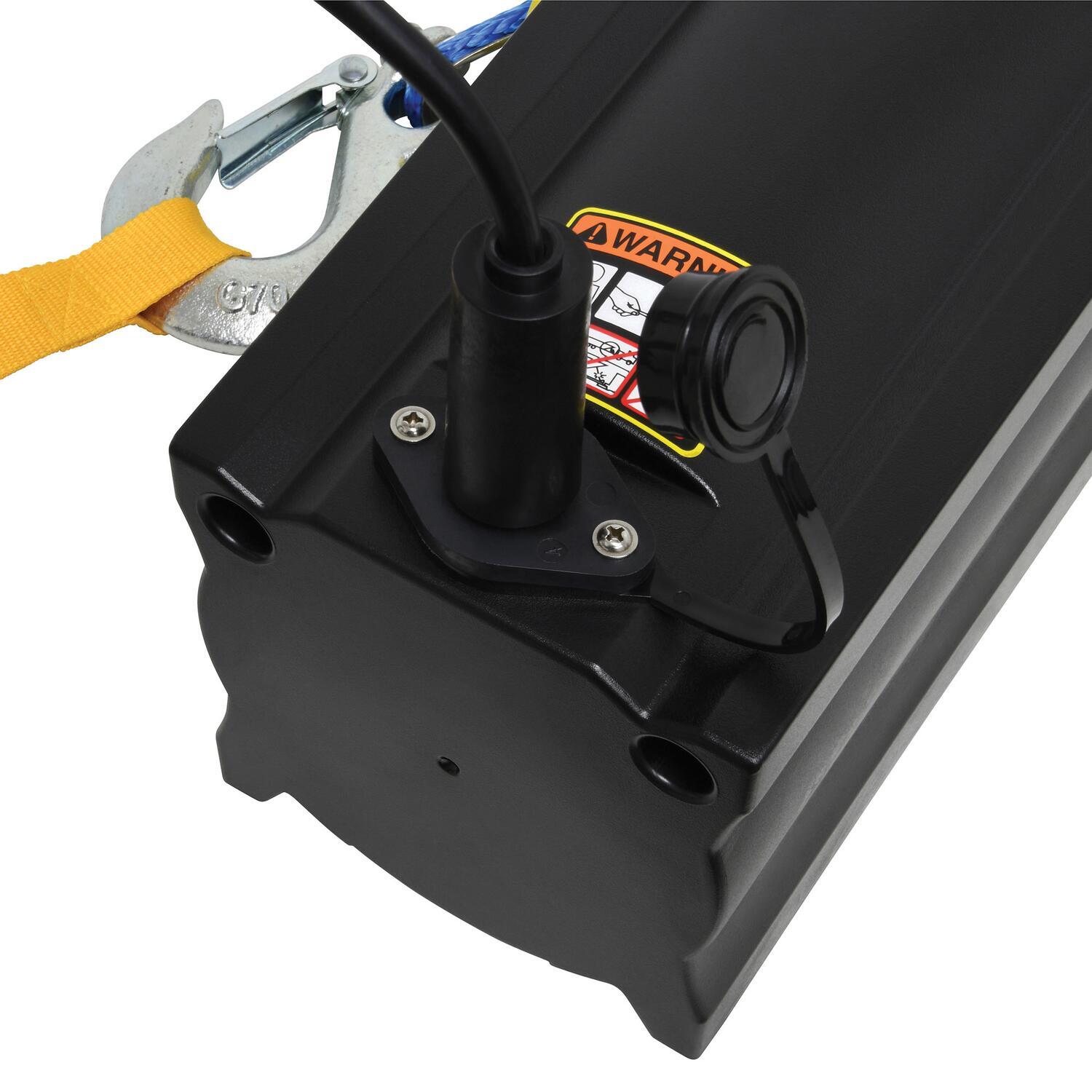

• 30 ft wired remote

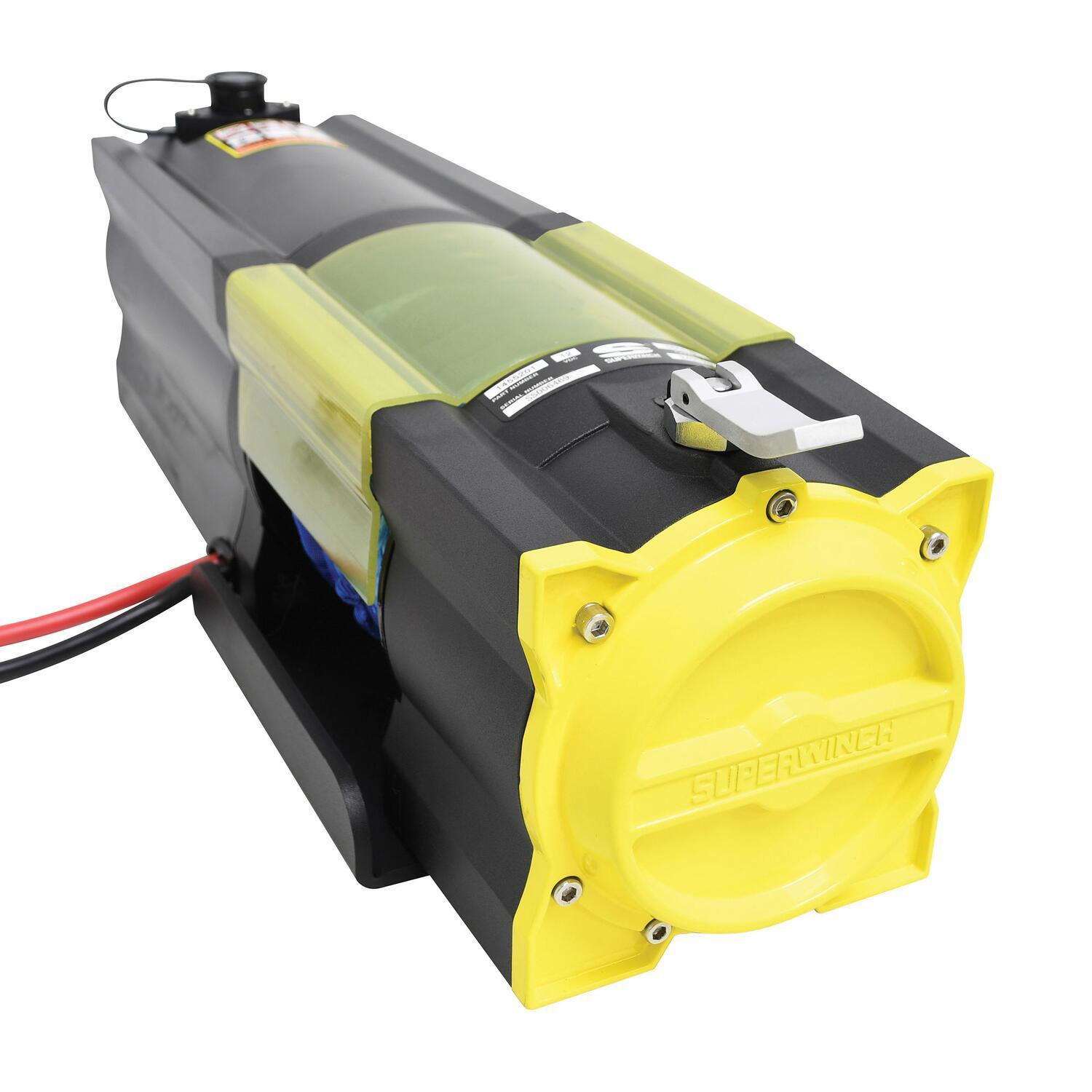

• Tinted protective cover over the cable, drum and operator's fingers

Specifications

• Winch Type: Electric
• Voltage: 12V DC
• Motor: 3.6 HP permanent magnet, 12V DC
• Gear System: 3-stage planetary
• Gear Ratio: 153:1 (steel wire rope), 159:1 (synthetic rope)
• Clutch: Kick-n-flip
• Brake System: Mechanical, automatic load holding, outside drum

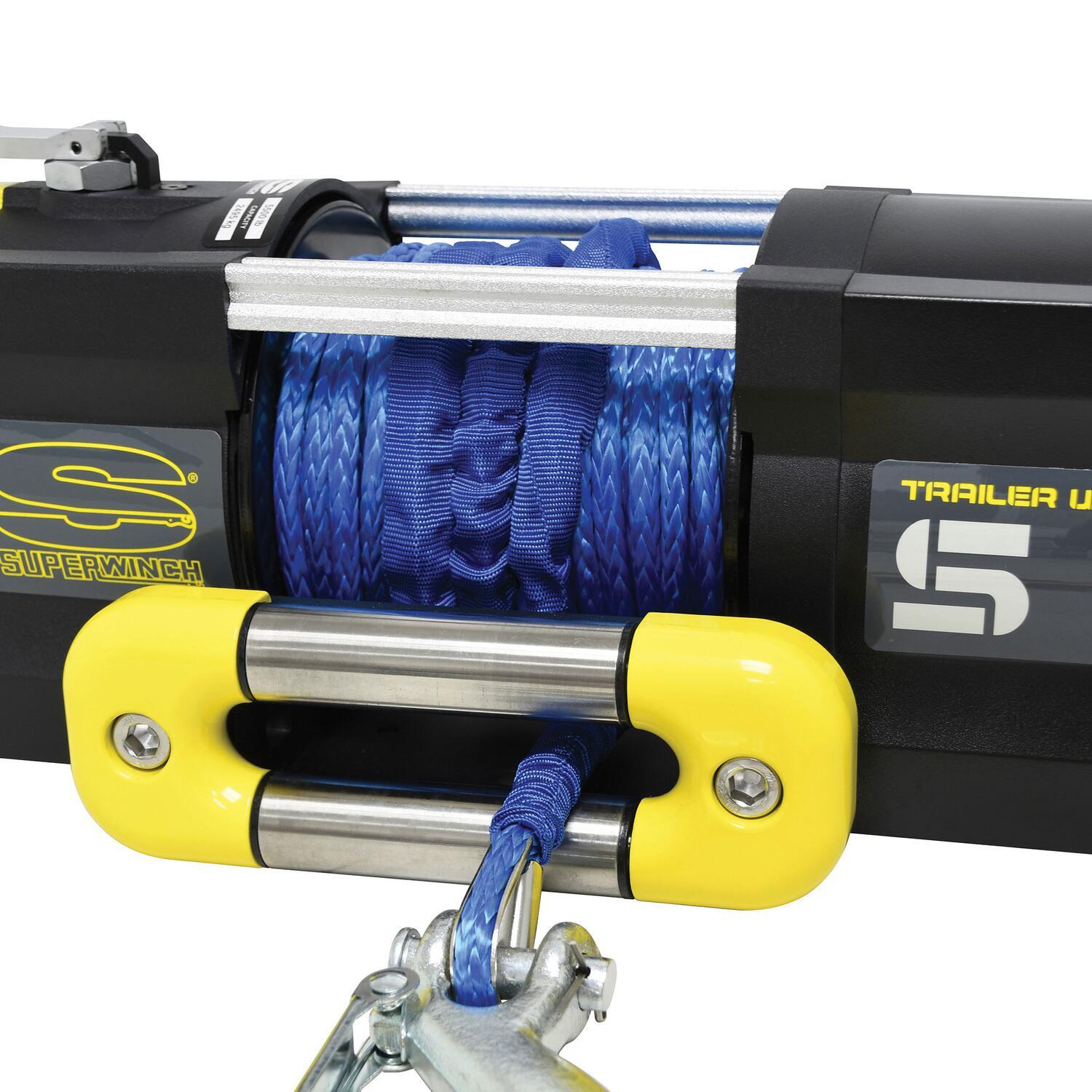

• Rope Material: Steel wire or synthetic, by variant
• Rope Length: 9/32 in x 60 ft (steel wire rope), 1/4 in x 60 ft (synthetic rope)
• Remote Type: Wired
• Mounting Bolt Pattern: 4 bolt
• Winch Hook: Heavy duty clevis, pinned and latched

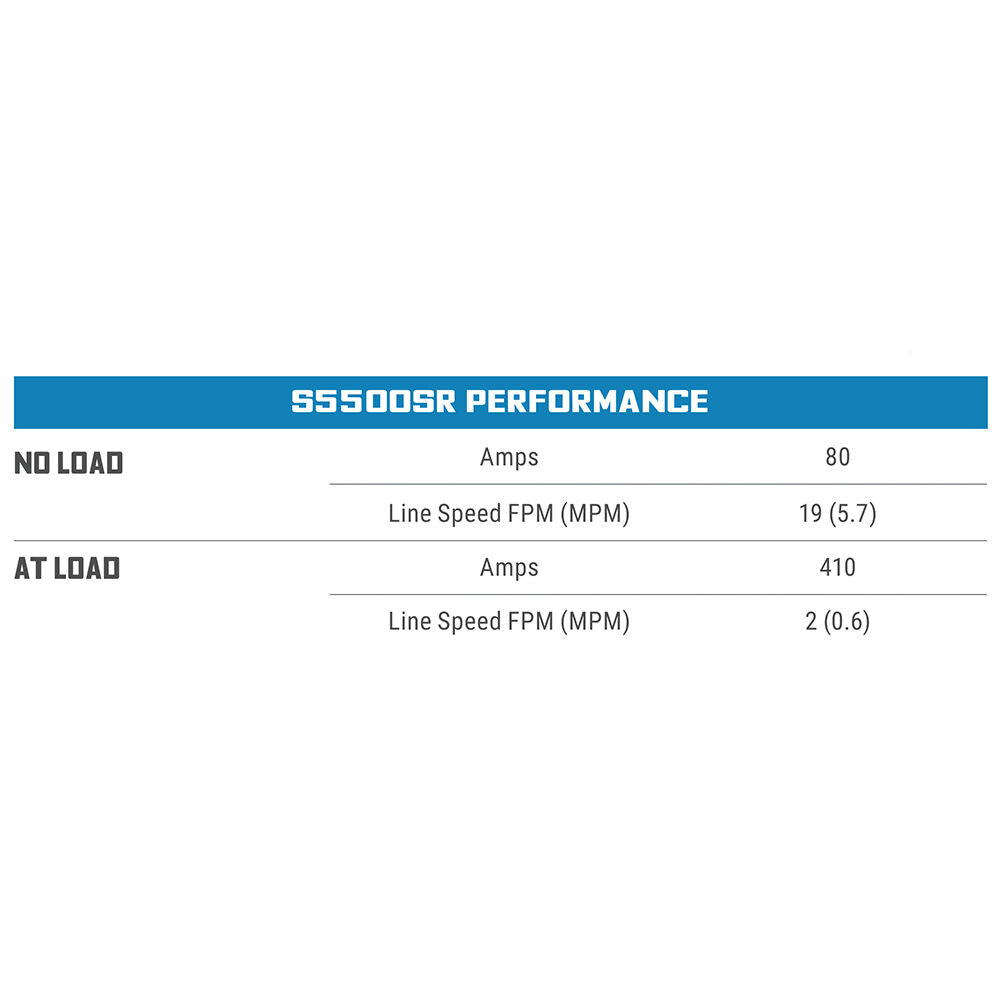

• Line Speed: 19 FPM at 80 amps motor draw
• Color: Yellow
• Weight: 56 lb (steel wire rope), 40 lb (synthetic rope)

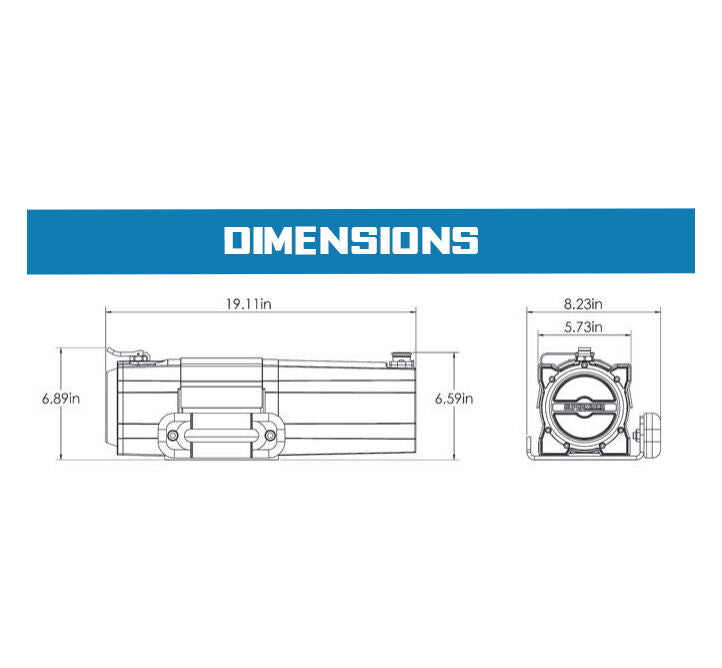

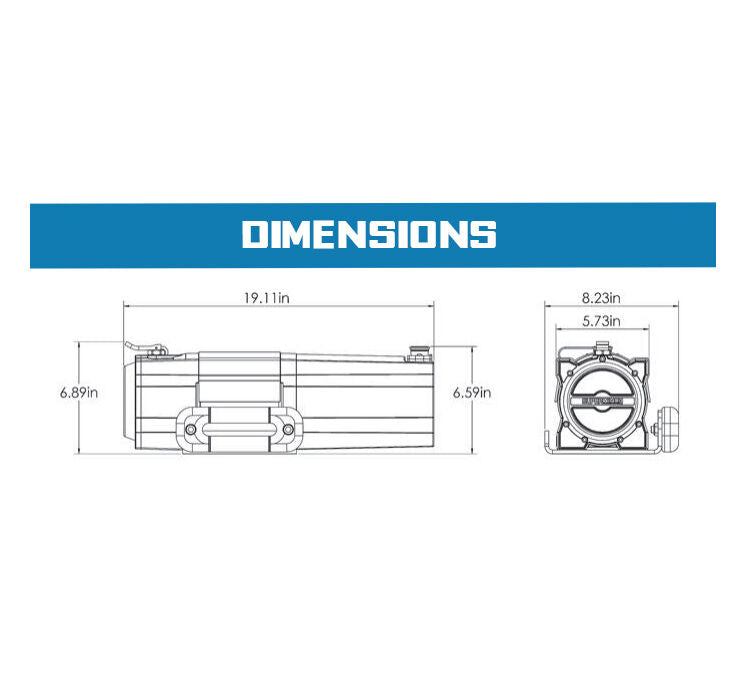

• Width: 13 in
• Height: 9 in

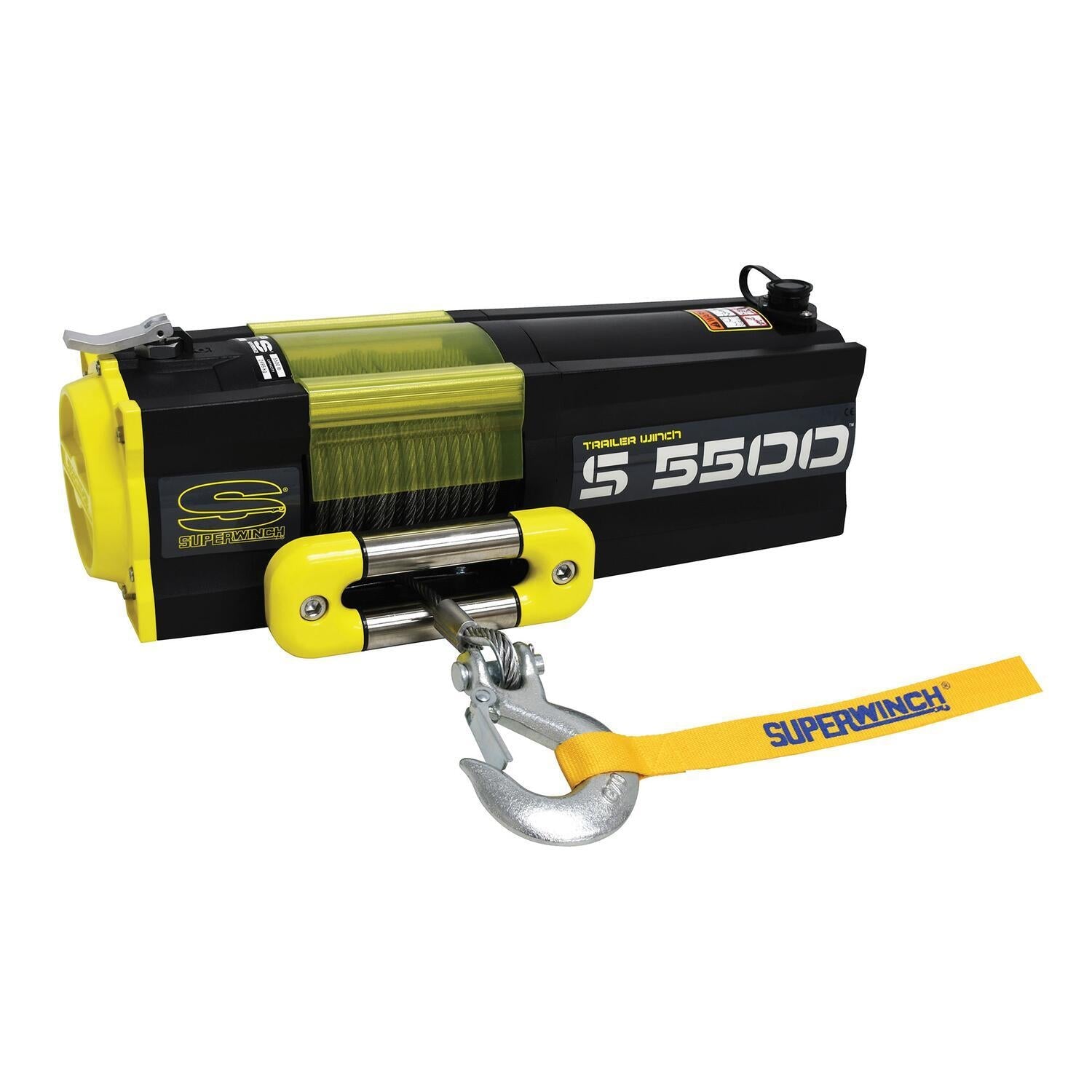

MPN 1455200 (Steel Wire Rope Yellow)

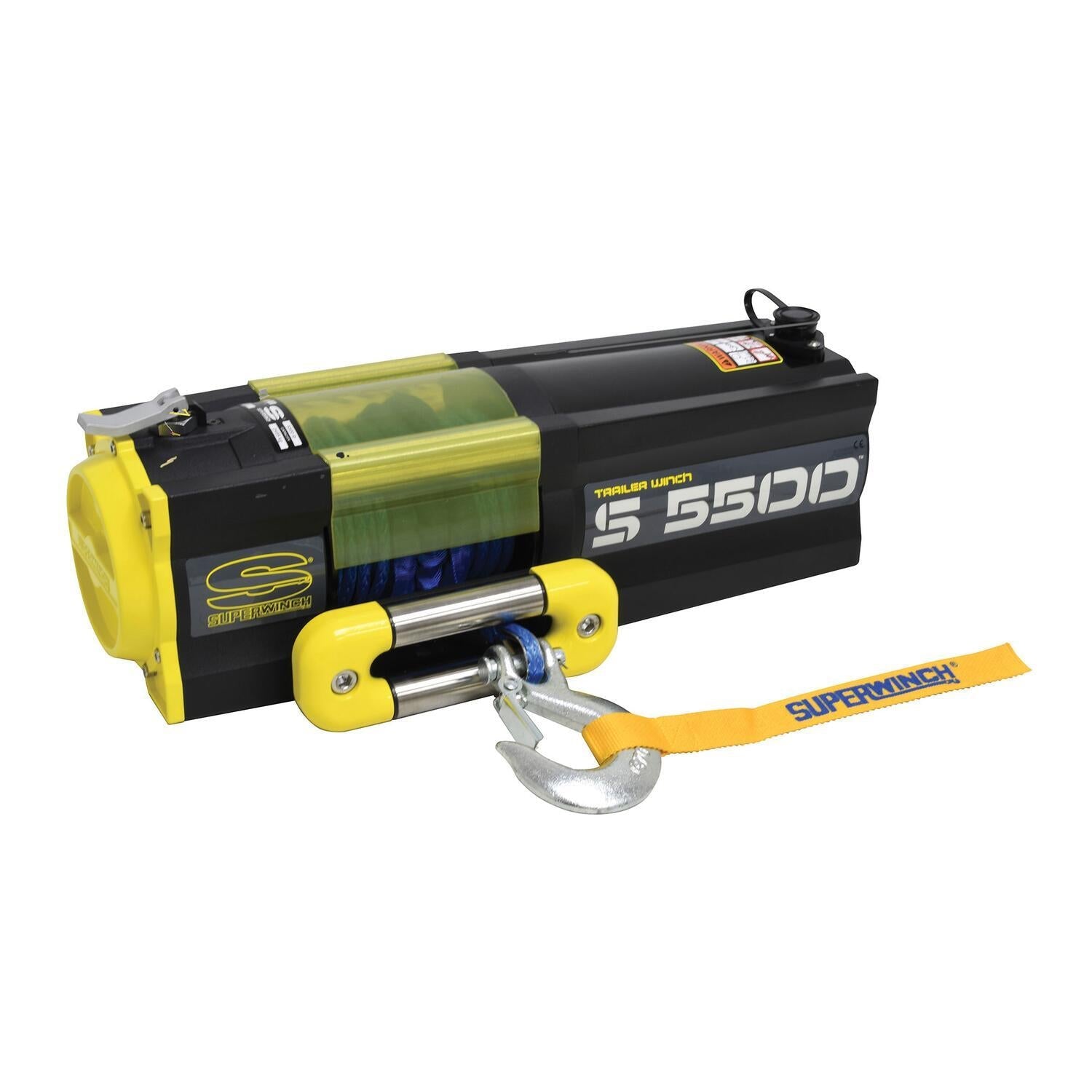

MPN 1455201 (Synthetic Rope Yellow)
