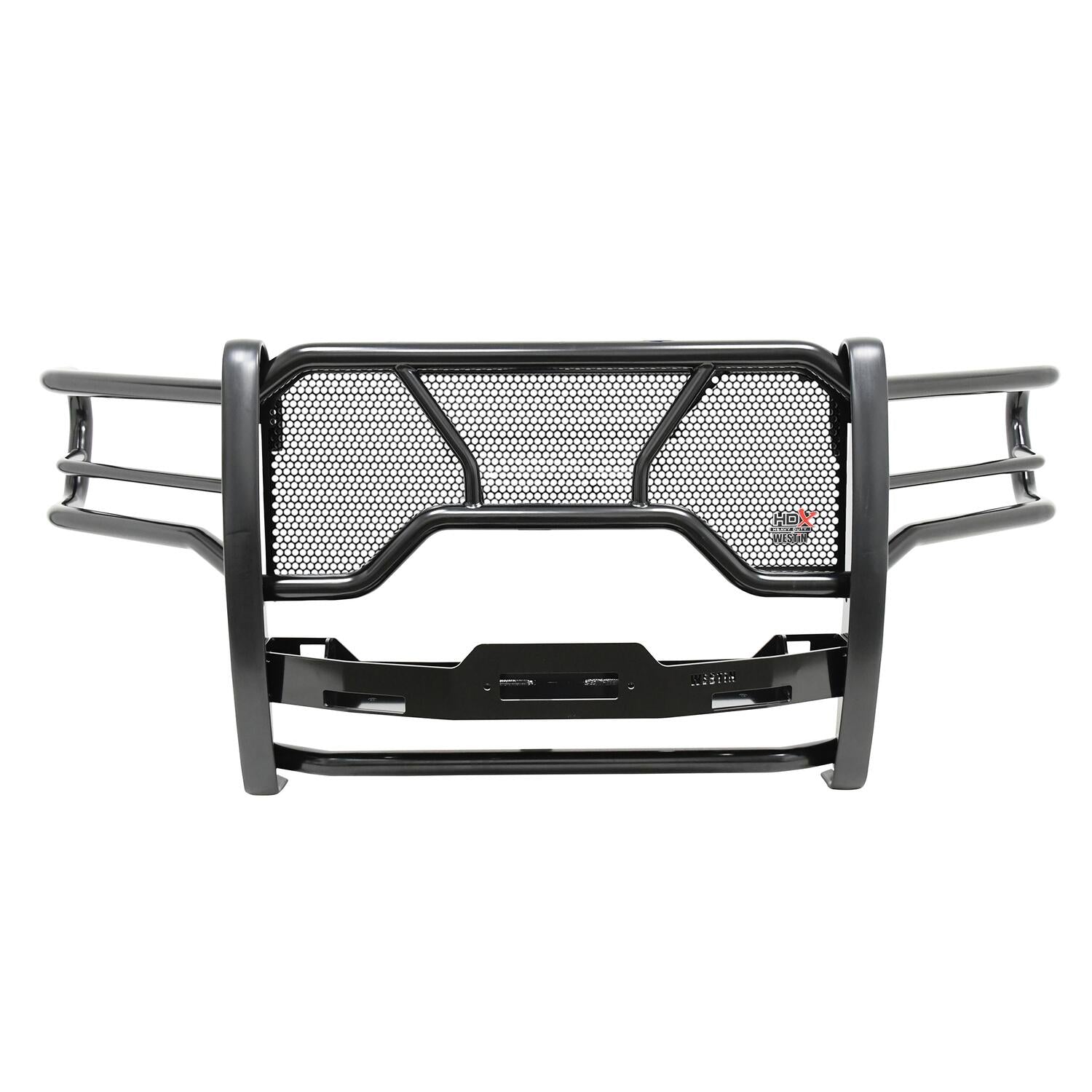

Ram 2500/3500 2019-2024, Westin HDX Winch Mount Grille Guard, Black Powder Coated

A Ram 2500 or 3500 that heads into rough country is better off with a winch mounted up front before it is needed. A truck stuck far from pavement makes for a long day, and a poorly mounted winch adds doubt. The Westin HDX Winch Mount Grille Guard is a 1-piece guard with welded headlight guards, 2in tube full wrap-around wings and a full punch plate grille. The winch tray is pre drilled for winch mounting, and the tray brackets mount directly to the vehicle frame. The tray is tested to a minimum straight line pull of 16,500 lbs and accepts most manufacturer winches with up to 12,000 lbs rated line pull. Bolt the brackets to the frame, mount the winch to the tray and the front end is ready for recovery work.

Key Features

• 1-piece construction with welded headlight guards
• 2in tube full wrap-around wings
• Full punch plate grille
• Low profile MAX winch tray faceplate where applicable
• Pre drilled winch tray
• Tray brackets mount directly to the vehicle frame
• Winch trays tested to a minimum straight line pull of 16,500 lbs

Specifications

• Material: Steel
• Finish: Black powder coat
• Position: Front

Fitment

• Ram 2500 2019-2024 (Big Horn, Laramie, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, Rebel, Tradesman)
• Ram 3500 2019-2024 (Big Horn, Laramie, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, SLT, Tradesman)

In the Box

• Grille guard shell with MAX winch tray
• Mount kit and hardware

Notes

• Factory tow hooks cannot be reused
• Requires minor trimming of the tow hook pockets
• Will interfere with or obstruct the view of the license plate; License Plate Relocator 32-0055 is sold separately
• Will interfere with parking sensors, if equipped
• Set of 2 light clamps sold separately

MPN 57-94025 · UPC 00707742097991
