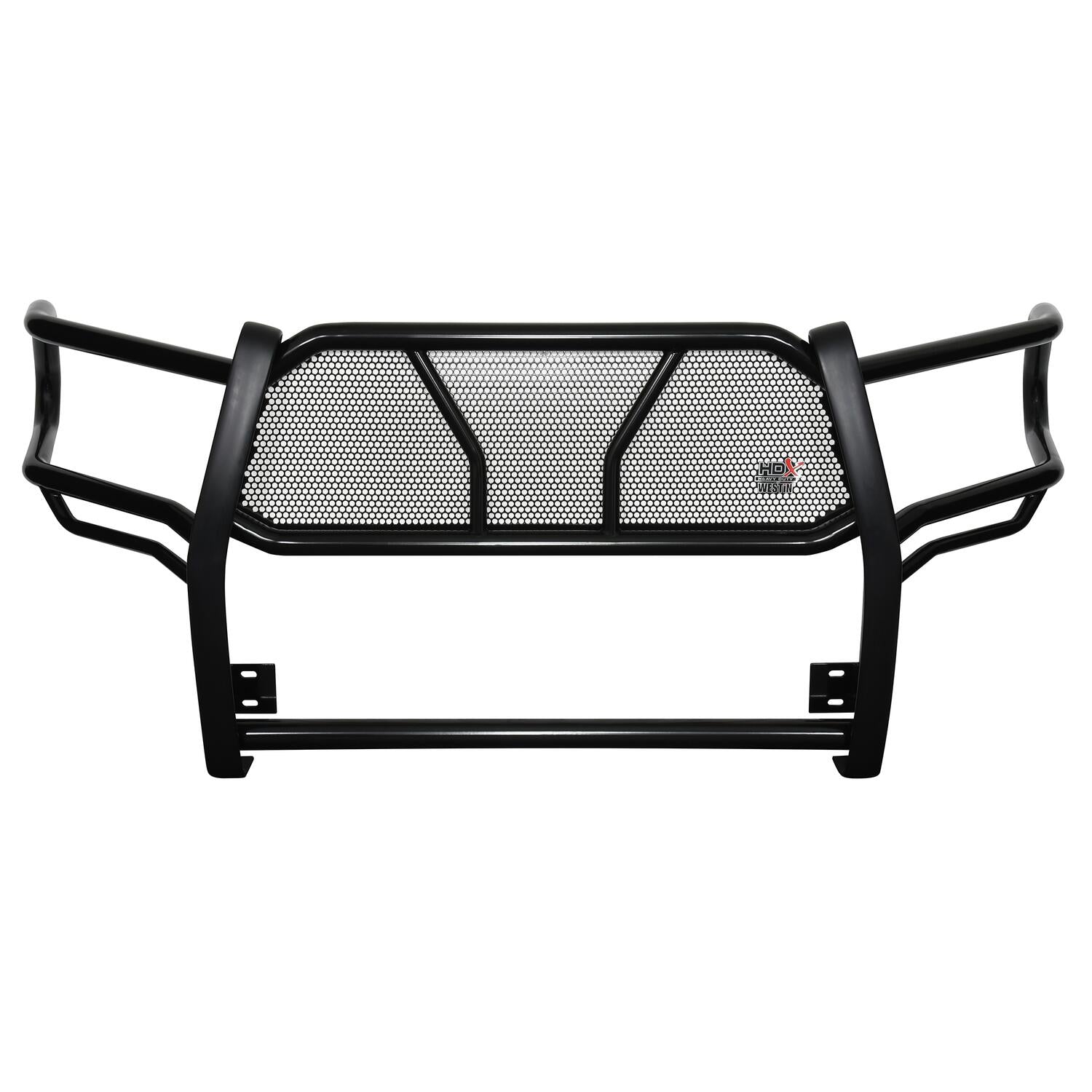

Ram 2500/3500 2010-2018, Westin HDX Modular Grille Guard

An older Ram 2500 or 3500 earns its keep on farm roads and job sites, and the front end collects dings from every gate, post and ditch it meets. The Westin HDX Modular Grille Guard ships as three pieces, with bolt-on headlight guards, a full punch plate grille and wraparound wings of 2in diameter tube. The mount kit and hardware are in the box, so each piece bolts onto the Ram in turn. The finish carries an electrostatic base coat for corrosion protection. Bolted up, the truck wears a guard in polished stainless steel or black powder coat across the front.

Key Features

• 3-piece design with bolt-on headlight guards
• Full punch plate grille
• Full wraparound wings of 2in diameter tube
• 1-1/4in tube for the support wings on some applications
• Uprights have 2-3/4in wide rubber push pad strips
• Electrostatic base coat under the finish for corrosion protection
• Mount kit and hardware included

Specifications

• Tube diameter: 2in
• Material: Stainless steel (polished) or steel (black powder coat)
• Finish: Polished or black powder coat
• Mounting location: Front

Fitment

• Dodge Ram 2500 2010
• Dodge Ram 3500 2010
• Ram 2500 2011-2018
• Ram 3500 2011-2018

In the Box

• Grille guard pieces
• Mount kit and hardware

Notes

• Requires drilling.
• Requires removal of tow hooks for installation if equipped.
• Will interfere with the parking sensor if equipped.
• A set of 2 light clamps is available as an optional extra, sold separately.

MPN 57-23550 (Polished) · UPC 00707742119396

MPN 57-23555 (Black Powder Coated) · UPC 00707742119471
