Ram 1500 2019-2024, Westin HDX Modular Grille Guard

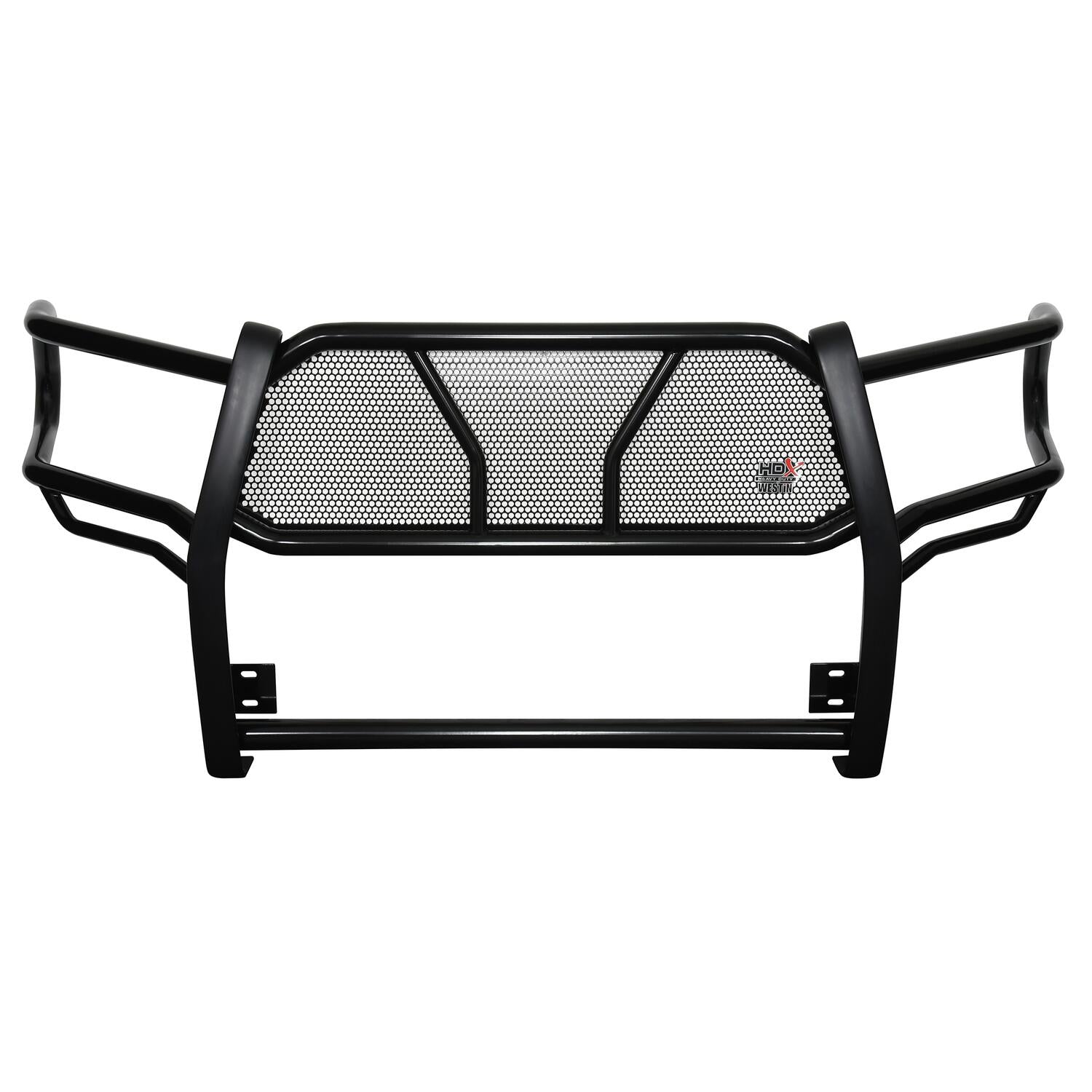

A newer Ram 1500 that tows a camper or hauls gear to the lake has a big grille area that every pebble and branch can reach. The Westin HDX Modular Grille Guard ships as three pieces, with bolt-on headlight guards, a full punch plate grille and wraparound wings of 2in diameter tube. The mount kit and hardware are in the box, so each piece bolts onto the Ram 1500 in turn. The finish carries an electrostatic base coat for corrosion protection. Bolt on the three pieces and the half-ton has a guard in front in polished stainless or black powder coat.

Key Features

• 3-piece design with bolt-on headlight guards
• Full punch plate grille
• Full wraparound wings of 2in diameter tube
• 1-1/4in tube for the support wings on some applications
• Uprights have 2-3/4in wide rubber push pad strips
• Electrostatic base coat under the finish for corrosion protection
• Mount kit and hardware included

Specifications

• Tube diameter: 2in
• Material: Stainless steel (polished) or steel (black powder coat)
• Finish: Polished or black powder coat
• Mounting location: Front

Fitment

• Ram 1500 2019-2024 (Big Horn, HFE, Laramie, Laramie Longhorn, Limited)

In the Box

• Grille guard pieces
• Mount kit and hardware

Notes

• Excludes ECO Diesel.
• Factory tow hooks cannot be reused.
• Requires trimming of the tow hook pockets on vehicles without tow hooks.
• Will interfere with adaptive cruise control, forward collision warning systems and parking sensors if equipped.
• A set of 2 light clamps is available as an optional extra, sold separately.

MPN 57-23970 (Polished) · UPC 00707742119334

MPN 57-23975 (Black Powder Coated) · UPC 00707742118986
