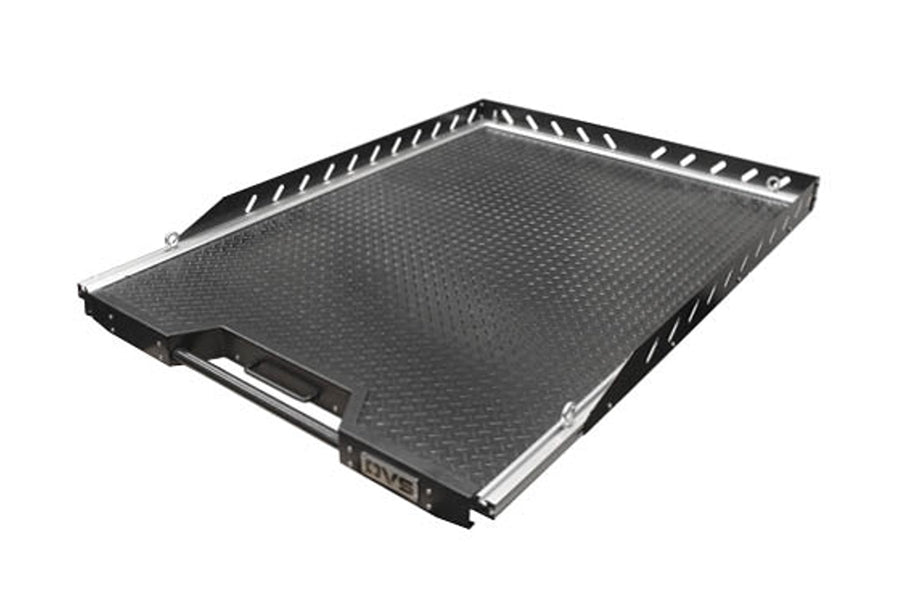

Overland Vehicle Systems Bed Extension for Pick Up Trucks

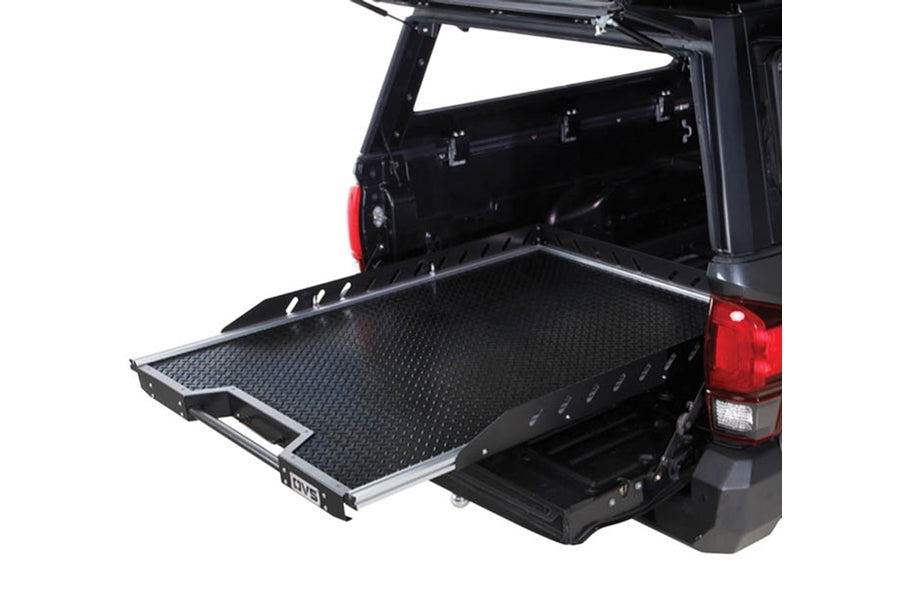

Introducing the Bed Extension for Pickup Trucks! Turn your truck bed into a super-functional workspace with our new Bed Extension. Universally sized for your Mid-Size or Full-Size Short Bed truck (select your truck's bed length for best fit) and turn your truck into a workhorse or an expanded recreational platform with ease.

The Bed Extension, designed for mid-size and full-size short bed trucks, offers 75% extension and supports up to 1250 lbs. It’s built with steel frame construction, 304 stainless steel hardware, and a Composite Base Material with a Rubberized Diamond Plate Overlay. It features multiple anchor points for secure cargo and a single pull latch for easy operation.

Features & Benefits

• 75% Extension Bed Cargo Slide
• 1250 LBS. Max Load Capacity
• Steel Frame Construction
• Composite Base Material with a Rubberized Diamond Plate Overlay
• Dual-Spring Latch Pins Lock Bed Extension to 3 Different Lengths
• Keep Everything within Arms Reach with the Multiple Locking Positions
• 2" Roller Bearings
• Pre-Assembled Unit Reduces Installation Time
• Ergonomic Handle Provides Easy Single-handed Operation
• T-Rail Allows you to Adjust Positioning of Tie Down Rings for Securing Cargo
• Removable Guard Rail Keeps Cargo Secure with Multiple Tie Down Positions
• 304 Stainless Steel Hardware


Dimensions

• Mid Size Short Bed 5.0': 57.08" x 42.12" x 7.28"
• Full Size Short Bed 5.5': 64.96" x 48.50" x 7.28"
• Full Size Short Bed 6.5': 75" x 48.03" x 7.28"

Weight of Bed Extensions

• Mid Size Short Bed 5.0': 140 lbs.
• Full Size Short Bed 5.5': 160 lbs.
• Full Size Short Bed 6.5': 180 lbs.
