ORACLE Lighting TRIGGER 6 SHOOTER Wireless Accessory Control System

Every light bar, compressor and fridge you add means another switch, another relay and another wire pushed through the firewall. The ORACLE Lighting TRIGGER 6 SHOOTER puts six fused circuits in one waterproof box under the hood and runs them from a wireless remote, so the wiring stays in the engine bay. Control on and off, dimming and flashing from the remote or the Bluetooth app, and watch battery voltage while you are at it. Mount the box, connect your accessories, stick the remote where you can reach it, and switch everything from the driver's seat.

Key Features

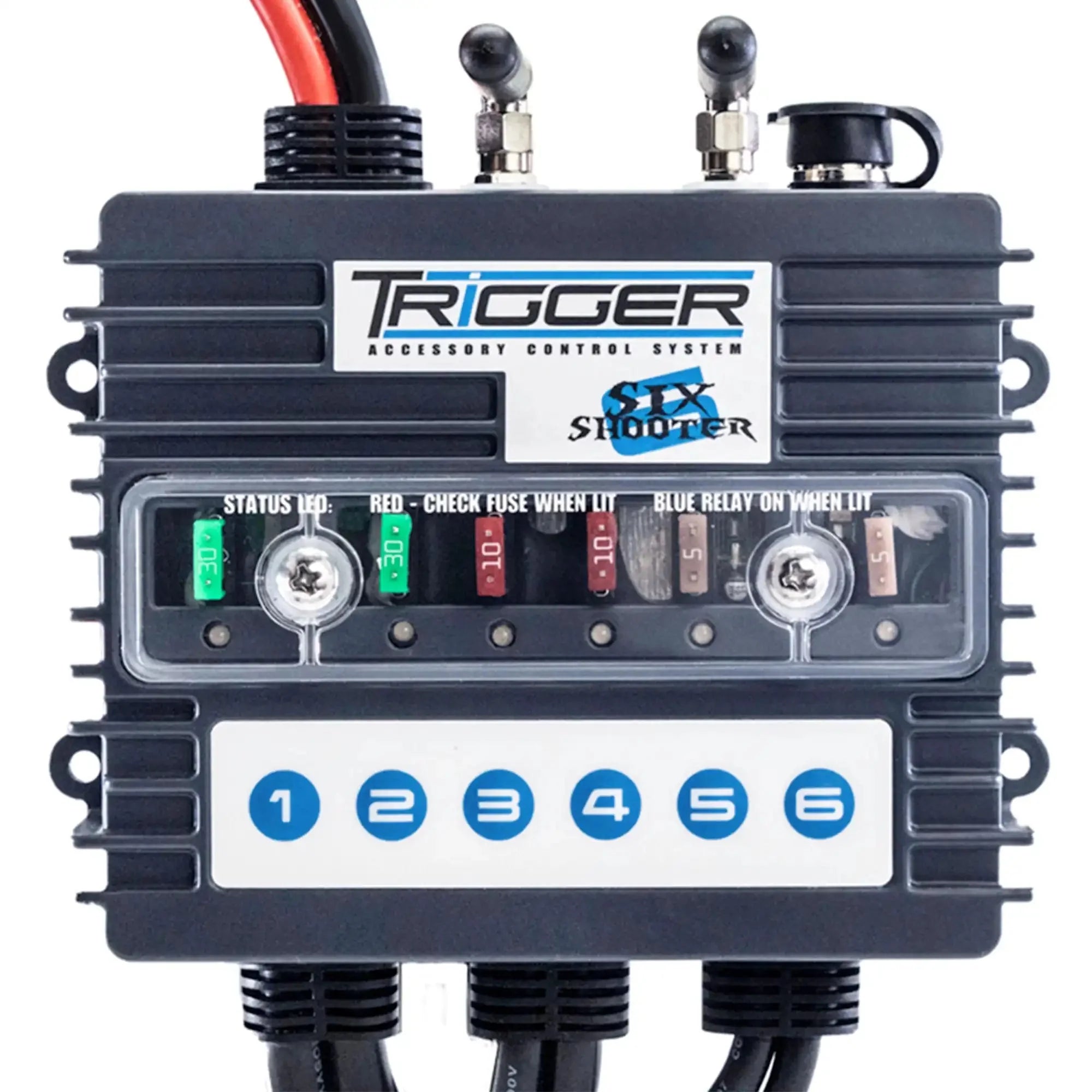

• Six 12-24V output circuits: two 30A, two 10A and two 5A, fused with LED status (blue on, red blown fuse)

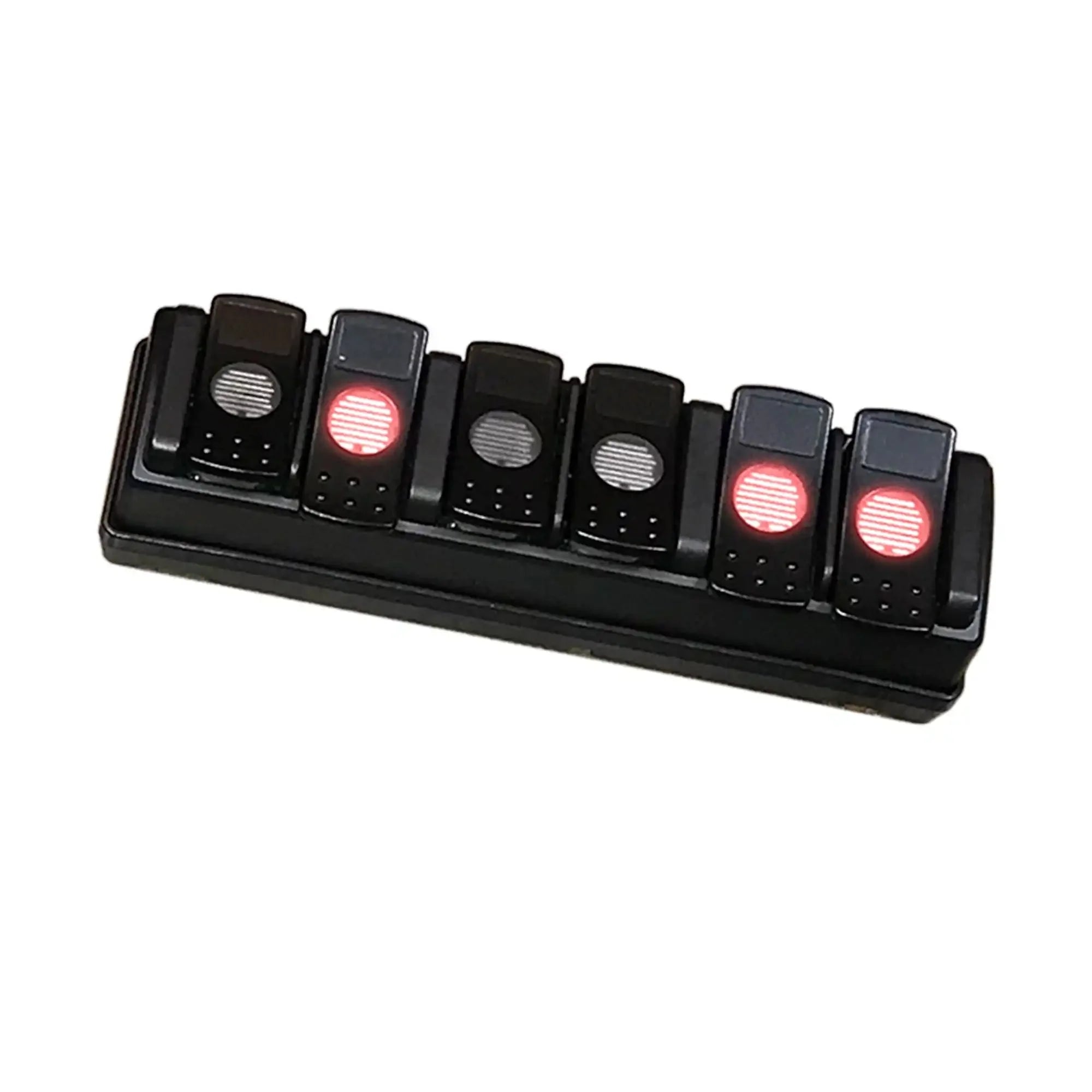

• Wireless back-lit RF remote with a universal mount for round or flat surfaces
• Bluetooth app control of on/off, dimming and flashing, plus a built-in battery voltage monitor

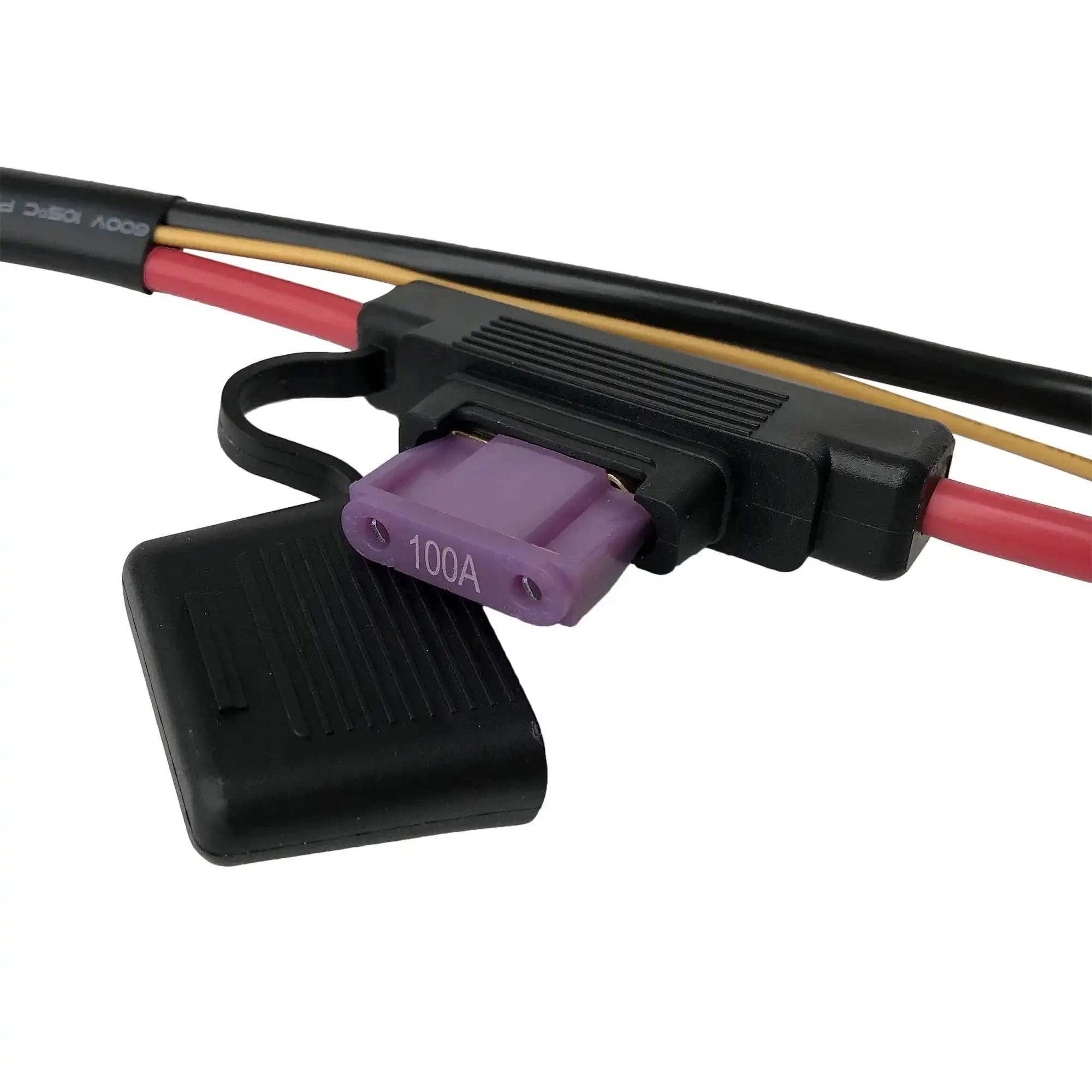

• Low voltage cutoff and a 100A fuse on the main positive input

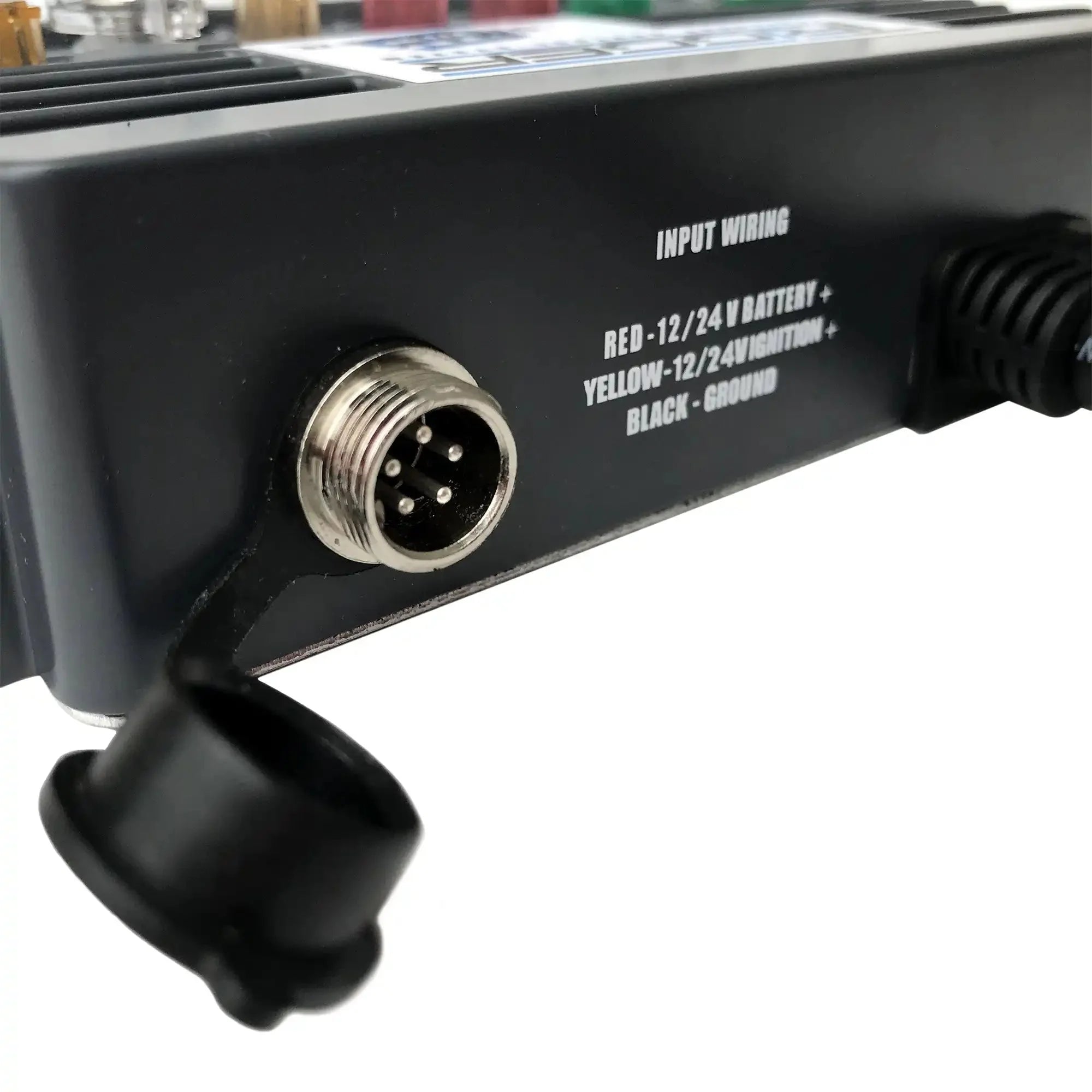

• Built-in DIN connector for conventional toggle switches (harness sold separately)

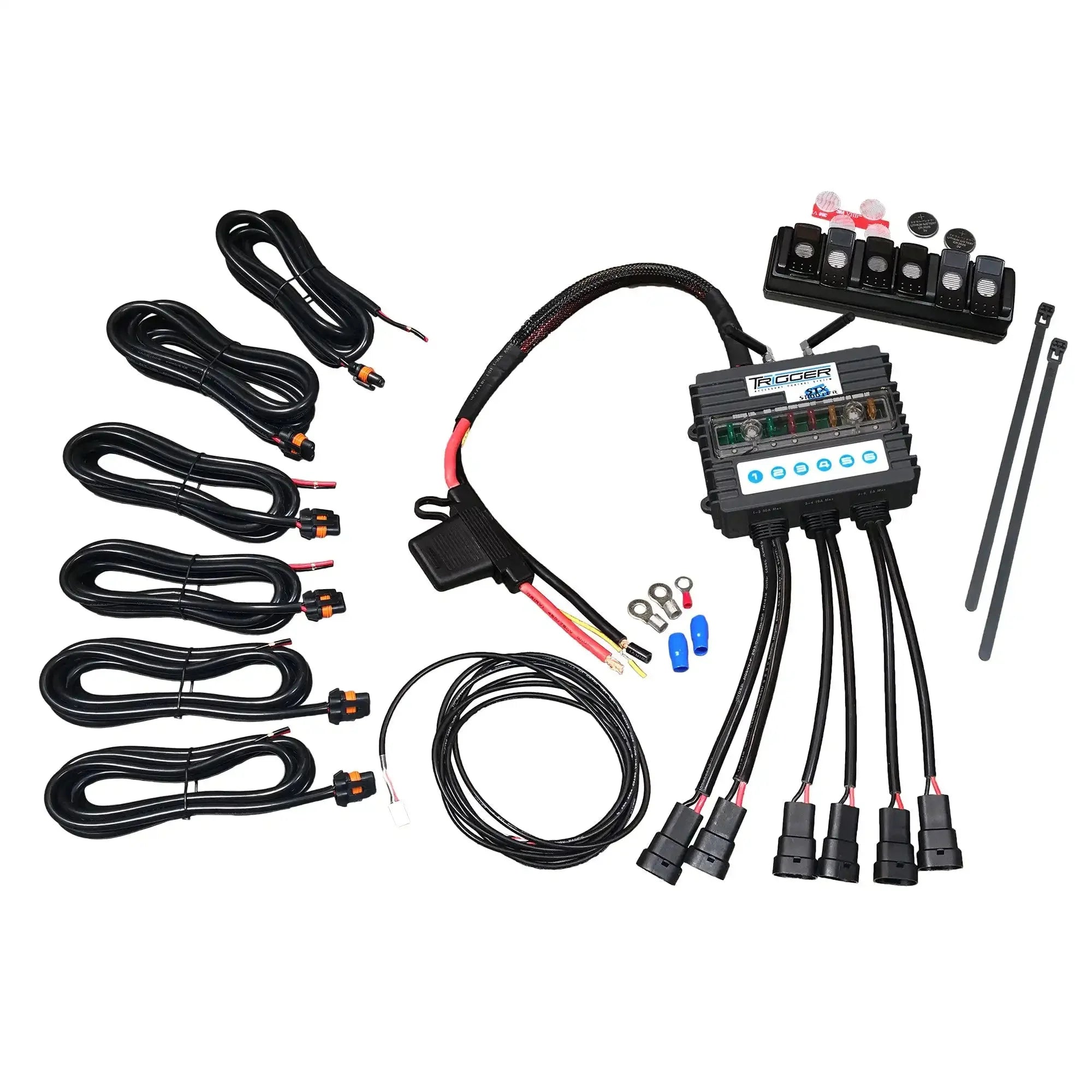

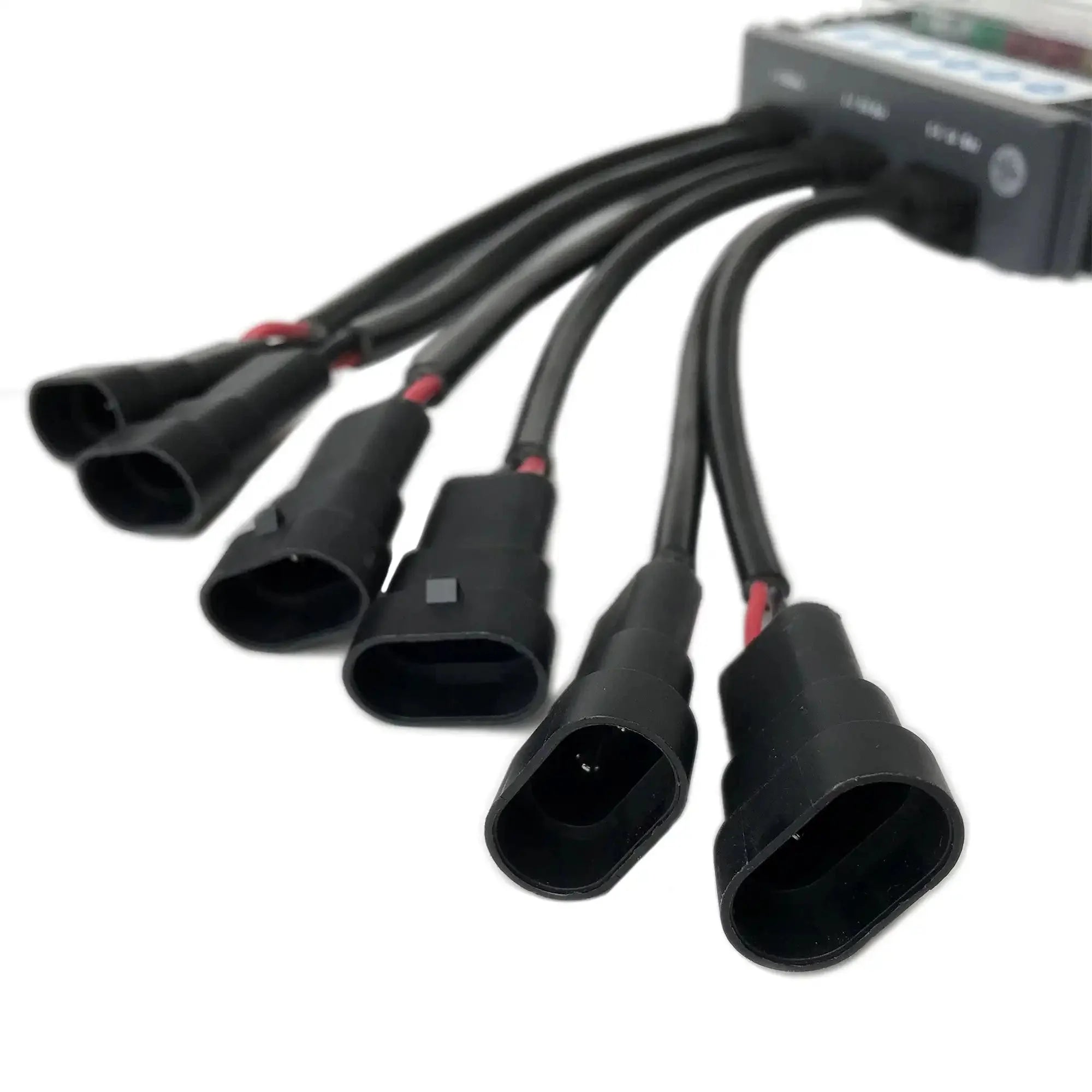

• Six 8 ft output harnesses with waterproof connectors; switch labels included
• Waterproof case, rated from below freezing to 250 degrees F
• Multiple boxes and remotes can control up to 24 accessories

Specifications

• Input: 12-24V, 3 wires (ground, switched positive, battery positive)
• Switch quantity: 6
• Wire gauge: 18
• Color: black
• Warranty: 3 years

Fitment

• Universal 12V or 24V vehicle accessory systems

MPN 3001 · UPC 810668031014
