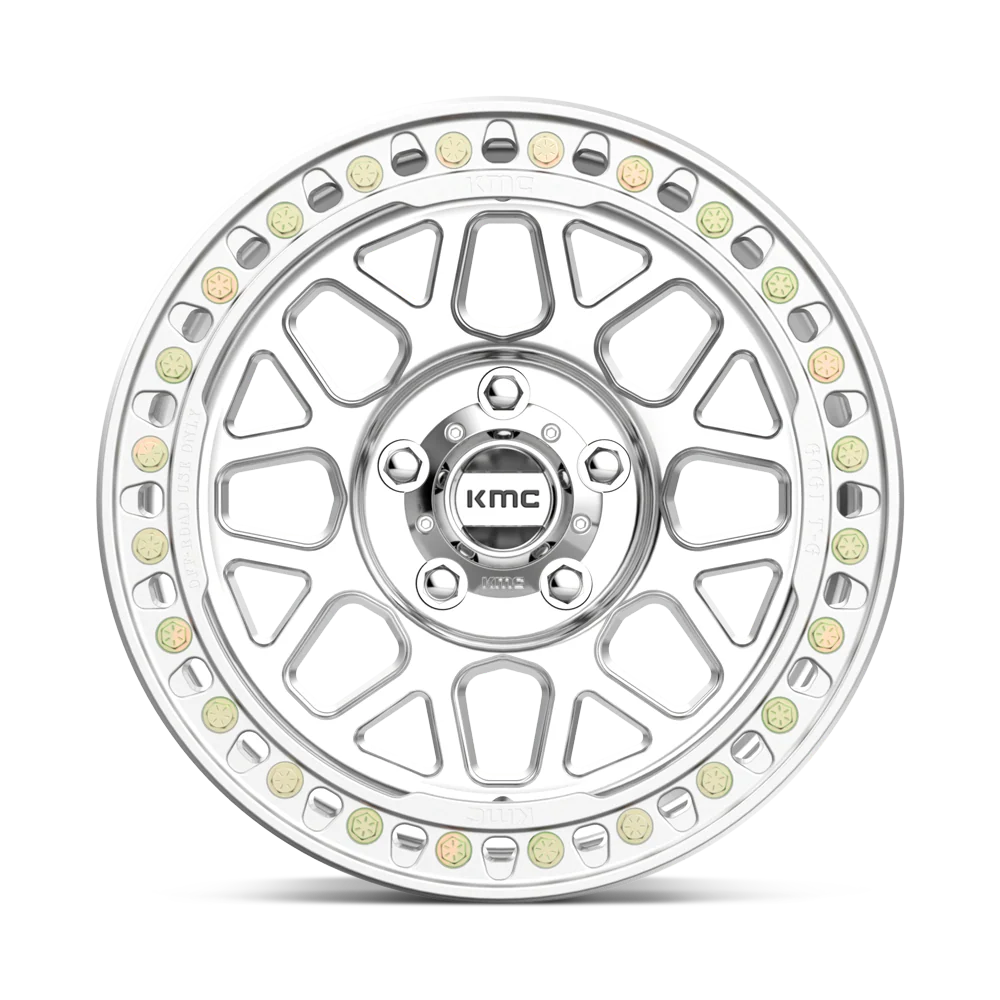

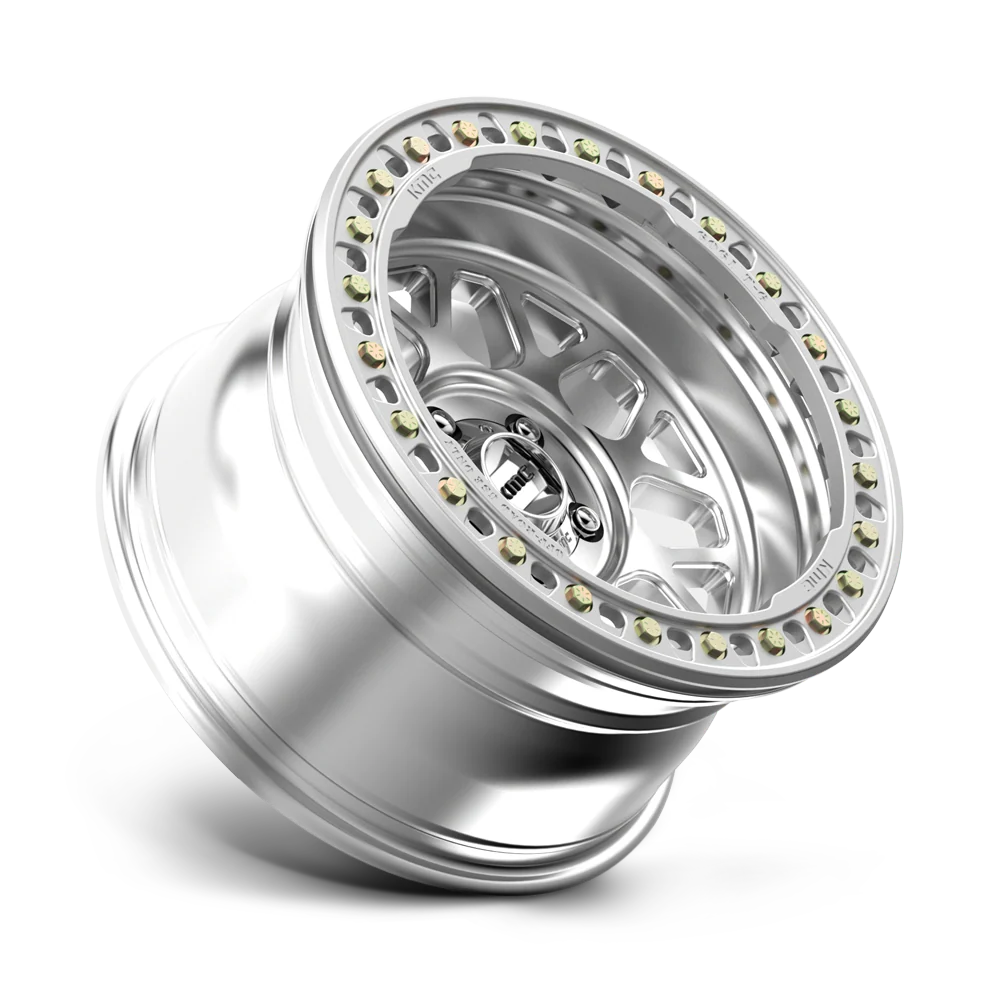

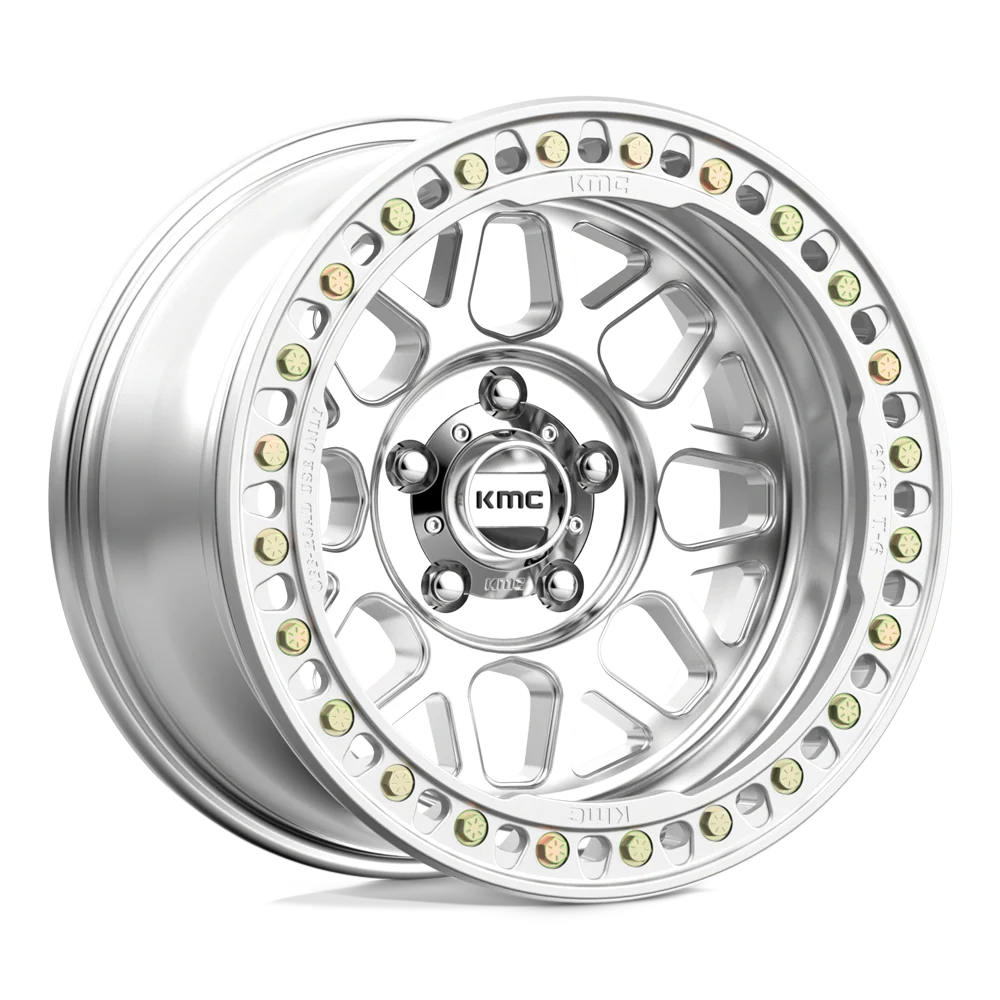

KMC KM235 Grenade Crawl Beadlock Wheel | 17x9 5x5 -38mm Machined | Jeep Wrangler JK/JL & Gladiator JT (07-26) | P/N KM23579050538N

The KMC KM235 Grenade Crawl is a one-piece cast aluminum beadlock wheel with a bolt-on outer beadlock ring. Sold individually.

Specifications

• Diameter: 17 in
• Width: 9 in
• Bolt pattern: 5x127 (5x5)
• Offset: -38 mm
• Backspacing: 3.50 in
• Center bore: 71.50 mm
• Load rating: 2500 lb
• Finish: machined, with machined beadlock ring
• Construction: one-piece cast aluminum
• Weight: 34.83 lb
• Warranty: KMC lifetime structural warranty
• Sold individually

Fitment

• 2007-2018 Jeep Wrangler JK, 2 door and 4 door
• 2018-2026 Jeep Wrangler JL, 2 door and 4 door
• 2020-2026 Jeep Gladiator JT

The 71.50 mm center bore matches the Jeep 5x127 hub, so no hub rings are needed on these applications. Other 5x127 vehicles may fit; check center bore, backspacing and brake clearance against your tire size and suspension before ordering.

KMC builds this wheel in other bolt patterns. The 8x165.1 version is part number KM23579080538N and does not fit Jeep.

Beadlock wheels of this type are generally not DOT approved for street use. Confirm local requirements before fitting one to a street driven vehicle.

MPN: KM23579050538N
