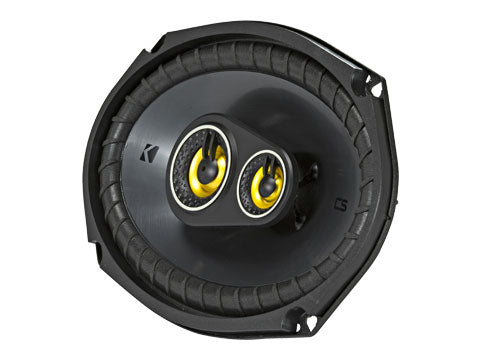

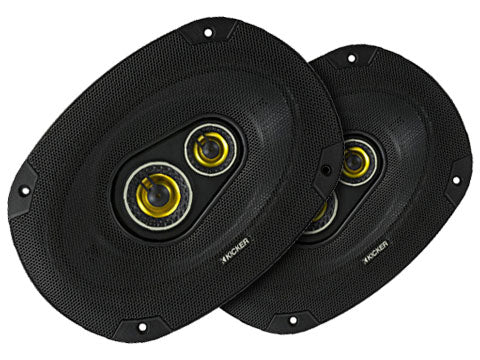

Kicker CS-Series 6x9-inch 3-Way Speakers

CS-Series 6x9-inch 3-Way Speakers are the perfect way to upgrade your factory system.

CS-Series 3-Ways deliver remarkable performance and ultra-clean bass with a heavy-duty motor/magnet structure not found in stock speakers. A stamped-steel frame supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology for the best sonic quality. Using zero-protrusion PEI tweeters with neodymium magnets, you get the clarity you need without interfering with factory grilles.

The rugged 6x9-inch, the 3-way speaker is especially cool. With a massive 300-watt peak power rating, this triaxial driver gives you extraordinary volume, while the integrated 2-inch midrange driver and dedicated tweeter give you crisp, accurate details for the realism you crave. These CS speakers work best with 150 watts of recommended power.

Features:

• Fits nearly every car made
• Zero-protrusion tweeters to fit nearly any factory depth
• Woofer EVC™ (Extended Voice Coil) tech assists with a precise linear excursion
• UV-treated poly-foam surround resists heat or direct sunlight
• Large woofer magnet in a heavy-duty motor for ultra-clean bass
• Integrated 2-inch (50mm) midrange drivers give detailed attention to mid frequencies
• PEI-tweeter construction provides superb clarity
• Neodymium tweeter magnets allow for an increased volume in high frequencies

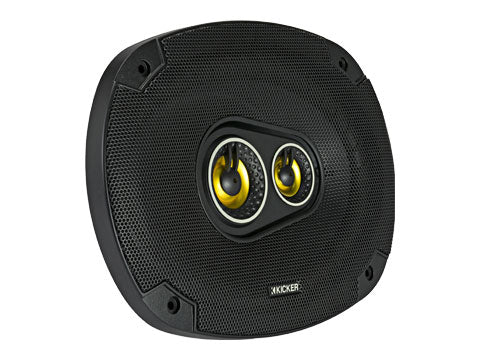

• Steel mesh grilles included for speaker protection

Specifications:

• Speaker Design: 3 - way
• Woofer Size [ in, mm ]: 6x9, 160x230
• Mid Size | in [mm]: 2, 50
• Tweeter Size [ in, mm ]: 1/2, 13
• DC Resistance [ ohm ]: 3.5
• Peak Power [ watts, per ANSI/CTA-2031-A ]: 450
• Recommended Amplifier Power [ watts RMS ]: 150
• Sensitivity - SPLo [ dB @ 1W, 1m ]: 92
• Effective Frequency Range [ Hz ]: 30-20k
• Mounting Hole Diameter [ in, mm ]: 5 5/8 x 8 7/16, 143x215
• Top Mount Depth [ in, mm ]: 3 3/16, 81
• Bottom Mount Depth [ in, mm ]: 3 11/16, 93
• Tweeter Protrusion [ in, mm ]: 1/16, 1
• Grilles: Yes
• Tweeter Magnet Material: Electric Crystal Motor
• Tweeter Dome Material: PEI [polyether imide
• Tweeter Design: Balanced dome
• Woofer Cone Material: Polypropylene
• Woofer Surround Material: Polyester foam
