Jeep Wrangler LJ Unlimited 2004-2006, TeraFlex LCG Lower Long Arm and Bracket Upgrade Kit, 3-5in Lift

Short lower control arms run out of adjustment on a lifted Unlimited. Moving to a long arm setup usually means replacing the whole suspension.

The TeraFlex LCG Lower Long Arm and Bracket Upgrade Kit moves a lower short control arm setup up to an adjustable Enduro LCG Long Arm system for 3-5in lifts, with complete alignment adjustability. The frame brackets are 1/4in thick steel, CNC laser cut and precision bent. They locate on the factory belly pan skid plate bolt holes and are stitch welded, with front and rear mounts combined in one bracket. The kit can be added to an existing suspension lift.

Add the adjustable Rear Upper Short Control Arm Pair (1614800) to complete the Enduro LCG system.

Key Features

• Adjustable LCG long arms with complete alignment adjustability
• 1/4in thick steel brackets, CNC laser cut and precision bent
• Brackets locate using the factory belly pan skid plate bolt holes and are stitch welded
• Front and rear mounts combined in the lower frame brackets
• Can be added to an existing suspension lift

Specifications

• Lift height: 3-5in
• Tube diameter and wall: 1.75in x 0.25in
• Lower LCG long arm pair: factory length 15-3/4in; minimum 31-9/16in; maximum 36-3/16in
• Rear lower LCG long arm pair: minimum 41-11/16in; maximum 44-1/16in
• Bolts (both ends): 9/16in (14mm)
• Axle joint 4116260; frame joint 4520011

Fitment

• Jeep Wrangler LJ Unlimited (long wheelbase) 2004-2006

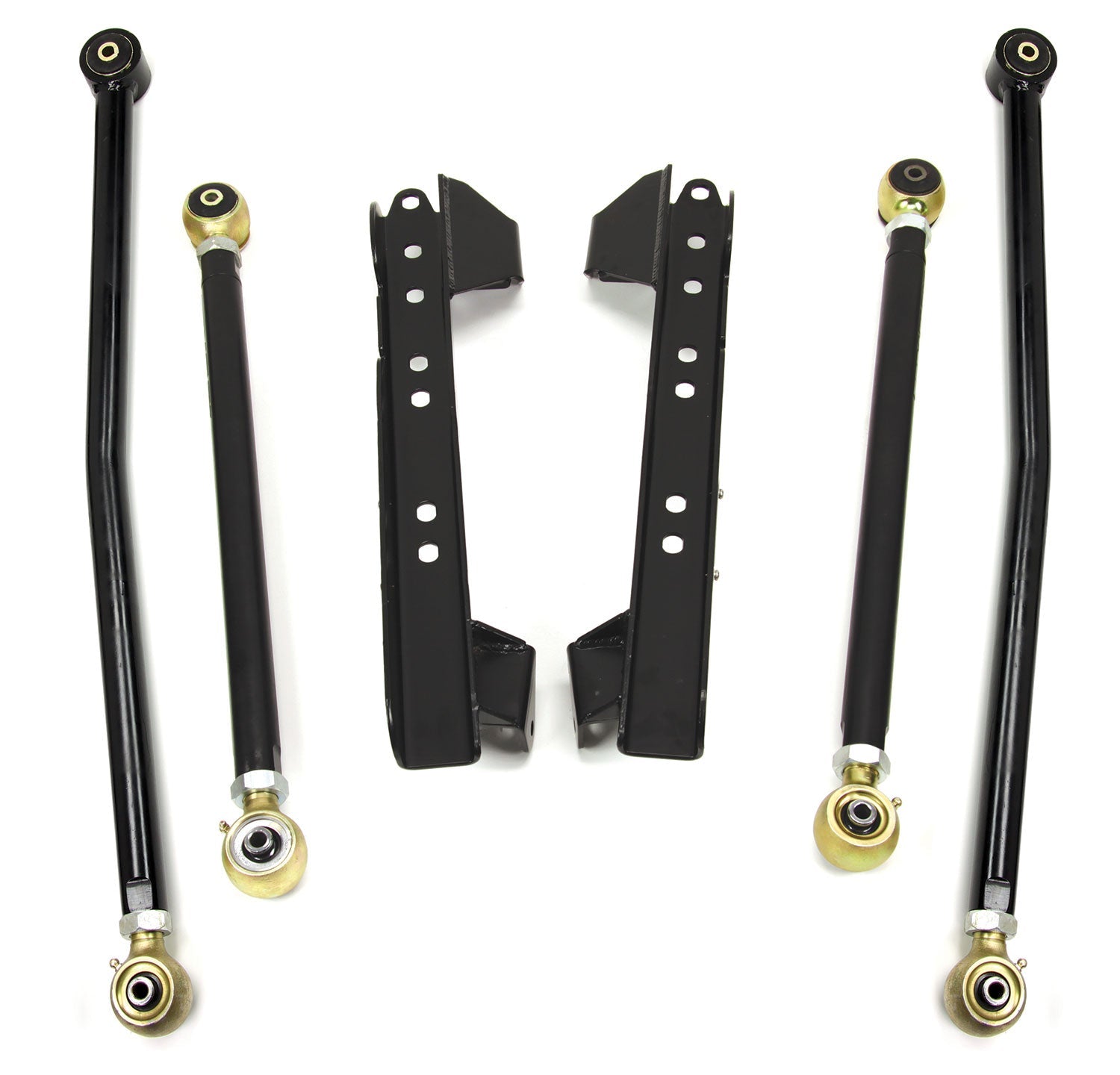

In the Box

• LCG long arm pair, lower (1447702)
• LCG long arm pair, rear lower (1447704)
• LCG long arm frame bracket kit, lower (1447701)
• All necessary hardware

Notes

• The Enduro LCG system also requires the adjustable Rear Upper Short Control Arm Pair (1614800), sold separately.

MPN 1447780 · UPC 843885021469
