Jeep Wrangler TJ 1997-2006 & LJ 2004-2006, TeraFlex 63.5in Tera CRD60 HD Semi-Float Rear Axle with Truss, Unloaded

A TJ that sees real rock needs a stronger rear axle, and many owners already have the gears, locker and carrier they want to keep. An unloaded axle lets them reuse those parts.

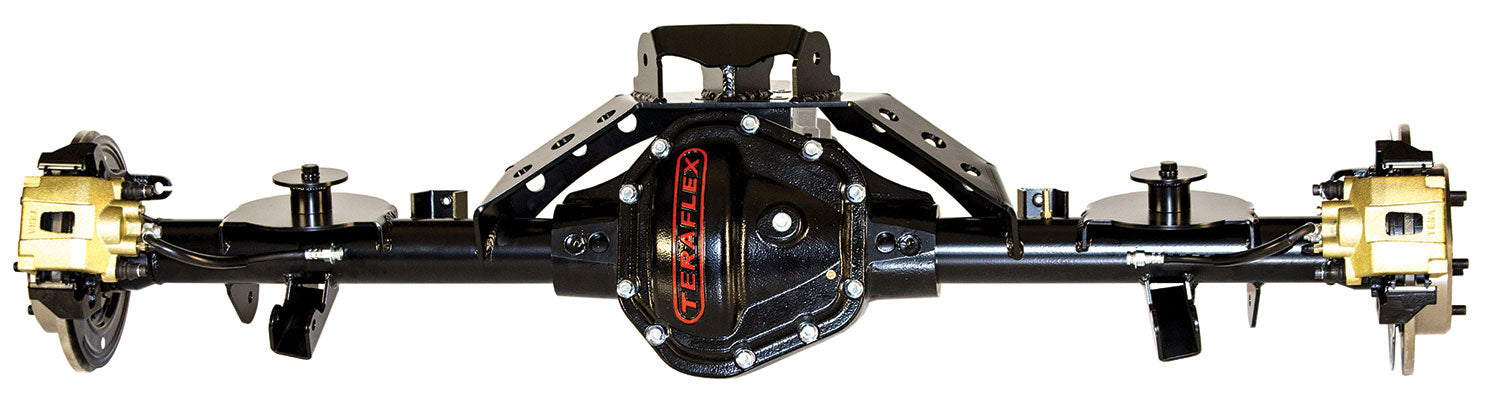

The TeraFlex Tera CRD60 HD Rear Axle with a semi-float design, unloaded, includes semi-float outer axles, Super 60 bearings, 35-spline inner and outer axle shafts, a 1350 series pinion yoke and sensors, with a truss. The Constant Radius Design (CRD) housing gives high ground clearance that is unaffected by pinion angle adjustments, and it is compatible with all Super 60 gear ratios for extreme duty applications that need extra ring and pinion strength.

Add your choice of ring and pinion gear ratio, locker and carrier, and bolt the assembly in.

Key Features

• Constant Radius Design housing with high ground clearance unaffected by pinion angle adjustments
• Semi-float outer axles with 35-spline inner and outer axle shafts
• Compatible with all Super 60 gear ratios
• Truss

Specifications

• Axle shaft spline count: 35
• Pinion yoke: 1350 series

Fitment

• Jeep Wrangler TJ 1997-2006 (short wheelbase)
• Jeep Wrangler LJ Unlimited 2004-2006 (long wheelbase)

Unloaded assembly: ring and pinion, locker and carrier are not included.

In the Box

• Spicer bearings and install kits
• Semi-float axles
• 35-spline inner and outer axle shafts
• 1350 series pinion yoke

Notes

• Ships by freight.

MPN 3320100 · UPC 843885003786
