Jeep Wrangler TJ 1997-2006, TeraFlex SWB LCG Long Arm and Bracket Upgrade Kit, Lower, 3-5in Lift

A short arm lift keeps the lower arms in the stock position, and at 3 to 5 in of lift the angles are steeper than they should be. Replacing the lower arms is the biggest change you can make to relax them.

The TeraFlex SWB Lower LCG Long Arm and Bracket Upgrade Kit upgrades a lower short control arm suspension to an adjustable Enduro LCG Long Arm Suspension System. It provides complete alignment adjustability for TJ Wrangler models with 3-5 in lifts. The 1/4 in thick steel frame brackets are CNC laser cut and precision bent for accurate fitment, locate using the factory belly pan skid plate bolt holes, and are then stitch welded.

Install the kit and add the rear upper short control arm pair (1614800) for a complete Enduro LCG system. The kit can be added to an existing suspension lift.

Key Features

• Upgrades the lower short control arms to adjustable LCG long arms
• 1/4in thick steel frame brackets, CNC laser cut and precision bent
• Front and rear mounts combined in the lower brackets, with a factory appearance
• Combine with the Front Upper Pro LCG Long Arm and Bracket Upgrade Kit (1443470) and the Rear Upper Pro LCG 4-Link Long Arm and Bracket Upgrade Kit (1444870) to step up to the Pro LCG system

Specifications

• Lift height: 3-5in
• Tube diameter and wall: 1.75in x 0.25in
• Factory length: 15-3/4in
• Minimum length: 31-9/16in
• Maximum length: 36-3/16in
• Bolts: 9/16in (14mm)
• Joint, axle: 4116260
• Joint, frame: 4520011

Fitment

• Jeep Wrangler TJ 1997-2006 (short wheelbase)

In the Box

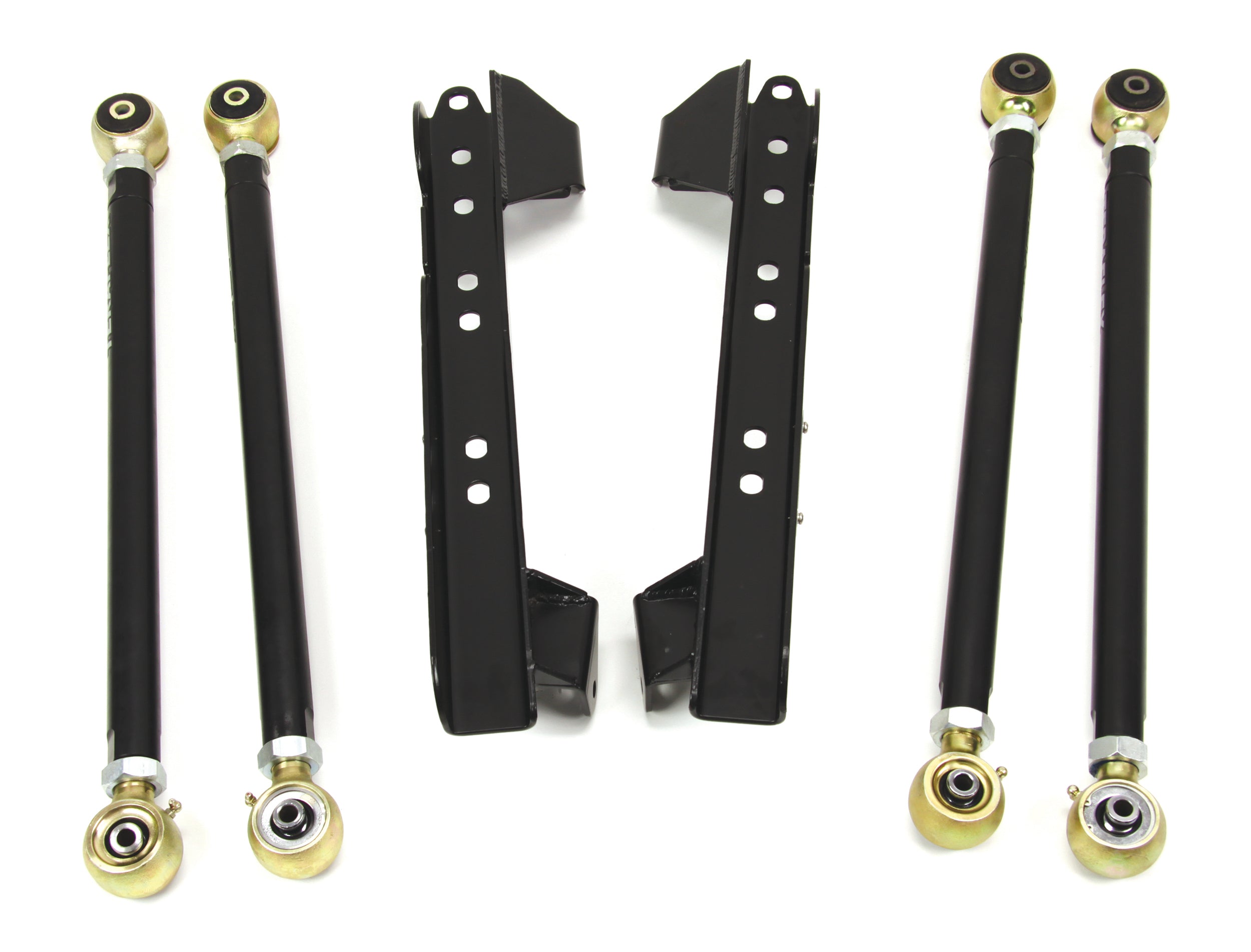

• LCG long arm pair, lower, front or SWB rear (1447702), 2
• LCG long arm frame bracket kit, lower (1447701): bracket, lower left; bracket, lower right
• All necessary hardware

Notes

• The Enduro LCG system also requires the adjustable Rear Upper Short Control Arm Pair (TJ: 1614800), sold separately.
• Stitch welding is required.

MPN 1447700 · UPC 843885021391
