Jeep Wrangler TJ 1997-2006, TeraFlex SWB 4in Enduro LCG Long Arm Suspension System

A TJ lifted 4 in wants more adjustability than a short arm kit gives, but not every owner wants to rebuild the frame to get it. The Enduro system sits in the middle.

TeraFlex Enduro LCG Long Arm Suspension Systems suit the off-road enthusiast who wants more trail and on-road performance with moderate modifications to the vehicle frame. The Enduro LCG uses the same lower adjustable LCG long control arms and brackets as the Pro LCG, while adjustable rear upper short control arms bolt to the factory upper mounting points.

Install the system, add shocks of your choice, and the TJ gets longer arms and a tunable axle position. TeraFlex recommends Falcon Performance Shocks or TeraFlex 9550 VSS Twin-Tube Shocks.

Key Features

• Same lower adjustable LCG long control arms and brackets as the Pro LCG
• Adjustable rear upper short control arms bolt to the factory upper control arm mounting points
• More suspension and steering adjustability than a standard short arm kit
• Moderate modifications to the vehicle frame
• HD adjustable front track bar, drop pitman arm and rear track bar bracket improve steering response, center the axles and reduce body roll
• Reduced noise, vibration and harshness (NVH)

Specifications

• Lift height: 4in
• Wheelbase: Short (SWB)

Fitment

• Jeep Wrangler TJ 1997-2006 (short wheelbase)

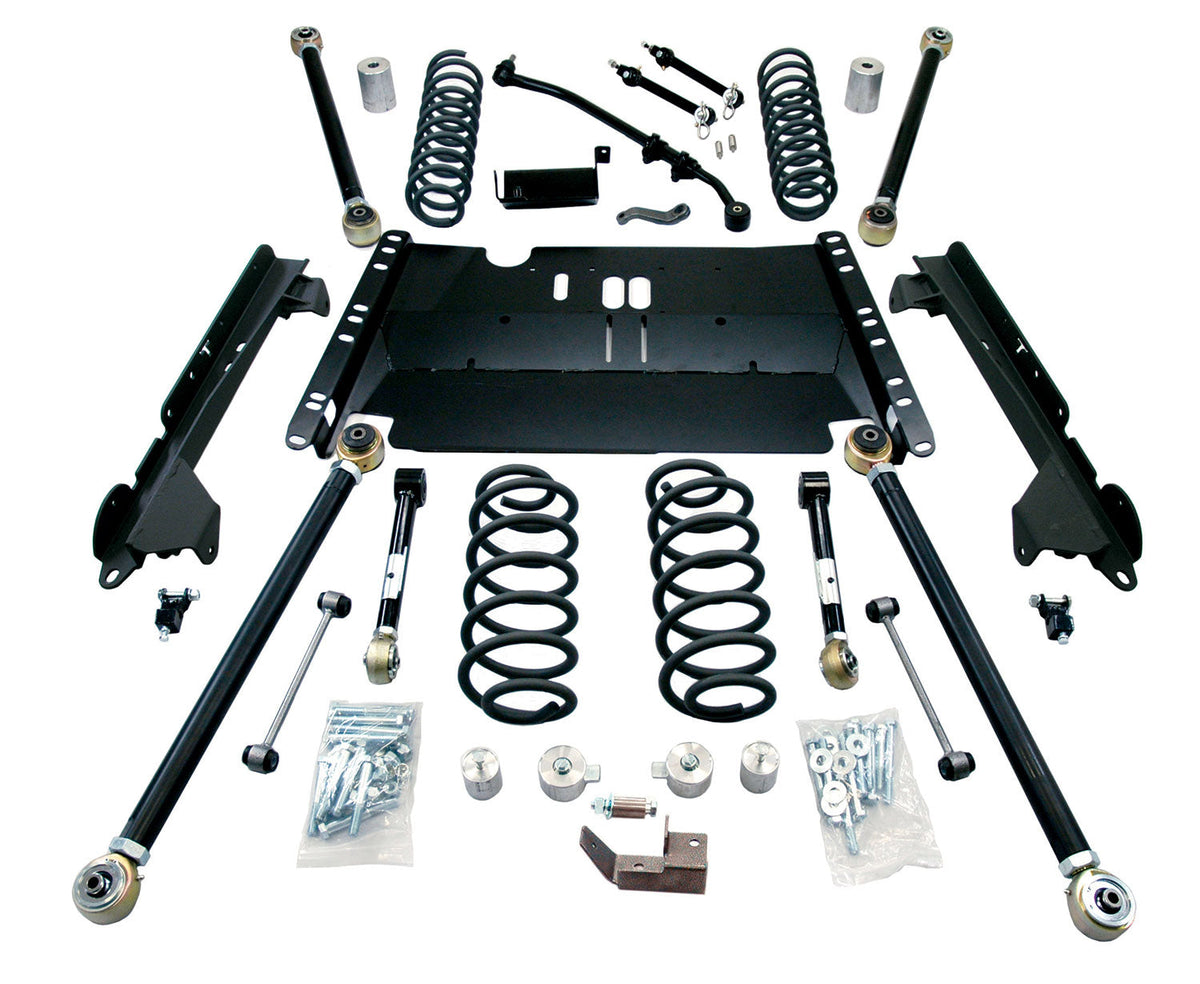

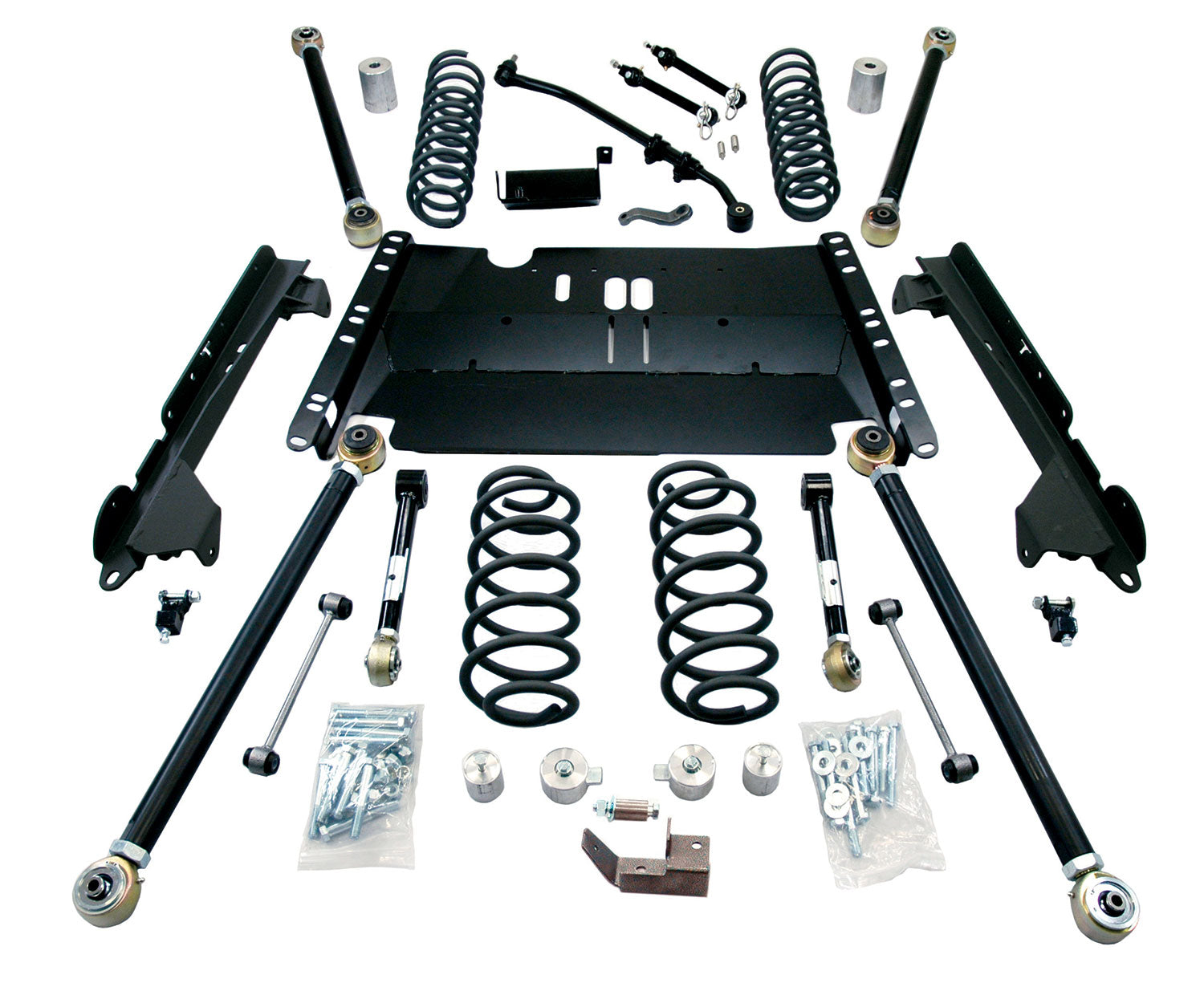

In the Box

• 4in lift coil springs (front 1843402, rear 1844402)
• Short control arm kit, rear upper, 0-4in lift (1614800)
• LCG long control arm and bracket kit, lower, 3-5in lift (1447700)
• HD adjustable front track bar, 3-4in lift (1743022)
• Rear track bar axle bracket kit, 3-6in lift (1944000)
• Drop pitman arm, 3.5-6in lift (1922133)
• 2.25in front lower bump stop extension kit, 3-4in lift (1910234)
• 2.25in rear upper bump stop extension kit, 4in lift (1910204)
• 10in front sway bar quick disconnect kit, 3-6in lift (1743090)
• 10.5in rear sway bar link kit, 2.5-5in lift (1944011)
• BellyUp skid plate kit (4648403)
• HD steering box skid plate kit (4627400)
• 2003-2006 TJ: 1in transfer case lowering spacer kit (1900103)
• 26in front and 26in rear stainless steel braided brake line kit (4350400)
• Rear lower shock extension kit (1544790)
• All necessary hardware

Notes

• Shocks are not included.

MPN 1449472 · UPC 843885021506
