Jeep Wrangler TJ/LJ 1997-2006, TeraFlex SpeedBump Bump Stop Kit, Rear, 4-6in Lift

Factory bump stops can deform under hard compression, and a lifted Jeep that bottoms out risks bent axle housing tubes, damaged shocks and crumpled fenders. The right bump stop length and strike pad height protect all of them.

The TeraFlex SpeedBump Rear Bump Stop Kit pairs 3 in stroke SpeedBump bump stops with the rear mounting brackets for a TJ or LJ running 4-6 in of lift. The composite construction has a progressive rate that softens the impact of bottoming out, on the trail or on a rough highway, and helps the driver keep control.

The bump stops are maintenance-free with no adjustment or tuning, and the shaft is a self-lubricating Delrin acetal resin polymer built for thousands of cycles. Cut, weld the new bracket in place of the rear upper spring bracket, and the rear suspension gets a controlled stop.

Key Features

• Composite construction with a progressive rate reduces suspension compression impacts and harshness when bottoming out
• Maintenance-free, with no adjustment or tuning needed
• Self-lubricating Delrin acetal resin polymer shaft withstands thousands of continuous cycles without wear or abrasion
• External shaft seal wipes and cleans the shaft to keep contaminants out of the SpeedBump housing
• Rear installation requires cutting and welding: remove the rear upper spring bracket and weld the new bracket in its place

Specifications

• Stroke: 3in
• Position: Rear
• Lift height: 4-6in

Fitment

• Jeep Wrangler TJ 1997-2006 (short wheelbase)
• Jeep Wrangler Unlimited LJ 2004-2006 (long wheelbase)

In the Box

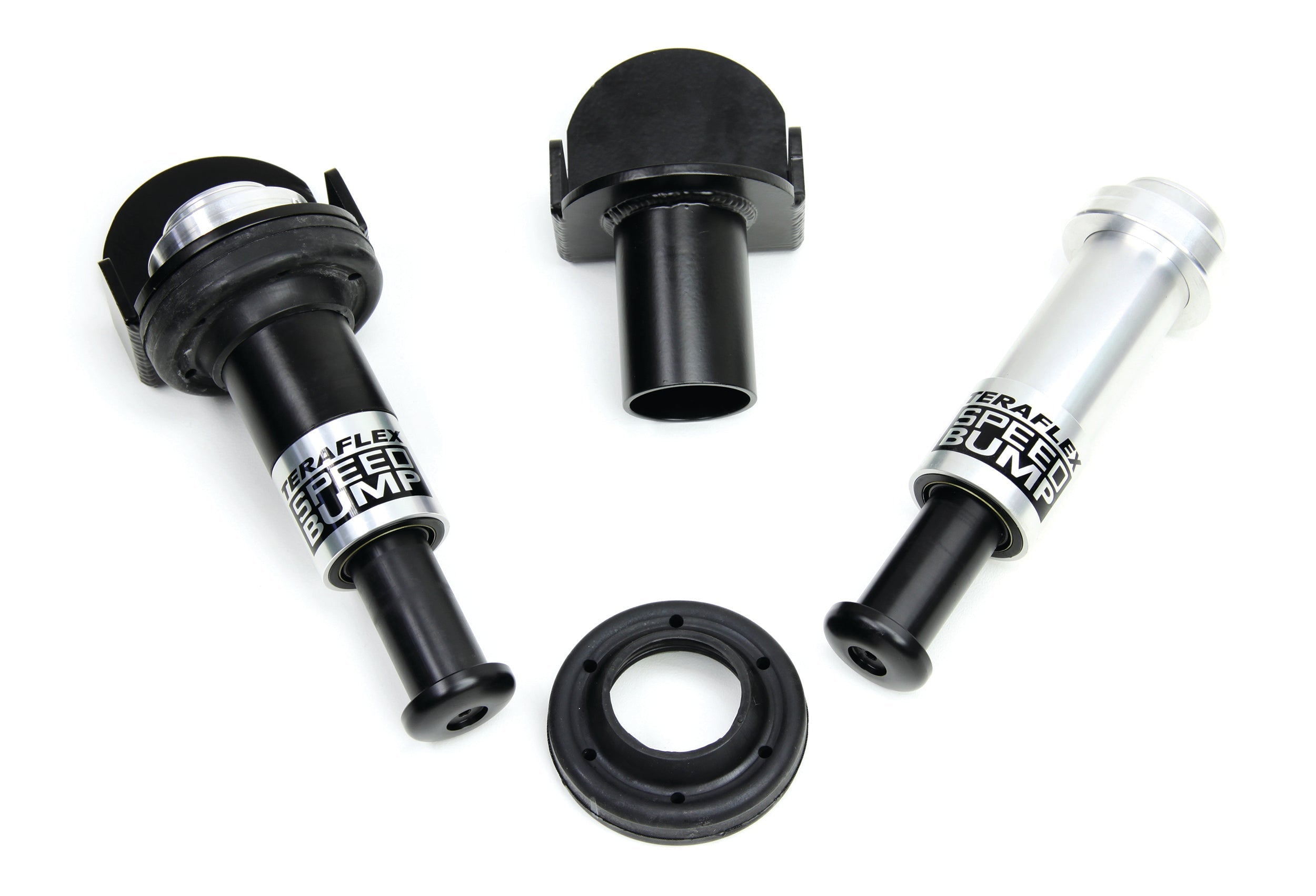

• 3in stroke SpeedBump rear bump stops (4-6in lift), pair
• SpeedBump rear mounting bracket kit with integrated coil spring pads (4944800)
• Adjustment spacer kit, 0.25in and 0.75in (1944740)
• Rubber spring isolators

Notes

• Cutting and welding are required for installation.

MPN 1958720 · UPC 843885025184
