Jeep Wrangler TJ 1997-2006, TeraFlex Pro LCG Long Arm Suspension System for Coilover Setup
Jeep Wrangler TJ 1997-2006, TeraFlex Pro LCG Long Arm Suspension System for Coilover Setup
Click to open expanded view

Jeep Wrangler TJ 1997-2006, TeraFlex Pro LCG Long Arm Suspension System for Coilover Setup

Fits Jeep Wrangler TJ 1997-2006

SKU: 1149075
In stock and ready for shipping
Price
$4,275.99
Free shipping on orders of $70 or more to the lower 48 states (oversize items may carry a surcharge). Tracking emailed when it ships. 60-day returns on new, uninstalled parts in original packaging. RMA required, some items excluded.
Fitment questions? Call 800-300-6715 or email sales@trailrecon.com
Add To Wishlist
Vehicle Fitment
Install Instructions
Warning: California Residents

Share this product

Share Post Pin E-mail

Jeep Wrangler TJ 1997-2006, TeraFlex Pro LCG Long Arm Suspension System for Coilover Setup Info & Specs

A TJ built for rocks and high-speed dirt needs a suspension that holds its geometry through big travel. Stock links run out of adjustment long before the build does.

The TeraFlex Pro LCG Long Arm system is a complete kit for 3-5in lifts, designed for use with coilovers. Up front it uses adjustable LCG long control arms and brackets, and the front upper arms are more than 9in longer than stock. Around back, a triangulated Pro LCG 4-link long control arm setup with rear axle truss replaces the stock 5-link and track bar, with adjustable anti-squat at the rear upper brackets. A HD adjustable front track bar and a drop pitman arm for 4in or more of lift improve steering response.

Install the system, add aftermarket coilovers and mounts, and set the adjustments.

Key Features

  • Adjustable LCG long control arms and brackets; front upper arms more than 9in longer than stock
  • Pro LCG triangulated 4-link rear with axle truss, replacing the stock 5-link rear suspension and track bar
  • Rear upper brackets with adjustable anti-squat
  • HD adjustable front track bar and drop pitman arm (4in or more of lift)
  • Designed for use with coilovers

Specifications

  • Lift height: varies
  • Max tire diameter: varies

Fitment

  • Jeep Wrangler TJ (short wheelbase) 1997-2006

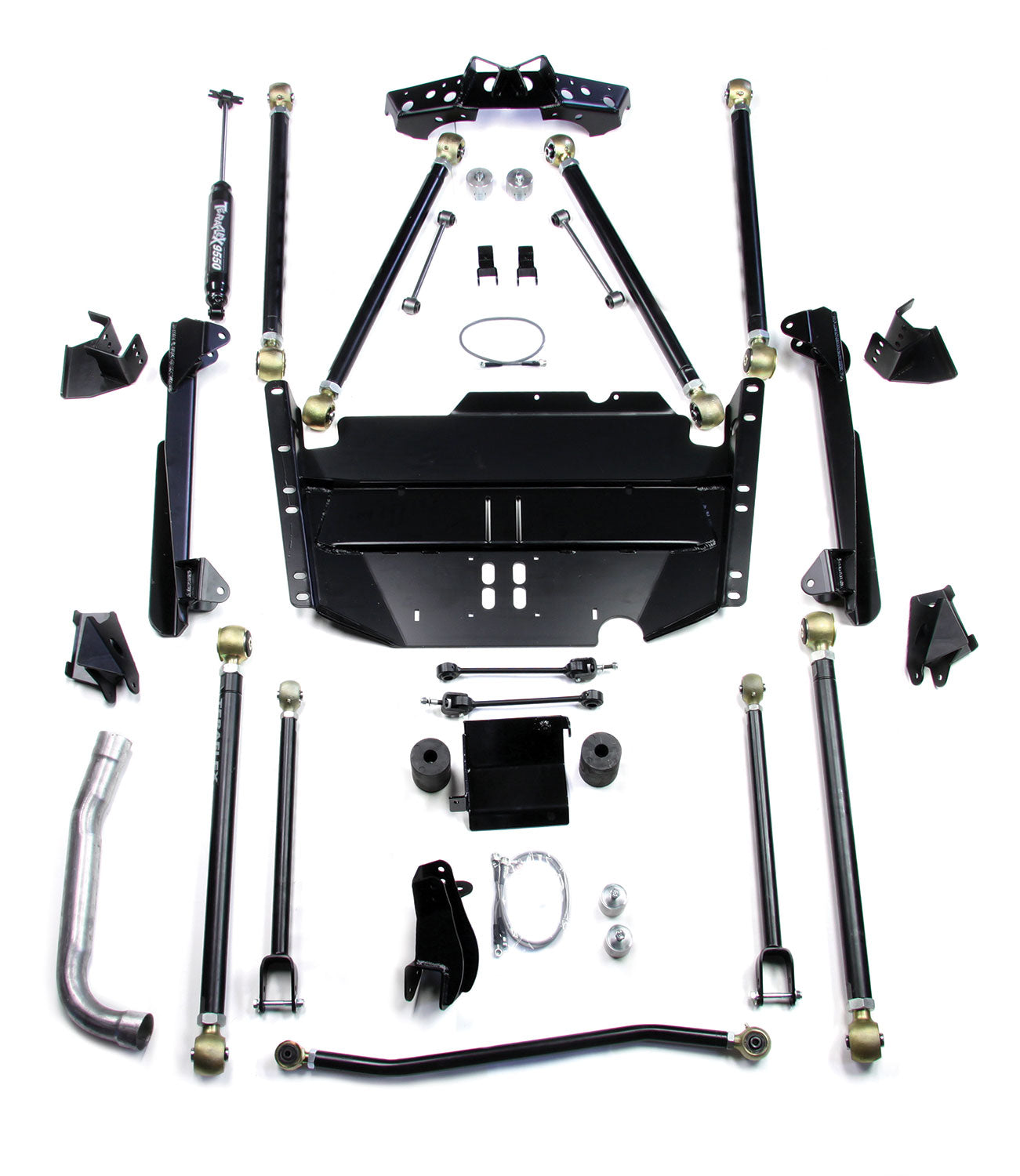

In the Box

  • Pro LCG long control arm and bracket kit, front upper (3-5in lift)
  • LCG long control arm and bracket kit, lower (3-5in lift)
  • Pro LCG 4-link long control arm and bracket kit, rear upper (3-5in lift)
  • HD adjustable front track bar (3.5-6in lift)
  • High Steer front track bar frame bracket kit
  • 10in front sway bar quick disconnect kit (3-6in lift)
  • 10.5in rear sway bar link kit (2.5-5in lift)
  • BellyUp skid plate kit
  • HD steering box skid plate kit
  • 26in stainless-steel braided brake line kit, front and rear
  • Exhaust pipe extension
  • All necessary hardware

Notes

  • Coilovers and mounts are not included and must be purchased from the aftermarket.


MPN 1149075 · UPC 843885019701
