Jeep Wrangler TJ 1997-2006, TeraFlex Pro LCG Long Arm and Bracket Upgrade Kit, Front Upper, 3-5in Lift

A TJ with short upper control arms and a 3 to 5 inch lift is working with a suspension that has no adjustment left. This TeraFlex kit upgrades the front upper arms to an adjustable Pro LCG long arm system. It includes the pair of long arms with rebuildable joints and CAD-engineered 1/4in steel frame brackets that locate on the factory belly pan skid plate bolt holes and are then stitch welded. The kit also includes an exhaust pipe extension. It requires the Lower LCG Long Arm and Bracket Upgrade Kit (TJ SWB 1447700, LJ LWB 1447780), and combining it with the Rear Upper kit (TJ SWB 1444870, LJ LWB 1444880) steps up to the full Pro LCG Long Arm Suspension System. It can be added to an existing suspension lift.

Key Features

• Upgrades front upper short control arms to adjustable Pro LCG long arms
• 1/4in thick steel frame brackets, CNC laser cut and precision bent
• Frame brackets locate on the factory belly pan skid plate bolt holes, then stitch weld
• Rebuildable joints
• Can be added to an existing suspension lift

Specifications

• Lift height: 3-5in
• Arm tube diameter and wall: 1.25 x 0.25in
• Arm factory length: 15-1/8in; minimum 22-1/2in; maximum 24-7/8in
• Arm bolts, both ends: 7/16in (12mm)
• Arm frame joint: 4116230

Fitment

• Jeep Wrangler TJ 1997-2006 (TJ short wheelbase and LJ Unlimited long wheelbase)

In the Box

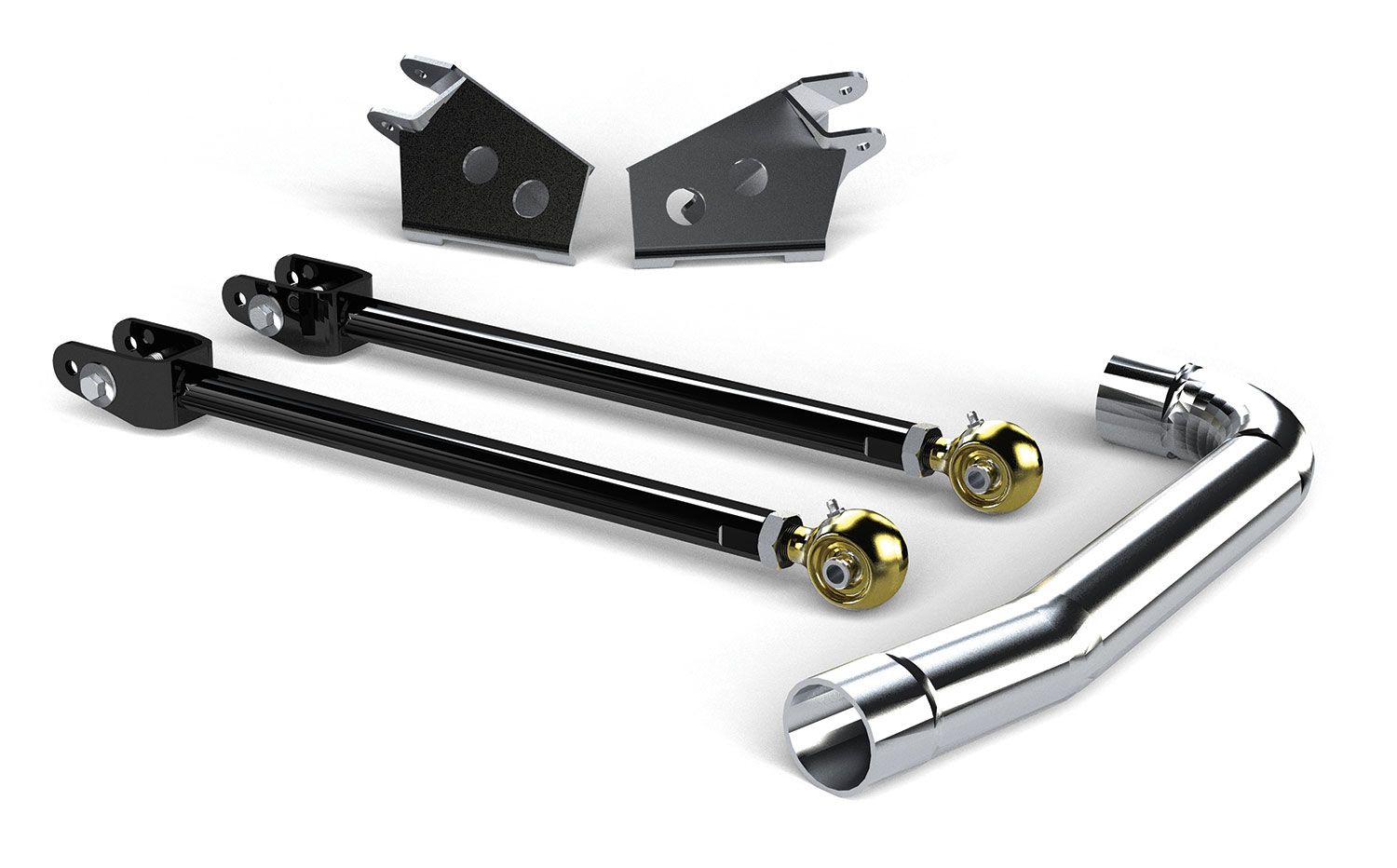

• Pro LCG long arm pair, front upper (1613801): two front upper arms (1649839)
• Pro LCG long arm frame brackets: front upper left (9791) and front upper right (9792)
• Exhaust pipe extension
• All necessary hardware

Notes

• Requires the Lower LCG Long Arm and Bracket Upgrade Kit (TJ SWB 1447700, LJ LWB 1447780), sold separately.

MPN 1443470 · UPC 843885021322
