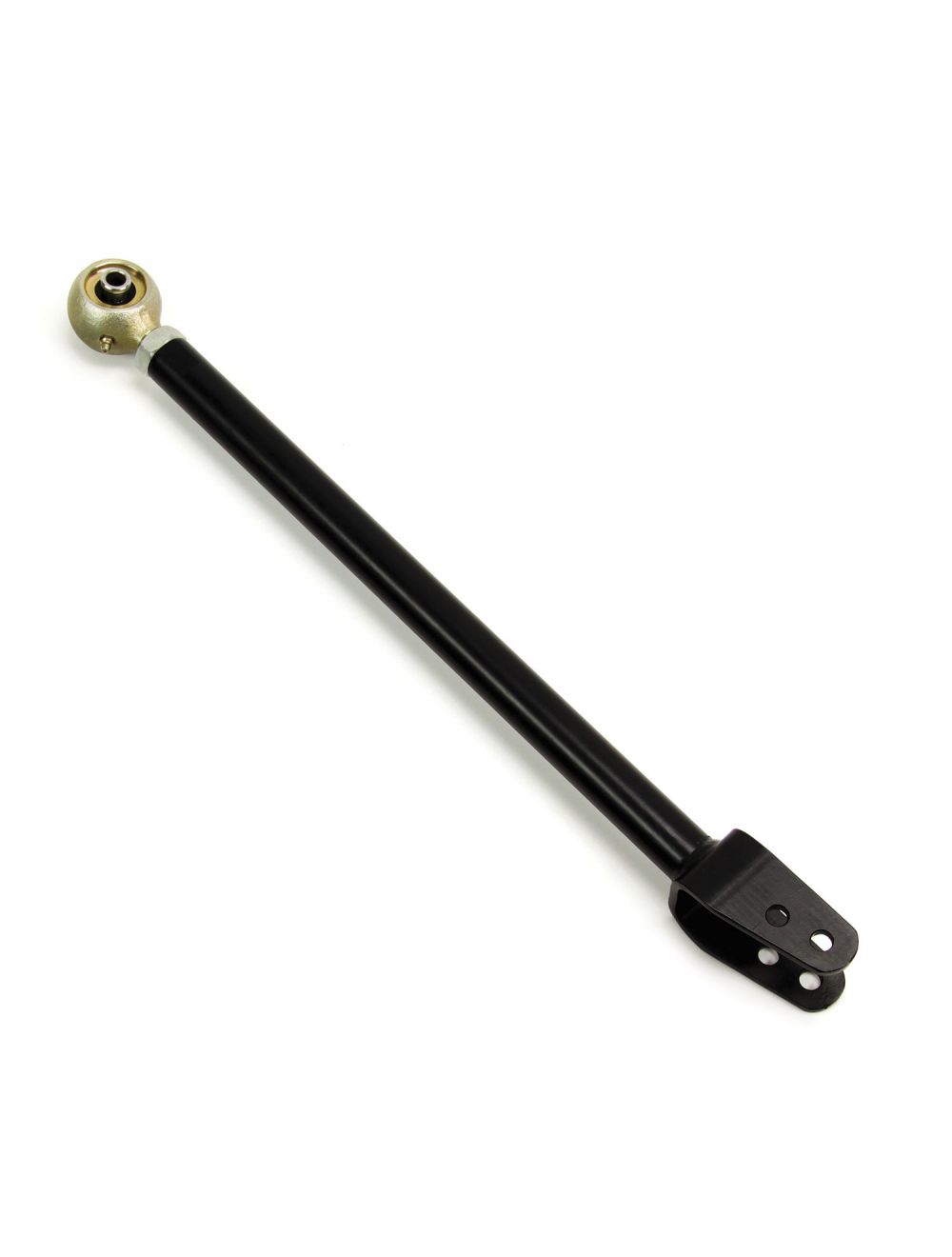

Jeep Wrangler TJ 1997-2006, TeraFlex Pro LCG Long Arm, Front Upper, 3-5in Lift

Lift a TJ and the short upper arms run out of travel and out of adjustment. A long, adjustable arm lets the axle sit where it should and the suspension move freely. The TeraFlex Pro LCG front upper long arm is built with rebuildable joints, so wear is handled with a rebuild rather than a new arm. One arm fits either side, and two are required per vehicle. Use it with the Front Upper Pro LCG Long Arm Frame Brackets (9791 left, 9792 right, sold separately), and it can be added to an existing suspension lift.

Key Features

• Complete alignment adjustability for 3-5in lifts
• Rebuildable joints for easy maintenance
• One arm fits left or right; two required
• Can be added to an existing suspension lift

Specifications

• Lift height: 3-5in
• Tube diameter and wall: 1.25 x 0.25in
• Factory length: 15-1/8in
• Minimum length: 22-1/2in
• Maximum length: 24-7/8in
• Bolts, both ends: 7/16in (12mm)
• Frame joint: 4116230

Fitment

• Jeep Wrangler TJ 1997-2006 (TJ short wheelbase and LJ Unlimited long wheelbase)

In the Box

• Pro LCG long arm, front upper (left or right)

Notes

• Must be used with Front Upper Pro LCG Long Arm Frame Brackets (9791 left, 9792 right), sold separately.

MPN 1649839 · UPC 843885028659
