Jeep Wrangler TJ 1997-2006, TeraFlex Pro LCG Dana 30/44 High Steer System, 4-6in Lift

A lifted TJ runs into steering problems: low-hanging linkage, bump steer and geometry that no longer suits the highway. The TeraFlex Pro LCG Dana 30/44 High Steer System addresses those front-end issues on lifted TJ Wrangler and Unlimited models.

It strengthens the steering components of the Dana 30 or Rubicon Dana 44 front axle, helps maximize ground clearance and corrects steering geometry. The High Steer HD Aluminum Tie Rod and Drag Link convert the stock steering to a cross steer or flipped setup, and flipping the drag link over the knuckle helps eliminate front-end shimmy, bump steer and other alignment issues.

The system combines the High Steer Knuckle with the tie rod kit and drag link kit. Bolt it together, and the steering geometry is corrected for the lift.

Key Features

• Strengthens the steering components of the Dana 30 or Rubicon Dana 44 front axle and helps maximize ground clearance
• High Steer HD Aluminum Tie Rod and Drag Link convert the stock steering to a cross steer or flipped setup
• Compatible with all factory and aftermarket axle shafts, ball joints and wheel hubs; does not affect ABS operation

Specifications

• Lift height: 4-6in
• Lift kit: 4-6in Long Arm Suspension System
• Front axle: Dana 30 or Rubicon Dana 44

Fitment

• Jeep Wrangler TJ 1997-2006 (short wheelbase)
• Jeep Wrangler Unlimited LJ (long wheelbase)
• Jeep ZJ Grand Cherokee, XJ Cherokee and MJ Comanche with Dana 30 front axle (requires additional modifications)

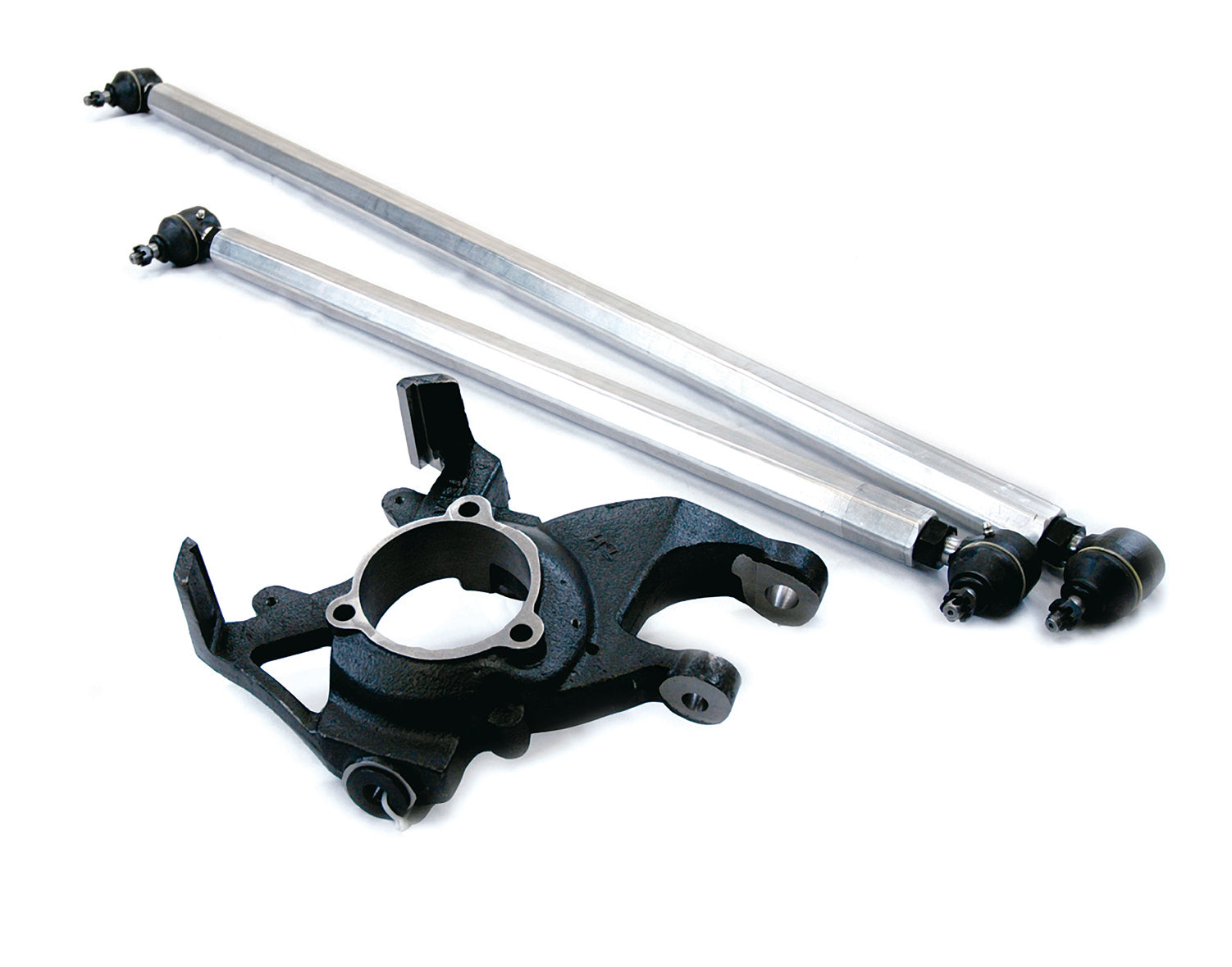

In the Box

• High Steer knuckle with 3 tapered inserts (4828490)
• High Steer HD aluminum tie rod kit (4920251): tie rod, offset stock taper tie rod ends (left-hand 4920231, right-hand 4920232), 2 boots (4925100)
• High Steer HD aluminum drag link kit (4920244): drag link, drag link ends (left-hand 4920221, right-hand 4920222), 2 boots (4925100)

Notes

• Not an all-inclusive kit. Additional modifications may be required.
• Does not include the High Steer Sway Bar Mount Kit (4959100), the 9550 VSS Steering Stabilizer Mount Kit (1510090) or the Front Sway Bar Quick Disconnect Kit (1743092).
• TeraFlex also recommends the Front High Steer HD Adjustable Track Bar and Bracket Kit (4923200) and the Drop Pitman Arm (1922133), neither included.

MPN 1813000 · UPC 843885023579
