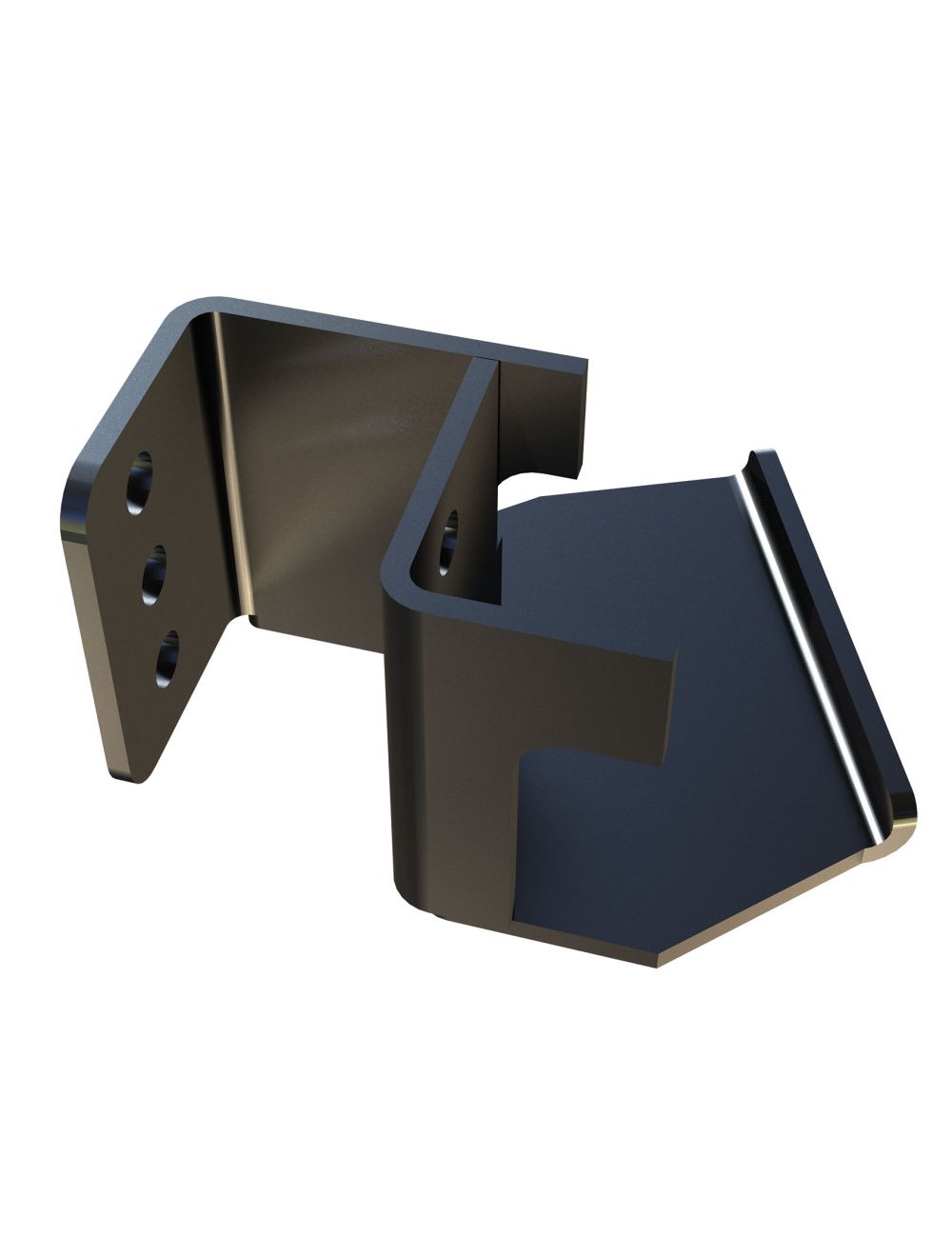

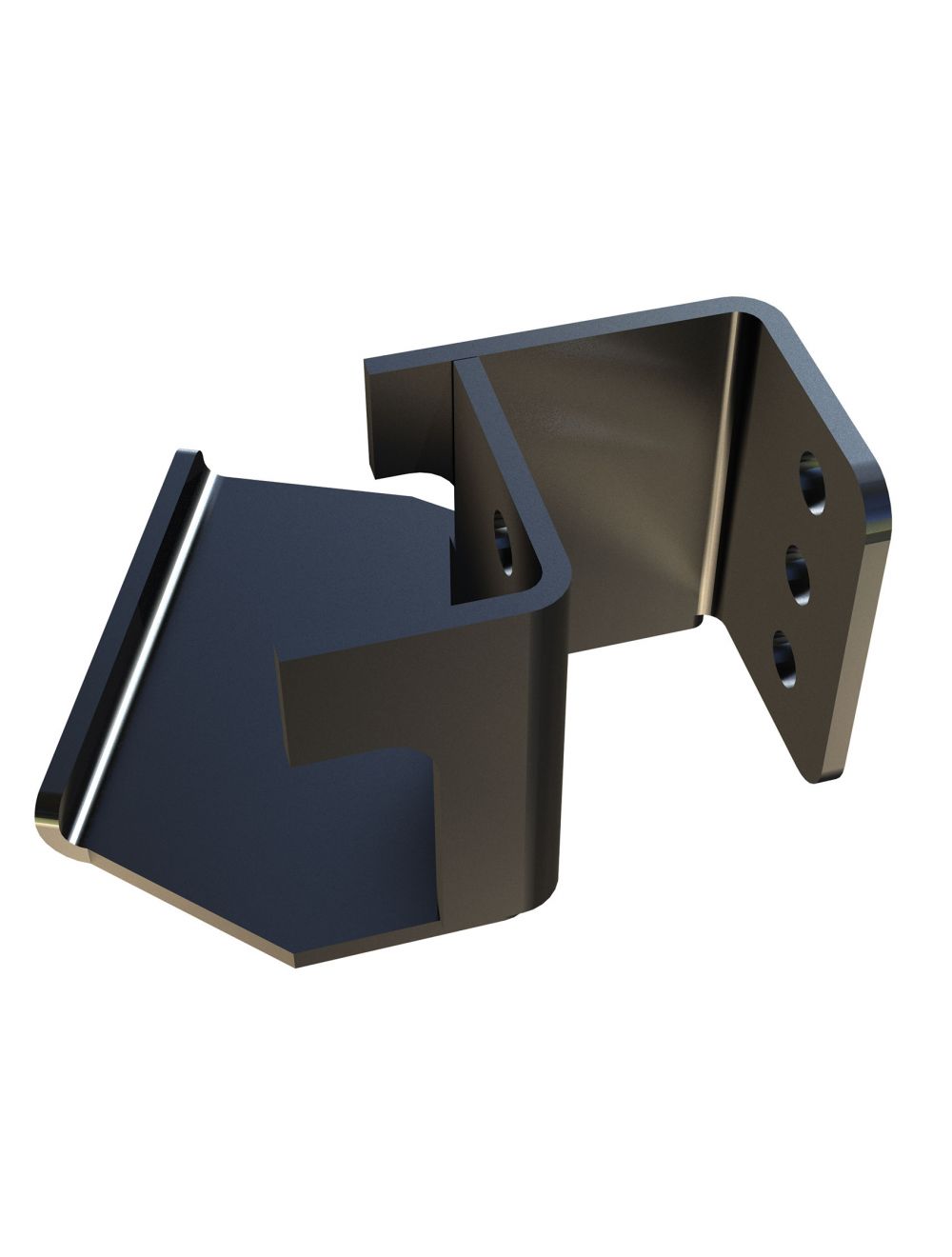

Jeep Wrangler TJ 1997-2006, TeraFlex Pro LCG 4-Link Long Arm Frame Bracket, Rear Upper, 3-5in Lift

The stock rear five-link suspension limits flex and can interfere with other components once a TJ is lifted. This TeraFlex Pro LCG 4-link frame bracket, together with the rear upper axle truss, converts it to a triangulated rear 4-link for more flex. The bracket is CAD engineered from 1/4in steel, CNC laser cut and precision bent, and locates on the factory belly pan skid plate bolt holes before it is stitch welded. Install it with the adjustable triangulated Rear Upper Pro LCG 4-Link Long Arms and the suspension can be added to an existing lift.

Key Features

• Part of the conversion from the stock rear 5-link to a triangulated rear 4-link for increased flex
• 1/4in thick steel, CNC laser cut and precision bent
• Locates using the factory belly pan skid plate bolt holes, then stitch welded
• Same components as the Enduro LCG and Pro LCG Long Arm Suspension Systems
• Can be added to an existing suspension lift

Specifications

• Lift height: 3-5in
• Position: Rear upper, left or right

Fitment

• Jeep Wrangler TJ 1997-2006 (TJ short wheelbase and LJ Unlimited long wheelbase)

In the Box

• Pro LCG 4-link long arm frame bracket, rear upper, left or right per part number
• All necessary hardware

Notes

• Must be used with adjustable triangulated Rear Upper Pro LCG 4-Link Long Arms (TJ SWB 1447712, LJ LWB 1447707), sold separately.

MPN 97881 (Rear Upper Left) · UPC 843885017042

MPN 97882 (Rear Upper Right) · UPC 843885017059
