Jeep Wrangler LJ Unlimited 2004-2006, TeraFlex Pro LCG 4-Link Long Arm and Bracket Upgrade Kit, Rear Upper, LWB, 3-5in Lift

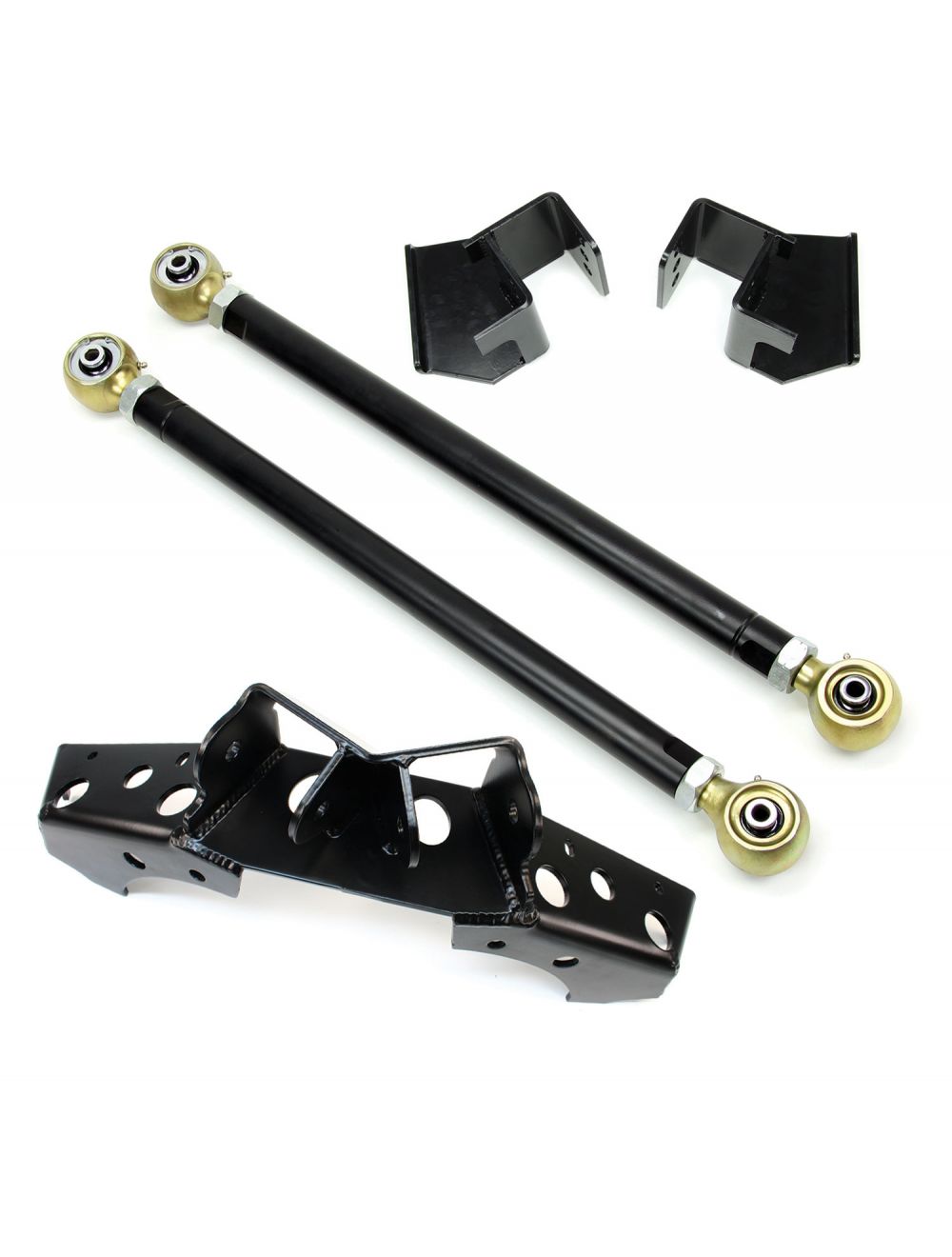

A lifted LJ Unlimited with short rear upper arms has no adjustment left, and the stock rear five-link layout limits flex. This TeraFlex kit upgrades the rear upper suspension to an adjustable, triangulated Pro LCG 4-link system. It includes the pair of long arms with rebuildable joints, the left and right CAD-engineered 1/4in steel frame brackets, and the triangulated axle truss, with hardware for each. Install the brackets and truss, bolt in the arms, and set the length for the lift. It requires the Lower LCG Long Arm and Bracket Upgrade Kit (LJ LWB 1447780) and can be combined with the Front Upper kit (1443470) for the full Pro LCG system.

Key Features

• Upgrades rear upper short control arms to adjustable triangulated Pro LCG 4-link long arms
• Converts the stock rear 5-link to a triangulated rear 4-link for increased flex
• 1/4in thick steel frame brackets, CNC laser cut and precision bent
• Frame brackets locate on the factory belly pan skid plate bolt holes, then stitch weld
• Can be added to an existing suspension lift

Specifications

• Lift height: 3-5in
• Arm tube diameter and wall: 1.75 x 0.25in
• Arm factory length: 13-1/4in; minimum 41-11/16in; maximum 44-1/16in
• Arm bolts, both ends: 9/16in (14mm)
• Arm axle joint: 4116260; frame joint: 4116270

Fitment

• Jeep Wrangler LJ Unlimited 2004-2006 (long wheelbase), rear upper

In the Box

• Pro LCG 4-link long arm pair, rear upper (1447707): two rear upper arms (1649880)
• Frame brackets: rear upper left (97881) and rear upper right (97882), with hardware
• Axle truss, rear upper (1944044), with hardware

Notes

• Requires the Lower LCG Long Arm and Bracket Upgrade Kit (LJ LWB 1447780), sold separately.

MPN 1444880 · UPC 843885021346
