Jeep Wrangler Unlimited LJ 2004-2006, TeraFlex LWB 5in Pro LCG Long Arm Suspension System with High Steer and 9550 VSS Twin-Tube Shocks

A long wheelbase TJ lifted 5 in for 37 in tires lives or dies on its link angles, and the steering linkage hangs low in the same place. Fixing one without the other leaves a compromise.

TeraFlex LCG (Low Center-of-Gravity) Long Arm Suspension Systems are built for Jeepers who want trail capability without giving up on-road comfort. Up front, adjustable LCG long control arms and brackets expand on the stock 5-link layout. Around back, an adjustable triangulated Pro LCG 4-link with rear axle truss replaces the stock 5-link and track bar, and the rear upper brackets add anti-squat tunability.

This package adds the Pro LCG Dana 30/44 High Steer System and the 9550 VSS Twin-Tube Shock Kit for 5-6 in of lift. Install the whole system, and the suspension, steering and shocks are matched to the 5 in lift.

Key Features

• Front upper Pro LCG long control arms more than 9in longer than stock
• Adjustable triangulated Pro LCG 4-link rear suspension with rear axle truss replaces the stock 5-link rear suspension and track bar
• Rear upper brackets feature adjustable anti-squat tunability
• Adjustable long control arms balance front caster and pinion angles and optimize rear pinion angle, anti-squat geometry and tire position
• LCG long arm brackets and 4-link rear axle truss reposition the frame-end control arm mounting points to relax link angles and reduce bushing stress during extreme droop
• HD adjustable front track bar, drop pitman arm and triangulated rear upper arms improve steering response, center the axles and reduce body roll
• Includes the Pro LCG Dana 30/44 High Steer System (1849000) and the High Steer HD adjustable front track bar
• Reduced noise, vibration and harshness (NVH)

Specifications

• Lift height: 5in
• Maximum tire diameter: 37in
• Wheelbase: Long (LWB)

Fitment

• Jeep Wrangler Unlimited LJ 2004-2006 (long wheelbase)

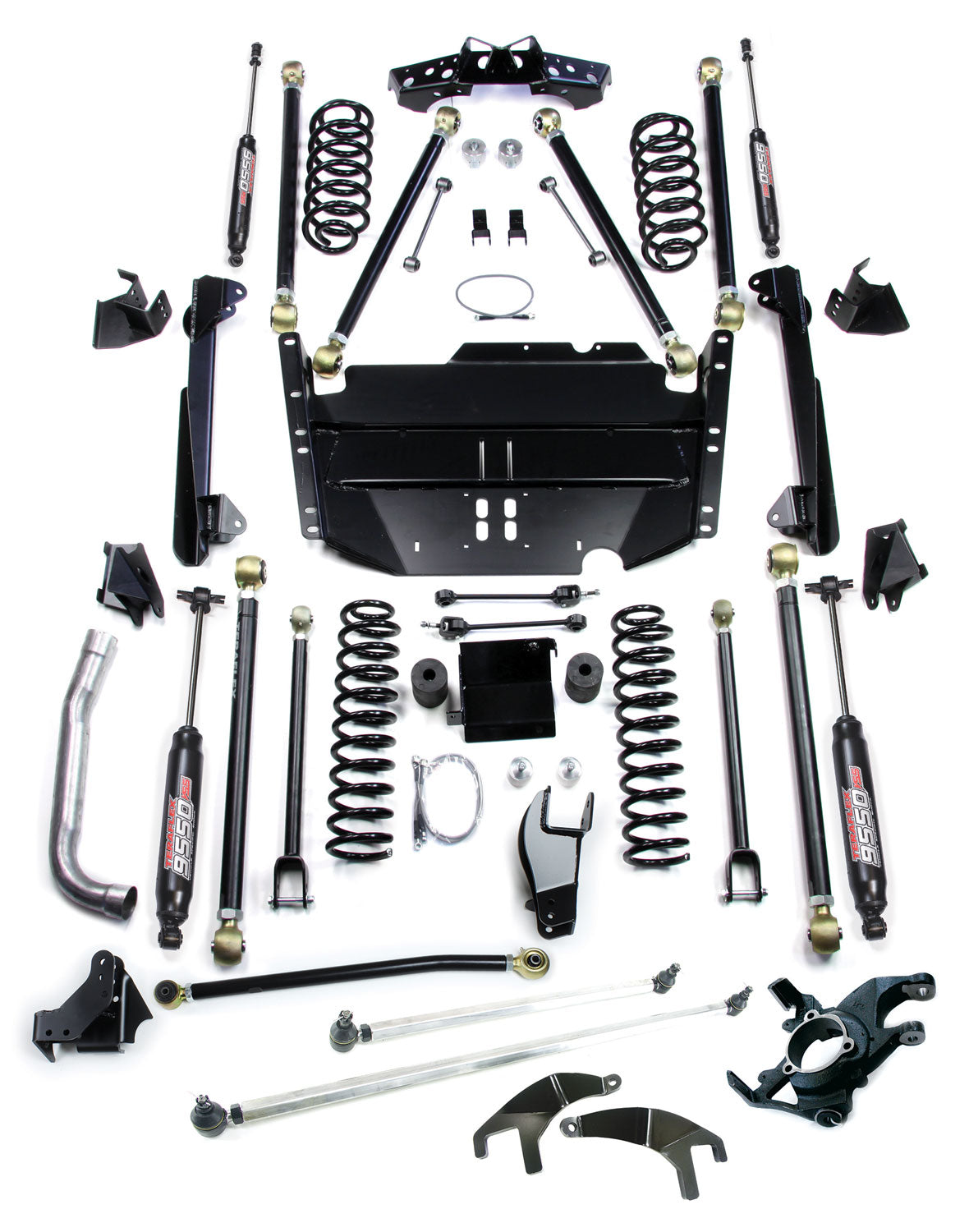

In the Box

• Pro LCG long control arm and bracket kit, front upper, 3-5in lift (1443470)
• LCG long control arm and bracket kit, lower, 3-5in lift (1447780)
• Pro LCG 4-link long control arm and bracket kit, rear upper, 3-5in lift (1444880)
• High Steer front track bar frame bracket kit (1743031)
• 2.25in front upper bump stop extension kit, LCG lift (1910204)
• 1.75in rear lower bump stop extension kit, LCG lift (1949011)
• 10.5in rear sway bar link kit, 2.5-5in lift (1944011)
• BellyUp skid plate kit (4648403)
• HD steering box skid plate kit (4627400)
• 2003-2006 TJ: 1in transfer case lowering spacer kit (1900103)
• 1997-2002 TJ: shift linkage plate kit (1900001)
• 2003-2006 TJ: shift linkage plate kit (1900003)
• 26in stainless steel braided brake line kit, front and rear (4350400)
• Rear lower shock extension kit (1544790)
• 9550 VSS twin-tube shock kit, 5-6in lift (1549500)
• Pro LCG Dana 30/44 High Steer System, 4-6in lift (1849000): High Steer knuckle (4828490), High Steer HD aluminum drag link kit with stock taper tie rod ends (4920244), High Steer HD aluminum tie rod kit with stock taper offset tie rod ends (4920251), drop pitman arm (1922133), High Steer sway bar mount kit (4959100), steering stabilizer mount (1510090), 8in front sway bar quick disconnect kit, 0-2in lift (1743092)
• High Steer HD adjustable front track bar, 3.5-6in lift (4923202)
• High Steer front track bar axle bracket kit (1943070)
• All necessary hardware

Notes

• The 5in lift coil springs are listed by the manufacturer as part of the Pro LCG system (front 1843502, rear 1844502).

MPN 1249580 · UPC 843885020479
