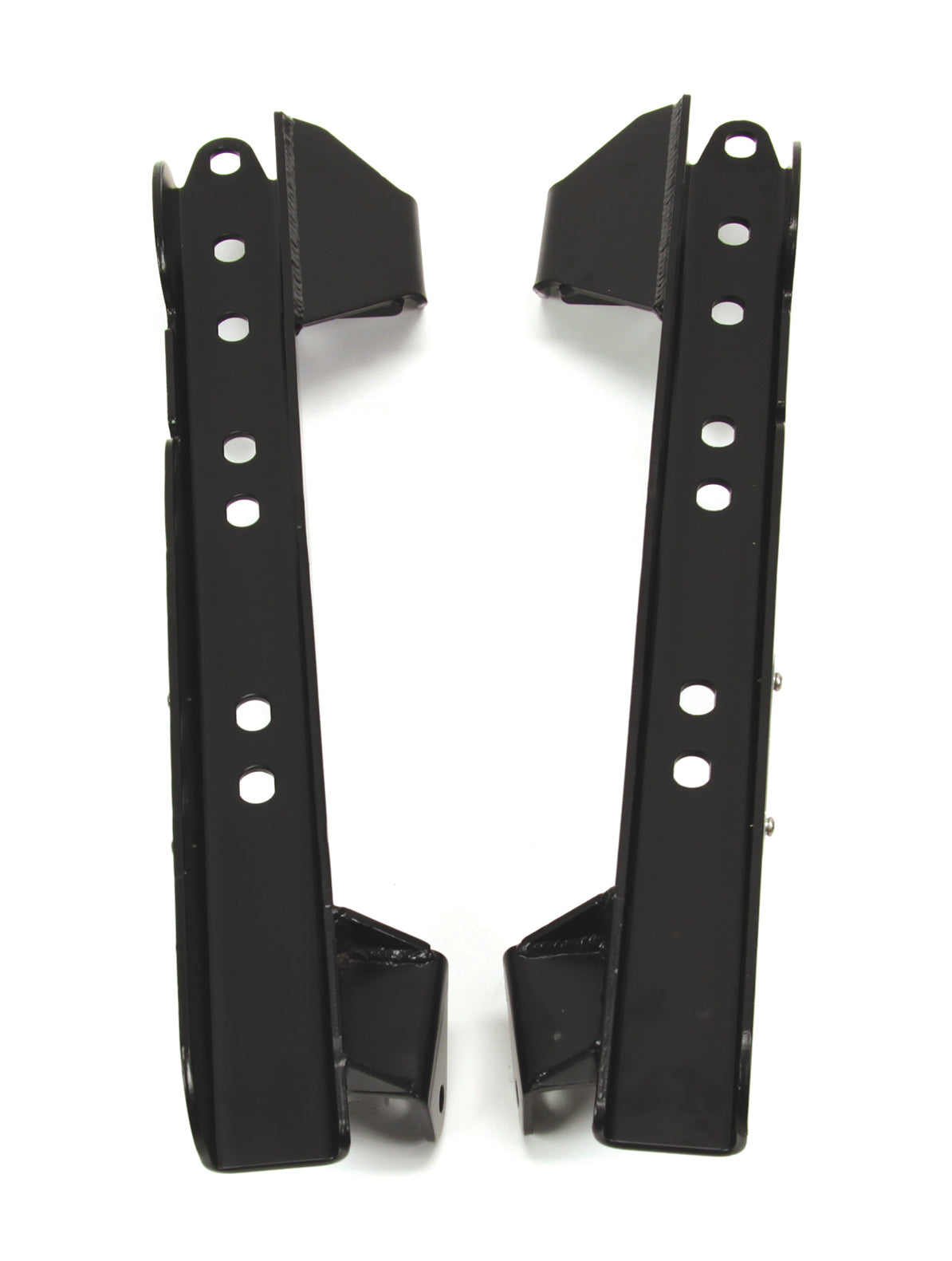

Jeep Wrangler TJ 1997-2006, TeraFlex LCG Long Arm Frame Bracket Kit, Lower, 3-5in Lift

Long lower arms need frame brackets that are strong enough to carry them. These TeraFlex lower LCG long arm frame brackets are CAD-engineered for strength from 1/4 in thick steel, CNC laser cut and precision bent for accurate fitment.

They locate using the factory belly pan skid plate bolt holes and are then stitch welded. They are the same components found in the Enduro LCG and Pro LCG Long Arm Suspension Systems, and streamlining the frame-end mounting points put both the front and rear mounts in the one lower bracket, which simplifies installation while keeping a factory appearance.

Locate the brackets, weld them, and the lower long arms have a solid mount. The kit can be added to an existing suspension lift.

Key Features

• 1/4in thick steel, CNC laser cut and precision bent for accurate fitment
• Locates using the factory belly pan skid plate bolt holes, then stitch welded
• Front and rear mounts combined in the lower brackets, with a factory appearance
• Same components as in the Enduro LCG and Pro LCG Long Arm Suspension Systems

Specifications

• Lift height: 3-5in

Fitment

• Jeep Wrangler TJ 1997-2006 (short wheelbase)
• Jeep Wrangler Unlimited LJ (long wheelbase)

In the Box

• Frame bracket, lower left
• Frame bracket, lower right
• All necessary hardware

Notes

• Must be used with adjustable Lower LCG Long Arms (TJ SWB: 1447702 x 2; LJ LWB front: 1447702, rear: 1447704), not included.
• Stitch welding is required.

MPN 1447701 · UPC 843885021407
