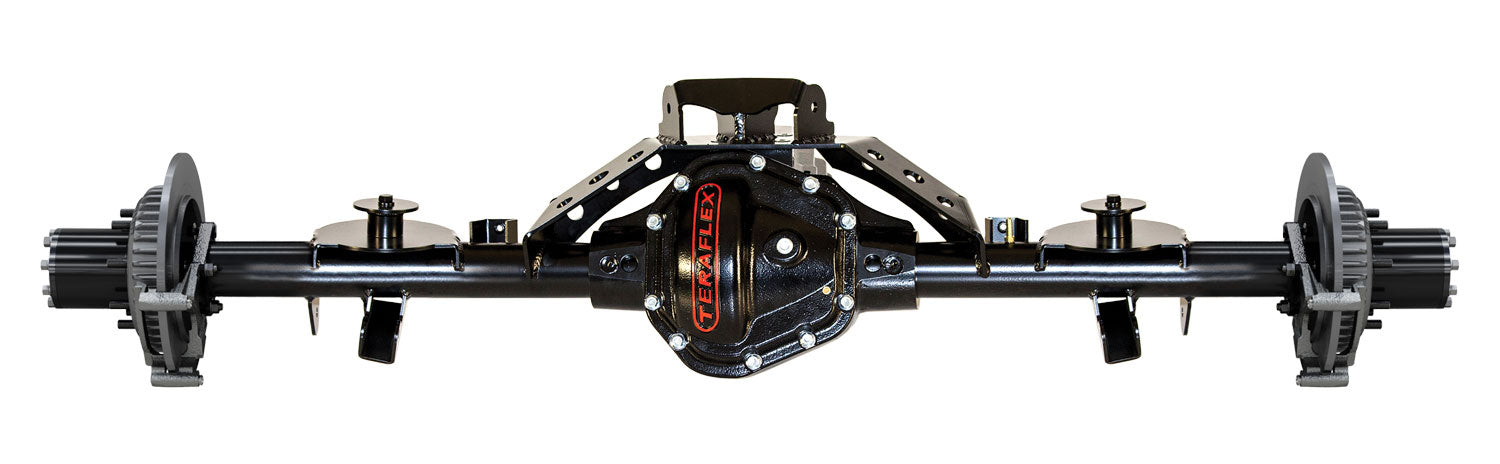

Jeep Wrangler TJ 1997-2006, TeraFlex 67in Tera CRD60 HD Full-Float Rear Axle with Super 60 and ARB Locker, 3-6in Lift

A TJ built for rock and big tires needs a rear axle that arrives ready to run. Piecing together a housing, gears, locker and brakes risks mismatched parts and a long build.

The complete TeraFlex Tera CRD60 HD Rear Axle is a 67in full-float assembly with pre-installed Spicer Super 60 ring and pinion gears, an ARB Air Locker, full-float outer axles, 35-spline inner and outer axle shafts, sensors and a Rear Performance Big Rotor Kit with 13.5in rotors. The Constant Radius Design (CRD) housing gives high ground clearance that is unaffected by pinion angle adjustments, and it is compatible with all Super 60 gear ratios for extreme duty applications that need extra ring and pinion strength.

Choose your gear ratio, bolt the assembly in, and the TJ has a loaded rear axle for 3-6in lifts.

Key Features

• Pre-installed Spicer Super 60 ring and pinion and ARB Air Locker
• Constant Radius Design housing with high ground clearance unaffected by pinion angle adjustments
• Full-float outer axles with 35-spline inner and outer axle shafts
• Gear ratio choices: 5.38 and 4.88, plus P/N 3916430 and 3906430

Specifications

• Width: 67in
• Lift height: 3-6in
• Axle shaft spline count: 35
• Pinion yoke: 1350 series

Fitment

• Jeep Wrangler TJ and LJ Unlimited 1997-2006 (short and long wheelbase)

In the Box

• ARB Air Locker
• Spicer Super 60 ring and pinion
• Spicer bearings and install kits
• Full-float axles
• 35-spline inner and outer axle shafts
• 1350 series pinion yoke
• Rear Performance Big Rotor Kit with 13.5in rotors

Notes

• Ships by freight.

MPN 3916538 (5.38 Ratio) · UPC 843885040637

MPN 3916488 (4.88 Ratio) · UPC 843885040620

MPN 3916430 · UPC 843885040606

MPN 3906538 (5.38 Ratio) · UPC 843885040644

MPN 3906488 (4.88 Ratio) · UPC 843885040613

MPN 3906430 · UPC 843885040590
