Jeep Wrangler TJ 1997-2006 & LJ 2004-2006, TeraFlex 4in Suspension System with 4 Short Control Arms and 9550 VSS Shocks

A TJ that sees trails and the highway needs a lift that handles both. Moderate trail use and daily driving ask for adjustable arms without a giant bill.

The TeraFlex 4 in Suspension System with 4 Short Control Arms includes adjustable front lower and rear lower short control arms and a rear track bar bracket for moderate trail and on-road suspension tuning, plus a drop pitman arm and the 9550 VSS twin-tube shock kit. TeraFlex tunes geometry, roll center and load so the factory stability controls stay functional.

Install the springs, arms and shocks, and align.

Key Features

• Adjustable front lower and rear lower short control arms
• Rear track bar axle bracket kit
• Drop pitman arm for 3.5-6 in of lift
• Includes the 9550 VSS twin-tube shock kit (3-4 in lift)
• Stainless steel braided brake lines, front and rear

Specifications

• Lift height: 4 in

Fitment

• Jeep Wrangler TJ 1997-2006 (short wheelbase)
• Jeep Wrangler LJ Unlimited 2004-2006 (long wheelbase)

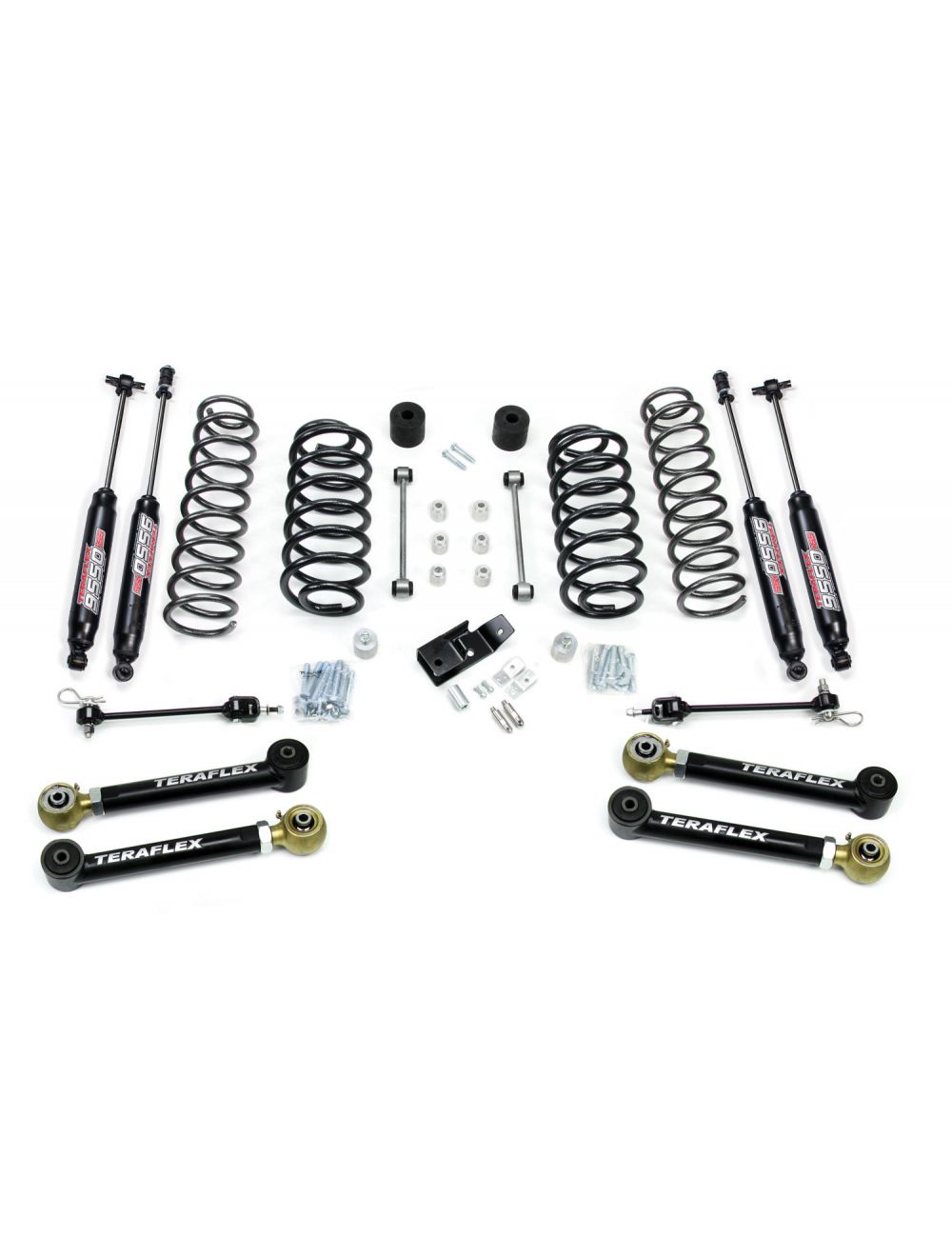

In the Box

• 4 in lift coil springs, front and rear
• Short control arm kit, lower (0-4 in lift) (2)
• Rear track bar axle bracket kit (3-6 in lift)
• Drop pitman arm (3.5-6 in lift)
• 2.25 in front lower bump stop extension kit (3-4 in lift)
• 2.25 in rear upper bump stop extension kit (4 in lift)
• 10 in front sway bar quick disconnect kit (3-6 in lift)
• 10.5 in rear sway bar link kit (2.5-5 in lift)
• 1 in transfer case lowering spacer kit (2003-2006 TJ)
• 26 in front and 26 in rear stainless steel braided brake line kit
• 9550 VSS twin-tube shock kit (3-4 in lift)
• All necessary hardware

Notes

• Offered by TeraFlex with 9550 VSS shocks or without shocks. Falcon Series 3.0 Piggyback shocks are sold separately for 3-4 in lift.

MPN 1456432 · UPC 843885021766
