Jeep Wrangler TJ/LJ 1997-2006, TeraFlex 4in Coil Spring Base Lift Kit with Quick Disconnects, No Shocks

A 4 in lift is the biggest step most owners want without a full suspension. This TeraFlex base kit supplies the springs, bump stop parts and rear sway bar links and front sway bar quick disconnects that go with it.

Coil spring base lift kits include just the basic lift components and do not have the drivability of a full suspension system. Adjustable control arms and/or an adjustable front track bar are required to correct suspension geometry. The kit includes the 4 in lift coil springs, a rear track bar axle bracket kit, a drop pitman arm and bump stop extensions. It does not include shocks; TeraFlex recommends Falcon Performance Shocks or TeraFlex 9550 VSS Twin-Tube Shocks.

Install the kit, add the control arms and track bar your build needs, and the TJ is set at its new height.

Key Features

• Basic lift components only
• Adjustable control arms and/or an adjustable front track bar are required to correct suspension geometry
• Front sway bar quick disconnect kit included

Specifications

• Lift height: 4in

Fitment

• Jeep Wrangler TJ 1997-2006 (short wheelbase)
• Jeep Wrangler Unlimited LJ 2004-2006 (long wheelbase)

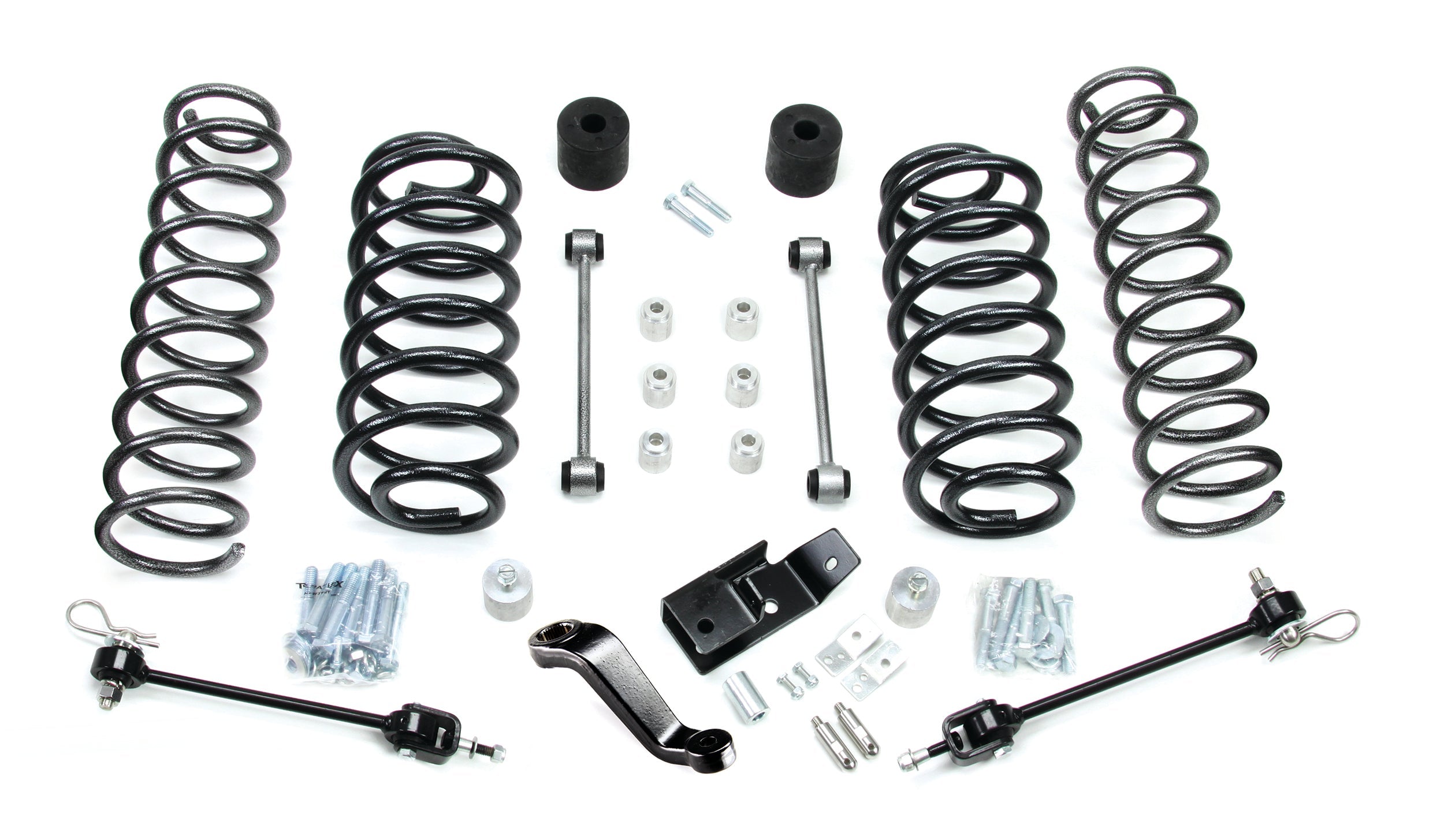

In the Box

• 4in lift coil springs (front 1843402, rear 1844402)
• Rear track bar axle bracket kit, 3-6in lift (1944000)
• Drop pitman arm, 3.5-6in lift (1922133)
• 2.25in front lower bump stop extension kit, 3-4in lift (1910234)
• 2.25in rear upper bump stop extension kit, 4in lift (1910204)
• 10in front sway bar quick disconnect kit, 3-6in lift (1743090)
• 10.5in rear sway bar link kit, 2.5-5in lift (1944011)
• 2003-2006 TJ: 1in transfer case lowering spacer kit (1900103)
• All necessary hardware

Notes

• Shocks are not included. This kit is also offered with TeraFlex 9550 VSS Twin-Tube Shocks.
• Requires adjustable control arms and/or an adjustable front track bar to correct suspension geometry.

MPN 1141450 · UPC 843885031666
