Jeep Wrangler TJ/LJ 1997-2006, TeraFlex 3in Suspension System with 4 Short Control Arms, No Shocks

A TJ that has to run errands and take the occasional trail needs a lift that keeps the road manners. Springs alone raise the body, but the arms and the track bar bracket decide how it drives.

The TeraFlex 3 in Suspension System with 4 Short Control Arms adds adjustable front lower and rear lower short control arms and a rear track bar bracket for moderate trail and on-road suspension tuning. Every TeraFlex suspension system is engineered with drivability in mind. Suspension geometry, roll center and load tuning are developed so the factory stability controls stay functional and within the parameters Jeep designed.

Install the kit, add shocks of your choice, and the TJ sits 3 in higher with the ride tuned to match. TeraFlex recommends Falcon Performance Shocks or TeraFlex 9550 VSS Twin-Tube Shocks, neither included.

Key Features

• Adjustable front lower and rear lower short control arms
• Rear track bar bracket for moderate trail and on-road suspension tuning
• Developed so factory stability controls remain functional

Specifications

• Lift height: 3in

Fitment

• Jeep Wrangler TJ 1997-2006 (short wheelbase)
• Jeep Wrangler Unlimited LJ 2004-2006 (long wheelbase)

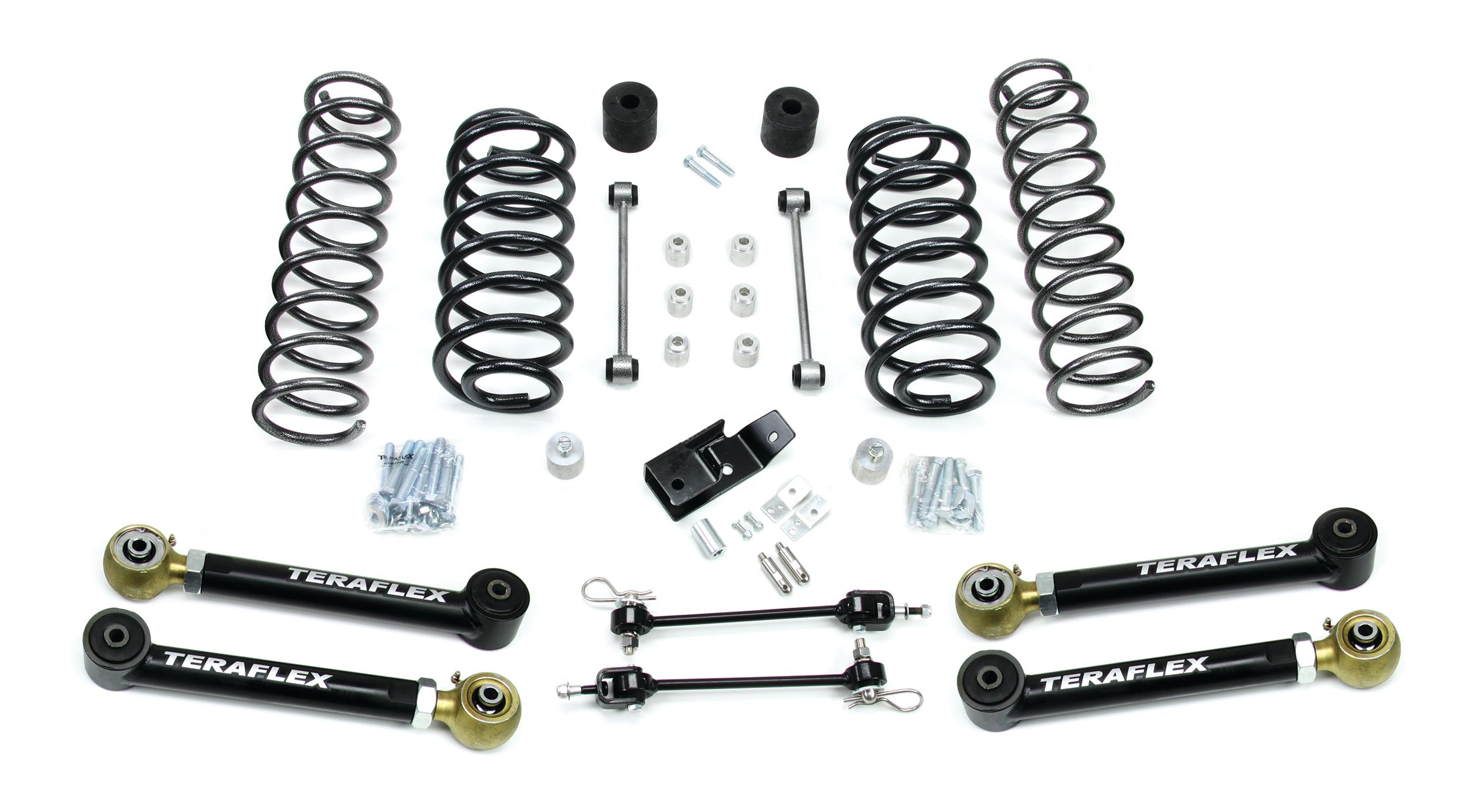

In the Box

• 3in lift coil springs (front 1843302, rear 1844302)
• Short control arm kit, lower, 0-4in lift, 2
• Rear track bar axle bracket kit, 3-6in lift (1944000)
• 2.25in front lower bump stop extension kit, 3-4in lift (1910234)
• 1.5in rear upper bump stop extension kit, 3in lift (1910111)
• 10in front sway bar quick disconnect kit, 3-6in lift (1743090)
• 10.5in rear sway bar link kit, 2.5-5in lift (1944011)
• 2003-2006 TJ: 1in transfer case lowering spacer kit (1900103)
• All necessary hardware

Notes

• Shocks are not included. Falcon Series 3.0 Piggyback Shocks are available separately for 3-4in lift heights.

MPN 1456330 · UPC 843885021711
