Jeep Wrangler TJ SWB 1997-2006, TeraFlex 5in Pro LCG Long Arm Suspension System with High Steer and 9550 VSS Twin-Tube Shocks
Jeep Wrangler TJ SWB 1997-2006, TeraFlex 5in Pro LCG Long Arm Suspension System with High Steer and 9550 VSS Twin-Tube Shocks
Click to open expanded view

Jeep Wrangler TJ SWB 1997-2006, TeraFlex 5in Pro LCG Long Arm Suspension System with High Steer and 9550 VSS Twin-Tube Shocks

Fits Jeep Wrangler TJ SWB 1997-2006

SKU: 1249570
In stock and ready for shipping
Price
$6,618.99
Free shipping on orders of $70 or more to the lower 48 states (oversize items may carry a surcharge). Tracking emailed when it ships. 60-day returns on new, uninstalled parts in original packaging. RMA required, some items excluded.
Fitment questions? Call 800-300-6715 or email sales@trailrecon.com
Add To Wishlist
Vehicle Fitment
Install Instructions
Warning: California Residents

Share this product

Share Post Pin E-mail

Jeep Wrangler TJ SWB 1997-2006, TeraFlex 5in Pro LCG Long Arm Suspension System with High Steer and 9550 VSS Twin-Tube Shocks Info & Specs

A short wheelbase TJ built for serious trails has to keep its on-road manners. The TeraFlex Pro LCG (Low Center-of-Gravity) Long Arm system keeps the stock 5-link up front with adjustable LCG Long Control Arms and brackets, and the front upper arms are more than 9in longer than stock. At the rear, a triangulated 4-link with an axle truss replaces the stock links and track bar and offers adjustable anti-squat tuning. The Dana 30/44 High Steer System and 9550 VSS twin-tube shocks are included. Install the system, and the TJ runs 37in tires.

Key Features

  • Adjustable Pro LCG Long Control Arms and brackets, front upper and lower (3-5in lift)
  • Pro LCG triangulated 4-link rear upper arms with rear axle truss and adjustable anti-squat tuning
  • Pro LCG Dana 30/44 High Steer System (4-6in lift) with High Steer HD aluminum drag link and tie rod kits
  • BellyUp skid plate kit and HD steering box skid plate kit
  • 9550 VSS twin-tube shock kit (5-6in lift)

Specifications

  • Lift height: 5in
  • Max tire diameter: 37in
  • Wheelbase: short (SWB)

Fitment

  • Jeep Wrangler TJ 1997-2006 (short wheelbase)

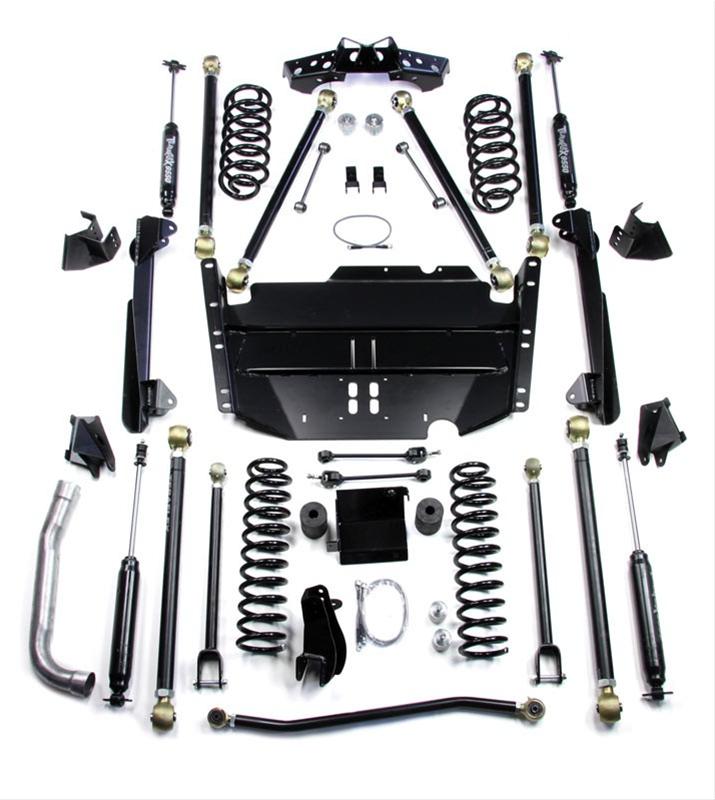

In the Box

  • 5in lift coil springs (front 1843502 and rear 1844502)
  • Pro LCG Long Control Arm and Bracket Kit, front upper (3-5in lift) (1443470)
  • LCG Long Control Arm and Bracket Kit, lower (3-5in lift) (1447700)
  • Pro LCG 4-Link Long Control Arm and Bracket Kit, rear upper (3-5in lift) (1444870)
  • High Steer front track bar frame bracket kit (1743031)
  • High Steer HD adjustable front track bar (3.5-6in lift) (4923202)
  • 2.25in bump stop extension kit, front upper (1910204)
  • 1.75in bump stop extension kit, rear lower (1949011)
  • 10.5in rear sway bar link kit (1944011)
  • BellyUp skid plate kit (4648403)
  • HD steering box skid plate kit (4627400)
  • 1in transfer case lowering spacer kit (2003-2006 TJ) (1900103)
  • Shift linkage plate kits (1997-2002 and 2003-2006 TJ)
  • 26in stainless-steel braided brake line kit, front and rear (4350400)
  • Rear lower shock extension kit (1544790)
  • Pro LCG Dana 30/44 High Steer System (4-6in lift) (1849000)
  • 9550 VSS twin-tube shock kit (5-6in lift) (1549500)
  • All necessary hardware


MPN 1249570 · UPC 843885020455
