Jeep Wrangler LJ 2004-2006, TeraFlex 4in Pro LCG Long Arm Suspension System with 9550 VSS Twin-Tube Shocks

A long wheelbase LJ Wrangler Unlimited built for hard trails also has to ride well on the road. The TeraFlex Pro LCG (Low Center-of-Gravity) Long Arm system keeps the stock 5-link setup up front with adjustable LCG Long Control Arms and brackets, and the front upper arms are more than 9in longer than stock. At the rear, a Pro LCG triangulated 4-link with a rear axle truss replaces the stock links and track bar and offers adjustable anti-squat tuning. 9550 VSS twin-tube shocks are included. Install the complete system, and the LWB has a long arm setup that stays comfortable on the road.

Key Features

• Adjustable Pro LCG Long Control Arms and brackets, front upper (3-5in lift), and LCG lower arms
• Pro LCG triangulated 4-link rear upper arms with rear axle truss and adjustable anti-squat tuning
• High steer front track bar frame bracket kit and drop pitman arm
• BellyUp skid plate kit and HD steering box skid plate kit
• 9550 VSS twin-tube shock kit (3-4in lift)

Specifications

• Lift height: 4in
• Max tire diameter: 35in
• Wheelbase: long (LWB)

Fitment

• Jeep Wrangler LJ Unlimited 2004-2006 (long wheelbase)

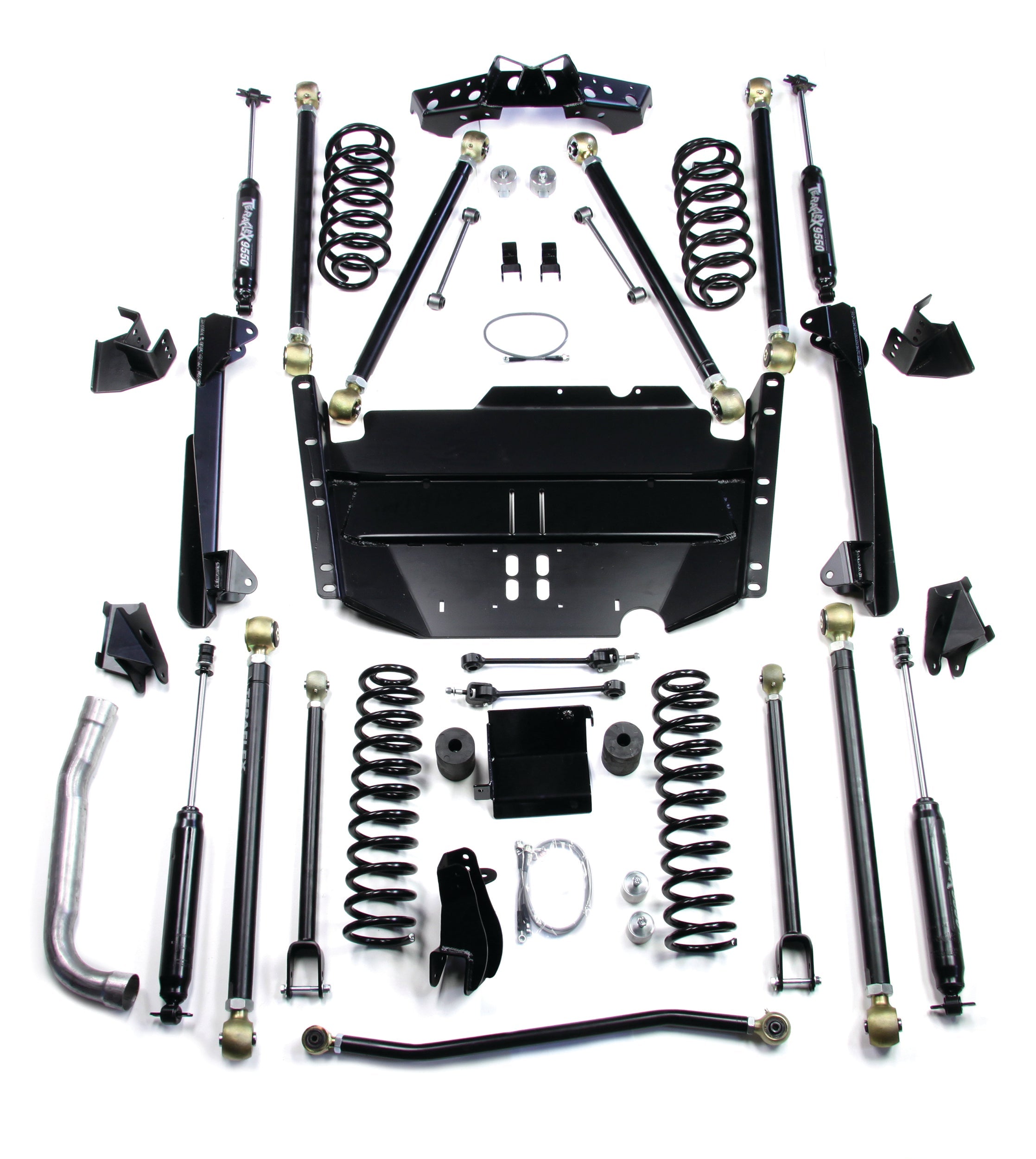

In the Box

• 4in lift coil springs, front and rear
• Pro LCG Long Control Arm and Bracket Kit, front upper (3-5in lift)
• LCG Long Control Arm and Bracket Kit, lower (3-5in lift)
• Pro LCG 4-Link Long Control Arm and Bracket Kit, rear upper (3-5in lift)
• HD adjustable front track bar (3.5-6in lift)
• High Steer front track bar frame bracket kit
• Drop pitman arm (3.5-6in lift)
• 2.25in front upper and 1.75in rear lower bump stop extension kits (LCG lift)
• 10in front sway bar quick disconnect kit
• 10.5in rear sway bar link kit
• BellyUp skid plate kit
• HD steering box skid plate kit
• 1in transfer case lowering spacer kit (2003-2006 TJ)
• Shift linkage plate kits (1997-2002 and 2003-2006 TJ)
• 26in stainless-steel braided brake line kit, front and rear
• Rear lower shock extension kit
• 9550 VSS twin-tube shock kit (3-4in lift)
• All necessary hardware

MPN 1249484 · UPC 843885020448
