Jeep Wrangler TJ/LJ/JK/JL & Gladiator JT 1997-2026, MetalCloak Adjustable Bump Stop System, 1-4in

Every mix of lift height and tire size needs a different amount of bump stop. Set it too short and the tires hit the body or vital parts at full compression; too tall and the suspension gives up usable travel.

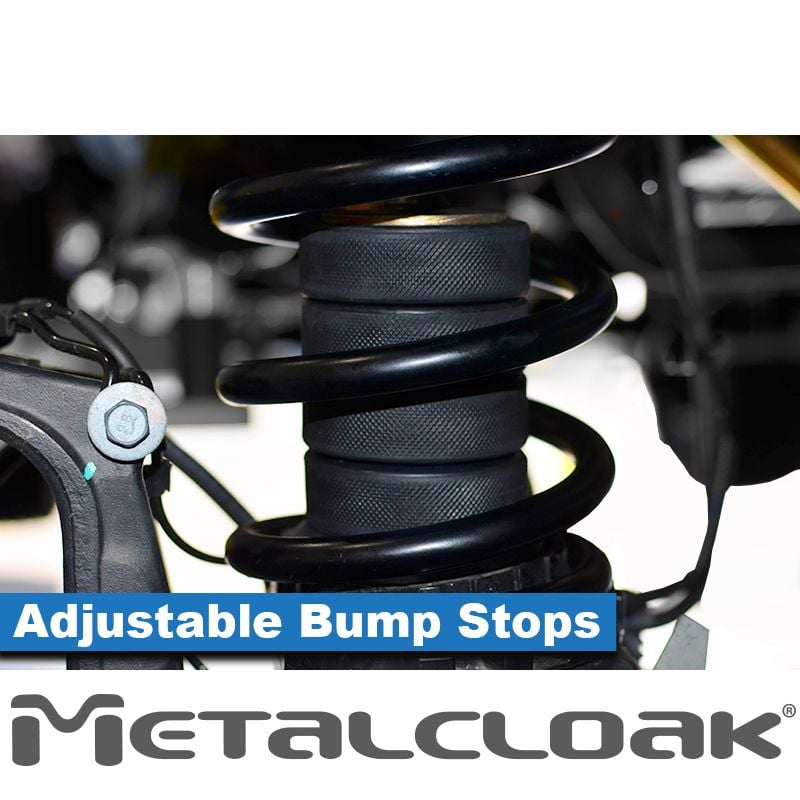

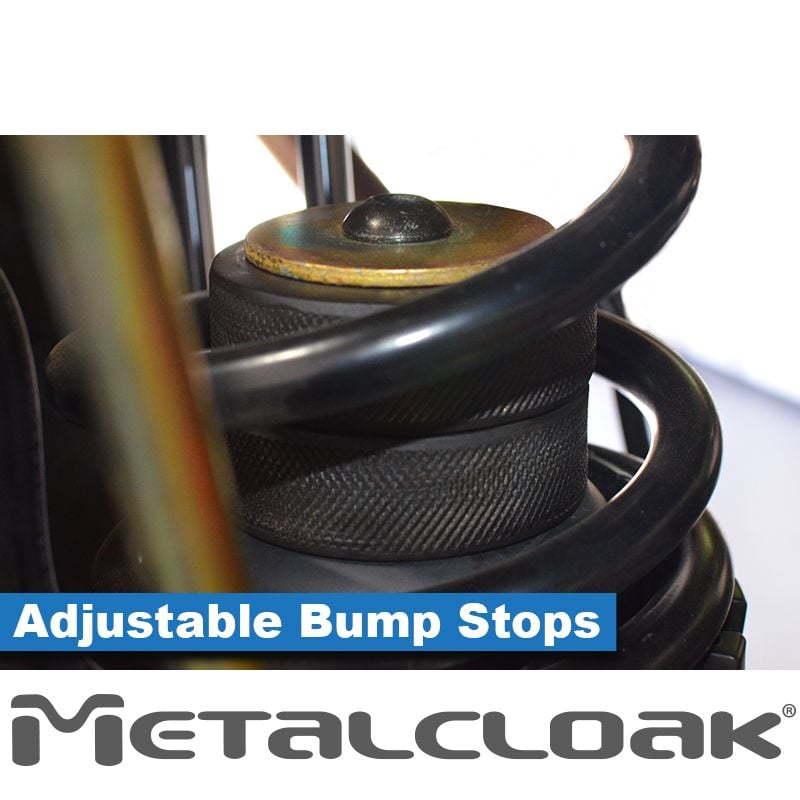

The MetalCloak Adjustable Bump Stop System stacks 1in thermoset elastomer pads on gold zinc plated plates, with black oxide bolts in the right length for each height from 1in to 4in. Set the height for the build, and change it later without removing the coils.

Key Features

• Height adjustable from 1in to 4in
• Eight stackable 1in thermoset elastomer pads
• Adjusts without removing the coils after install
• Black oxide bolts in the required lengths for every height
• Two gold zinc plated bump plates
• Adjustable to eliminate tire and body interference

Specifications

• Pad material: Thermoset elastomer
• Plate material: 1008/1010 steel
• Coating: Gold zinc
• Adjustment range: 1-4in
• Install difficulty: Easy
• Install time: 1 hour
• Body modification: Some drilling required

Fitment

• Jeep Wrangler TJ/LJ 1997-2006 (front or rear)
• Jeep Wrangler JK 2007-2018 (front)
• Jeep Wrangler JL 2018-2026 (front)
• Jeep Gladiator JT 2020-2026 (front)

In the Box

• Bump stop pads (8)
• Bump stop plates (2)
• All required hardware

Notes

• Height guide: one pad and the short bolts for 1in, two pads and the medium bolts for 2in, three pads and the long bolts for 3in, four pads and the longest bolts for 4in.
• MetalCloak recommends a suspension specialist align the Jeep after MetalCloak suspension is installed.

MPN 7040 · UPC 850028646236
