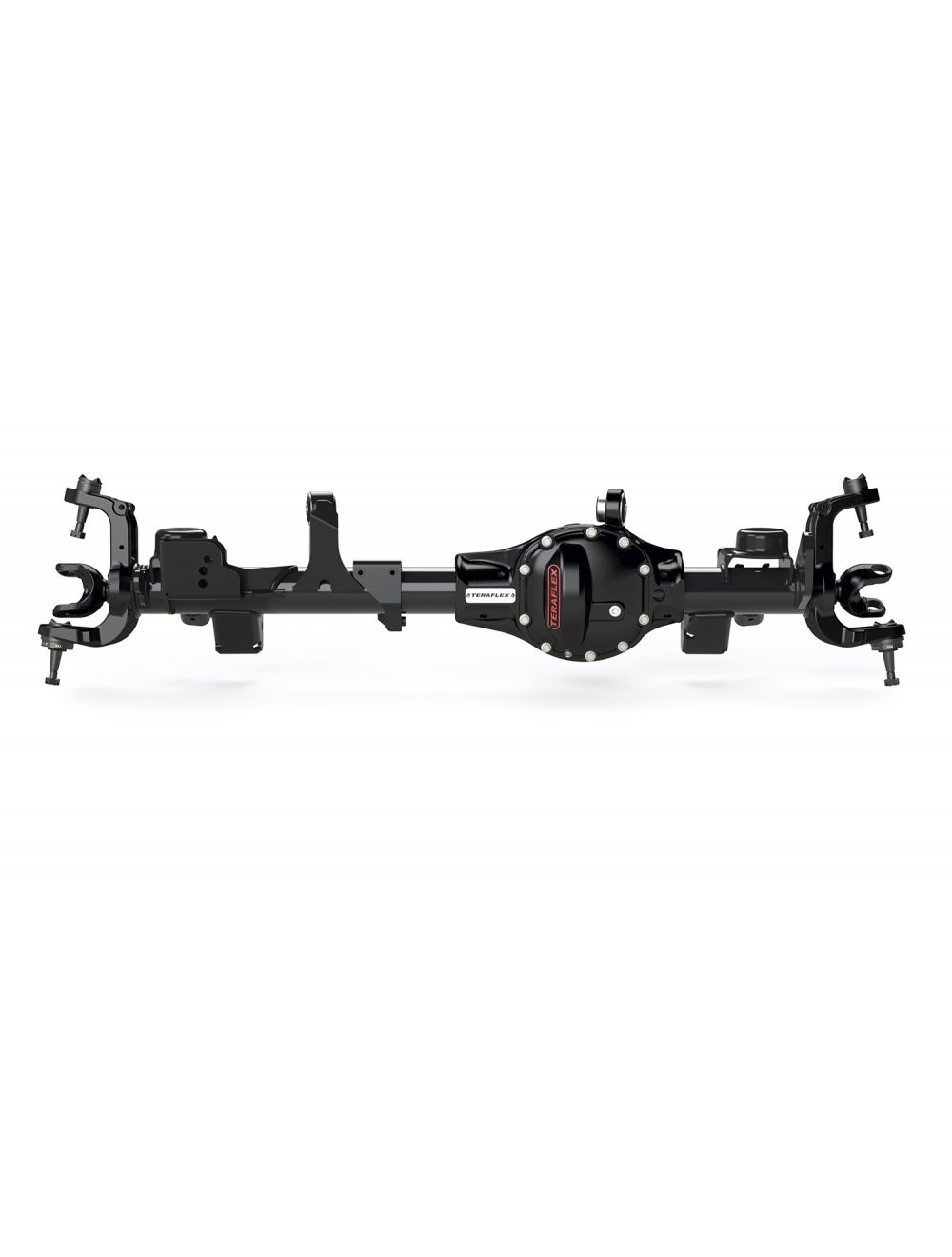

Jeep Wrangler JL 2018-2026, TeraFlex Tera30 HD Front Axle Housing with ARB Locker, 0-5in Lift

A bent or broken front axle ends a trip, and rebuilding it usually means sourcing a locker, gears and shafts separately. Many owners also want a stronger axle than stock.

The TeraFlex Tera30 HD front axle housing steps up to an assembled unit with an ARB air locker and a choice of pre-installed Dana Spicer ring and pinion ratios. The heavy-duty housing has 3.25 x 0.5in axle tubes, 27-spline inner axle shafts, forged inner knuckles and TeraFlex HD ball joints, and it eliminates the center axle disconnect. It takes Dana 30 AdvanTEK (M186) internal components.

Move your outer components over (stub shafts, unit bearings, knuckle assembly, brakes, sensors), and the front axle is complete.

Key Features

• ARB air locker, 27-spline
• Choice of pre-installed Dana Spicer ring and pinion ratios
• Heavy-duty housing with forged inner knuckles; inner axle seals and upper control arm bushings pre-installed
• Eliminates the center axle disconnect
• Compatible with Dana 30 AdvanTEK (M186) internal components

Specifications

• Lift height: 0-5in
• WMS-WMS: 66.5in
• Axle tube: 3.25in OD x 0.5in wall
• Locker and axle shafts: 27-spline
• Wheel bolt pattern: 5x5in
• Gear ratios: 4.10, 4.56, 4.88, 5.13

Fitment

• Jeep Wrangler JL (2-door and 4-door) 2018-2026

In the Box

• Tera30 HD front axle housing
• ARB air locker (27-spline)
• Dana Spicer ring and pinion
• Dana Spicer bearings and install kits
• Tera30 HD front inner axle shafts, left and right (27-spline)
• TeraFlex HD ball joint kit (3452010)
• Factory yoke
• Dana 30 / Tera30 HD differential cover kit (3990630)

MPN 3630513 (5.13 Ratio) · UPC 843885057659

MPN 3630488 (4.88 Ratio) · UPC 843885057642

MPN 3630456 (4.56 Ratio) · UPC 843885057635

MPN 3630410 (4.10 Ratio) · UPC 843885057628
