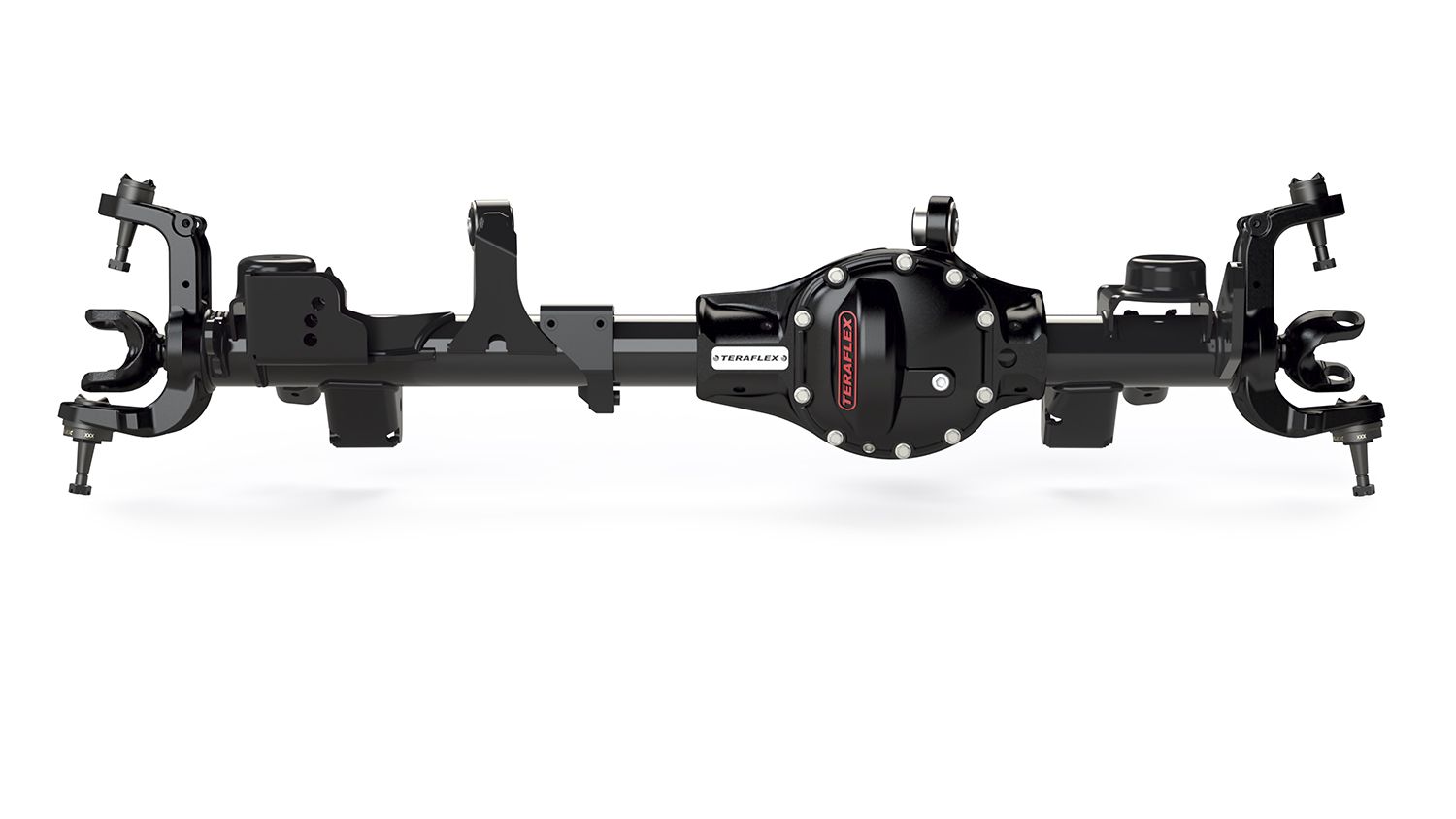

Jeep Wrangler JL 2018-2026, TeraFlex Tera30 HD Front Axle Housing, Bare, 0-5in Lift

A bent or broken front axle ends a trip in one hit, and replacing it usually means a long list of separate parts. Many owners also want a stronger axle than the stock one.

The TeraFlex Tera30 HD bare front axle housing is a heavy-duty housing with 3.25 x 0.5in axle tubes, 27-spline front inner axle shafts, bracketry and forged inner knuckles, with inner axle seals and upper control arm bushings pre-installed. It works as a replacement or as a bolt-on upgrade over the stock axle.

Move your differential, ring and pinion, stub shafts, unit bearings, knuckles, brakes and sensors to the new housing, and the front axle is ready for the trail.

Key Features

• Heavy-duty housing with axle tubes, front inner axle shafts, bracketry and forged inner knuckles
• Inner axle seals and upper control arm bushings pre-installed
• Eliminates the center axle disconnect
• Compatible with Dana 30 AdvanTEK (M186) internal components
• Transfer your existing differential, ring and pinion and outer components

Specifications

• Lift height: 0-5in
• WMS-WMS: 66.5in
• Axle tube: 3.25in x 0.5in
• Axle shafts: 27-spline
• Wheel bolt pattern: 5x5in
• Locker: N/A
• Gear ratio: N/A

Fitment

• Jeep Wrangler JL 2018-2026 (2-door and 4-door)

In the Box

• Tera30 HD front axle housing
• Tera30 HD front inner axle shafts, left and right (27-spline)
• TeraFlex HD ball joint kit (3452010)
• Factory yoke Dana 30 / Tera30 HD differential cover kit (3990630)

Notes

• Ships by freight.

MPN 3630100 · UPC 843885057611
