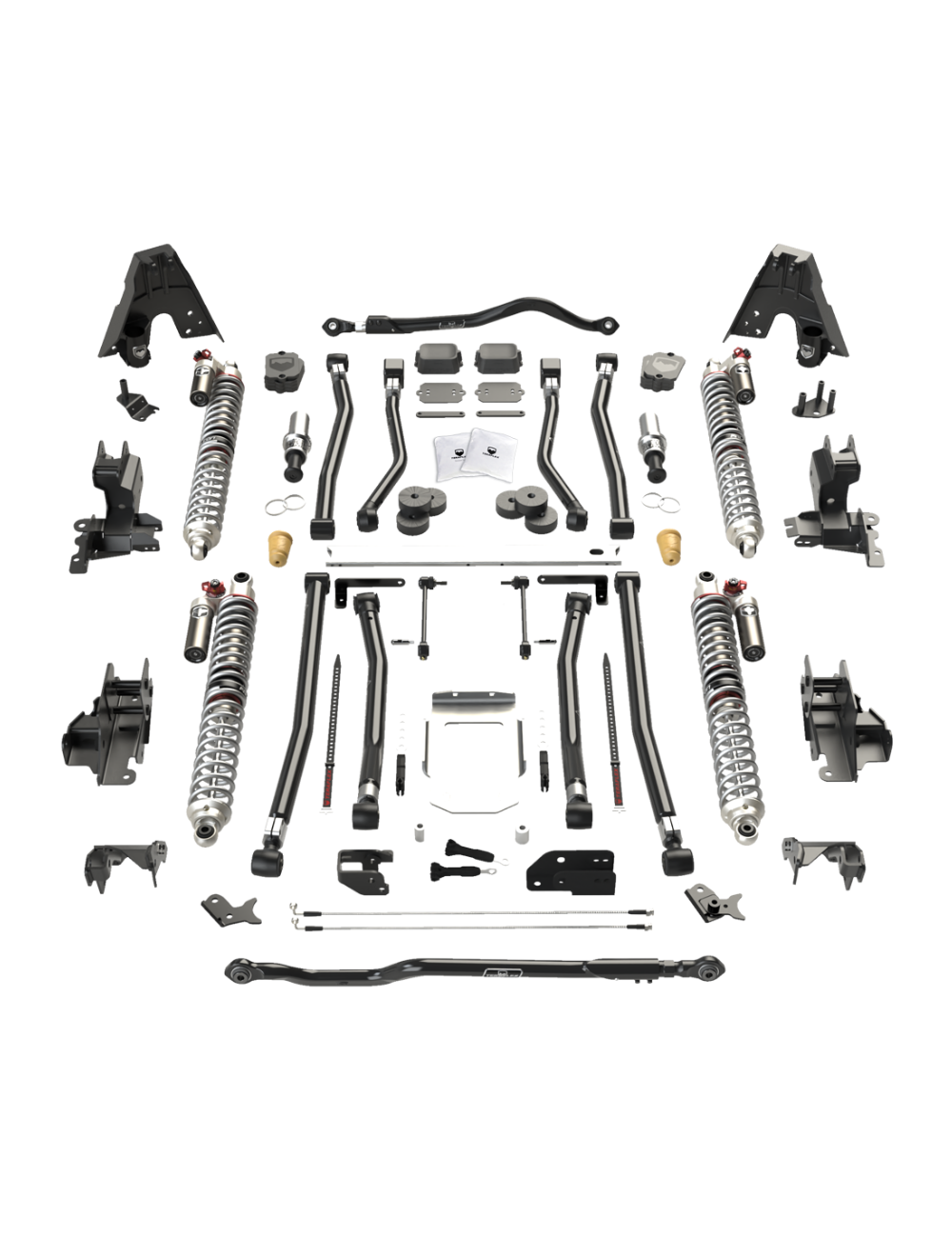

Jeep Wrangler JL 4-Door 2018-2026, TeraFlex Alpine RT Coilover Suspension System, 392, F60/R60 Axles

Coilover shocks promise a big step up, but many bring spring twang, slider slap, clicking and mount squeaks. A Rubicon 392 owner wants the upgrade without the noise.

The TeraFlex Alpine RT coilover system is built for the 4-door JL Rubicon with the 392 powertrain, with front and rear Falcon coilovers (13in stroke) and a 4.5in lift with plus or minus 1.25in of adjustability. Falcon 3.3 series Quick Adjust tuning, JL-specific springs and sealed gimbal lock bearing mounts keep it quiet. This version is for front and rear HD 3.25in diameter axles.

Bolt on the coilover brackets, set the ride height, align, and the 392 gets a quiet long-travel suspension.

Key Features

• 13in stroke Falcon coilovers, front and rear
• Adjustable crossover for true dual-rate
• 4.5in lift with plus or minus 1.25in adjustability using quick adjust snap rings
• Falcon 3.3 series Quick Adjust tuning
• JL-specific springs and shock tuning
• Sealed and booted oversized gimbal lock bearings
• Bolt-on 1/4in laser-cut reinforced coilover brackets
• Refreshed SpeedBumps provide 4X the bottoming resistance
• RT4 Long Arm suspension for control, flex and stability

Specifications

• Powertrain: 392
• Axles: front and rear HD 3.25in diameter axles
• Designed for standard 3.0in springs

Fitment

• Jeep Wrangler JL 4-Door 2018-2026

Not compatible with 2-door models.

Notes

• Requires wheels with 4.75in backspacing or less, or a 1.75in wheel offset adapter pair (1057000 x 2) for stock wheels, not included.
• Requires a front driveline double cardan upgrade due to increased travel.
• Models with plastic bumpers require removal of the bumper-to-fender wind deflector/splash guards.
• Requires cutting or removal of factory control arm bracketry and spring buckets.
• Light inner fender liner trimming is required.
• Alignment is required.

MPN 1357026 · UPC 843885071730
