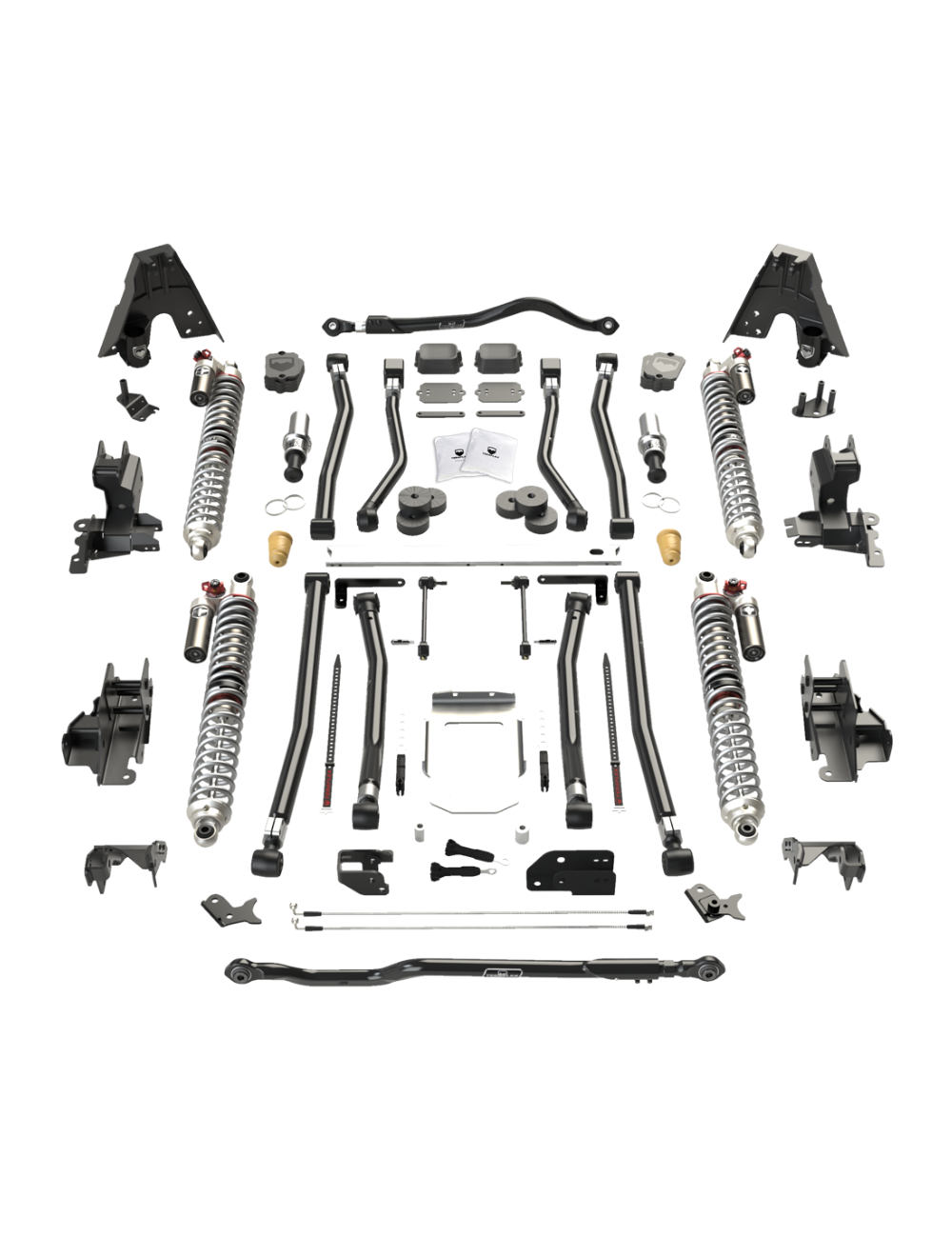

Jeep Wrangler JL 4-Door 2018-2026, TeraFlex Alpine RT Coilover Suspension System, 392, F44/R60 Axles

Coilover shocks promise a big step up, but many bring spring twang, slider slap, clicking and mount squeaks. A Rubicon 392 owner wants the upgrade without the noise.

The TeraFlex Alpine RT coilover system is built for the 4-door JL Rubicon with the 392 powertrain, with front and rear Falcon coilovers (13in stroke) and a 4.5in lift with plus or minus 1.25in of adjustability. Falcon 3.3 series Quick Adjust tuning, JL-specific springs and sealed gimbal lock bearing mounts keep it quiet. This version is for a front JL Rubicon axle and a rear HD 3.25in diameter axle.

Bolt on the coilover brackets, set the ride height, align, and the 392 gets a quiet long-travel suspension.

Key Features

• 13in stroke Falcon coilovers, front and rear
• Adjustable crossover for true dual-rate
• 4.5in lift with plus or minus 1.25in adjustability using quick adjust snap rings
• Falcon 3.3 series Quick Adjust tuning
• JL-specific springs and shock tuning
• Sealed and booted oversized gimbal lock bearings
• Bolt-on 1/4in laser-cut reinforced coilover brackets
• Refreshed SpeedBumps provide 4X the bottoming resistance
• RT4 Long Arm suspension for control, flex and stability

Specifications

• Powertrain: 392
• Axles: a front JL Rubicon axle and a rear HD 3.25in diameter axle
• Designed for standard 3.0in springs

Fitment

• Jeep Wrangler JL 4-Door 2018-2026

Not compatible with 2-door models.

Notes

• Requires wheels with 4.75in backspacing or less, or a 1.75in wheel offset adapter pair (1057000 x 2) for stock wheels, not included.
• Requires a front driveline double cardan upgrade due to increased travel.
• Models with plastic bumpers require removal of the bumper-to-fender wind deflector/splash guards.
• Requires cutting or removal of factory control arm bracketry and spring buckets.
• Light inner fender liner trimming is required.
• Alignment is required.

MPN 1357016 · UPC 843885071723
