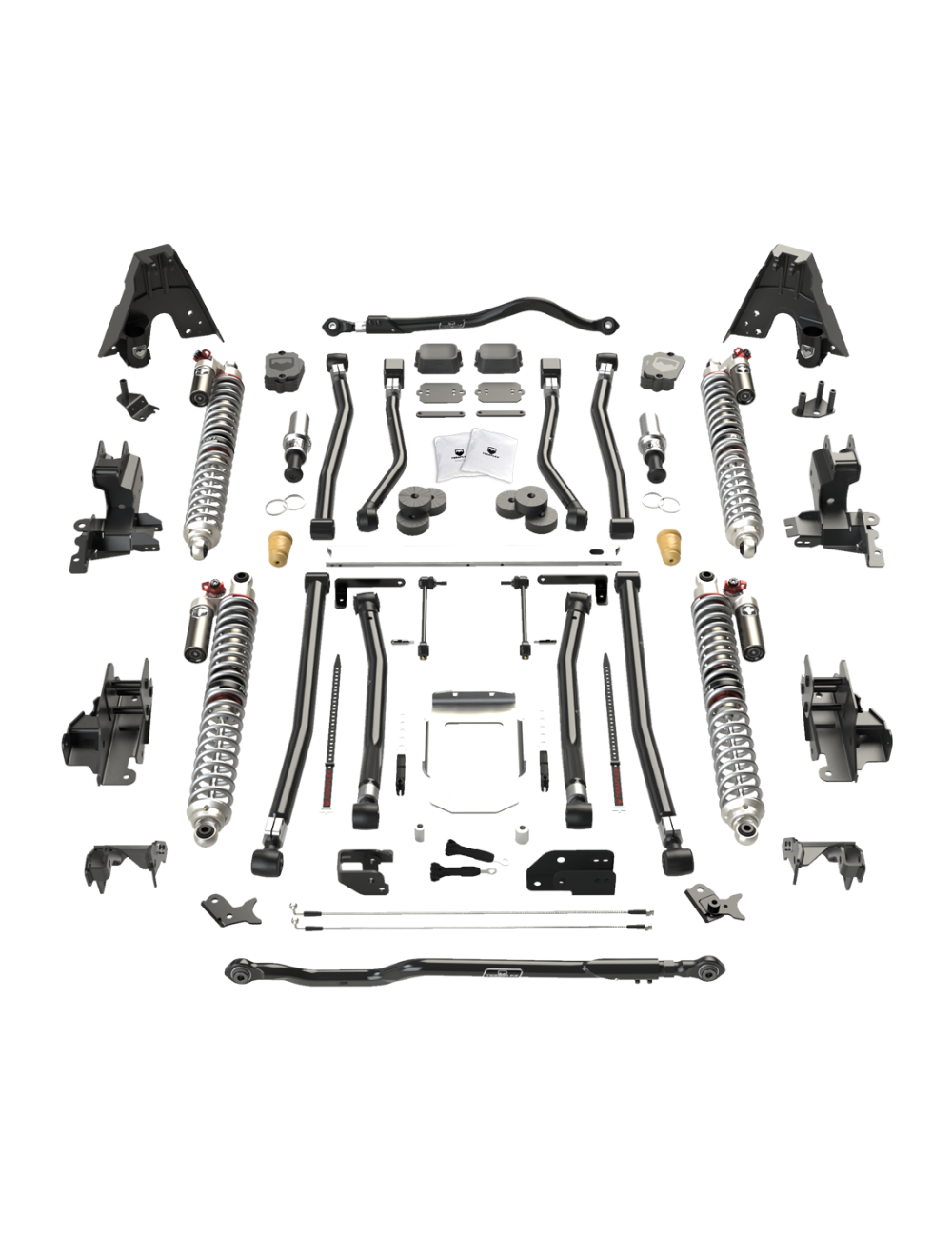

Jeep Wrangler JL 4-Door 2018-2026, TeraFlex Alpine RT Coilover Suspension System, 3.0L Diesel, F44/R60 Axles

Coilover shocks promise a big step up, but many bring spring twang, slider slap, clicking and mount squeaks. A Rubicon owner wants the upgrade without the noise.

The TeraFlex Alpine RT coilover system is built for the 4-door JL Rubicon and matched to the 3.0L Diesel powertrain, with a front JL Rubicon axle and a rear HD 3.25in diameter axle. Falcon 3.3 series Quick Adjust coilovers have a 13in stroke front and rear, JL-specific springs and tuning, and a 4.5in lift with plus or minus 1.25in of adjustability. Sealed and booted oversized gimbal lock bearings keep the shocks aligned.

Bolt on the coilover brackets, set the ride height, align, and the Jeep runs a quiet long-travel suspension.

Key Features

• 13in stroke Falcon coilovers, front and rear
• Adjustable crossover for true dual-rate
• 4.5in lift with plus or minus 1.25in adjustability using quick adjust snap rings
• Falcon 3.3 series Quick Adjust tuning
• JL-specific springs and shock tuning
• Sealed and booted oversized gimbal lock bearings
• Bolt-on 1/4in laser-cut reinforced coilover brackets
• Refreshed SpeedBumps provide 4X the bottoming resistance
• RT4 Long Arm suspension for control, flex and stability

Specifications

• Powertrain: 3.0L Diesel
• Axles: a front JL Rubicon axle and a rear HD 3.25in diameter axle
• Designed for standard 3.0in springs

Fitment

• Jeep Wrangler JL 4-Door 2018-2026

Not compatible with 2-door models.

Notes

• Requires wheels with 4.75in backspacing or less, or a 1.75in wheel offset adapter pair (1057000 x 2) for stock wheels, not included.
• Requires a front driveline double cardan upgrade due to increased travel.
• Models with plastic bumpers require removal of the bumper-to-fender wind deflector/splash guards.
• Requires cutting or removal of factory control arm bracketry and spring buckets.
• Light inner fender liner trimming is required.
• Alignment is required.

MPN 1357011 · UPC 843885071075
