Jeep Wrangler JK 2007-2018, TeraFlex Tera60 Hydro Ram Assist Steering Bracket and HD Tie Rod Clamp Kit

Adding a hydraulic ram assist to a JK means a solid place to mount it. The TeraFlex Tera60 Hydro Ram Assist Steering Bracket and HD Tie Rod Clamp Kit bolts a PSC hydraulic ram assist into the steering system, and the clamp has a 5/8 in-18 threaded bung that attaches the ram to the 42mm HD tie rod without welding. It also adjusts toe setting, differential clearance and lock-to-lock steering position. Choose the adjustable or fixed version for the ram ends in use.

Key Features

• Quickly bolts a PSC hydraulic ram assist to the steering system
• Available for adjustable or fixed Heim-style ram assist steering systems
• Clamp attaches the ram to the 42mm HD tie rod without welding
• Clamp adjusts toe setting, differential clearance and lock-to-lock steering position
• CNC laser cut 1/4 in plate steel with a durable powder coat finish

Specifications

• Clamp: 42mm; threaded bung 5/8 in-18

Fitment

• Jeep Wrangler JK 2007-2018 (2-door and 4-door) with Tera60 and adjustable (PSC Adjust) or fixed (PSC Fixed) Heim-style hydraulic steering ram ends

For use with a raised front track bar bracket.

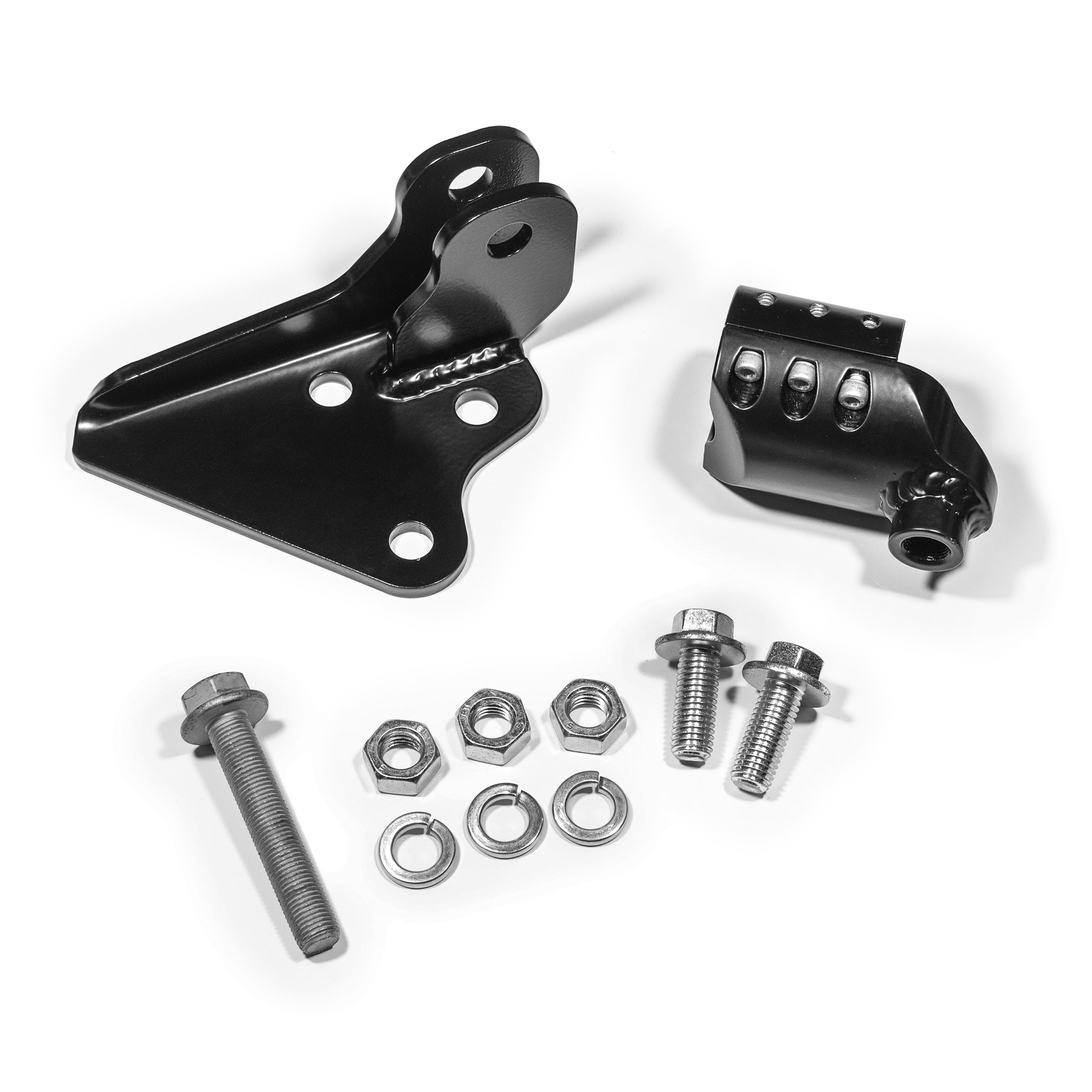

In the Box

• Tera60 Hydraulic Ram Assist Steering Bracket, PSC Adjustable
• Hydraulic Ram Assist HD Tie Rod Clamp, 42mm (1123150)
• All necessary hardware

Notes

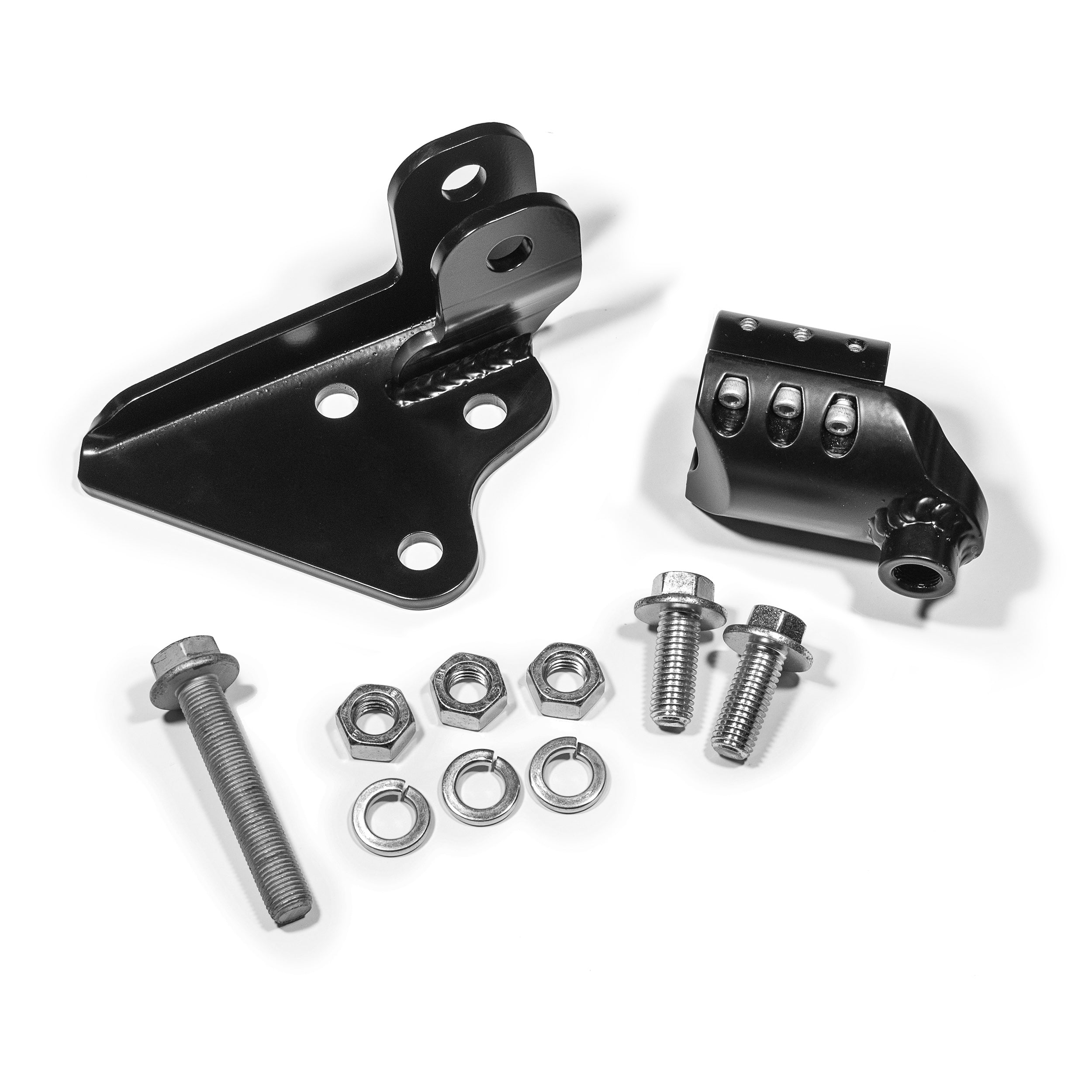

• The PSC Fixed version (3944758) uses the larger bracket for fixed Heim-style systems.

MPN 3944755 (PSC Adjust) · UPC 843885039426

MPN 3944758 (PSC Fixed) · UPC 843885039495
