Jeep Wrangler JK 2007-2018, TeraFlex Tera60 Front Axle Bracket Kit, 3.25in OD

Swapping a Dana 60 style housing into a JK means every mount has to be right, or the suspension geometry goes wrong. The TeraFlex Tera60 Front Axle Bracket Kit includes all the brackets required to install a Tera60 front axle in a JK Wrangler or Unlimited. The brackets keep the suspension geometry correct on Dana 60 style front axle housings with 3.25in diameter axle tubes. The kit is sold complete: control arm mounts, skid plate mounts, spring pads and shock and sway bar mounts. Weld them on, and the new axle sits where the suspension expects it.

Key Features

• Includes all brackets required to install a Tera60 front axle
• Maintains correct suspension geometry on Dana 60 style housings with 3.25in OD axle tubes
• Sold as a complete kit

Specifications

• Axle tube OD: 3.25in
• Front axle: Dana 60 style housing

Fitment

• Jeep Wrangler JK 2007-2018 (2-door and 4-door)

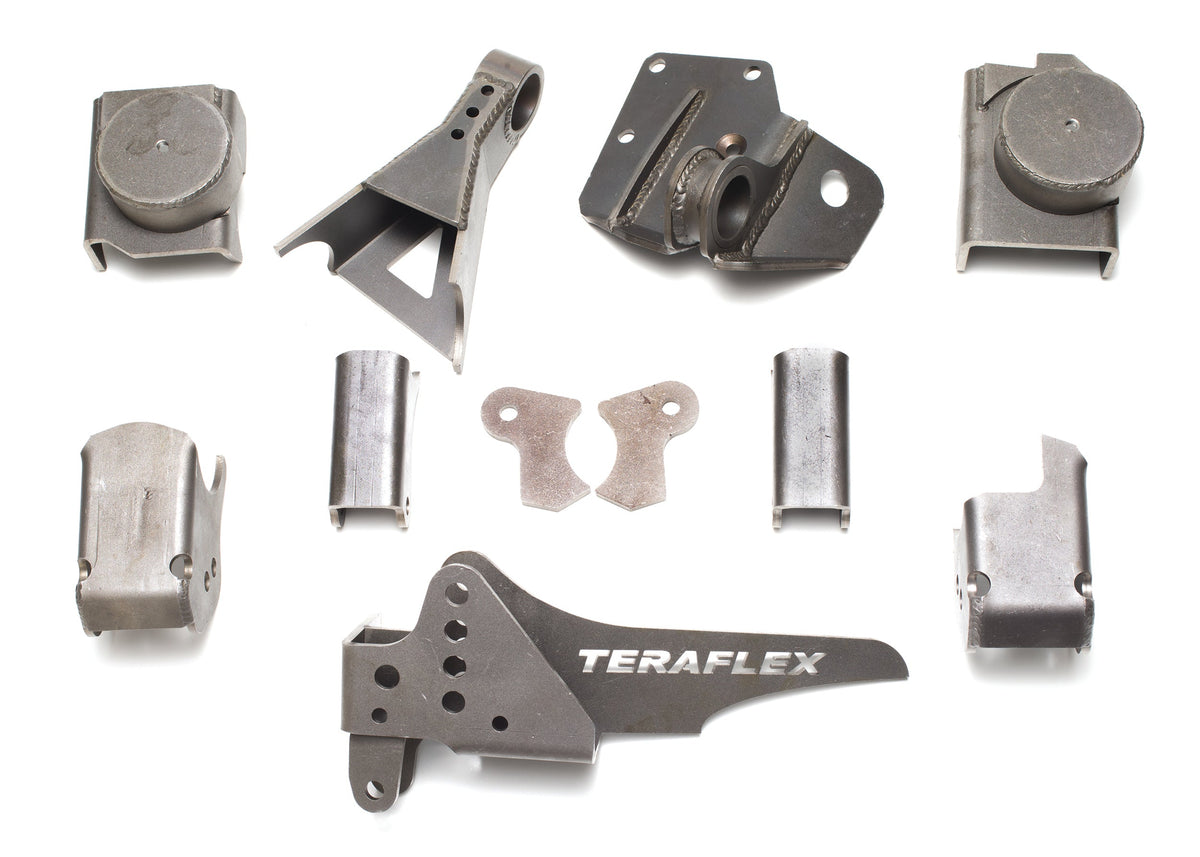

In the Box

• Control arm mount, front upper right (945750)
• Control arm mount and skid plate, front lower left (944791)
• Control arm mount and skid plate, front lower right (944792)
• Front track bar mount (4-6in lift) (944764)
• Coil spring pads, front lower left (990880) and right (990871)
• Shock mounts, front lower (944720) x 2
• Sway bar link mounts, front (944730) x 2
• All necessary hardware

MPN 3990700 · UPC 843885002697
