Jeep Wrangler JK 2007-2018, TeraFlex Tera44 Master Bearing Install Kit Info & Specs
Installing a locker in a Tera44 front axle takes a long list of bearings, shims and sealants, and a missing piece stops the job. The TeraFlex Tera44 Master Bearing Install Kit includes all the components needed to install a standard Dana 44 locker, such as the ARB RD147, inside a TeraFlex Tera44 front axle housing. It uses standard Dana 44 side carrier bearings. Set up the carrier with the shims and compound in the kit, and the locker is in. The kit also supplies the pinion seal, crush sleeve and sealants, so the job does not stall on a missing part.
Key Features
- All components to install a standard Dana 44 locker (such as ARB RD147) in a Tera44 Front Axle Housing
- Standard Dana 44 side carrier bearings
Fitment
- Jeep Wrangler JK 2007-2018 (2-door and 4-door)

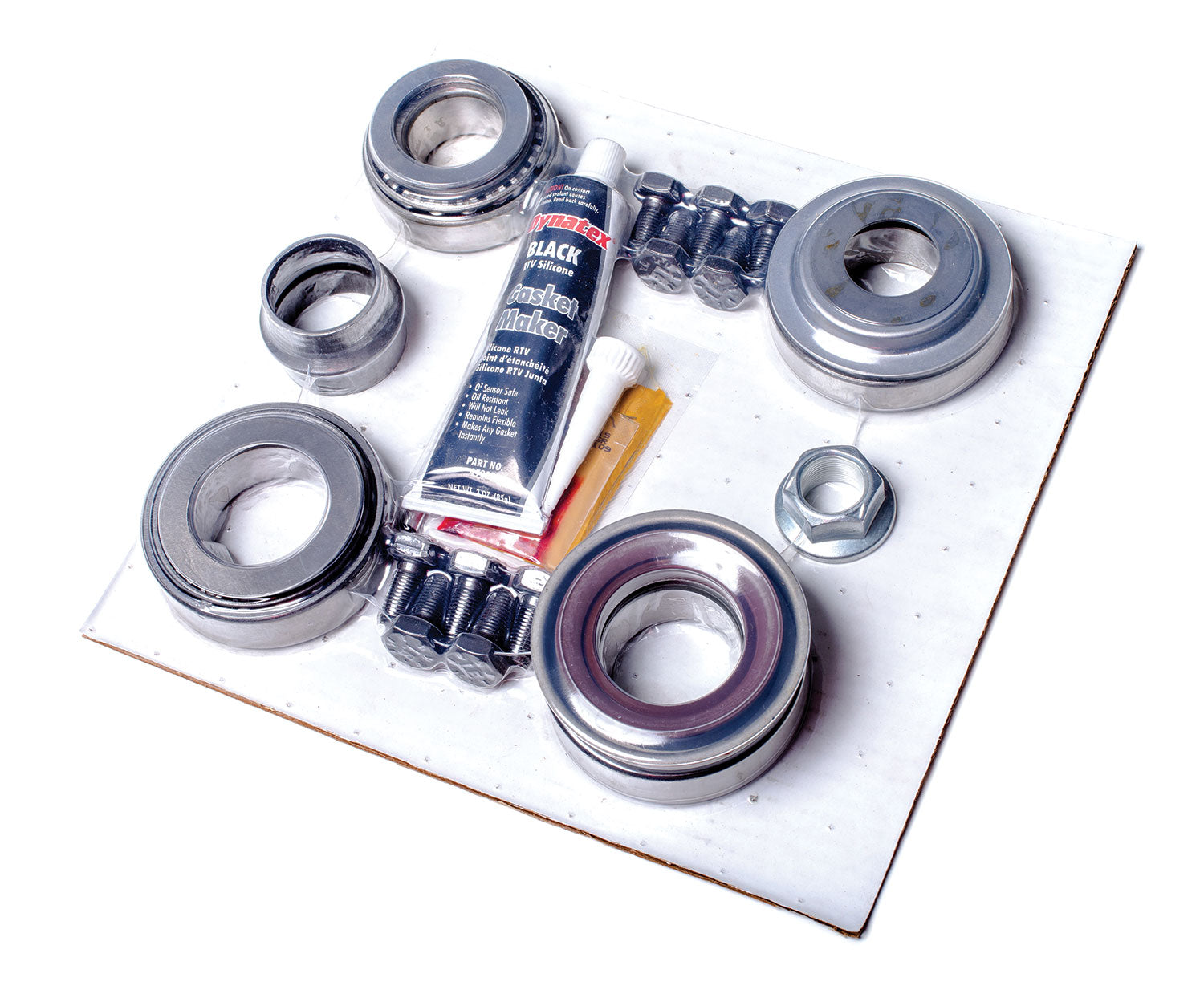

In the Box
- Standard (non-Rubicon) Dana 44 carrier side bearing cone and cups
- Inner pinion bearing cone and cup
- Outer pinion bearing cone and cup
- Pinion bearing shims
- Pinion nut
- Pinion seal
- Pinion slinger
- Pinion baffle
- Ring gear bolts
- Carrier side bearing shims
- Front crush sleeve
- Gear marking compound and brush, thread locker
- Black RTV sealant
MPN 359745 · UPC 843885031987
