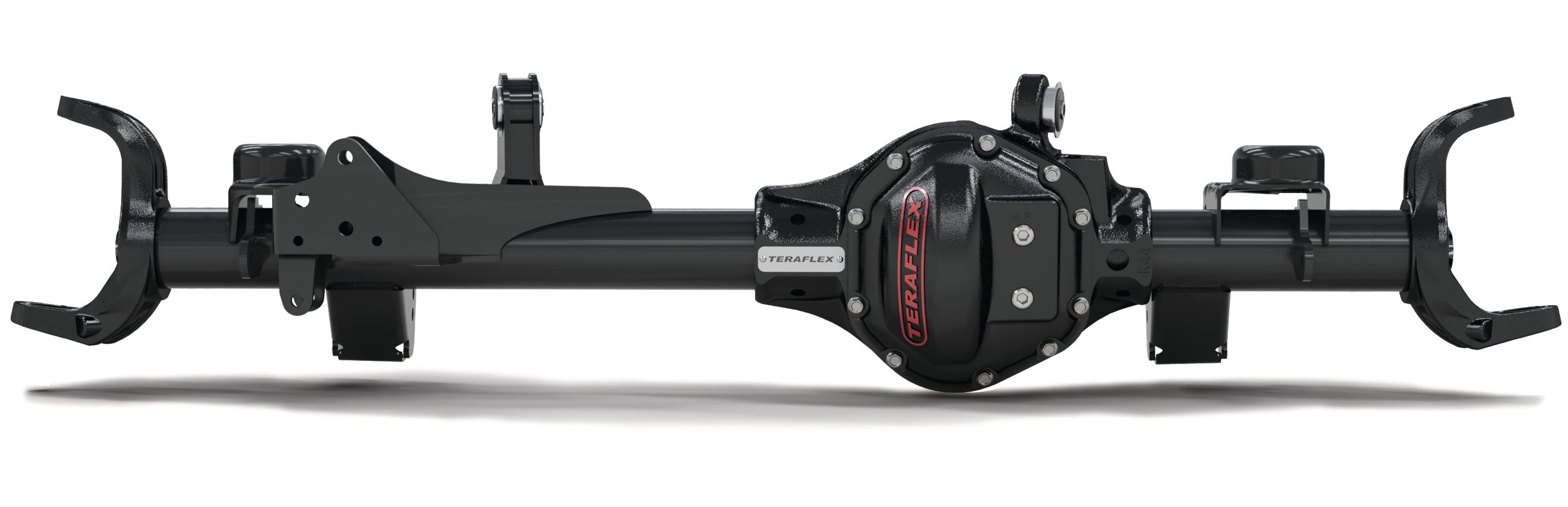

Jeep Wrangler JK 2007-2018, TeraFlex Tera44 HD Wide Front Axle Housing with ARB Locker, 4-6in Lift

A bent or broken front axle ends a trip, and the stock axle has weak areas on a built JK. The TeraFlex Tera44 HD Wide Front Axle Housing steps up from the bare housing with a choice of pre-installed ring and pinion gears, an ARB air locker and TeraFlex HD ball joints. The housing has axle tubes, bracketry, forged inner knuckles, pre-installed inner seals and upper control arm bushings. Transfer the outer stub shafts, outer knuckles and outer axle assembly, add new inner axle shafts, and the front axle is complete.

Key Features

• Heavy-duty housing with axle tubes, bracketry and forged inner knuckles
• Pre-installed inner seals and upper control arm bushings
• Choice of pre-installed ring and pinon gears, ARB air locker and TeraFlex HD ball joints
• Replaces bent, broken or damaged JK axles, including Rubicon models, or beefs up the stock axle's weak areas

Specifications

• Width: 70 in (wide)
• Lift height: 4-6 in
• Gear ratios: 5.38, 5.13, 4.88, 4.56 and 4.10 (select by variant)

Fitment

• Jeep Wrangler JK 2007-2018 (2-door and 4-door)

In the Box

• ARB Air Locker
• Spicer ring and pinion
• Spicer bearings and install kits
• TeraFlex HD ball joints
• Factory yoke

Notes

• Requires new inner axle shafts.
• Transfer the outer stub shafts, outer knuckles and outer axle assembly (unit bearings, brakes, sensors) from the existing axle.
• The 70 in wide front axle housing must be used with a 70 in wide rear axle housing, such as the Tera CRD60 HD Wide Rear Axle Housings with semi-float or full-float axle shafts.

MPN 35435384 (5.38 Ratio) · UPC 843885043867

MPN 35435134 (5.13 Ratio) · UPC 843885044086

MPN 35434884 (4.88 Ratio) · UPC 843885043843

MPN 35434564 (4.56 Ratio) · UPC 843885043836

MPN 35434104 (4.10 Ratio) · UPC 843885043829
