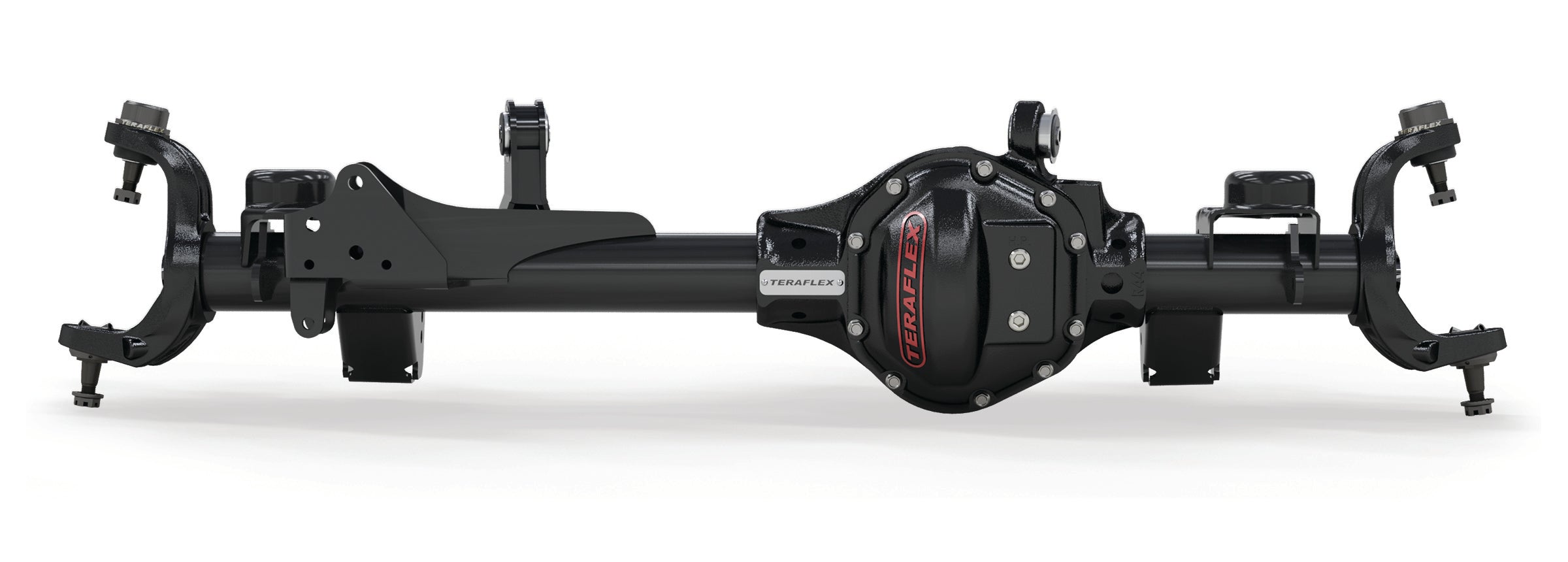

Jeep Wrangler JK 2007-2018, TeraFlex Tera44 HD Front Axle Housing with ARB Locker, 4-6in Lift

A bent or broken front axle ends a trip, and the stock axle has weak areas on a built JK. The TeraFlex Tera44 HD Front Axle Housing steps up from the bare housing with a choice of pre-installed ring and pinion gears, an ARB air locker and TeraFlex HD ball joints. The housing has axle tubes, bracketry, forged inner knuckles, pre-installed inner seals and upper control arm bushings. Transfer the outer stub shafts, outer knuckles and outer axle assembly, add new inner axle shafts, and the front axle is complete.

Key Features

• Heavy-duty housing with axle tubes, bracketry and forged inner knuckles
• Pre-installed inner seals and upper control arm bushings
• Choice of pre-installed ring and pinon gears, ARB air locker and TeraFlex HD ball joints
• Replaces bent, broken or damaged JK axles, including Rubicon models, or beefs up the stock axle's weak areas

Specifications

• Lift height: 4-6 in
• Gear ratios: 5.38, 5.13, 4.88, 4.56 and 4.10 (select by variant)

Fitment

• Jeep Wrangler JK 2007-2018 (2-door and 4-door)

In the Box

• ARB Air Locker
• Spicer ring and pinion
• Spicer bearings and install kits
• TeraFlex HD ball joints
• Factory yoke

Notes

• Requires new inner axle shafts.
• Transfer the outer stub shafts, outer knuckles and outer axle assembly (unit bearings, brakes, sensors) from the existing axle.

MPN 3543538 (5.38 Ratio) · UPC 843885037576

MPN 3543513 (5.13 Ratio) · UPC 843885037569

MPN 3543488 (4.88 Ratio) · UPC 843885037552

MPN 3543456 (4.56 Ratio) · UPC 843885037545

MPN 3543410 (4.10 Ratio) · UPC 843885037538
