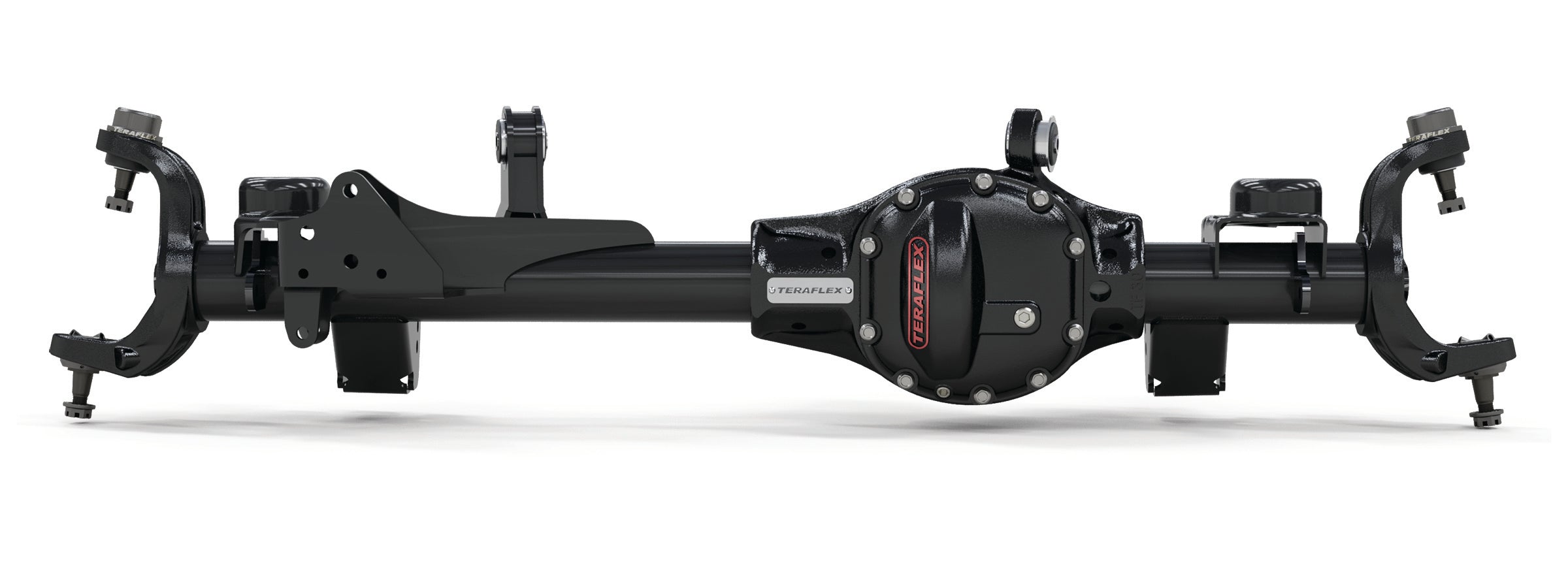

Jeep Wrangler JK 2007-2018, TeraFlex Tera30 HD Front Axle Housing with ARB Locker, 4-6in Lift

A bent or broken front axle ends a trip, and the stock axle has weak areas on a built JK. The TeraFlex Tera30 HD Front Axle Housing steps up from the bare housing with a choice of pre-installed ring and pinion gears, an ARB air locker and TeraFlex HD ball joints. The housing has axle tubes, bracketry, forged inner knuckles, pre-installed inner seals and upper control arm bushings. Transfer the inner axle shafts, outer stub shafts, outer knuckles and outer axle assembly, and the front axle is complete.

Key Features

• Heavy-duty housing with axle tubes, bracketry and forged inner knuckles
• Pre-installed inner seals and upper control arm bushings
• Choice of pre-installed ring and pinon gears, ARB air locker and TeraFlex HD ball joints
• Replaces bent, broken or damaged JK axles, including Rubicon models, or beefs up the stock axle's weak areas

Specifications

• Lift height: 4-6 in
• Gear ratios: 5.13, 4.88, 4.56 and 4.10 (select by variant)

Fitment

• Jeep Wrangler JK 2007-2018 (2-door and 4-door)

In the Box

• ARB Air Locker
• Spicer ring and pinion
• Spicer bearings and install kits
• TeraFlex HD ball joints
• Factory yoke

Notes

• Transfer the inner axle shafts, outer stub shafts, outer knuckles and outer axle assembly (unit bearings, brakes, sensors) from the existing axle.

MPN 3534513 (5.13 Ratio) · UPC 843885037415

MPN 3534488 (4.88 Ratio) · UPC 843885037392

MPN 3534456 (4.56 Ratio) · UPC 843885037378

MPN 3534410 (4.10 Ratio) · UPC 843885037354
