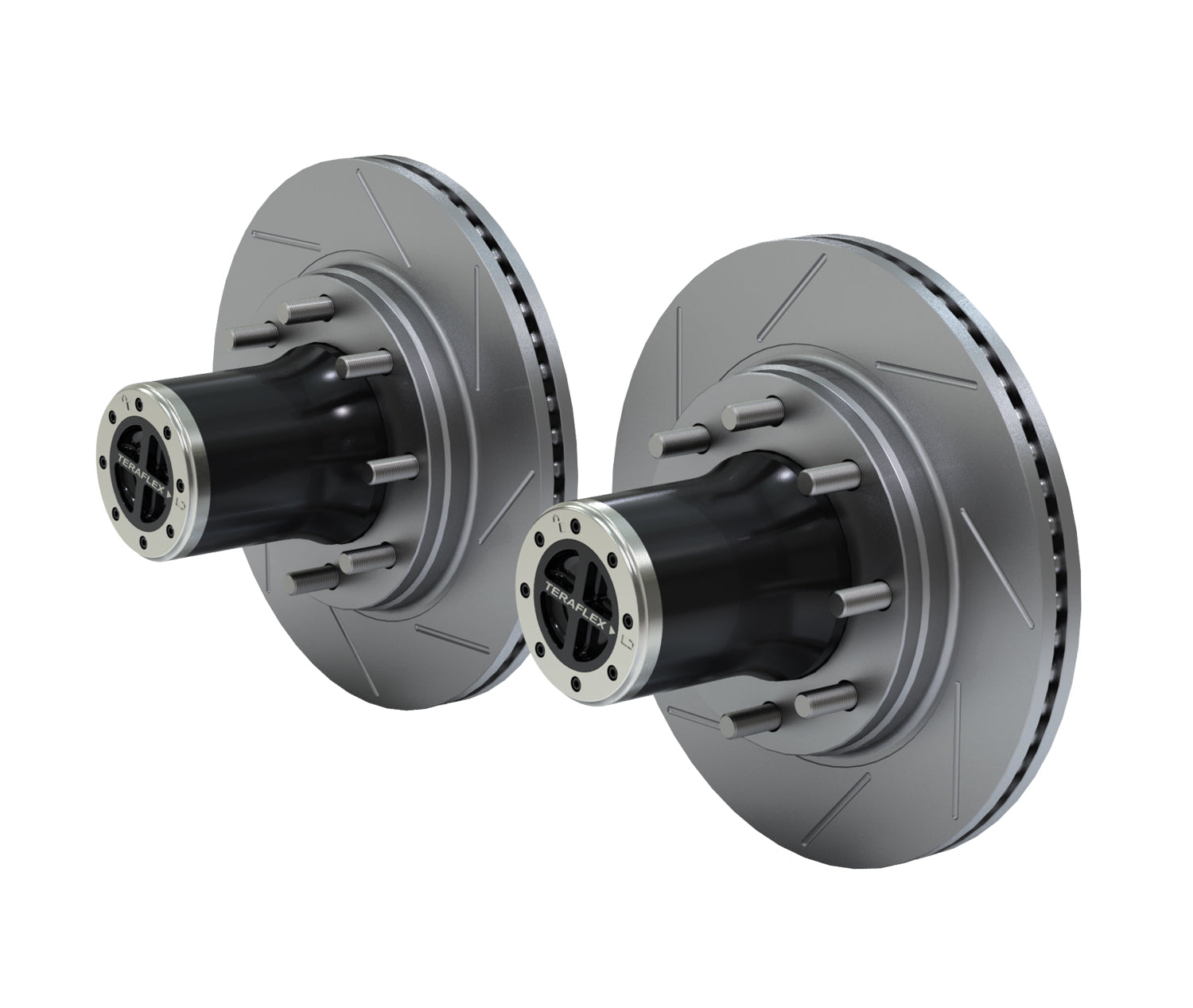

Jeep Wrangler JK 2007-2018, TeraFlex Tera CRD60 Front Axle 8-Lug Locking Hub Conversion Kit with Slotted Big Rotors

A front axle that carries big tires and hard use puts heavy load on its wheel bearings, and a 5-lug pattern limits how much wheel strength is available. High-speed front driveline failures are a worry on every highway stretch.

This TeraFlex conversion kit upgrades a Tera CRD60 front axle to an 8x6.5in bolt pattern with forged 4140 chromoly spindles. Moving the inner and outer wheel bearings farther apart dramatically reduces bearing load. The SlimLock hub kit adds forged 4340 chromoly 35-spline stub shafts, and disengaging the hubs for highway use or flat towing removes high-speed front driveline failures. The hub design seals the OEM wheel speed sensors from mud and rocks so ABS and ESP keep working.

Bolt on the hubs, spindles, stub shafts and slotted big brake kit, and run up to 37in tires.

Key Features

• 8x6.5in wheel bolt pattern increases wheel-to-flange strength over a 5-lug pattern
• Forged 4140 chromoly spindles use readily available bearings and seals
• SlimLock hub kit with forged 4340 chromoly 35-spline stub shafts
• Hub design seals the OEM wheel speed sensors, keeping ABS and ESP functions
• Disengage the hubs for highway use or flat towing

Specifications

• Wheel bolt pattern: 8x6.5in
• Max tire diameter: 37in

Fitment

• Jeep Wrangler JK 2007-2018 (2-door and 4-door)

In the Box

• Front wheel hubs, pair
• Front spindles, pair
• Stub shafts, pair
• Dana 60 SlimLock hub kit (3449350)
• Front big brake kit with slotted rotors, 8x6.5in (3030200)
• All necessary hardware

MPN 3060000 · UPC 843885041559
