Jeep Wrangler JK 2007-2018, TeraFlex HD Forged Drag Link Flip Kit with Track Bar Drop Bracket and Frame Brace Kit

A lifted JK can develop front-end shimmy and alignment problems, and nothing makes a trail drive feel less trustworthy. The TeraFlex HD Forged Drag Link Flip Kit with Track Bar Drop Bracket and Frame Brace Kit goes after those issues together. The forged drag link is 50% stiffer than factory and is flipped over the knuckle. The drop bracket lowers the front track bar mount, and the frame braces reduce frame movement. TeraFlex highly recommends it for JK models with 4in or more of lift, and it works with all factory and aftermarket axle shafts, ball joints, hubs and tie rods. Install it on a 4-6in lift for steering that tracks straight.

Key Features

• HD forged drag link, 50% stiffer than factory, flipped over the knuckle with pressed-in joints
• Front upper track bar drop bracket lowers the track bar mount to correct steering geometry
• Multiple track bar mounting holes to adjust the angle and reduce bump steer
• Front right frame brace and front frame brace bar reinforce the frame
• Compatible with factory and aftermarket axle shafts, ball joints, wheel hubs and tie rods
• Does not affect factory ESP and ABS operation

Specifications

• Lift height: 4-6in (recommended for 4in or more)
• Front axle: Dana 30 or Dana 44

Fitment

• Jeep Wrangler JK 2007-2018 (2-door and 4-door)

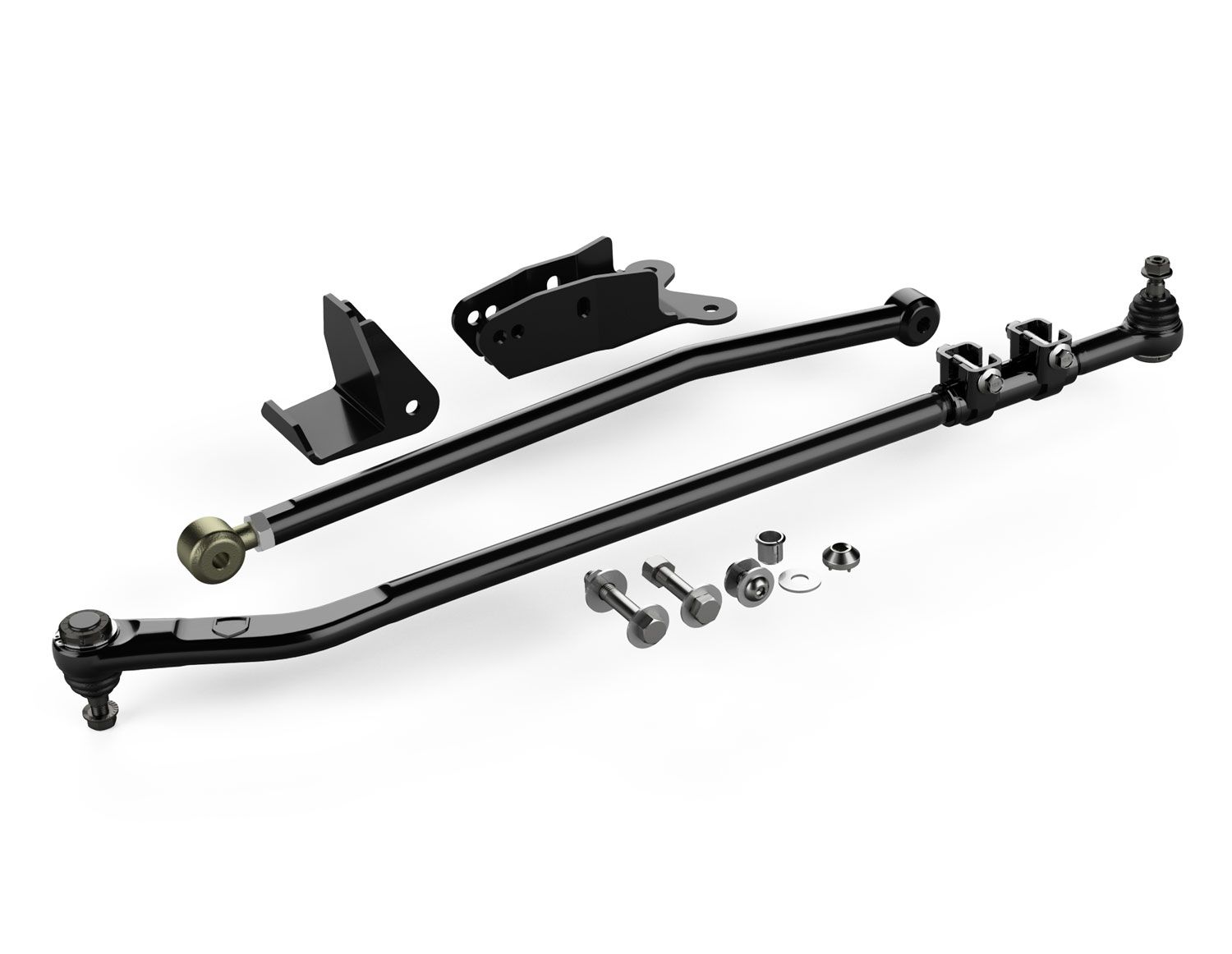

In the Box

• HD Forged Drag Link Flip Kit (4-6in lift)
• Track bar drop bracket and frame brace kit, front upper (4-6in lift)
• Track bar drop bracket kit, front upper
• Frame brace, front right
• Frame brace bar, front
• All necessary hardware

MPN 1600450 · UPC 843885034391
